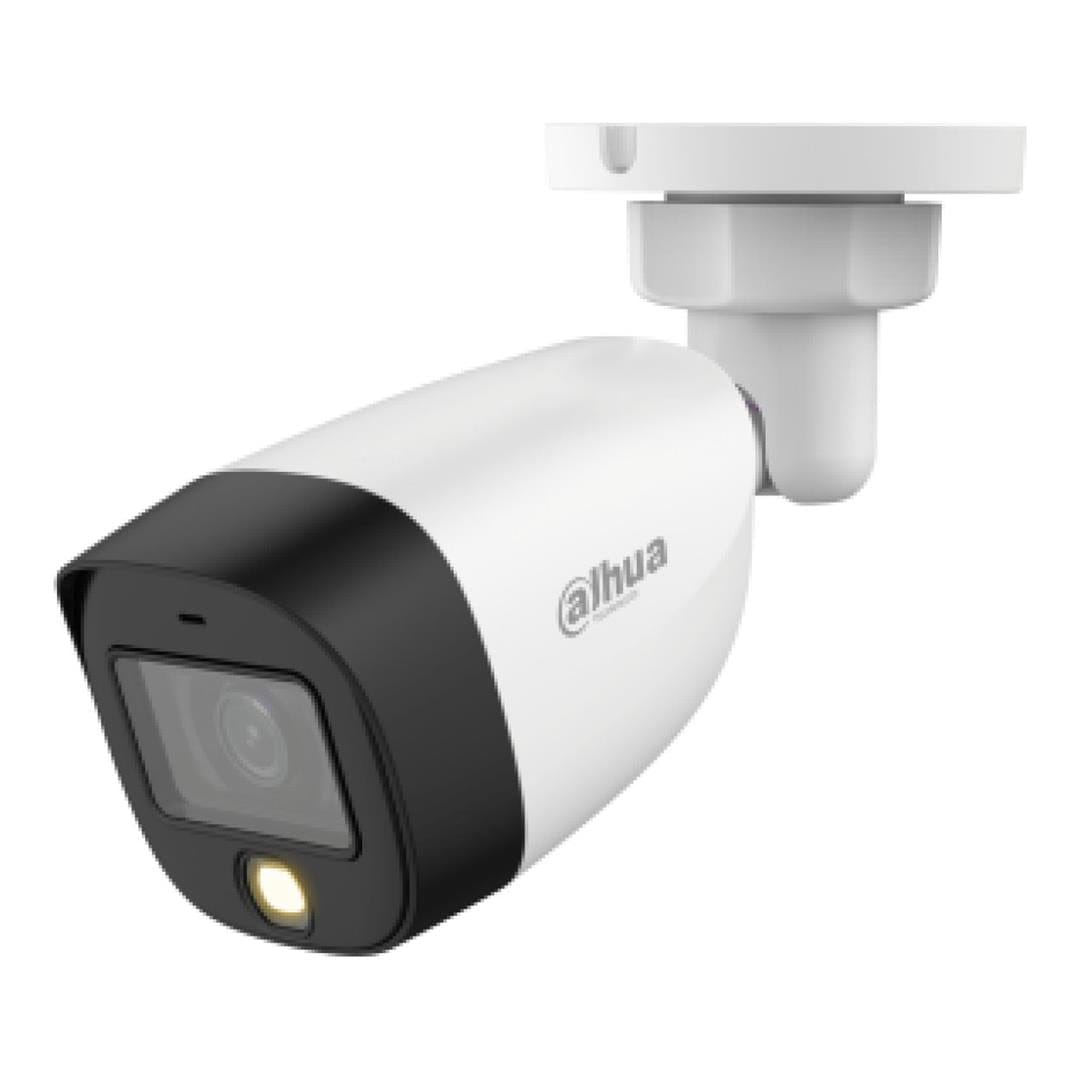

Dahua HAC-HFW1509CP-LED 5MP 2.8mm Full-colour IR HDCVI Bullet Camera

Dahua HAC-HFW1509CP-LED 5MP 2.8mm Full-colour IR HDCVI Bullet Camera

Lite Series is suitable for users who requires high quality monitoring products at a reasonable price. It is cost effective and offers high performance,which makesit an ideal choice for residential and small-medium business applications. This series offers an option of a wide range of technologies such as Full-color and Starlight, providing varioussolutions for different scenarios.

Full-colour

Full-colour camera adopts large aperture lens and high performance sensor. With higher amount of absorbed light and advanced image processing algorithm, the camera provides 24/7 color monitoring that collects clear and vivid information,significantly increasing probability of gathering valid human, vehicle, and event evidence that can be used for further intelligent analysis.

Wide Dynamic Range

With advanced Wide Dynamic Range (WDR) technology, Dahua HDCVI camera provides clear details in the environment of strong brightness contrast. The bright and dark area can get clear video even in high brightness environment or with backlight shadow.

Super Adapt

Embedded with intelligent algorithm, for changing external environment, camera can automatically adjust parameters to present the optimal image, and it solves the trouble of configuration.

Advanced 3D NR

3D NR is noise reduction technology that detects and eliminates random noises by comparing two sequential frames. Dahua’s advanced 3D NR technology allows remarkable noise reduction with little impact to sharpness, especially under limited lighting condition. Besides, the advanced 3D NR effectively decreases the band width and saves the storage space.

Warm Supplemental Lights

With warm supplemental LED lights, the camera is able to provide a coloful and vivid image even in total darkness. By default, the camera is set to smart light mode, in which the camera can automatically adjust the exposure time and light sensitivity simultaneously to avoid overexposureing of the objects in the image center.

4 Signals over 1 Coaxial Cable

HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio*, data and power. Dual-way data transmission allows the HDCVI camera to interact with the XVR, such as sending control signal or triggering alarm. Moreover, HDCVI technology supports PoC for construction flexibility.

* Audio input is available forsome models of HDCVI cameras.

Long Distance Transmission

HDCVI technology guarantees real-time transmission at long distance without any loss. It supports up to 700 m transmission for 2MP/5MP/8MP HD video via coaxial cable, and up to 300 m via UTP cable.

*Actualresults verified by real-scene testing in Dahua'stest laboratory.

Specifications:

Image Sensor: 5MP CMOS Smart Light Yes

Max. Resolution: 2880 (H) × 1620 (V)

Pixel: 5MP

Privacy Masking: Off/On (8 areas, rectangle)

Scanning System: Progressive

Electronic Shutter Speed:

• PAL:1/3 s–1/100,000 s
• NTSC:1/4 s–1/100,000 s

S/N Ratio: > 65 dB

Port Min. Illumination: 0.001 Lux/F1.0, 0 Lux warm light on

Illumination Distance: 20 m (65.61 ft)

Illuminator On/Off Control: Auto; manual

Illuminator Number: 1 Power

Pan/Tilt/Rotation Range:

• Pan: 0°–360°
• Tilt: 0°–90°
• Rotation: 0°–360°

Lens Type: Fixed lens

Mount Type: M12

Focal Length: 2.8 mm; 3.6 mm

Max. Aperture: F1.0

Field of View: 2.8 mm: H: 112°; V: 57°; D: 132° 3.6 mm: H: 88; V: 46°; D: 104°

Iris Type: Fixed iris

Close Focus Distance: 2.8 mm: 1.6 m (5.25 ft); 3.6 mm: 2.3 m (7.5 ft)
