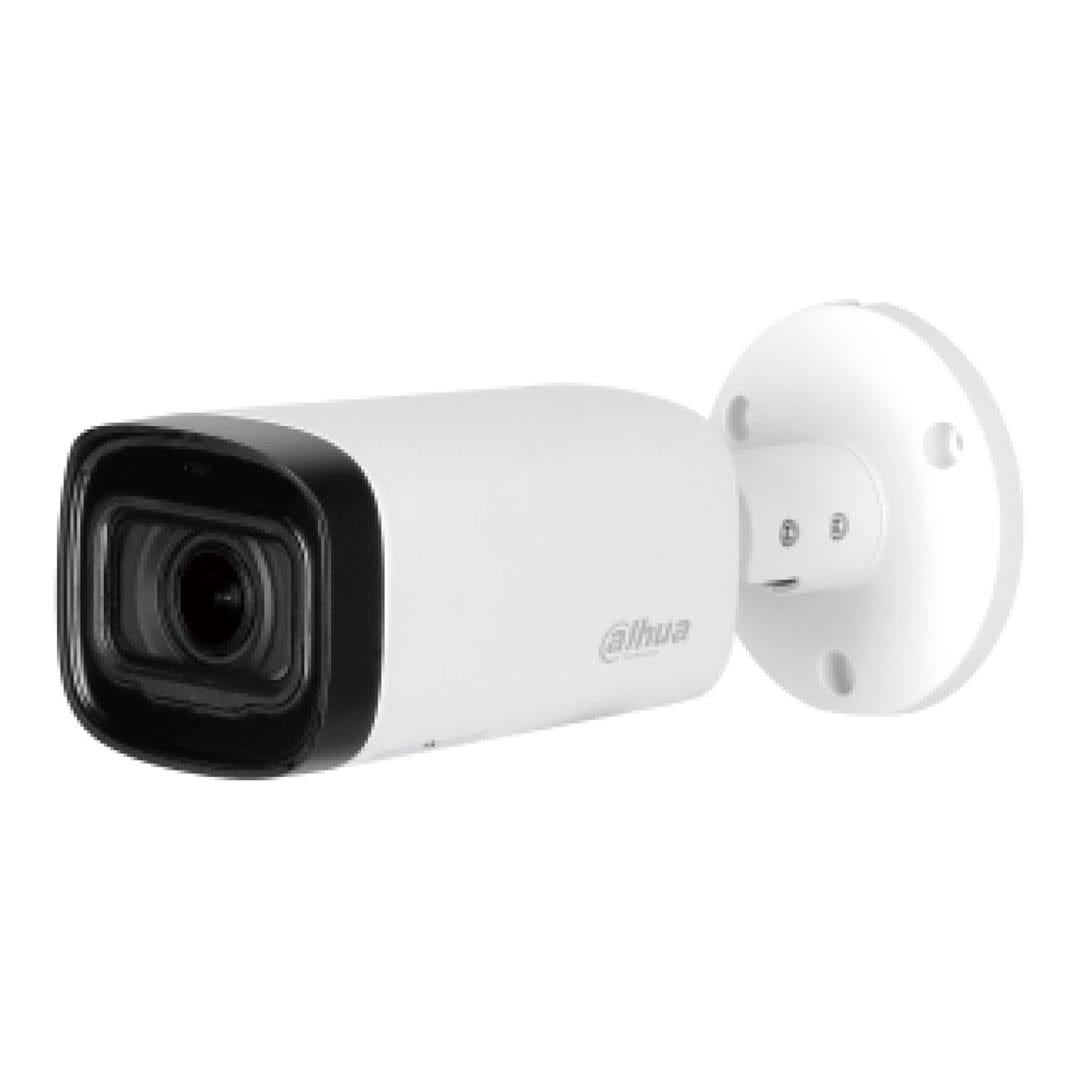

Dahua HAC-B4A21P-VF 2MP 12mm HDCVI IR Bullet Camera

Dahua HAC-B4A21P-VF 2MP 12mm HDCVI IR Bullet Camera

Smart IR Illumination

With its IR illumination, the camera provides optimal performance in low light conditions, ensuring uniformity in the brightness of B/W images. Through its smart IR technology, the camera also compensates for the distance of targets by adjusting the intensity of its IR LEDs, preventing overexposure of images as targets move closer to the camera.

4 Signals over 1 Coaxial Cable

HDCVI technology supports 4 signals (video, audio*, data and power) which are simultaneously transmitted over a coaxial cable. Dual-way data transmission allows the HDCVI camera to interact with the XVR to perform various actions such as sending control signals and triggering alarms. HDCVI technology also supports PoC, which makes the camera
easy and quick to install.

* Audio input is available for select HDCVI camera models.
Long Distance Transmission

HDCVI technology provides long distance transmission in real-time without transmission loss. It supports transmission distances up to 700 m for 2-MP/5-MP/8-MP HD videos through coaxial cables, and up to 300 m through UTP cables. The results were obtained and verified through rigorous testing in Dahua's test laboratory.

2MP HDCVI IR Bullet Camera

• Max. 30 fps@1080p
• CVI/CVBS/AHD/TVI switchable
• 2.7-12 mm vari-focal lens
• Max. IR length 40 m, Smart IR
• IP67,12 VDC

Specifications:

Pixel: 2 MP

Image Sensor: 2MP CMOS

Max. Resolution: 1920 (H) × 1080 (V)

Scanning System: Progressive

Electronic Shutter Speed:

• PAL: 1/25 s–1/100,000 s
• NTSC: 1/30 s–1/100,000 s

Min. Illumination:

• 0.04 lux@F1.7 (Color, 30 IRE)
• 0.004 lux@F1.7 (B/W, 30 IRE)
• 0 lux (Illuminator on)

S/N Ratio: >65 dB

Illumination Distance: 40 m (131.23 ft)

Illuminator On/Off Control: Auto/Manual

Illuminator Number: 2 (IR light)

Pan/Tilt/Rotation Range:

• Pan: 0°–360°
• Tilt: 0°–90°
• Rotation: 0°–360°

Lens Type: Manual Vari-focal

Lens Mount: φ14

Focal Length: 2.7–12 mm

Max. Aperture: F1.7

Field of View: H: 102°–32°; V: 54°–18°; D: 121°–37°

Iris Control: Fixed

Close Focus Distance: 0.8 m

Video Output: Video output choices of CVI/TVI/AHD/CVBS by one BNC port
