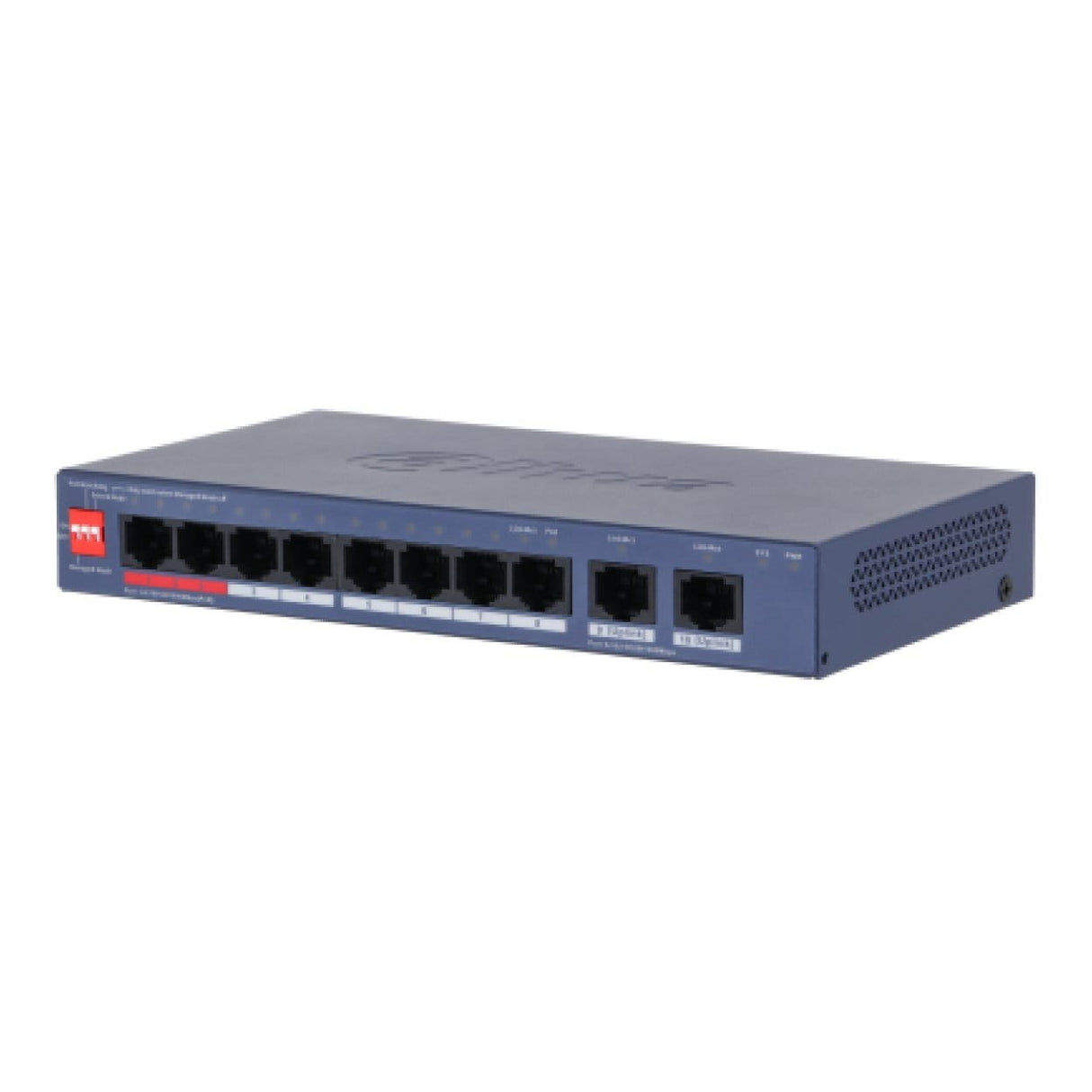

Dahua DH-CS4010-8GT-110 10-port Cloud L2 Managed Network Switch

Dahua DH-CS4010-8GT-110 10-port Cloud L2 Managed Network Switch

The Dahua DH-CS4010-8GT-110 is a 10-port Layer 2 cloud-managed PoE switch designed to provide reliable network connectivity and centralised management for surveillance, enterprise, and SMB networking applications. Featuring eight Gigabit PoE ports and two Gigabit uplink ports, the switch delivers high-speed data transmission and power distribution for IP cameras, wireless access points, VoIP phones, and other PoE-enabled devices.

With support for Dahua's cloud management platform, administrators can remotely monitor, configure, and maintain network devices through a web interface or mobile application. Intelligent PoE management, network protection features, and simplified deployment make it an ideal solution for modern IP surveillance and business network environments.

Features:

• 10-port Layer 2 cloud-managed switch
• 8 × Gigabit RJ45 PoE ports
• 2 × Gigabit RJ45 uplink ports
• Total PoE power budget of 110W
• Remote cloud management and monitoring
• Web and mobile app-based administration
• Supports IEEE 802.3af and IEEE 802.3at PoE standards
• Intelligent PoE power management
• PoE Watchdog for automatic device recovery
• VLAN, port isolation, and loop protection support
• Network topology visualisation
• Plug-and-play deployment
• Fanless design for quiet operation
• Suitable for surveillance and enterprise networking applications

Specifications:

Product Type: Cloud Managed PoE Switch

Layer: Layer 2

Total Ports: 10

PoE Ports: 8 × 10/100/1000Mbps RJ45

Uplink Ports: 2 × 10/100/1000Mbps RJ45

PoE Standards: IEEE 802.3af, IEEE 802.3at

Total PoE Budget: 110W

Switching Capacity: 20Gbps

Packet Forwarding Rate: 14.88Mpps

MAC Address Table: 8K

VLAN Support: Yes

Port Isolation: Yes

Loop Protection: Yes

Storm Control: Yes

PoE Watchdog: Yes

Management Methods: Cloud Platform, Web Interface, Mobile App

Network Protocols: IPv4, DHCP, SNMP, LLDP

Operating Temperature: -10°C to +55°C

Power Supply: 53V DC External Power Supply

Housing: Metal

Installation: Desktop or Wall Mount
