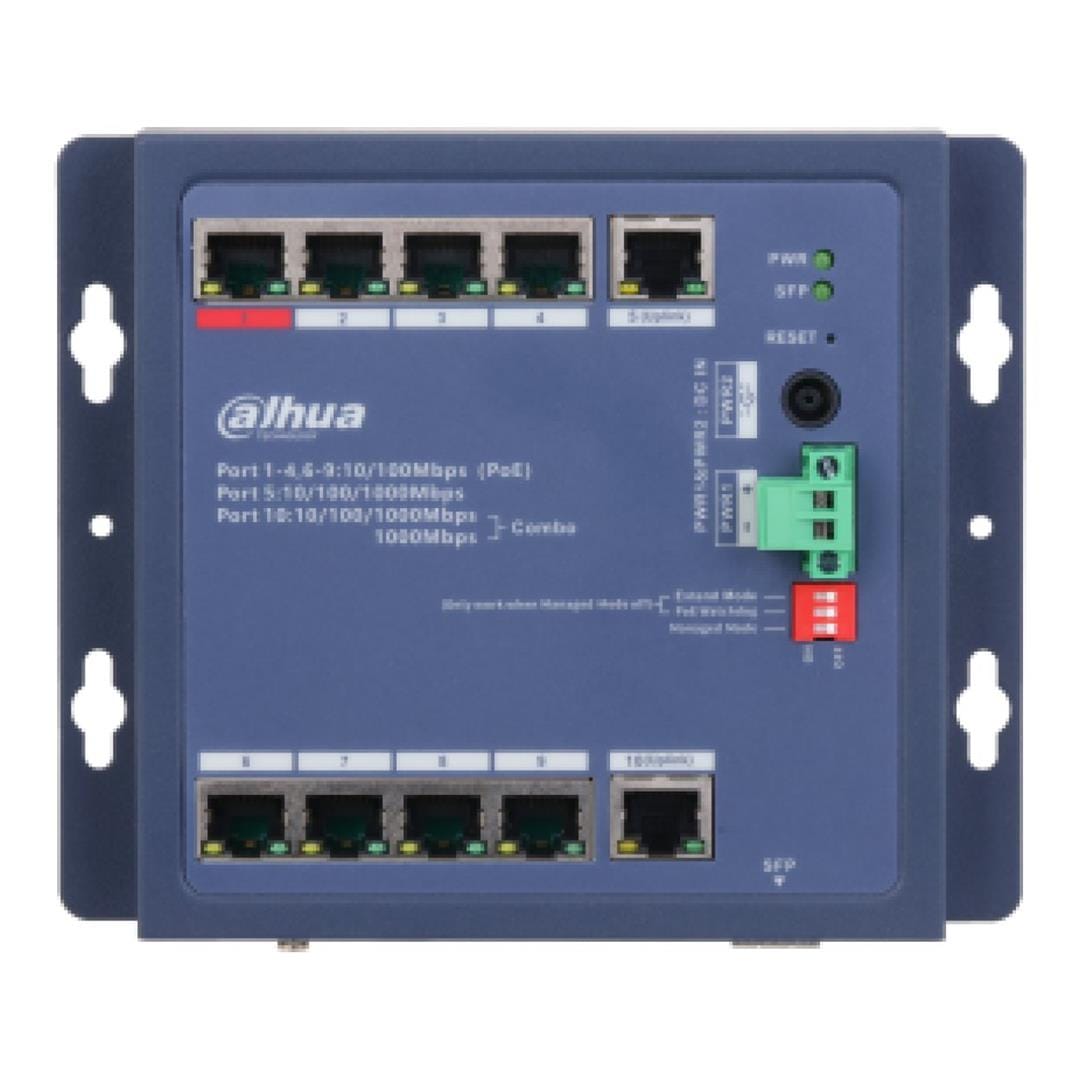

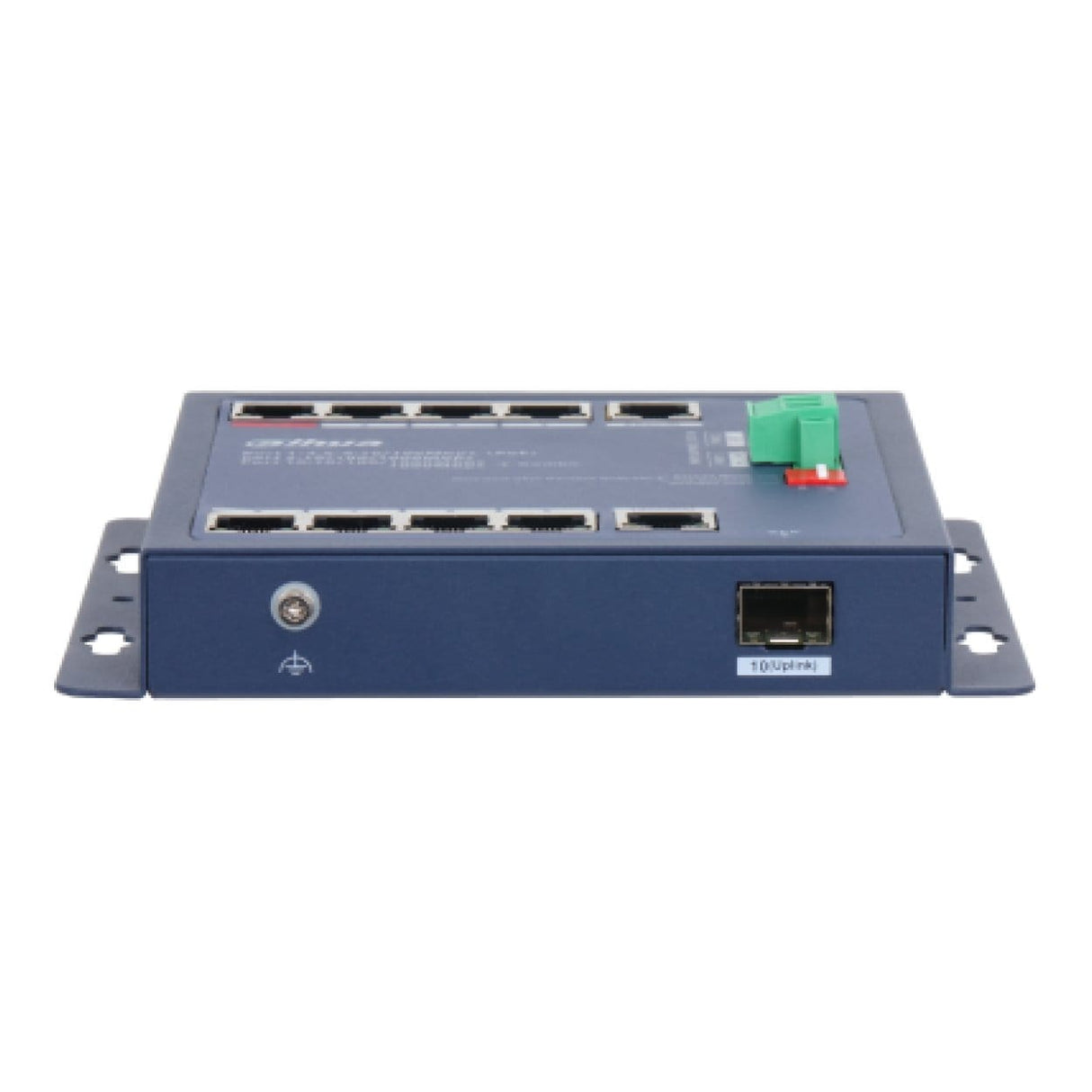

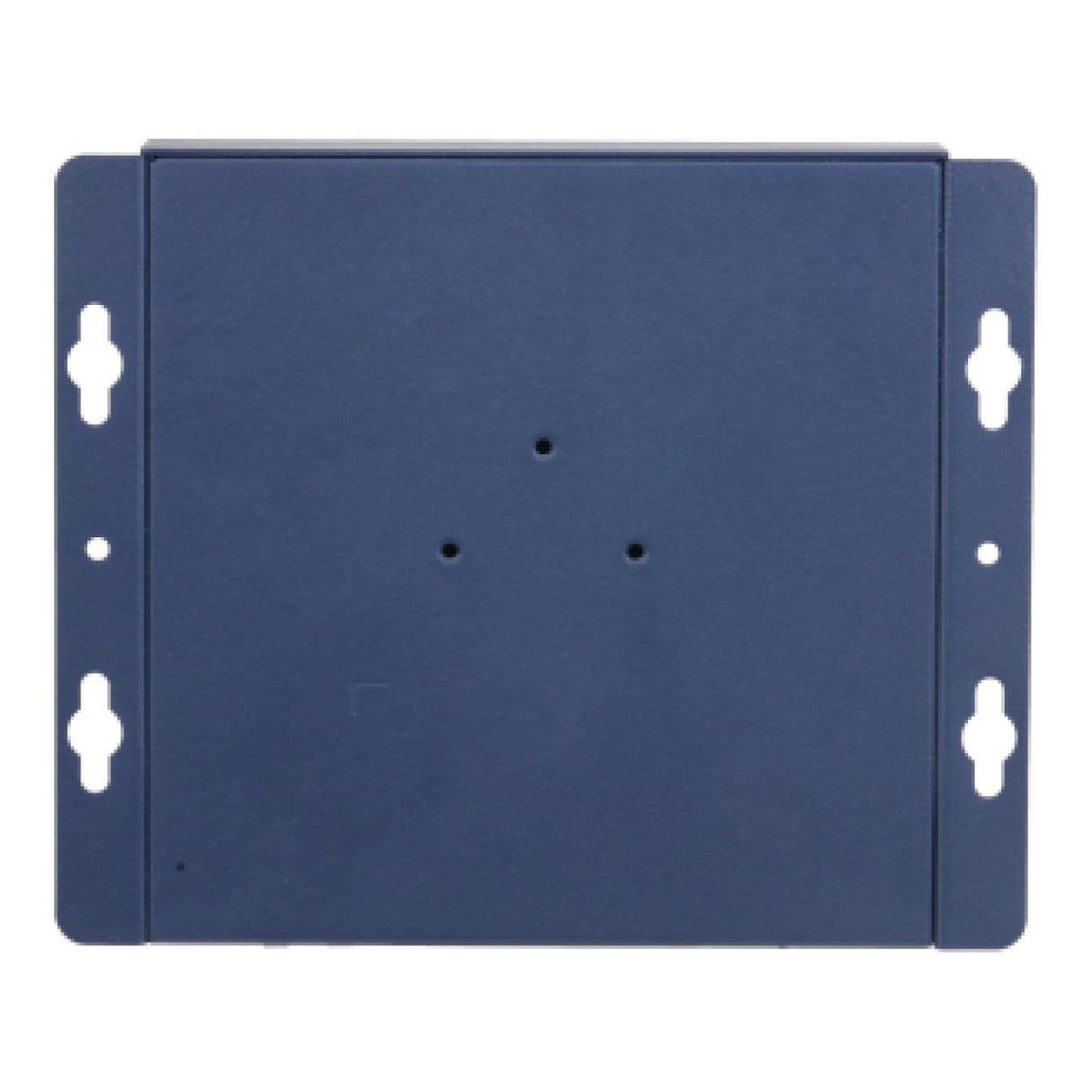

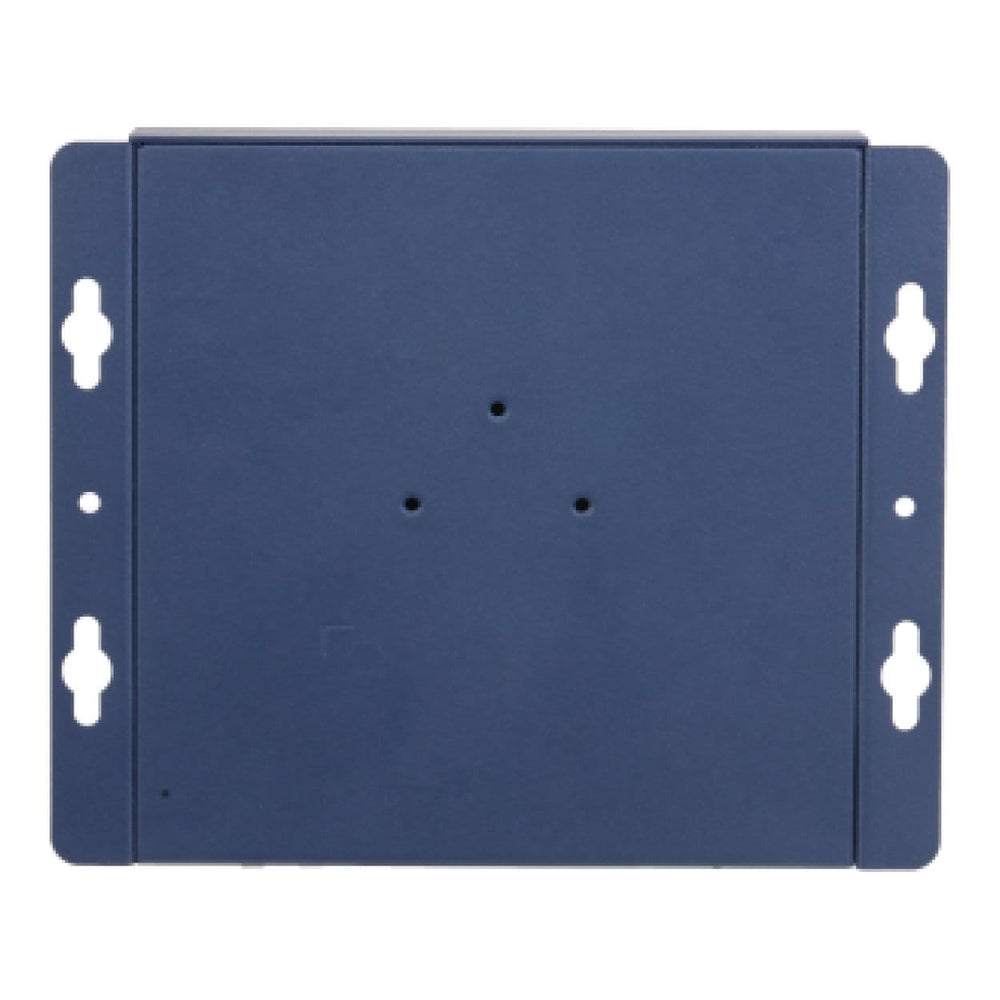

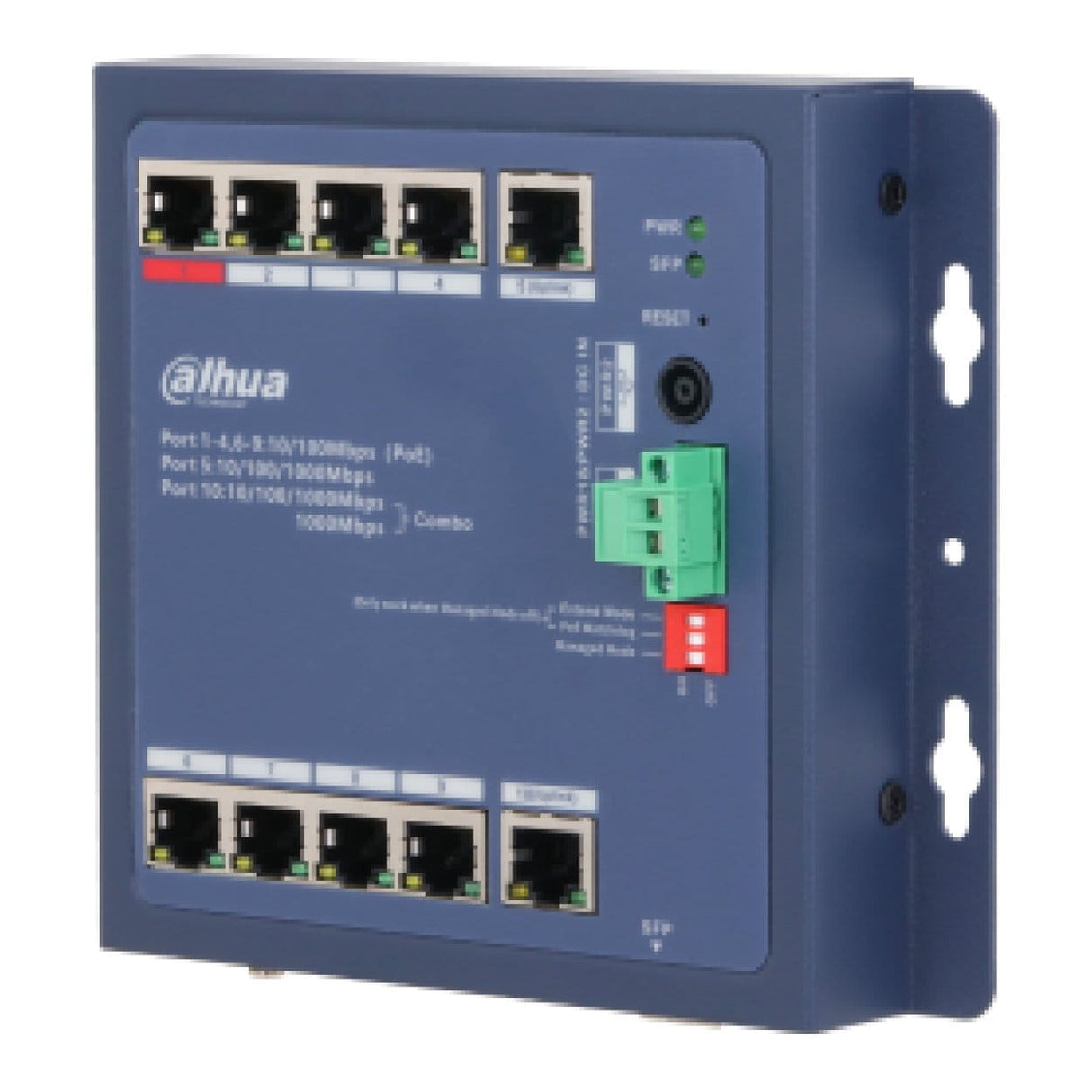

Dahua DH-CHS4110-8ET-90-F 10-port Cloud L2 Managed Hardened Switch

Dahua DH-CHS4110-8ET-90-F 10-port Cloud L2 Managed Hardened Switch

The Dahua DH-CHS4110-8ET-90-F is a hardened Layer 2 cloud-managed PoE switch designed for demanding surveillance, industrial, and enterprise networking environments. It combines eight PoE-enabled Fast Ethernet ports with Gigabit uplink connectivity, cloud management capabilities, and industrial-grade protection, making it ideal for powering IP cameras, wireless access points, and other network devices across large security installations.

The switch supports Dahua's cloud management platform, enabling remote monitoring, topology visualisation, mobile app management, and simplified network maintenance. Its rugged metal enclosure, wide operating temperature range, and DIN-rail mounting support make it suitable for harsh indoor and outdoor cabinet deployments.

Features:

• 10-port Layer 2 cloud-managed hardened switch
• 8 × 10/100Mbps PoE Ethernet ports
• 1 × Gigabit RJ45 uplink port
• 1 × Gigabit RJ45/SFP combo uplink port
• Supports local web management and cloud management
• Network topology visualisation and remote monitoring
• Mobile app-based management and maintenance
• PoE Watchdog for automatic device recovery
• Long-range PoE transmission up to 250m in Extend Mode
• Supports IEEE 802.3af, 802.3at, Hi-PoE and IEEE 802.3bt standards
• Up to 90W PoE output on supported ports
• Full-metal industrial housing with IP30 and IK06 protection
• Desktop or DIN-rail installation options
• Wide operating temperature range for harsh environments

Specifications:

Product Type: Cloud Managed Hardened PoE Switch

Layer: Layer 2

Total Ports: 10

PoE Ports: 8 × 10/100Mbps RJ45

Uplink Ports: 1 × 10/100/1000Mbps RJ45

Combo Port: 1 × Gigabit RJ45/SFP Combo

Switching Capacity: 5.6Gbps

Packet Forwarding Rate: 4.17Mpps

MAC Address Table: 8K

Packet Buffer: 4Mbit

Jumbo Frame: 9,216 Bytes

VLAN Support: Up to 32 VLANs

PoE Standards: IEEE 802.3af, 802.3at, Hi-PoE, IEEE 802.3bt

Maximum PoE Output: Up to 90W per supported port

Long Distance PoE: Up to 250m (10Mbps mode)

Management: Web GUI, Cloud Management, Mobile App

Network Features: VLAN, Port Isolation, LLDP, Port Mirroring, Loop Protection, Storm Control

PoE Watchdog: Yes

Operating Temperature: -30°C to +65°C

Storage Temperature: -40°C to +85°C

Protection Rating: IP30, IK06

Lightning Protection: 4kV Common Mode

ESD Protection: 8kV Air, 6kV Contact

Mounting Options: Desktop, DIN Rail

Dimensions: 154.3 × 110.4 × 30mm

Weight: 0.56kg
