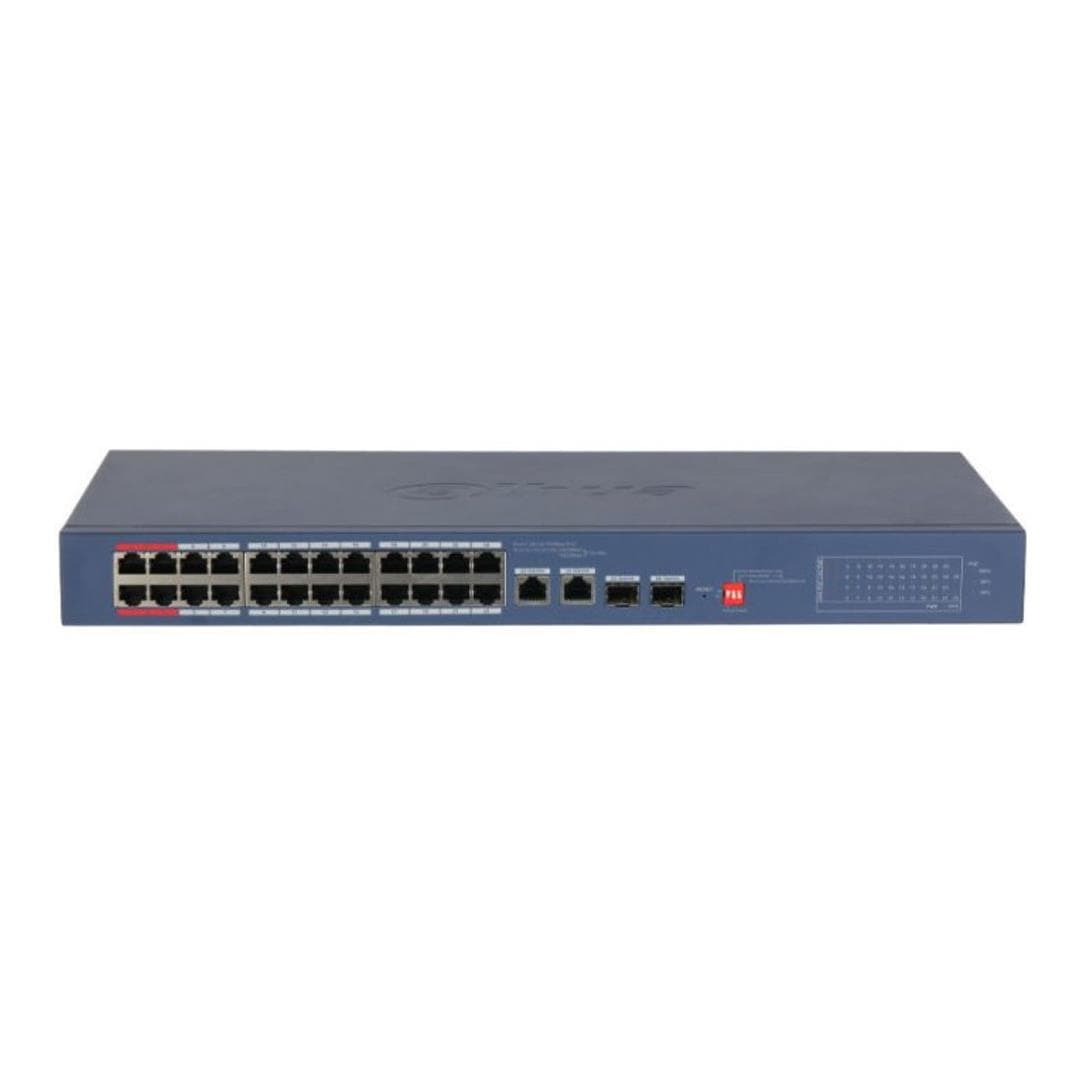

Dahua CS4226-24ET-240-V2 24-port Cloud Managed Network Switch with 2x SFP Ports

Dahua CS4226-24ET-240-V2 24-port Cloud Managed Network Switch with 2x SFP Ports

Dahua DH-CS4226-24ET-240-V2. Dahua CS4226 Series Smart Managed Switch. 24 PoE Fast Ethernet ports and 2 combo RJ45/SFP ports. Manageable locally or through the cloud via DoLynk Care. Up to 90 W per BT port, 240 W total. PoE Watchdog, visual topology and protection against surge, shock and lightning. Desktop or rackmount. Ideal for CCTV and SMB networks Dahua cs4226 series 26-port smart poe managed switch.

Features:

• Dahua Smart Managed Switch CS4226 Series
• 24 10/100 Mbps RJ-45 ports (PoE)
• 2 combo RJ-45 10/100/1000 Mbps / SFP 1000 Mbps ports
• 8.8Gbps switching capacity
• 6.55 Mpps forwarding rate
• 8K-entry MAC table and 4 Mbit buffer
• Supports 15K Byte Jumbo Frames
• IEEE802.3, 802.3u, 802.3x, 802.3ab and 802.3z compliant
• MTBF of 64.2 years

Specifications:

• Cloud-based management via DoLynk Care App with real-time monitoring and alerts
• Network topology management with LLDP protocol
• PoE Watchdog for automatic port reboot on failure
• Loop protection with alarming and automatic broadcast storm removal
• Intelligent PoE management (enable/disable per port)
• Per-port VLAN and IEEE 802.3x flow control support

PoE:

• IEEE802.3af / at / bt and Hi-PoE protocols
• Ports 1-2 up to 90 W (BT), ports 3-24 up to 30 W (PoE+)
• Total PoE budget of 240 W
• Long distance PoE transmission up to 250 m (10 Mbps)
• PoE pin assignment: 1,2,4,5 (V+) / 3,6,7,8 (V-)

Communication interface:

• 1 reset button
• WEB and App management (Dahua DoLynk Care)
• Integrated DHCP Client

Power supply:

• Internal power supply 100-240 V AC, 47-63 Hz, 4 A max.
• Standby power consumption ≤ 8.5 W; at full load 265 W
