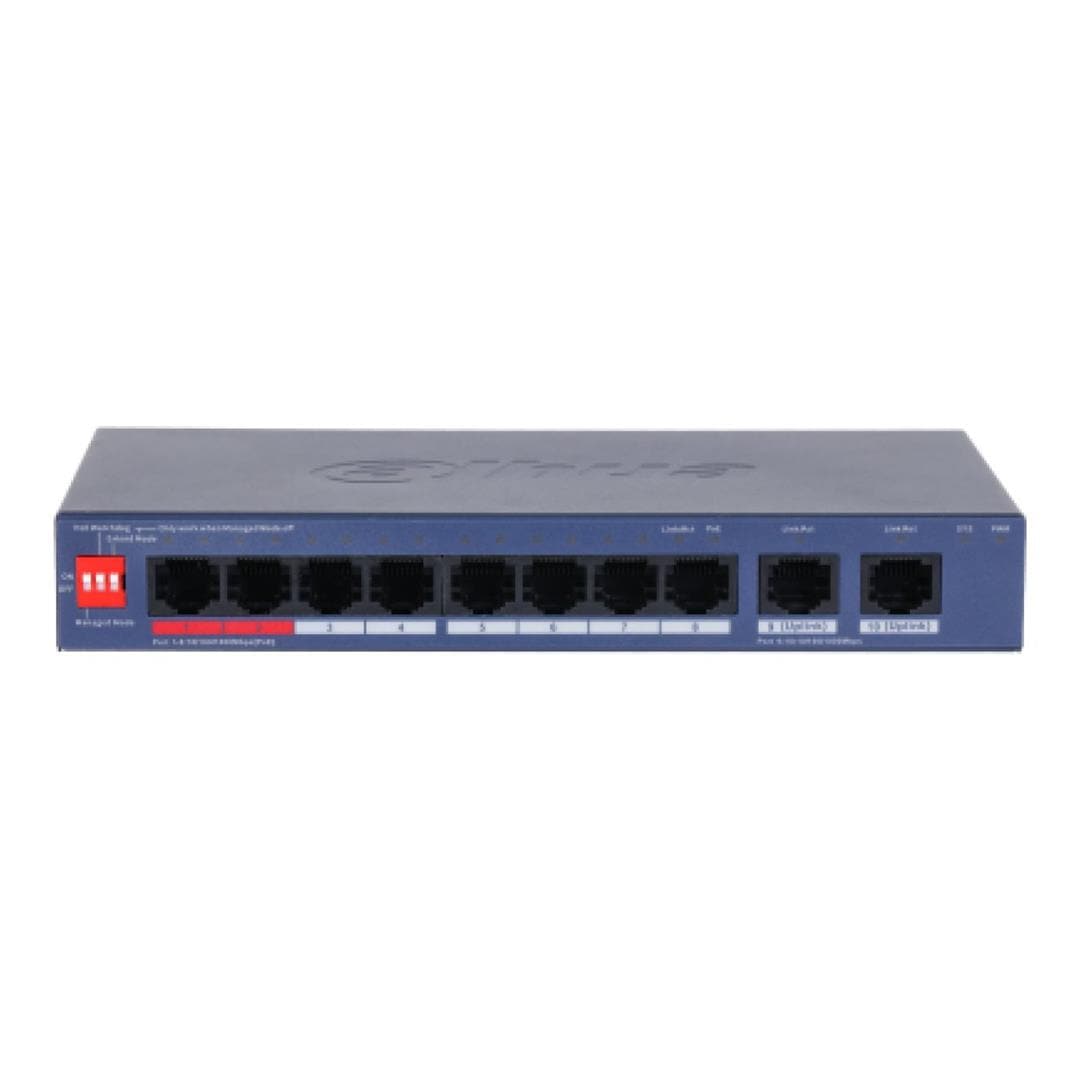

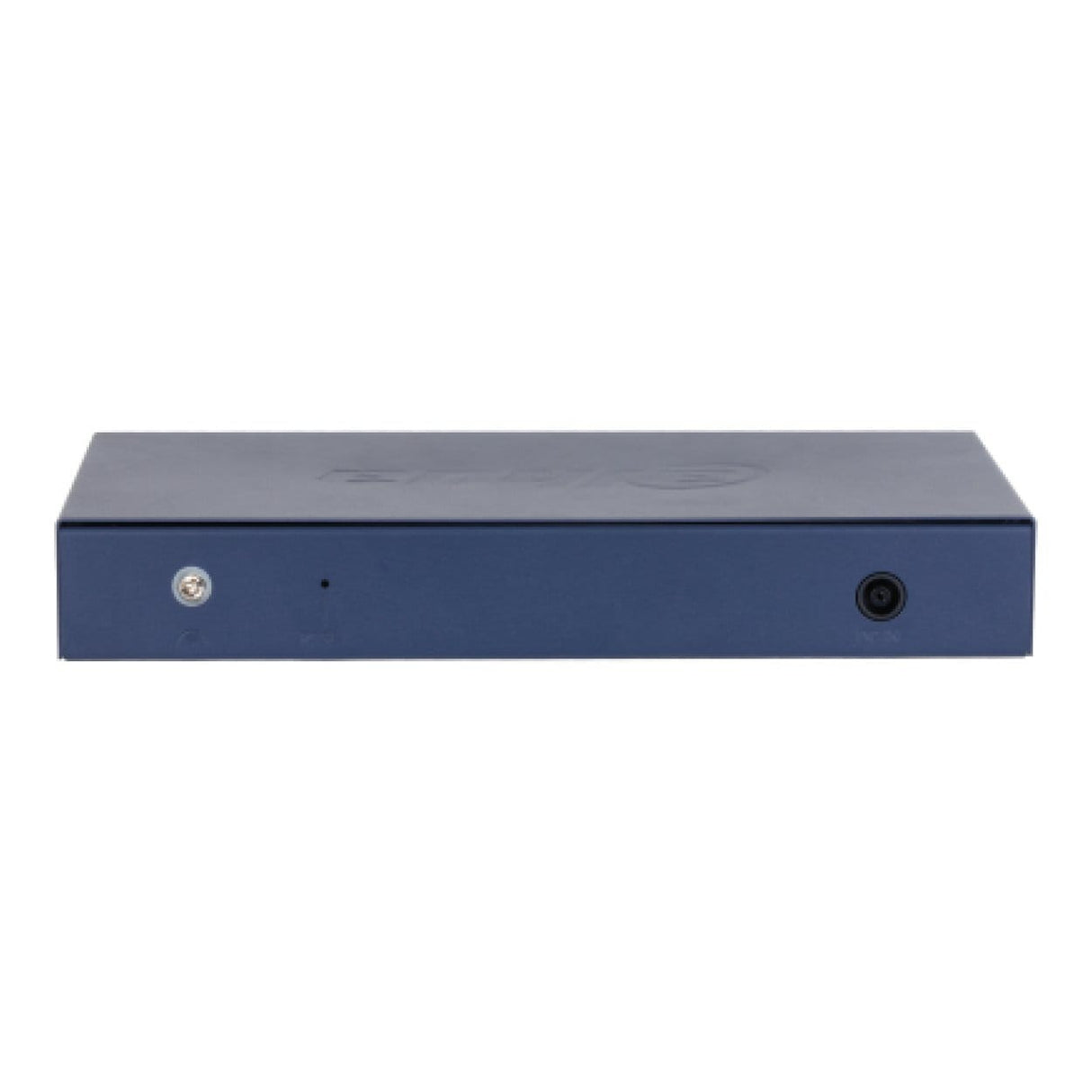

Dahua CS4010-8GT-110 10-port Cloud Managed L2 Network Switch

Dahua CS4010-8GT-110 10-port Cloud Managed L2 Network Switch

10-Port Cloud Managed Desktop Gigabit Switch with 8-Port PoE

• 8 × RJ-45 Gigabit PoE ports, 2 × RJ-45 Gigabit ports.
• 110 W total PoE budget, 802.3af/at on all PoE ports, 802.3bt on red ports.
• DIP switch to fast turn on/off working mode of Cloud-Managed, PoE Watchdog, Long Distance PoE.
• Wide operating temperature ranging from –10 °C to 55 °C.
• Supports VLAN, STP, RSTP and link aggregation.
• WEB-managed and centralized cloud management through the DoLynk App and performs real-time monitoring of the network.
• Easy config to auto detect and set up network and systems.

Specifications:

Layer: Layer 2

Switching Capacity: 20 Gbps

Packet Forwarding Rate: 14.88 Mpps

Description of Function Slots

• Port 1-8: 8 × RJ45 10/100/1000 Mbps (PoE)
• Port 9-10: 2 × RJ45 10/100/1000 Mbps (uplink)

Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity: 10%–90% (RH), non-condensing

Storage Temperature: –40 °C to +75 °C (–40 °F to +167 °F)

Storage Humidity: 5%–95% (RH), non-condensing

Power Supply: External Power Adapter（54 V, 2.22 A）

Power Consumption

• Idling: 5.7 W
• Full load: 115 W

Statics Protection

• Air discharge: 8 kV
• Contact discharge: 6 kV

Lightning Protection:

• Common mode: 6 kV
• Differential mode: 1 kV

Net Weight: 0.36 kg (0.79 lb)

Gross Weight: 1.13 kg (2.49 lb)

Product Dimensions: 184.6 mm × 103.3 mm × 27 mm (7.27" × 4.07" × 1.06") (L × W × H)

Casing Material: Sheet metal

Installation: Desktop mount; wall mount

Certifications: CE

PoE

PoE: Yes

PoE Power: Port 3-8≤30 W, port 1-2≤90 W, total≤110 W

PoE Protocol: IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt

PoE Power Consumption Management: PoE power consumption management; PoE power on/off; turns off PoE if overload is detected

PoE Pin Assignment:

• Port 1-2：1,2,4,5（V+）,3,6,7,8（V-）
• Port 3-8：1,2,（V+）,3,6,（V-）

Long Distance PoE Transmission: Yes

Hardware

DIP Switch:

• Managed Mode: On by default for both local web and cloud management. Off for Unmanaged Mode.
• PoE Watchdog: Monitors ports 1-8 and auto-restarts the PoE port when there is no traffic for 2 min. (Only works when Managed Mode is Off)
• Extend Mode: Ports 1-8; transmission distance up to 250 meters at 10 Mbps. (Only works when Managed Mode is Off)

Reset Button: 1

Performance

MTBF: 2,482,955 hours

Packet Buffer Size: 4 Mbit

Jumbo Frame: 15360 Byte

MAC Table Size: 8K

Communication Standard: IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3az; IEEE 802.3ad

VLAN Number: 32
