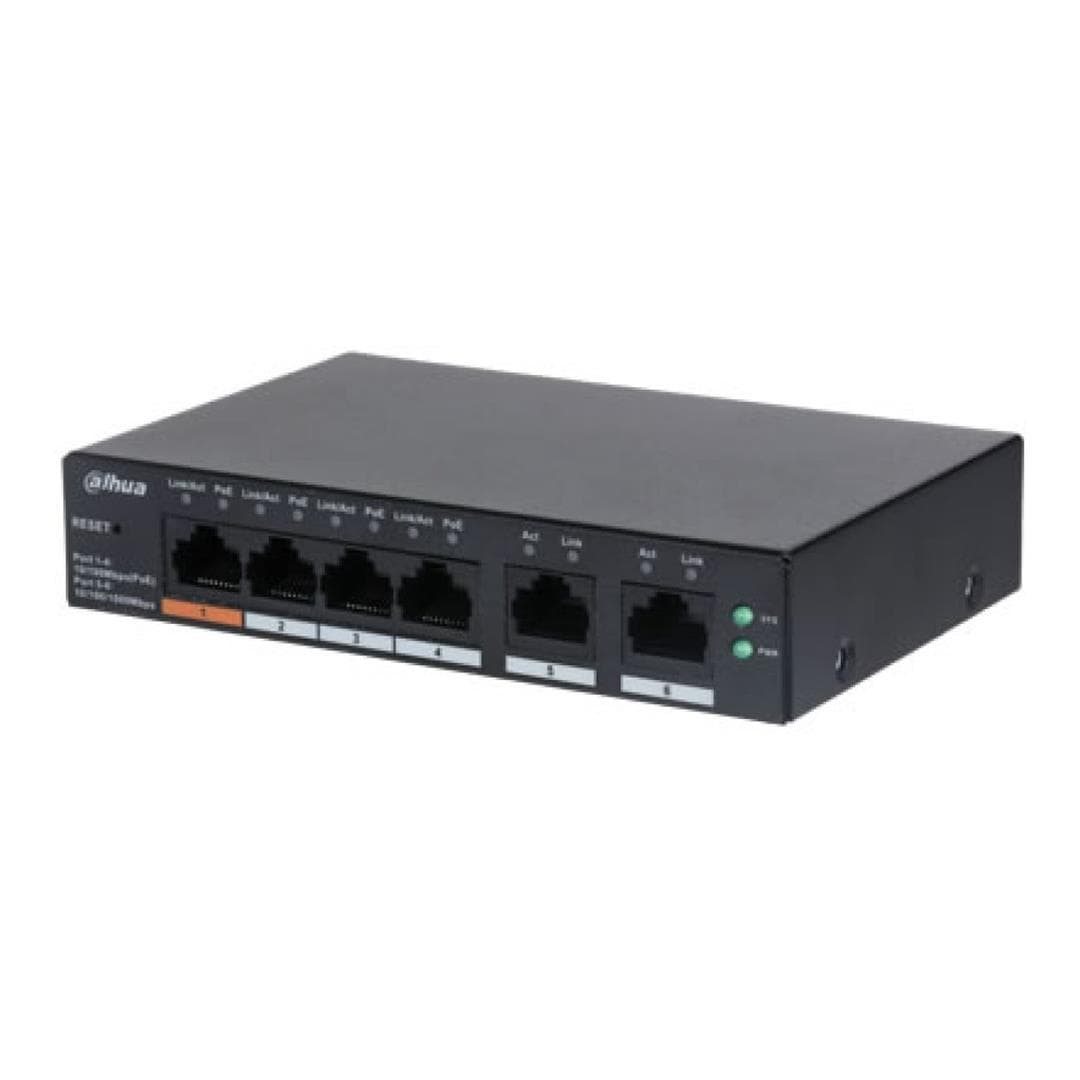

Dahua CS4006-4ET-60 4-port L2 Cloud Managed Network Switch with 2x SFP Ports

Dahua CS4006-4ET-60 4-port L2 Cloud Managed Network Switch with 2x SFP Ports

Highly intuitive, the Smart Managed Switch can manage local networks. With the DoLynk Care platform, it can also perform cloud management. The switch performs operation and maintenance using topology visualization on front-end, transmission and back-end storage devices that are in the security system and IT system. With its full metal design, the switch has great heat dissipation and can operate in temperatures ranging -10°C to 55°C. It offers EMC and has protection against overvoltage, overcurrent, static electricity, lightning strikes, pulses and other types of interference. For the PoE series Smart Managed Switch, power is supplied up to 250 meters away. The orange port supplies up to 60 W and the red port provides up to 90 W. Also, link aggregation and STP are available on select models to ensure the network remains stable. The switch can be used in small and medium-sized businesses such as supermarkets, offices, restaurants, cafés and hotels.

Cloud Management

Devices can be managed through the DoLynk Care app and performs real-time monitoring of the network. The app also displays the status of devices, triggers alarms for errors in real time and sends notifications.

Network Topology Management

Supports the LLDP protocol and is able to generate and display the network topology, so that you can quickly identify issues, and perform operation and maintenance remotely on devices that are in the topology.

Long Distance PoE

The transmission distance of a PoE port can be up to 250 m, meeting the requirement of wired transmission (bandwidth reduced to 10 Mbps).

PoE Watchdog

Adopts the innovative PoE Watchdog. PoE Watchdog can be switched on by dialing/turning on the WEB page switch. It enables the switch to automatically detect port status and restart the failed ports to recover connection in case of IPC connection exception. This enables intelligent operation and maintenance management in its true sense and effectively reduces manual maintenance costs.

Loop Protection

When a loop is detected, the loop alarm will be triggered and the elimination mechanism will activate to prevent broadcast storms from occurring.

Hi-PoE 60W (Orange Port)

In addition to the IEEE802.3af and IEEE802.3at standards, orange port also supports a maximum power output of 60W for powering highpower devices.

Specifications:

Included Power: Adapter Yes

PoE: Yes

Ethernet Port: 4

Ethernet Port Speed: 10/100 Mbps

Ethernet Port Uplink Speed: 10/100/1000 Mbps

Description of Function Slots:

• Port 1-4: 4 × RJ-45 10/100 Mbps (PoE); Port 5-6: 2 ×
• RJ-45 10/100/1000 Mbps (uplink)

Reset Button: 1

Power Supply: External power supply: 53 VDC, 1.226 A

Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity: 5%–95% (RH), non-condensing

Storage Temperature: –40 °C to +70 °C (–40 °F to +158 °F)

Storage Humidity: 5%–95% (RH), non-condensing

Power Consumption: Idling: ≤3 W Full load: 65 W

Layer: Layer 2

Management Type: Yes

Smart Managed Switch: Yes

MTBF: 232.62 years

Switching Capacity: 4.8 Gbps

Packet Forwarding: Rate 3.57 Mpps

Packet Buffer Size: 4 Mbit

Jumbo Frame: 9216 Byte

MAC Table Size: 8K

VLAN Number: 32

Communication Standard: IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab

PoE Protocol: IEEE802.3af; IEEE802.3at; Hi-PoE

PoE Power Port: 1 ≤ 60 W, Port 2-4 ≤ 30 W, total ≤ 60 W

PoE Power Consumption Management: Yes

PoE Pin Assignment: 1,2,4,5（V+）,3,6,7,8（V-）

Long Distance PoE Transmission: Yes

VLAN Function Port-based: VLAN

IEEE 802.3x Flow Control: Yes

DHCP Function: DHCP Client

Equipment Management: Web management; App management

Lighting Protection: Common mode: 4 kV; Differential mode: 2 kV

Gross Weight: 0.92 kg

Product Dimensions: 130 mm × 90 mm × 26 mm (L × W × H)

Casing Material: Sheet metal

Installation: Desktop mount; wall mount
