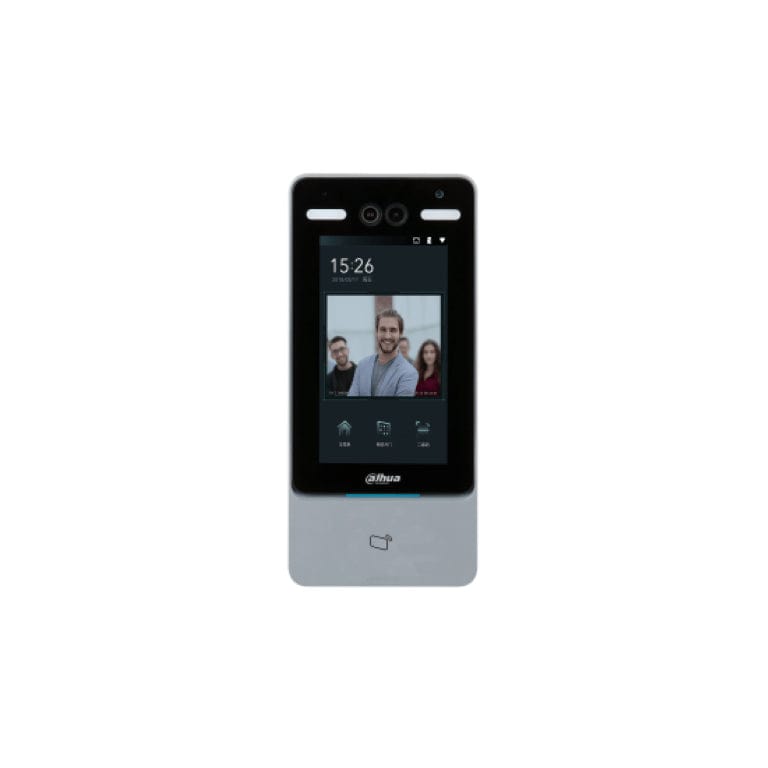

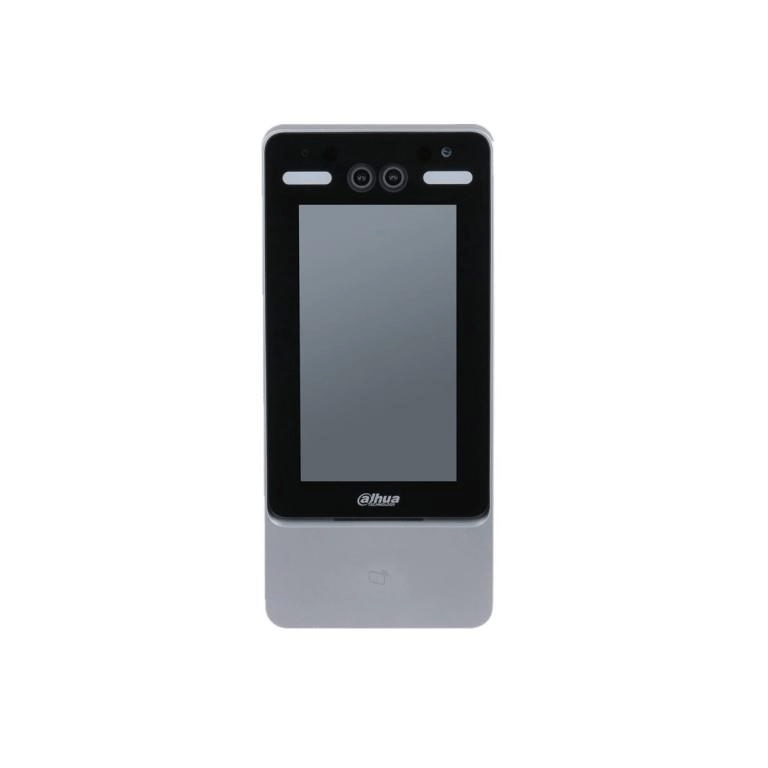

Dahua ASI7213Y 7-inch IPS Touch Face Recognition Access Control

• 7 inch IPS display, resolution 1024×600
• Support face unlock, IC card unlock, and password unlock; unlock by period
• With face detection box; the largest face among faces that appear at the same time is recognized first; the maximum face size can be configured on the web
• 2MP wide-angle WDR lens; with auto/manual fill light
• Face-camera distance: 0.3 m–2.0 m; human height: 0.9 m–2.4 m
• With face recognition algorithm, the access controller can recognize more than 360 positions on human face
• Face verification accuracy>99.5%; face comparison speed 0.35s per person; low false recognition rate
• Support profile recognition; the profile angle is 0°–90°
• Holds 50, 000 users, 50, 000 faces, 50, 000 cards, 50, 000 passwords, and 50 administrators
• Support liveness detection
• Support duress alarm, tamper alarm, intrusion alarm, door contact timeout alarm, illegal card exceeding threshold alarm , and more
• Support general users, patrol users, VIP users, guest users, and the disabled users
• With 4 unlock status display modes

System:

Main Processor: Embedded Processor

Internet Protocol: IPv4, RTSP, RTP, TCP, UDP, P2P

OSDP Protocol: Yes

Interoperability: CGI

SDK and API: Support SDK

Basic:

Display: 7 inch IPS

Screen Type: Capacitive touch screen

Resolution: 600(H)×1024(V)

Camera: 2 MP CMOS camera

WDR: 120dB

Light Compensation

• Auto white light
• Auto IR light

Status Indicator: 1 indicator light. Red: Error; Green: Normal; Blue: Working.

Voice Prompt: Yes

Housing Material: PC+ABS

Function:

Unlock Mode: Card/remote/password/face unlock and unlock through their combinations;

Card Reading Type: IC card

Period List: 128

Holiday Period: 128

First-Card Unlock: Yes

Remote Verification: Yes

Peripheral Card Reader: 1 RS-485, 1 Wiegand

Multiple Card Authentication: Yes

Real-Time Surveillance: Yes

Web Configuration: Yes

Performance

Card reading distance: 1cm–5cm

Face Recognition Range:

• Face-camera distance: 0.3 m–2.0 m;
• Human height: 0.9 m–2.4 m

Face Verification Accuracy: >99.5%

Face Recognition Time: 0.35s

Capacity:

User Capacity: 50, 000

Face Image Capacity: 50, 000

Card Capacity: 50, 000

Password Capacity: 50, 000

Record Capacity: 100, 000 records

Port:

RS-485: 1

RS-232: 1

Wiegand: 1 input/output

USB: 1 USB2.0 port

Ethernet: 1 10M/100M Ethernet Port

Alarm Input: 2 (Switch quantity)

Alarm Output: 2 (Relay)

Alarm Linkage: Yes

Exit Button: 1

Door Status Detection: 1

Lock Control: 1

Alarm:

Anti-Passback: Yes

Tamper Alarm: Yes

Duress: Yes

Door Sensor Timeout: Yes

Intrusion: Yes

Illegal Card Exceeding Threshold: Yes
