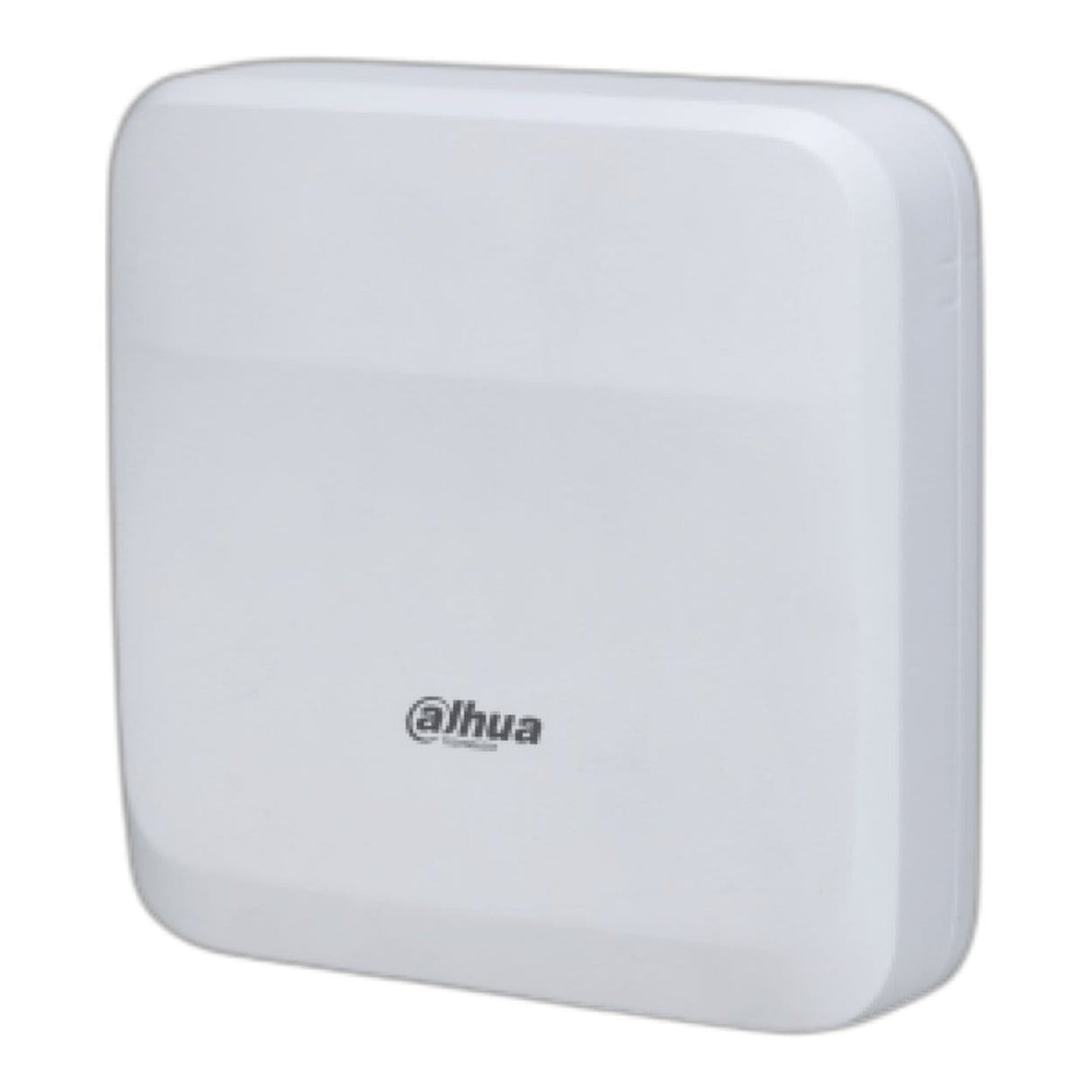

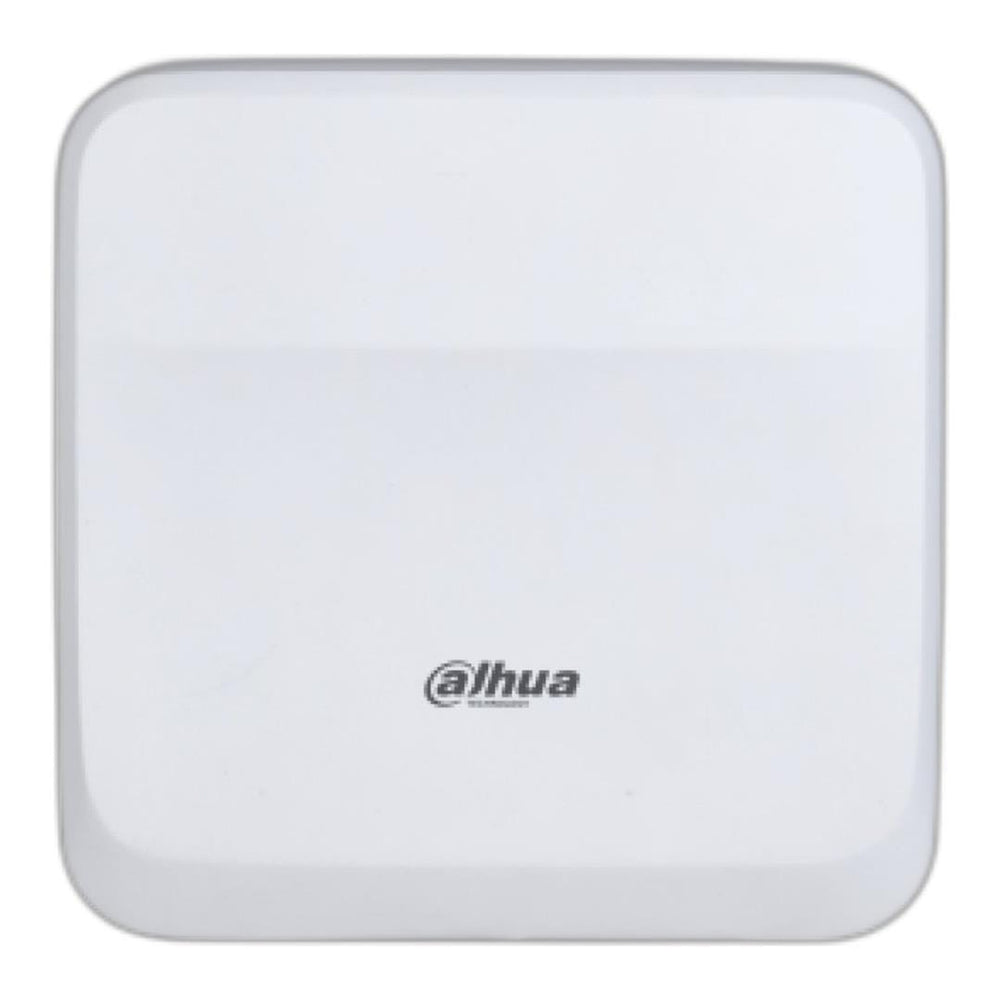

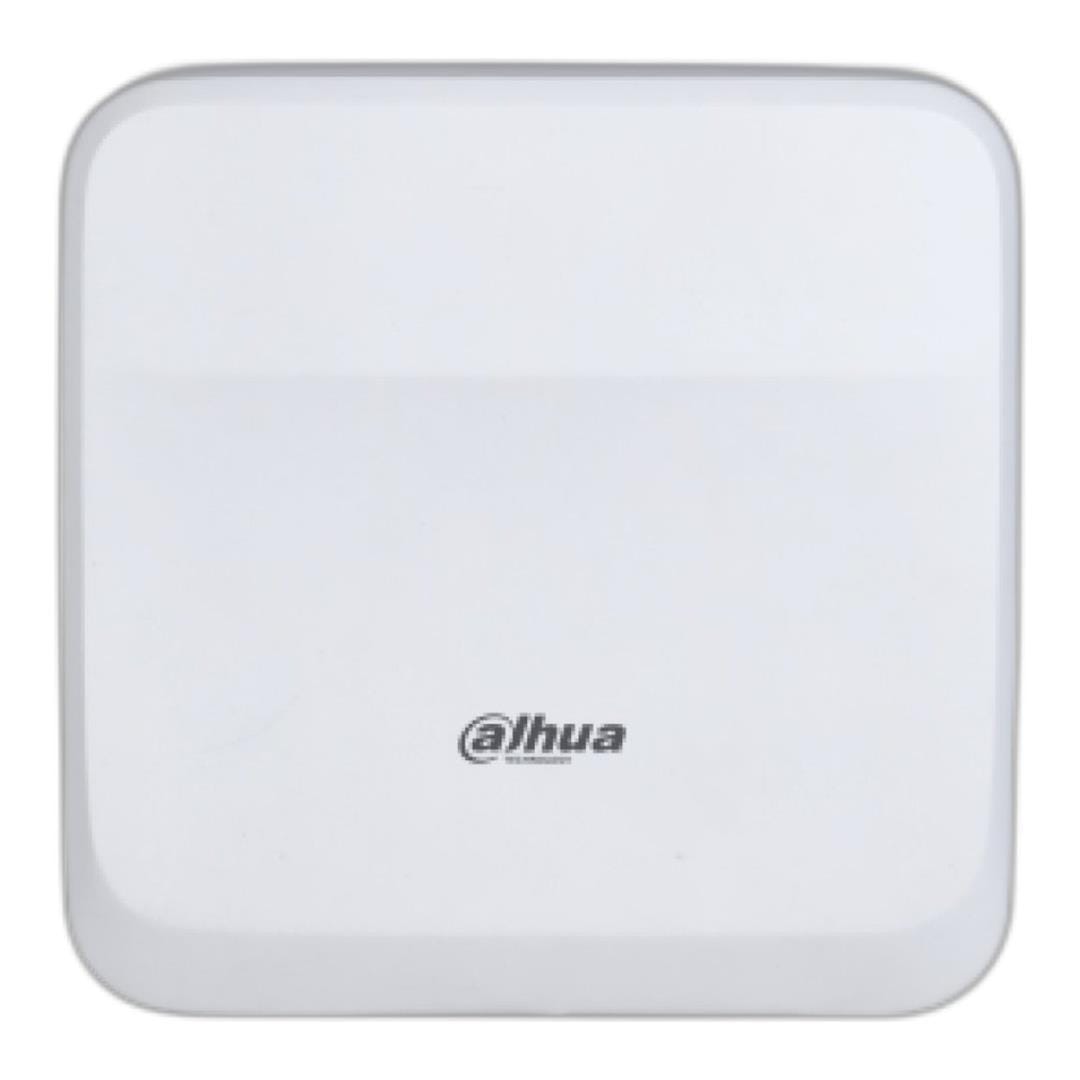

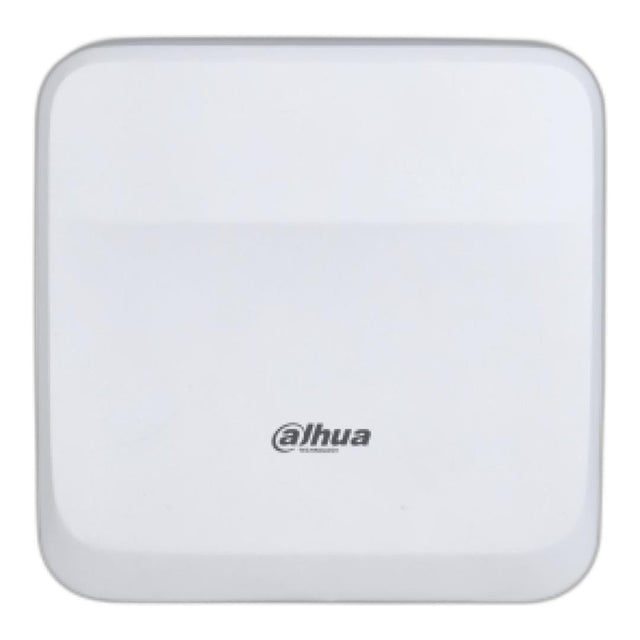

Dahua ASC3202B Access Controller

Dahua ASC3202B Access Controller

Features:

• Built-in Web server, features main and sub control modes.
• The main control mode offers access control Platform functions,can connect with and manage up to 19 sub controllers. The sub-control modes can be added to multiple platforms.
• Supports 1000 users (main control mode), 3000 fingerprints, 5000 Bluetooth cards (main control mode) and 300,000 records.
• Accesses card readers through Wiegand and RS-485 protocols.
• Supports TCP and IP connection, and standard PoE.
• Supplies power to the lock through its 12 VDC output power supply, which has a maximum output current of 1000 mA.
• Supports configuring the hardware I/O port and exporting configuration diagrams.
• Retains stored data even while powered off.
• Role management.
• Supports multiple advanced access control functions, such as first-person unlock, multi-person unlock, global anti-passback, global multi-door interlock and global external alarm.

Specifications:

Main Processor Embedded processor

Internet Protocol P2P; IPv4; DNS; DDNS; TCP; UDP

Interoperability ONVIF; CGI

SDK and API Yes

Product Type: Controller

Buzzer: Yes

Casing Material: PC + ABS

Unlock Mode: Card; remote; password; fingerprint; Bluetooth; combination unlock

Period List: 128 periods

Holiday Period: 128 periods

Network Update: Yes

Blocklist/Allowlist: Yes

Peripheral Card: Reader Supports 2 × RS-485 card readers; 2 × Wiegand card readers

Multi-user Authentication: Yes (Use with platform)

Real-time Monitoring: Yes

Multi-factor Authentication: Yes

Web Configuration: Yes

User (Card) Type: General user, VIP user, guest user, patrol user, blocklist user, and other users

Intrusion: Yes

Illegal Card: Exceeding

Threshold: Yes

Duress Fingerprint: Yes

User Capacity: 1,000 (main control mode), 10,000 (sub control mode)

Fingerprint Capacity: 3,000

Card Capacity: 5,000 (main control mode), 50,000 (sub control mode)

Bluetooth Card Capacity: 5,000

Record Capacity: 300,000
