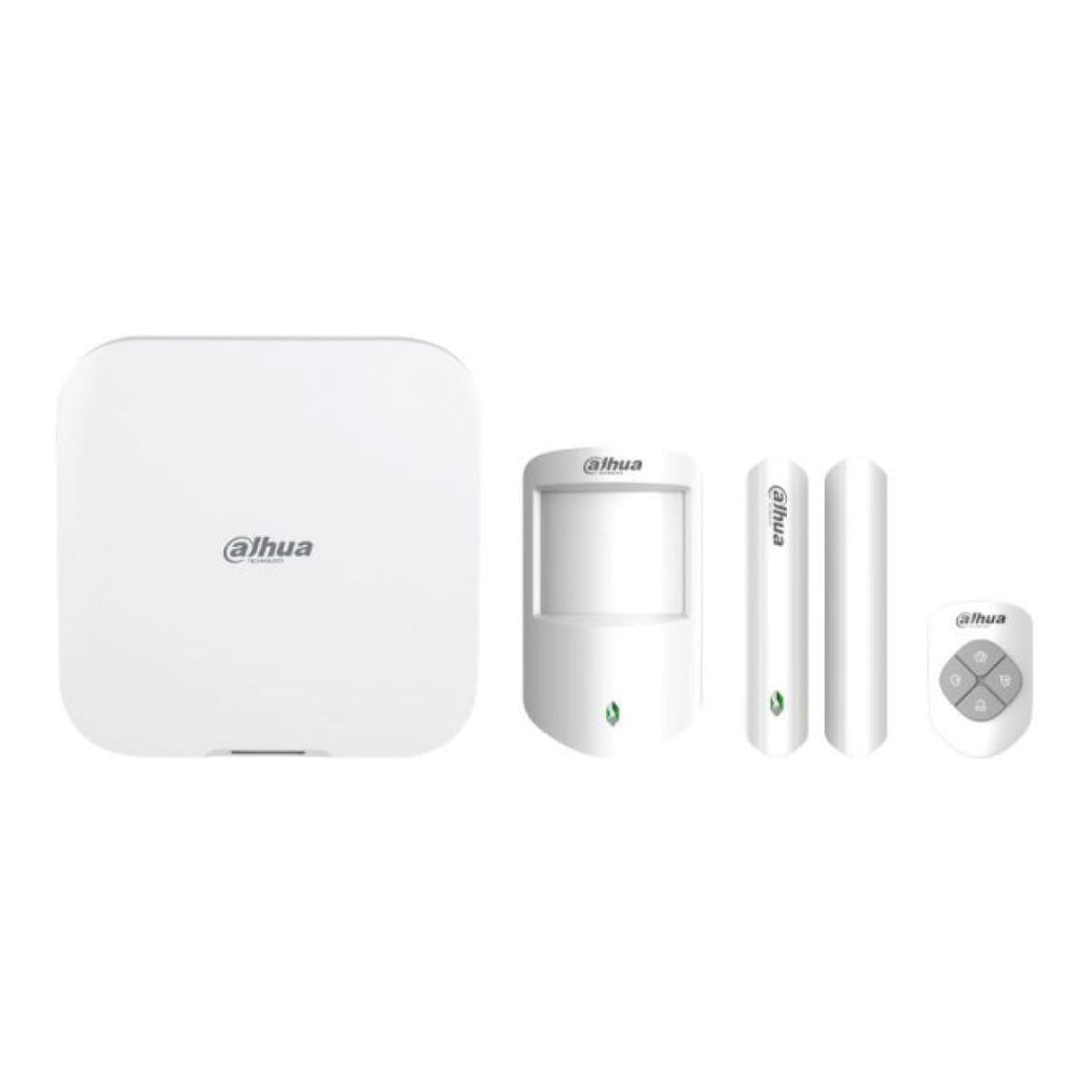

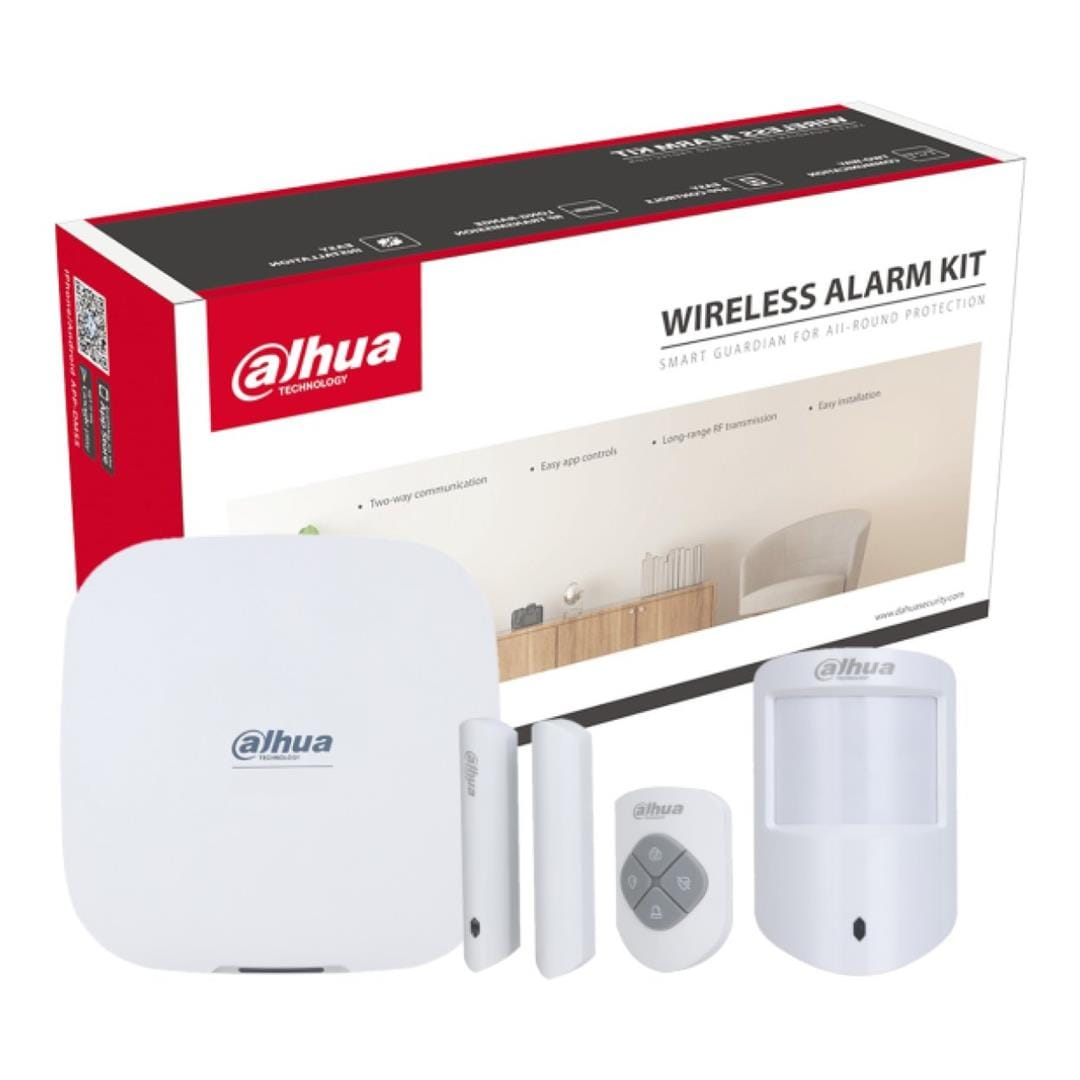

Dahua ART-ARC3800H-03-FW2(868) Wireless Alarm Kit

Dahua ART-ARC3800H-03-FW2(868) Wireless Alarm Kit

Features:

• Supports connecting up to 8 IPCs in the same LAN
• Supports in-hub pre-recording, so the camera doesn’t need a SD card
• Supports two-way voice intercom with intercom siren
• Supports accessing Internet via Ethernet, Wi-Fi, and 4G
• Supports voice call alarm and SMS alarm
• Supports connecting up to 150 wireless peripherals, including up to 4 sirens, up to 4 repeaters, up to 8 keypads, up to 8 2.4G PIR-Cams, 56 Sub-G PIR-Cams, up to 64 keyfobs, up to 256 MIFARE One cards (8 cards per keypad user)

Specifications:

Wireless Zone: Hub:150 channels wireless peripherals (6 sirens, 64 PIR cameras(only 8 indoor PIR cameras), 64 keyfobs, 8 keypads and 4 repeaters)

Network Mode: Hub:Ethernet, Wi-Fi and Cellular network(Supports installation of dual SIM cards. Only one card can be enabled at a time)

Network Port: Hub: 1 RJ-45, 10 Mbps/100 Mbps Ethernet port.

Storage Battery: Hub: One built-in 4,750 mAh rechargeable lithium battery.

Video Input: Hub: 8-ch IPC, which only supports the upload of alarm videos.

Audio Output: Hub: 1 channel

Volume Control: Hub: Yes

Voice Broadcast: Hub: Telephone and local speaker

Indicator Light: Hub: The indicator indicates the status of alarms, arming and disarming, the network connection and device failure.

Keyfob: 1 dual-color status indicator (Green means normal and red means abnormal)

Door Detector: 1 green alarm indicator

PIR Detector: 1 green alarm indicator

Button:

• Hub: Includes a reset button, voltage button and AP switch button.
• Keyfob: 4 (Home, Away, Disarm, and SOS)
• Door Detector: 1 power switch
• PIR Detector: 1 power switch

SMS: Hub: Yes (up to 5 phone numbers)

Phone Call: Hub: Yes (up to 5 phone numbers)

Video Linkage: Hub: Yes

Offline Cache: Hub: Stores up to 50 alarm messages.

Arm and Disarm: Hub: App, Keypad, remote control, card, scheduled arming and disarming.

Remote Update: All: Cloud update

Low Battery Detection: All: Yes

Tamper:

• Hub: Yes
• Door Detector: Yes
• PIR Detector: Yes

User Management: Hub: 33 app users (31 general users, 1 admin user and 1 installer) and 32 keypad users

Logs: Hub: Up to 5, 000 entries

Measuring Range (Temperature):

• Door Detector: –15 °C to +65 °C (+5 °F to +149 °F) (indoor)
• PIR Detector: –15 °C to +65 °C (+5°F to +149 °F) (indoor)

Transmission Protocol: Hub: SIA, SoftGuard

Sensor:

• Door Detector: Reed switch
• PIR Detector: Dual elements low-noise PIR sensor

Detection Mode: PIR Detector: PIR

Sensitivity: PIR Detector: 3 levels adjustable

Detection Range: PIR Detector: 12 m (39.37 ft) (90°) with installation height of 2.2 m (7.21 ft)

Detection Speed: PIR Detector: 0.3 m/s–3 m/s (0.98 ft/s–9.84 ft/s)

Movement Distance: Door Detector: < 40 mm (1.57")

Pet Immunity Level: PIR Detector: ≤ 18 kg (39.68 lb)

White Light Resistance Level: PIR Detector: 2000 lx

Two-way Digital Temperature Compensation: PIR Detector: Yes, no attenuation of detection distance in high temperature.

Scenario: Door Detector: Non-metal doors

Carrier Frequency: All: 868.0 MHz–868.6 MHz

Transmitter Power (EIRP): All: Limit 25 mW

Communication Mechanism: All: Two-way

Communication Distance: Hub: Up to 2,000 m (6561.68 ft) in an open space.

• Keyfob: Up to 900 m (2952.76 ft) in an open space.
• Door Detector: Up to 1,200 m (3937.01 ft) in an open space.
• PIR Detector: Up to 1,600 m (5249.34 ft) in an open space.

Encryption Mode: All: AES128

Frequency Hopping: All: Yes
