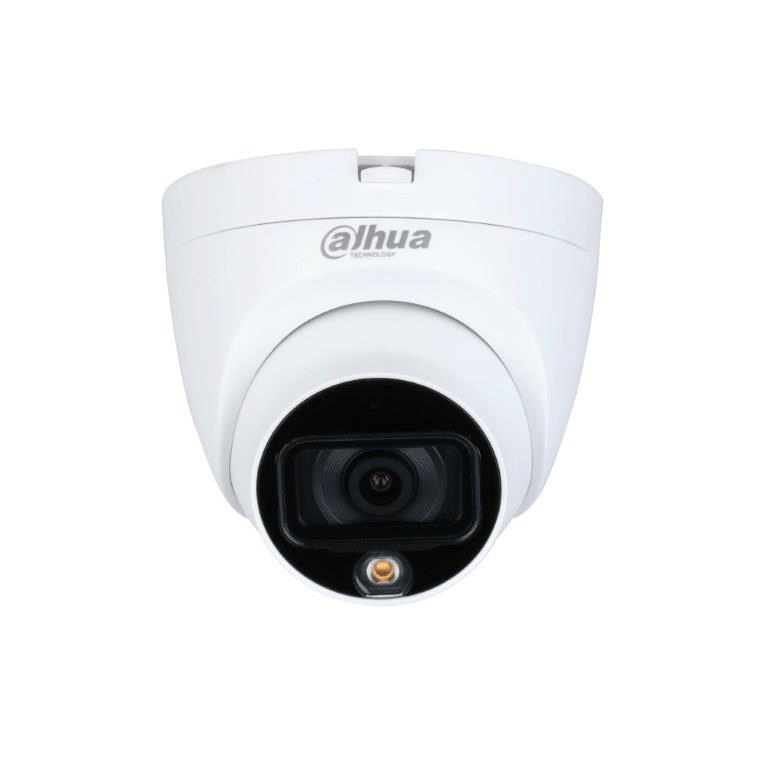

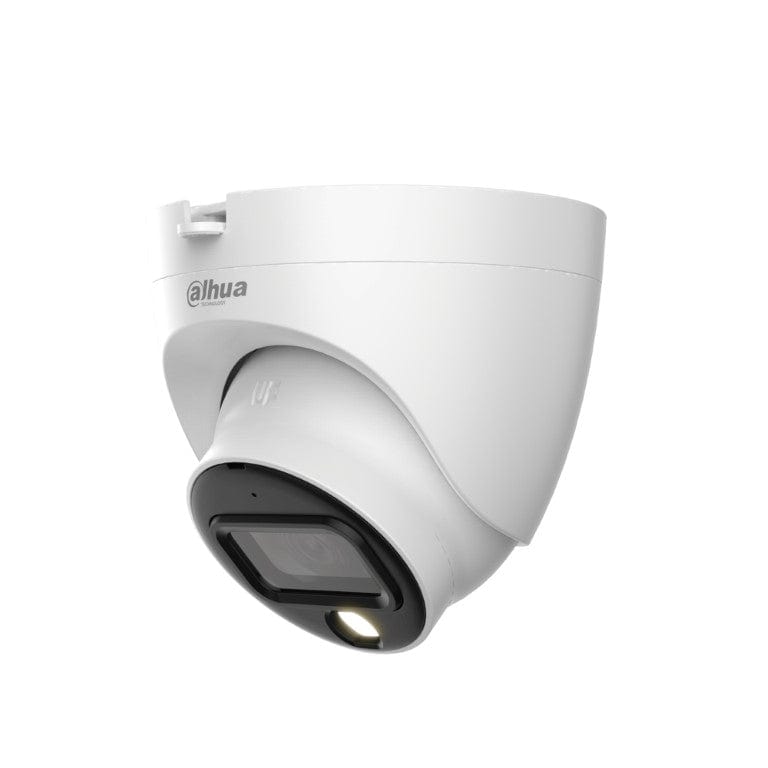

Dahua 5MP 3.6mm Full-colour HDCVI Eyeball Camera HAC-HDW1509TLQP-A-LED-0360B-S2

Dahua 5MP 3.6mm Full-colour HDCVI Eyeball Camera HAC-HDW1509TLQP-A-LED-0360B-S2

Lite Series is suitable for users who requires high quality monitoring products at a reasonable price. It is cost effective and offers high performance, which makes it an ideal choice for residential and small medium business applications. This series offers an option of a wide range of technologies such as Full-colour and Starlight, providing various solutions for different scenarios.

Features

• Max 25 fps@5MP (16:9 video output)
• 120dB true WDR, 3D NR
• 24/7 colour imaging
• 20m illumination distance
• CVI/CVBS/AHD/TVI switchable
• Built-in mic (-A)
• 3.6 mm fixed lens
• Field of View - H: 88; V: 46°; D: 104°
• DORI Distance - D: 80.0 m ; O: 32.0 m ; R: 16.0 m ; I: 8.0 m
• IP67
• 12 V DC (Power supply required)
• Quick-to-install eyeball saves installation time

Full-colour

Full-colour camera adopts large aperture lens and high performance sensor. With higher amount of absorbed light and advanced image processing algorithm, the camera provides 24/7 colour monitoring that collects clear and vivid information, significantly increasing probability of gathering valid human, vehicle, and event evidence that can be used for further intelligent analysis.

Wide Dynamic Range

With advanced Wide Dynamic Range (WDR) technology, Dahua HDCVI camera provides clear details in the environment of strong brightness contrast. The bright and dark area can get clear video even in high brightness environment or with backlight shadow.

Super Adapt

Embedded with intelligent algorithm, for changing external environment, camera can automatically adjust parameters to present the optimal image, and it solves the trouble of configuration

Advanced 3D NR

3D NR is noise reduction technology that detects and eliminates random noises by comparing two sequential frames. Dahua’s advanced 3D NR technology allows remarkable noise reduction with little impact to sharpness, especially under limited lighting condition. Besides, the advanced 3D NR effectively decreases the band width and saves the storage space.

Warm Supplemental Lights

With warm supplemental LED lights, the camera is able to provide a coloful and vivid image even in total darkness. By default, the camera is set to smart light mode, in which the camera can automatically adjust the exposure time and light sensitivity simultaneously to avoid overexposureing of the objects in the image center

4 Signals over 1 Coaxial Cable

HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio*, data and power. Dual-way data transmission allows the HDCVI camera to interact with the XVR, such as sending control signal or triggering alarm.

Protection (IP67, Wide voltage)

• IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes.
• Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

Easy Installation

HDCVI quick-to-install eyeball adopts quick-to-install pedestal, which can achieve easier installation than conventional eyeball. Quick-to-install camera reduces time and labor costs
