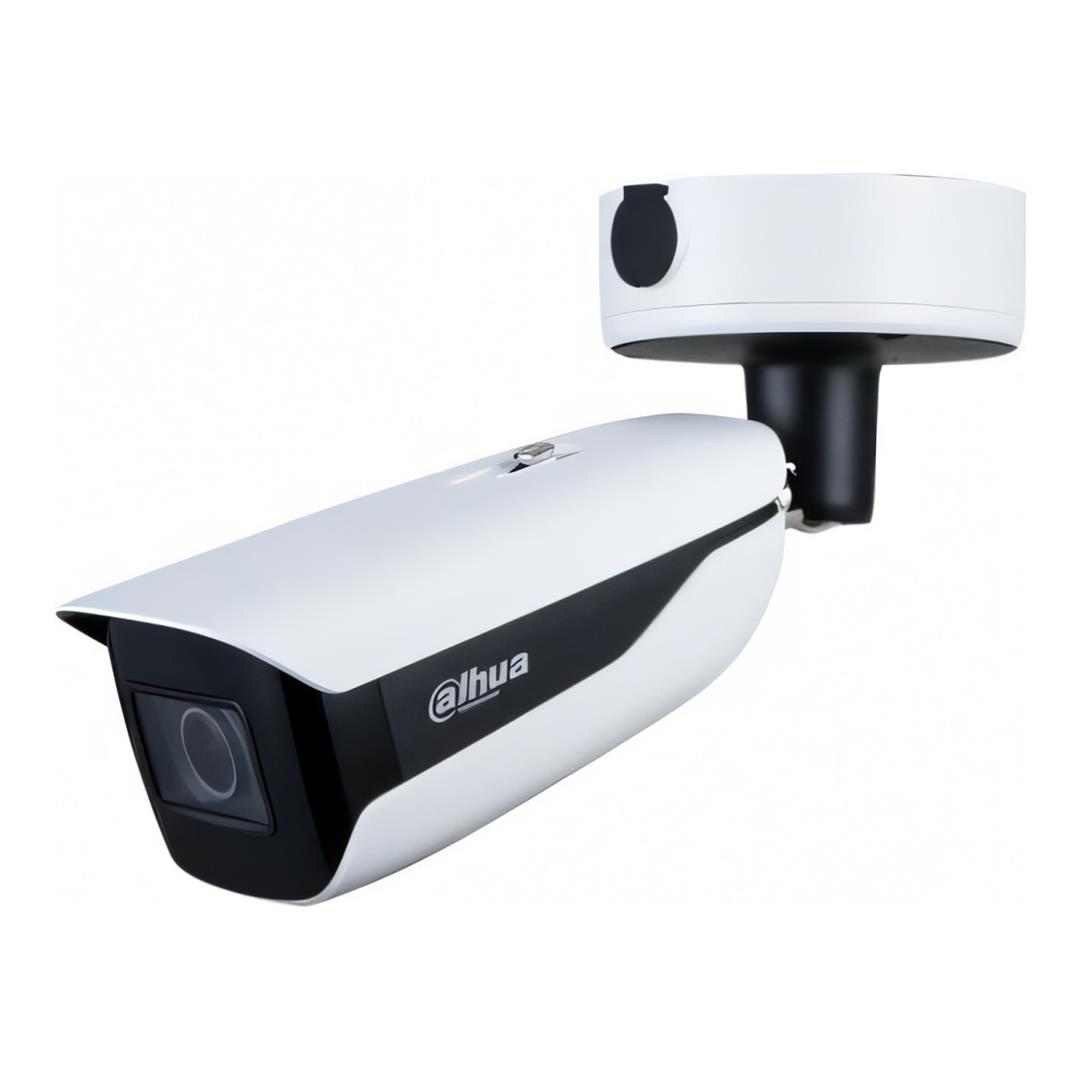

Dahua 4MP 8-32mm 120m IR WizMind Bullet Network Camera 1.0.01.04.40693
The Dahua IPC-HFW7442HP-Z-0832-DC12AC24V-X is a 4MP bullet network camera with an 8–32mm motorised varifocal lens for adjustable coverage. Infrared illumination up to 120m supports monitoring after dark, while WizMind analytics provide tools for perimeter protection and people counting. IP67 and IK10 protection make it suitable for demanding outdoor installations.
Key Features
- Detailed video: Captures up to 2688 × 1520 resolution at 50/60fps for smoother footage of moving subjects.
- Adjustable coverage: The motorised 8–32mm lens lets you refine the view for your installation.
- Long-range infrared: Built-in IR illumination reaches up to 120m for night monitoring.
- Advanced analytics: Supports perimeter protection, face detection, people counting and vehicle-related analysis.
- Backlight handling: 150dB wide dynamic range helps retain detail in bright and shaded areas.
- System integration: Audio, alarm and RS-485 connections support integration with other security equipment.
- Flexible power: Supports 12V DC, 24V AC, PoE+ and ePoE installations.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Dahua |
| Manufacturer Model | IPC-HFW7442HP-Z-0832-DC12AC24V-X |
| Product SKU | 1.0.01.04.40693 |
| Product Type | WizMind motorised varifocal bullet network camera |
| Image Sensor | 1/1.8-inch CMOS |
| Maximum Resolution | 4MP, 2688 × 1520 |
| Maximum Frame Rate | 50/60fps at 4MP |
| Lens | 8–32mm motorised varifocal; maximum aperture F1.6 |
| Field of View | Horizontal: 43°–15°; vertical: 24°–9°; diagonal: 50°–17° |
| IR Illumination | Up to 120m; 4 IR LEDs |
| Wide Dynamic Range | 150dB |
| Intelligent Functions | Perimeter protection, face detection and recognition, people counting, video metadata, PPE detection, parking space management and ANPR |
| Privacy Protection | Automatic mosaic masking of detected faces or bodies |
| Network Interface | RJ45, 10/100/1000 Ethernet |
| Local Storage | microSD card support up to 1TB |
| Audio Connections | 1 RCA input and 1 RCA output |
| Alarm Connections | 3 inputs and 2 outputs |
| Additional Interfaces | RS-485 and BNC CVBS output |
| Power Supply | 12V DC, 24V AC, PoE+ (IEEE 802.3at) or ePoE |
| Protection Ratings | IP67 ingress protection; IK10 impact resistance |
| Operating Temperature | -40°C to +65°C |
| Housing Materials | Metal and plastic |
| Dimensions (L × W × H) | 345.6 × 134.2 × 135.1mm |
| Net Weight | 1.65kg |
Available analytics combinations depend on the selected operating mode and configuration.
Add this Dahua WizMind camera to your cart for adjustable 4MP surveillance with long-range infrared illumination.
