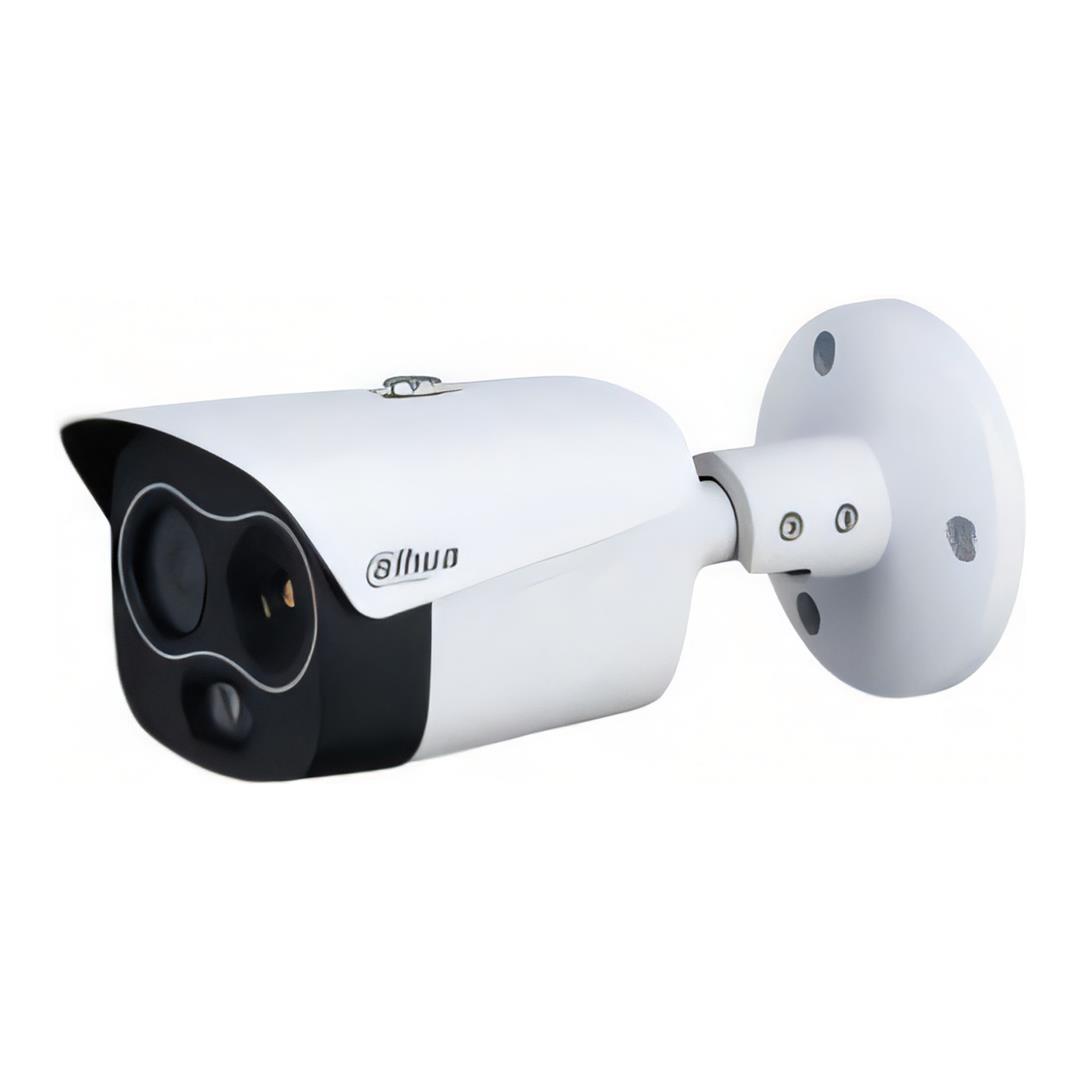

Dahua 4MP 12mm Dual 10mm Thermal Bullet Network Camera 1.0.01.34.16094
The Dahua TPC-BF1241-LB10F12-DW-S8-V1 combines thermal and visible imaging for perimeter surveillance and heat detection. A 10mm thermal lens captures heat patterns at 256 × 192 resolution, while a separate 12mm lens provides detailed 4MP visual footage. Built-in audio and warning lights support active alerts when configured events occur.
Key Features
- Dual-channel monitoring: Thermal and visible cameras provide complementary views for detecting and checking events.
- Image fusion: Combine thermal and visible imagery to add scene context to heat patterns.
- Intelligent detection: Tripwire, intrusion and human/vehicle classification help monitor restricted areas.
- Heat monitoring: Supports heat detection alarms and hot/cold spot tracking.
- Active warnings: Local audio and white, red and blue warning lights help draw attention to detected events.
- Night surveillance: Infrared illumination reaches up to 50m for the visible channel.
- Outdoor installation: IP67 and IK10 protection, with PoE support, suit demanding security installations.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Dahua |
| Model | DHI-TPC-BF1241-LB10F12-DW-S8-V1 |
| Product SKU | 1.0.01.34.16094 |
| Product Type | Eureka series thermal and visible hybrid bullet network camera |
| Thermal Detector | Uncooled vanadium oxide (VOx); 12µm pixel pitch |
| Native Thermal Resolution | 256 × 192 pixels |
| Thermal Lens | 10mm, F1.0 |
| Thermal Field of View | Horizontal: 17.3°; vertical: 13.1° |
| Visible Image Sensor | 1/1.8-inch CMOS |
| Visible Resolution | 4MP, 2688 × 1520 |
| Visible Lens | 12mm fixed lens, F1.7 |
| Visible Field of View | Horizontal: 37.3°; vertical: 21.4° |
| IR Range | Up to 50m |
| Frame Rate | Up to 25fps at 50Hz or 30fps at 60Hz, thermal and visible channels |
| Wide Dynamic Range | 120dB, visible channel |
| Video Compression | H.265, H.264, H.264H and MJPEG |
| Audio | Built-in dual microphones; local audio alerts; 1 audio input and 1 output |
| Alarm Connections | 2 inputs and 2 outputs |
| Local Storage | microSD card support up to 256GB |
| Network Interface | RJ45, 10/100 Ethernet |
| Power Supply | 12–24V DC or PoE (IEEE 802.3af) |
| Protection Ratings | IP67; IK10-rated housing |
| Operating Temperature | -40°C to +65°C |
| Dimensions (L × W × H) | 233 × 97.6 × 99.8mm |
| Net Weight | Up to 1.1kg |
Add this Dahua hybrid camera to your cart for combined thermal detection and detailed visual surveillance.
