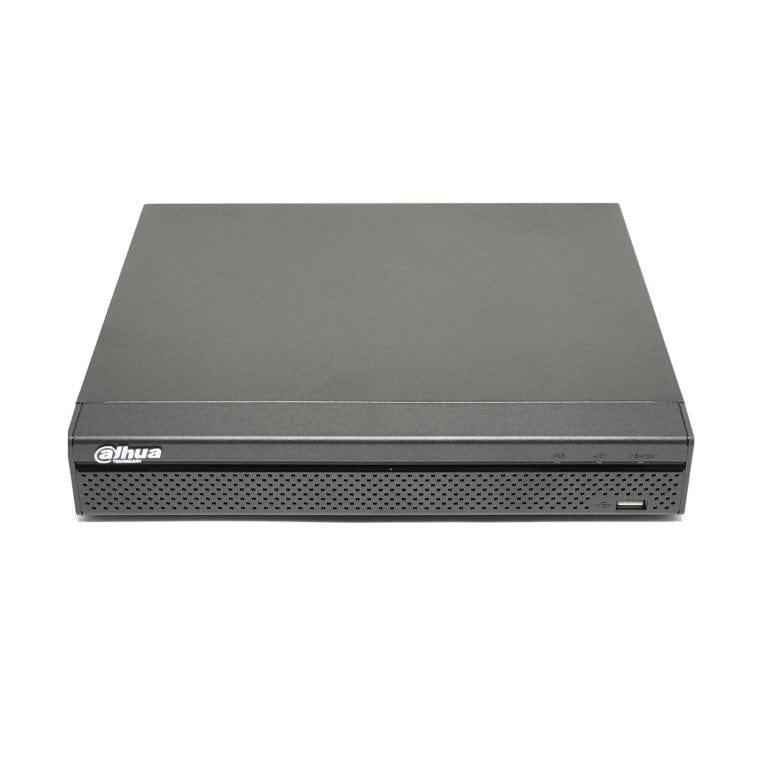

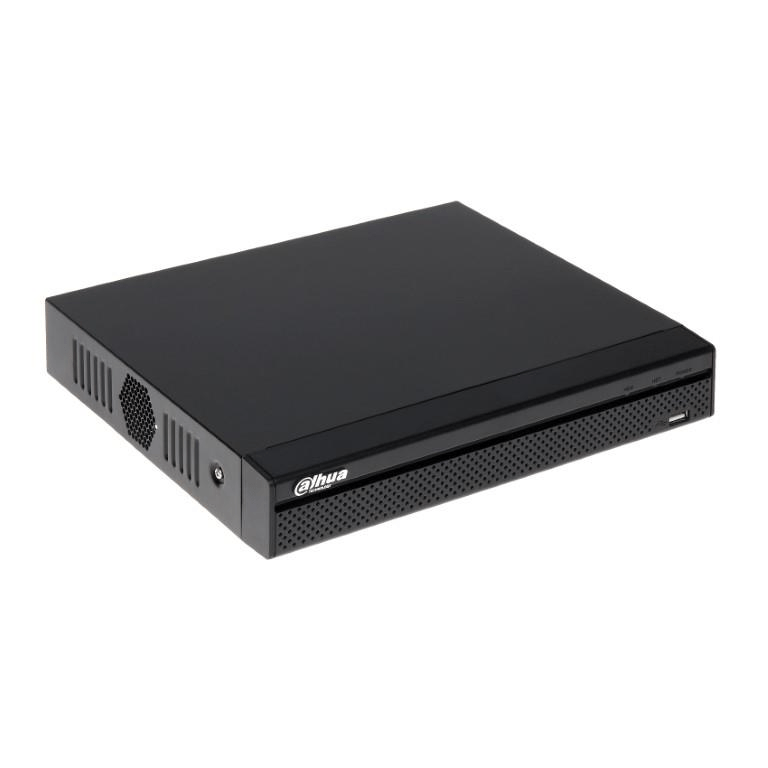

Dahua 4100 Lite Series 8-ch PoE 1U 1080p NVR NVR4108HS-8P-4KS2/L

• 8 Channel Compact 1HDD 1U 8PoE Network Video Recorder
• New 4.0 user interface, Security baseline 2.1
• H.264, H.265, Smart H.264+, and Smart H.265+. H.265 auto switch
• Max. decoding capability: 8 × 1080p@30 fps. Supports adaptive decoding
• Supports mainstream cameras of ONVIF and RTSP protocols
• P2P remote surveillance, video play on mobile device
• VGA/HDMI simultaneous video output, maximum resolution of HDMI is 4K
• AI by Camera: Face detection, perimeter protection, IVS, people counting, heat map, and SMD
• Supports remote configuration and management of IPC, such as set ting parameters, getting information, and upgrading IPC of the same model in batches

Specifications

System:

Main Processor: Industrial-grade embedded processor

OS: Embedded Linux

Operation Interface: Web/operating in local GUI

Perimeter Protection by Camera

Performance: 8 channels

AI Search: Search for pictures by channel, time and event type

Face Detection by Camera

Performance: 4 channels

Face Attributes: 6 attributes: Gender, age, glasses, expression, mouth mask, and beard

AI Search: Search for pictures by channel, time and face attributes

SMD Plus by Camera

Performance: 8 channels

AI Search: Search by target classification (human, vehicle)

Video

Access Channel: 8

Network Bandwidth:

• Access: 80 Mbps
• Storage: 80 Mbps
• Forward: 60 Mbps

Resolution: 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1

Decoding Capability: 8 × 1080p@30 fps

Video Output: 1 × VGA output, 1 × HDMI output, supports simultaneous video sources output for VGA and HDMI

Multi-screen Display: 1, 4, 8, 9 views

Third-party Camera Access: ONVIF; RTSP

Compression

Video: Smart H.265/H.265/Smart H.264/H.264/MJPEG

Audio: PCM/G711A/G711U/G726/AAC

Network

Network Protocol: HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register

Mobile Phone Access: Android; iOS

Interoperability: ONVIF(profile T/S/G); CGI; SDK

Browser: Chrome; IE9 or later; firefox

Record Playback

Multi-channel Playback: Up to 8 channels for playback

Record Mode: Manual record; alarm recording; SMD recording; smart recording

Storage: Local HDD; network

Backup: USB storage device

Playback Function:

• Play/pause/stop/slow/quick/backward/by frame
• Full screen, backup (video clip/file), partial zoom in, and audio on/off

Storage: None

Disk Group: Yes

Alarm

General Alarm: Motion detection, privacy masking, video loss, scene changing, PIR alarm, IPC external alarm

Anomaly Alarm: Camera disconnection, storage error, disk full, IP conflict, MAC conflict, login locked, and cybersecurity exception

Intelligent Alarm: Face detection, perimeter protection (intrusion and tripwire), IVS, people counting, heat map, and SMD alarms

Alarm Linkage: Recording, snapshot, audio, buzzer, log, preset, and email

External Port

Audio Input: 1 × RCA input

Audio Output: 1 × RCA output

HDD: 1 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature

USB: 2 (1 × front USB2.0; 1 × back USB2.0)

HDMI: 1 (supports up to 4K resolution output)

VGA: 1

Network: 1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port

POE: 8
