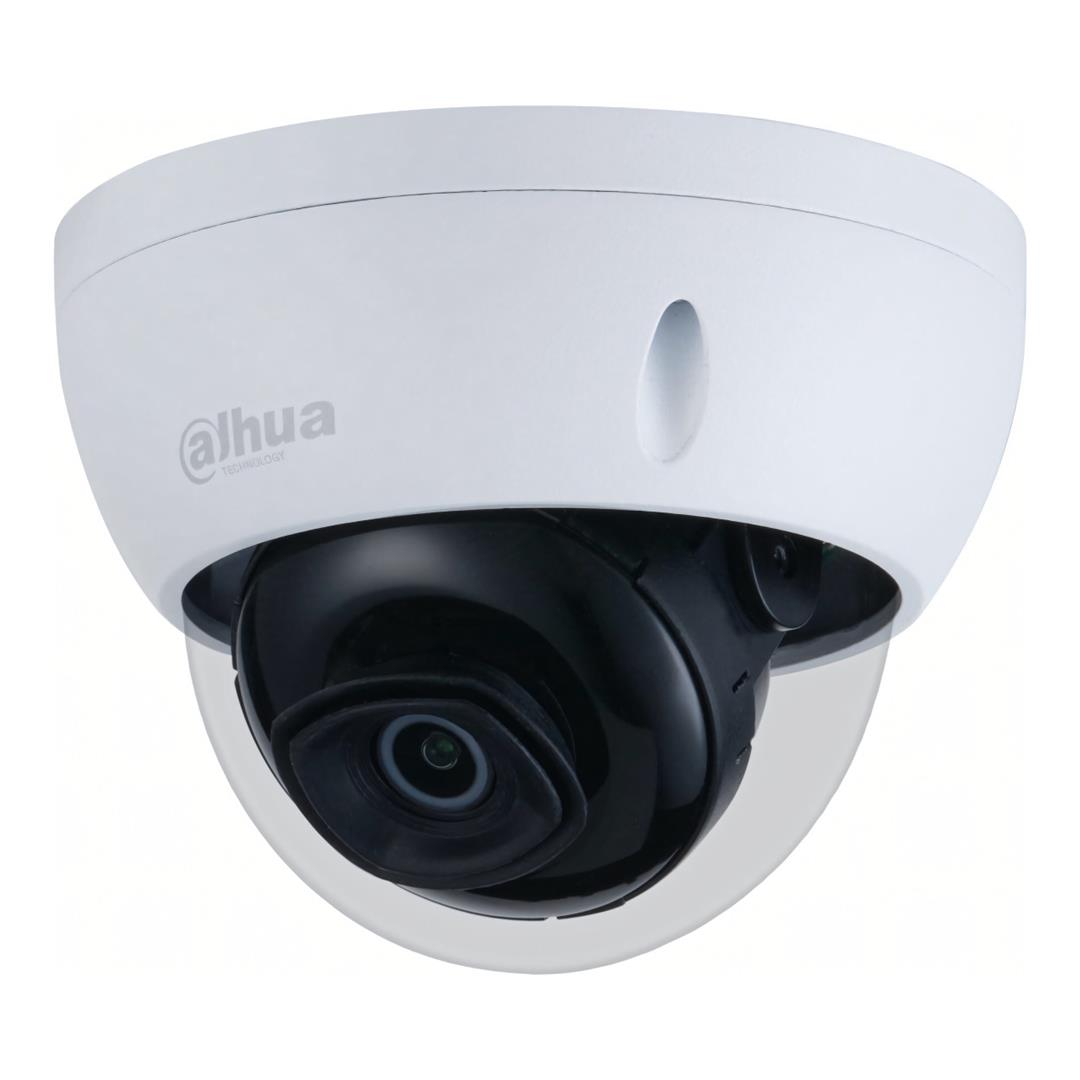

Dahua 2MP 2.8mm Lite 30m IR Fixed Dome Network Camera DH-IPC-HDBW2230E-E
The Dahua IPC-HDBW2230E-S-S2 is a 2MP Lite Series fixed-focal dome network camera designed for reliable indoor and outdoor IP surveillance. It combines Full HD imaging with Dahua Starlight low-light technology, up to 30m IR illumination, intelligent intrusion and tripwire detection, local microSD storage and efficient Smart H.265+ compression. Its IP67 and IK10-rated metal enclosure provides protection against weather and vandalism in demanding surveillance environments.
Key Features
- 2MP 1/2.8-inch CMOS sensor delivers Full HD 1920 × 1080 video at up to 25/30fps.
- Dahua Starlight technology provides enhanced colour imaging in low-light environments.
- Built-in IR illumination provides night-time surveillance at distances up to 30m.
- Smart H.265+ and Smart H.264+ compression helps reduce bandwidth and storage requirements.
- Intelligent monitoring supports intrusion and tripwire detection.
- Supports microSD storage up to 256GB for convenient local recording.
- IP67 weather protection and IK10 vandal resistance suit demanding indoor and outdoor installations.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Dahua |
| Model | IPC-HDBW2230E-S-S2 |
| Product Type | 2MP Lite IR Fixed-Focal Dome Network Camera |
| Image Sensor | 1/2.8" CMOS |
| Maximum Resolution | 1920 × 1080 (2MP) |
| Maximum Frame Rate | 2MP at 25/30fps |
| ROM | 128MB |
| RAM | 128MB |
| Scanning System | Progressive |
| Electronic Shutter | Auto / Manual, 1/3s–1/100,000s |
| Minimum Illumination | 0.005 Lux at F1.6 Colour; 0.0005 Lux at F1.6 B/W; 0 Lux with Illuminator On |
| Signal-to-Noise Ratio | >56dB |
| Lens Type | Fixed-Focal |
| Lens Options | 2.8mm / 3.6mm |
| Lens Mount | M12 |
| Maximum Aperture | F1.6 |
| 2.8mm Field of View | 108° Horizontal / 56° Vertical / 128° Diagonal |
| IR Illumination Distance | Up to 30m |
| IR LEDs | 3 |
| IR Control | Auto / Manual |
| Video Compression | H.265 / H.264 / Smart H.265+ / Smart H.264+ |
| Image Enhancement | DWDR / 3D NR / HLC / BLC / ROI |
| Intelligent Monitoring | Intrusion / Tripwire |
| Local Storage | MicroSD Card up to 256GB |
| Network Storage | FTP / SFTP / NAS |
| Network Interface | Ethernet |
| Power Supply | 12V DC / PoE (IEEE 802.3af) |
| Maximum Power Consumption | 4.6W (12V DC) / 5.4W (PoE) |
| Protection Rating | IP67 |
| Vandal Resistance | IK10 |
| Operating Temperature | -40°C to +60°C |
| Operating Humidity | ≤95% |
| Casing | Metal |
| Pan / Tilt / Rotation | Pan: 0°–355° / Tilt: 0°–65° / Rotation: 0°–355° |
| Dimensions | 81 × Ø109.9mm |
| Net Weight | 0.35kg |
Deploy dependable Full HD IP surveillance with Starlight low-light imaging, intelligent detection, local recording and robust IP67 and IK10 protection.
