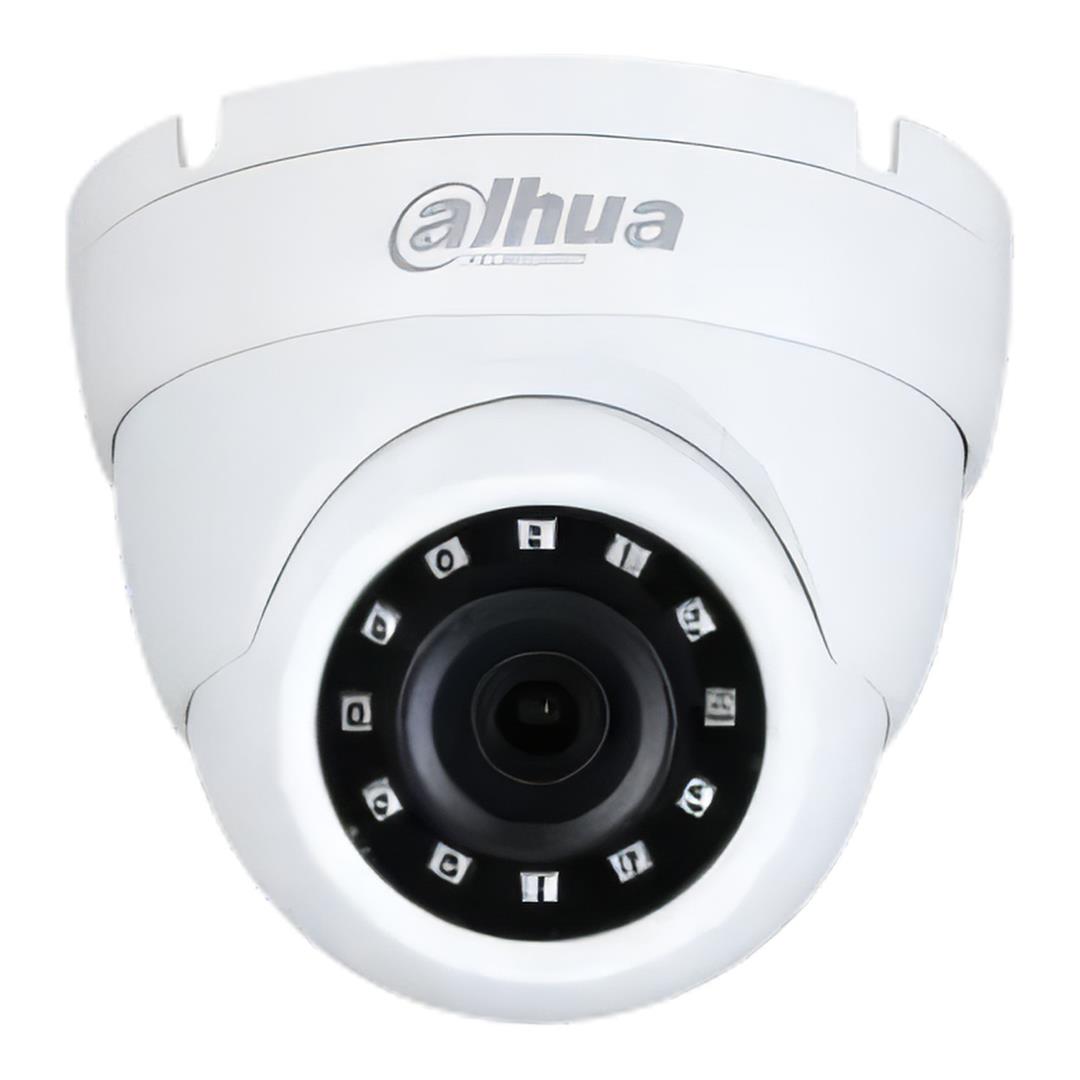

Dahua 2MP 2.8mm HDCVI IR Eyeball Camera DH-HAC-HDW1200MP_2.8mm
The Dahua DH-HAC-HDW1200MP 2.8mm is a compact 2MP HDCVI IR eyeball camera designed for reliable Full HD video surveillance over coaxial infrastructure. Its wide-angle 2.8mm fixed lens, Smart IR illumination up to 30m, multi-format video output and IP67-rated metal construction make it suitable for a variety of indoor and outdoor surveillance installations.
Key Features
- 2MP 1/2.7-inch CMOS sensor delivers Full HD 1920 × 1080 surveillance video.
- 2.8mm fixed-focal F1.9 lens provides a wide 101° horizontal field of view.
- Smart IR illumination provides night-time visibility at distances up to 30m.
- Supports switchable HDCVI, TVI, AHD and CVBS video output through a single BNC connection.
- Image functions include BLC, HLC, DWDR, 2D noise reduction, electronic defog and privacy masking.
- IP67-rated metal housing supports indoor and outdoor installations.
- Wide -40°C to +60°C operating temperature range for demanding environments.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Dahua |
| Model | DH-HAC-HDW1200MP |
| Lens Variant | 2.8mm |
| Product Type | 2MP HDCVI IR Eyeball Camera |
| Video Standard | PAL |
| Image Sensor | 1/2.7" CMOS |
| Effective Pixels | 1920 × 1080, 2MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/25s–1/100000s (PAL) |
| Signal-to-Noise Ratio | >65dB |
| Minimum Illumination | 0.02 lux at F1.9, 30 IRE; 0 lux with IR On |
| Lens Type | Fixed-Focal |
| Focal Length | 2.8mm |
| Lens Mount | M12 |
| Maximum Aperture | F1.9 |
| Field of View | 119° Diagonal / 101° Horizontal / 54° Vertical |
| Close Focus Distance | 0.5m |
| DORI Distance | Detect: 38.6m / Observe: 15.4m / Recognise: 7.7m / Identify: 3.9m |
| IR Distance | Up to 30m |
| IR LEDs | 12 |
| Smart IR | Yes |
| IR Control | Auto / Manual |
| Maximum Frame Rate | 1080p at 30fps |
| Supported Resolutions | 1080p (1920 × 1080), 720p (1280 × 720), 960H |
| Video Formats | HDCVI / TVI / AHD / CVBS |
| Video Output | 1 × BNC |
| Day / Night | Auto Switch by ICR |
| Backlight Compensation | BLC / HLC / DWDR |
| Wide Dynamic Range | DWDR |
| Noise Reduction | 2D NR |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| Electronic Defog | Yes |
| Privacy Masking | Up to 8 Rectangular Areas |
| Pan Range | 0°–360° |
| Tilt Range | 0°–78° |
| Rotation Range | 0°–360° |
| Power Supply | 12V DC ±30% |
| Power Consumption | Maximum 3.1W (12V DC, IR On) |
| Protection Rating | IP67 |
| Operating Temperature | -40°C to +60°C |
| Operating Humidity | <95% RH, Non-Condensing |
| Casing | Metal |
| Dimensions | Ø93.4 × 79.4mm |
| Net Weight | 0.27kg |
Deploy reliable Full HD surveillance with wide-angle coverage, 30m Smart IR and durable IP67 protection using the Dahua DH-HAC-HDW1200MP 2.8mm camera.
