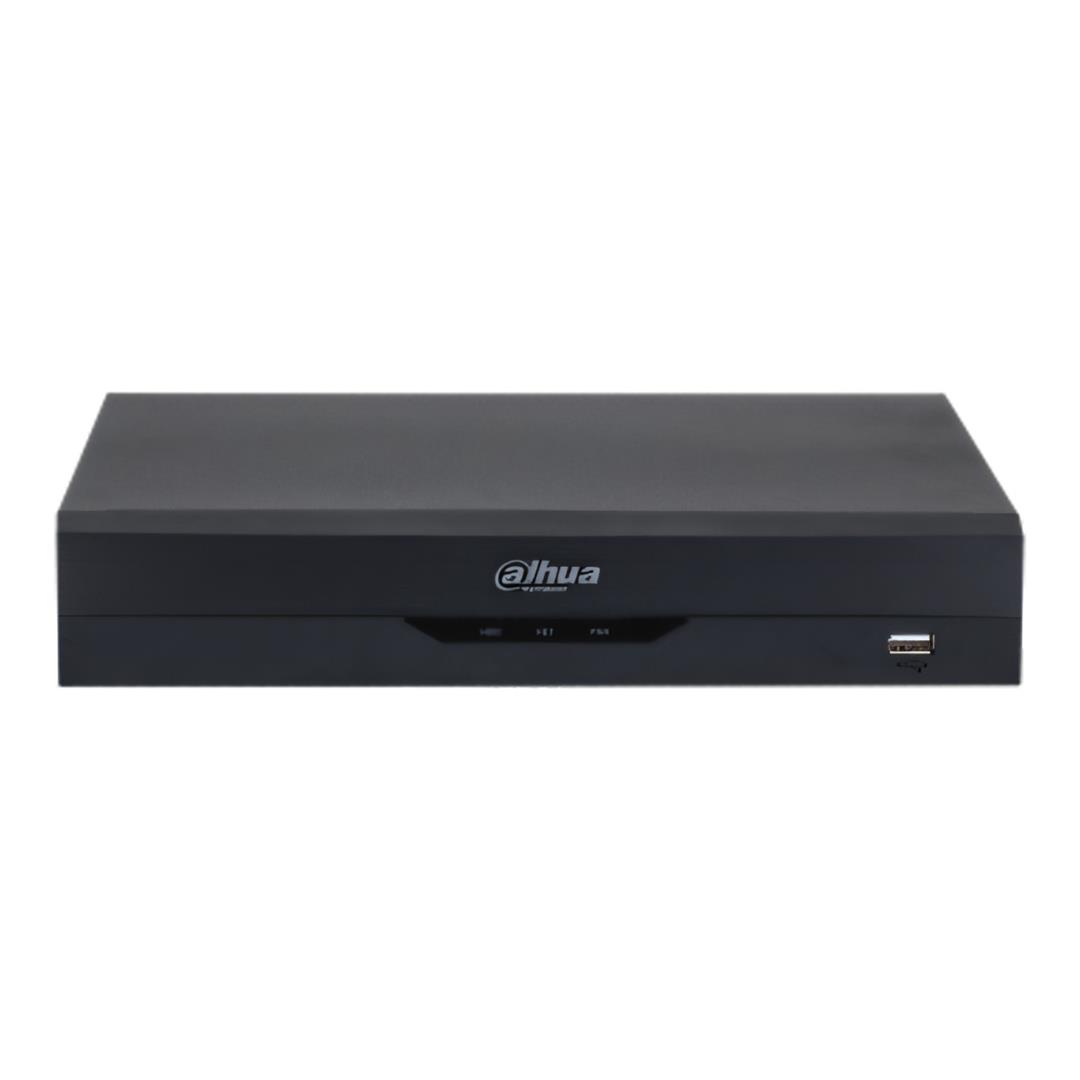

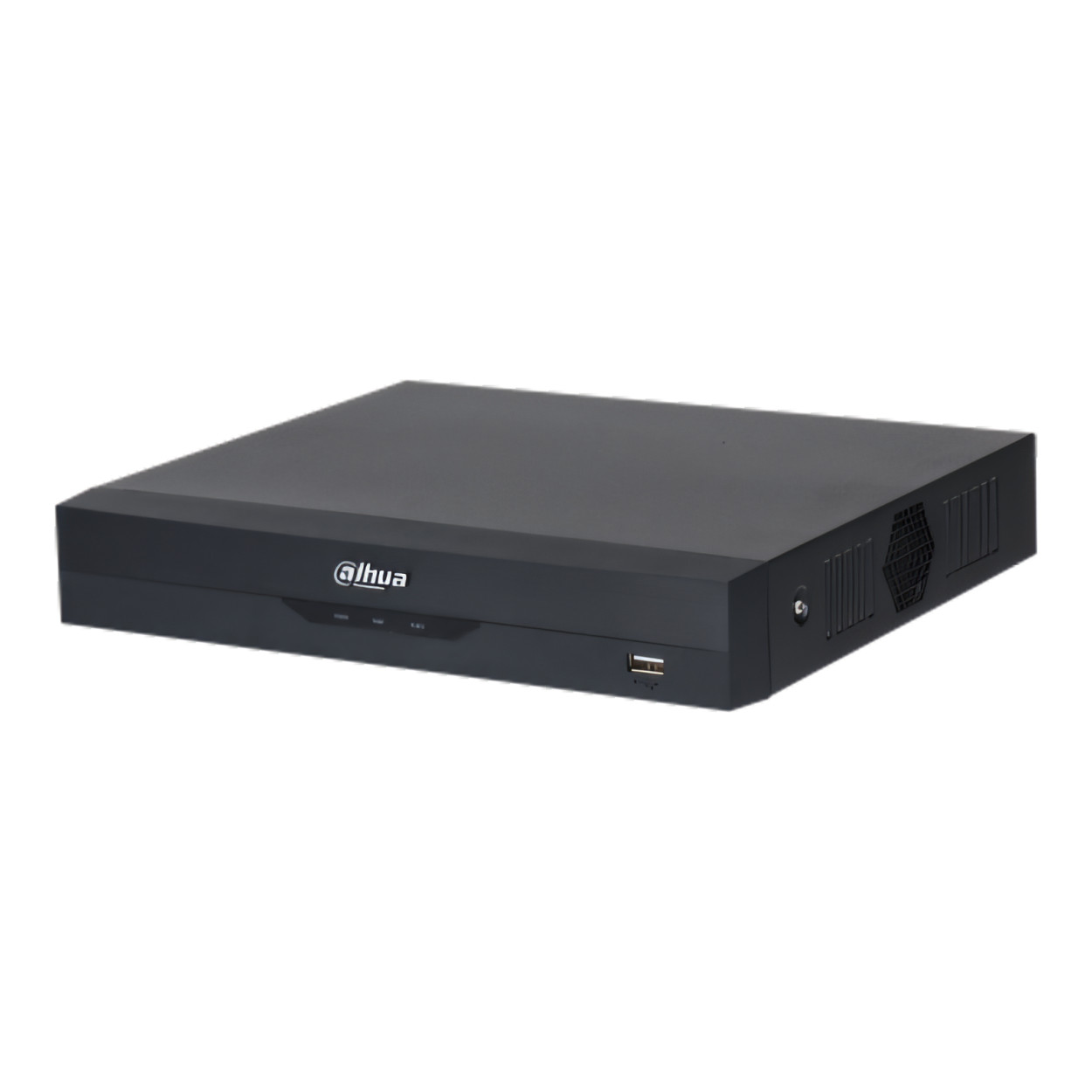

Dahua 16-channel Penta-brid 1080N/720P Compact 1U 1HDD WizSense Digital Video Recorder DH-XVR4116HS-I/T
The Dahua DH-XVR4116HS-I/T is a 16-channel WizSense Penta-brid digital video recorder designed for flexible multi-format surveillance systems. It supports HDCVI, AHD, TVI, CVBS and IP cameras, with up to 18 IP channels available when analogue channels are converted. Intelligent SMD Plus human and vehicle filtering, AI Coding, two-way talk over coaxial cable and support for a single HDD up to 16TB make it a versatile recorder for professional security installations.
Key Features
- 16 analogue BNC channels with automatic HDCVI, AHD, TVI and CVBS detection.
- Supports up to 18 IP camera channels with resolutions up to 6MP.
- 16-channel SMD Plus provides secondary human and vehicle filtering to reduce false alarms.
- 16-channel AI Coding helps reduce bandwidth and storage requirements while retaining important target detail.
- Supports 16-channel two-way talk over coaxial cable with compatible equipment.
- Smart H.265+ and Smart H.264+ compression provide efficient video storage and transmission.
- Single SATA bay supports an HDD with capacity up to 16TB.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Dahua |
| Model | DH-XVR4116HS-I/T |
| Product Type | 16-Channel Penta-brid WizSense Digital Video Recorder |
| Form Factor | Compact 1U |
| Main Processor | Industrial-Grade Processor |
| Operating System | Embedded Linux |
| Operating Interface | Web / Local GUI |

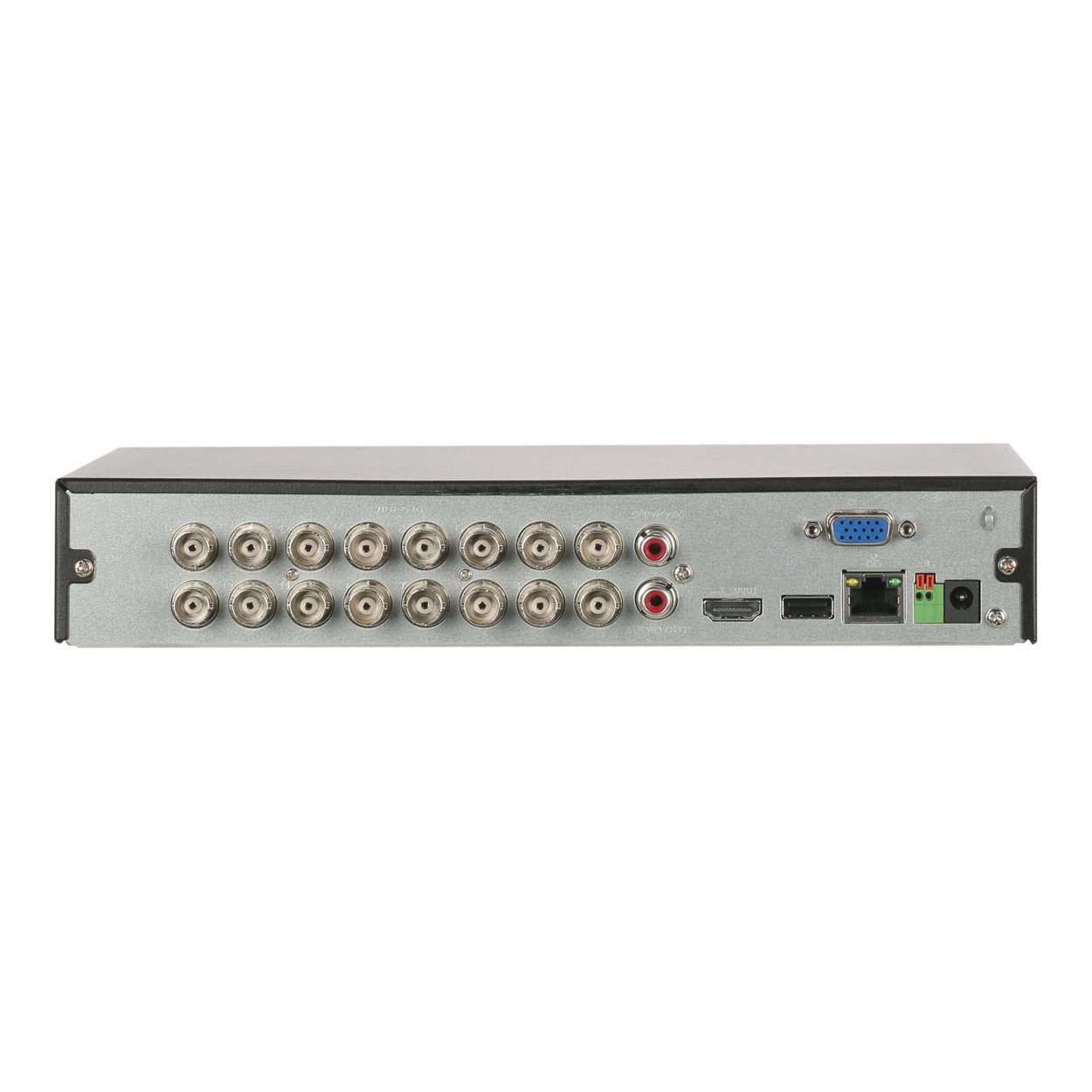

| Analogue Video Inputs | 16 × BNC |
| Supported Analogue Formats | HDCVI / AHD / TVI / CVBS Auto-Detect |
| CVI Camera Input | 1080p at 25/30fps / 720p at 25/30fps |
| TVI Camera Input | 1080p at 25/30fps / 720p at 25/30fps |
| AHD Camera Input | 1080p at 25/30fps / 720p at 25/30fps |
| Maximum IP Camera Channels | 18 Channels |
| Default IP Channels | 2 Channels |
| Maximum IP Camera Resolution | 6MP |
| Incoming Bandwidth | 64Mbps |
| Recording Bandwidth | 64Mbps |
| Outgoing Bandwidth | 64Mbps |
| Analogue Encoding – Channel 1 | 1080N / 720p at 1–25/30fps |
| Analogue Encoding – Other Channels | 1080N / 720p at 1–15fps |
| 960H / D1 / CIF Encoding | 1–25/30fps |
| Sub Stream | CIF at 1–7fps |
| Dual Stream | Yes |
| Video Bit Rate | 32Kbps–4096Kbps |
| Video Compression | AI Coding / Smart H.265+ / H.265 / Smart H.264+ / H.264 |
| SMD Plus by Recorder | 16 Channels, Human & Vehicle Secondary Filtering |
| SMD by Camera | Up to 18 Channels |
| AI Coding | 16 Channels |
| HDMI Output | 1 × HDMI, Up to 1920 × 1080 |
| VGA Output | 1 × VGA, Up to 1920 × 1080 |
| Multi-Screen Display | 1 / 4 / 8 / 9 / 16; Up to 25 in IP Extension Mode |
| Third-Party Camera Support | Panasonic / Sony / Hanwha / Axis / Arecont / ONVIF |
| Audio Input | 1 × RCA + 16-Channel BNC Coaxial Audio |
| Audio Output | 1 × RCA |
| Two-Way Talk | 16-Channel Coaxial Two-Way Talk |
| Audio Compression | G.711a / G.711u / PCM |
| Audio Sampling | 8kHz, 16-Bit |
| Audio Bit Rate | 64Kbps |
| Recording Modes | General / Alarm / Motion Detection |
| Simultaneous Playback | 1 / 4 / 9 / 16 Channels |
| Playback Modes | Instant / General / Event / Tag / Smart Playback |
| Backup | USB Device / Network |
| HDD Interface | 1 × SATA |
| Maximum HDD Capacity | Up to 16TB |
| Network Interface | 1 × RJ45 10/100Mbps Ethernet |
| USB Ports | 2 × USB 2.0 (1 Front / 1 Rear) |
| RS-485 | 1 |
| Mobile Access | iOS / Android |
| Interoperability | ONVIF Profile T / S / G / M, CGI, SDK |
| Power Supply | 12V DC, 2A |
| Power Consumption | <10W Without HDD |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | 10%–90% RH, Non-Condensing |
| Installation | Desktop |
| Dimensions (W × D × H) | 260 × 237.8 × 47.6mm |
| Net Weight | 1.13kg |
Build a flexible multi-format surveillance system with 16 analogue channels, expandable IP camera support and WizSense intelligent human and vehicle detection.
