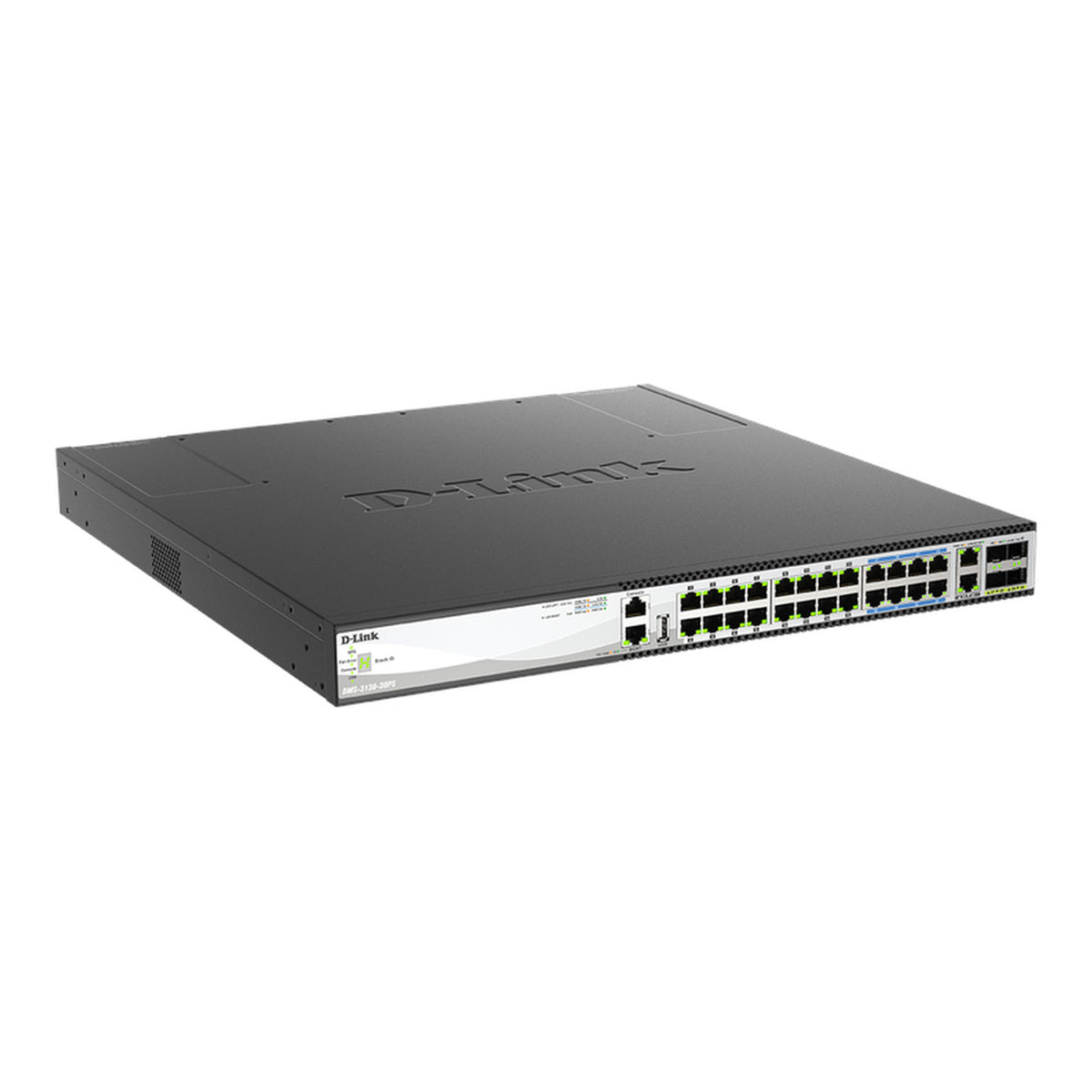

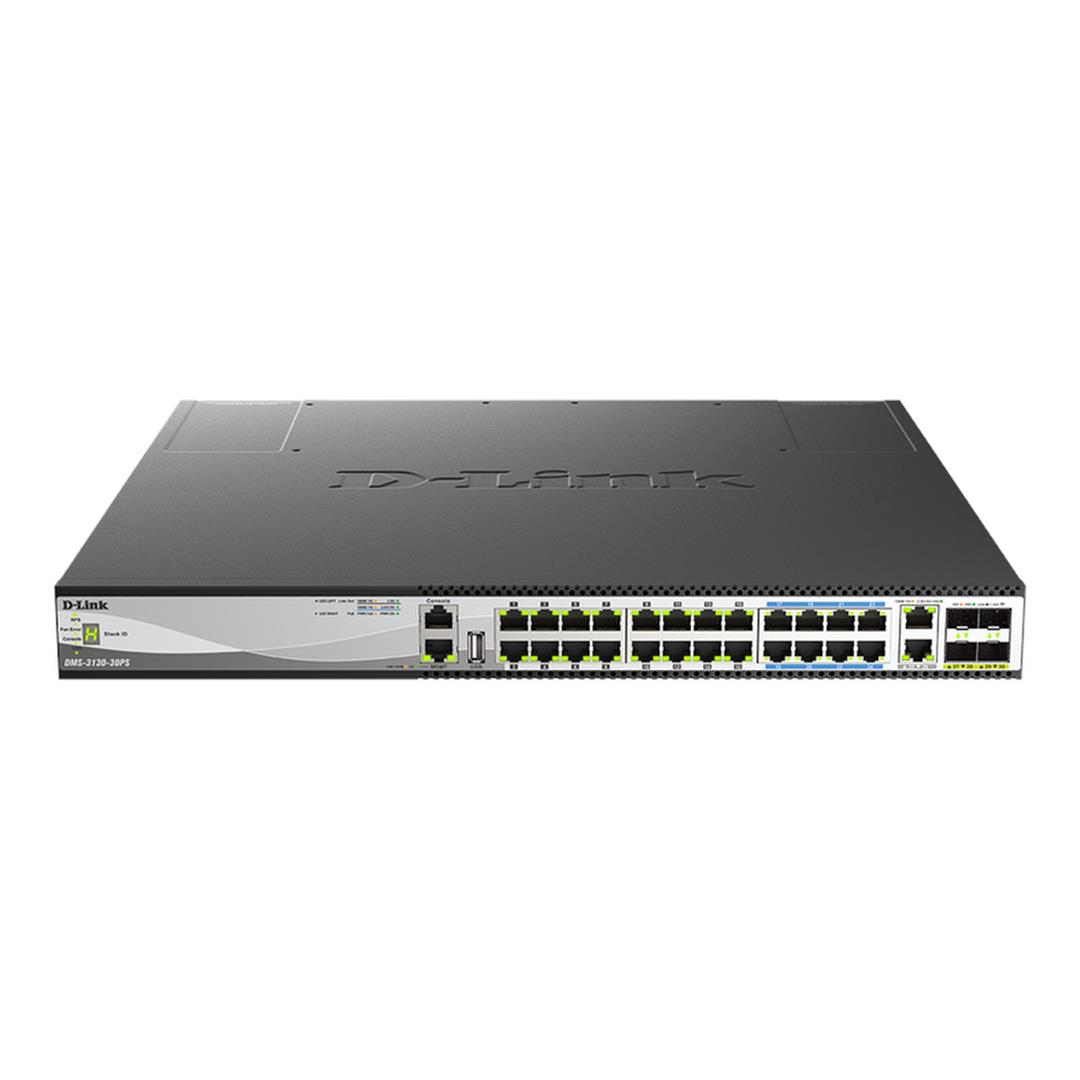

D-Link 30-port Multi-G PoE L3 Managed Network Switch DMS-3130-30PS
The D-Link DMS-3130-30PS is a stackable Layer 3 managed switch for enterprise and metro Ethernet access networks. It combines multi-Gigabit connectivity, 24 PoE-enabled ports and high-speed uplinks to connect and power compatible access points, IP cameras and VoIP phones. Integrated traffic management and security features help administrators support demanding business networks.
Multi-Gigabit Access with Flexible Uplinks
Sixteen 2.5G PoE+ ports and eight 5G PoE ports accommodate devices with different bandwidth and power requirements. Two 10GBASE-T ports and four 10/25G SFP28 ports provide flexible connections to the wider network.
Power Compatible Devices over Ethernet
A 740 W PoE budget supports centralised power delivery through Ethernet cabling, with up to 60 W available on each of the eight 5G PoE ports. The total budget can increase to 960 W with dual power supplies. Connected devices must remain within the applicable per-port limits and total power budget.
Perpetual PoE maintains power to connected devices while the switch reboots, while Fast PoE supplies power without waiting for the operating system to finish loading.
Traffic Prioritisation and Access Control
Multi-layer QoS and traffic shaping help prioritise voice, video conferencing and surveillance traffic. IP-MAC-Port Binding and DHCP Snooping strengthen access control, while multicast support helps manage IPTV traffic.
Expansion and Network Resilience
Physically stack up to nine switches through the four 25G ports as network requirements grow. Spanning Tree protocols, loopback detection and storm control support network resilience. Built-in 6 kV surge protection on the 2.5G/5G access ports helps reduce the risk of damage from electrical surges.
Key Features:
- 24 powered access ports: Connect compatible network devices and deliver PoE through the same cable.
- 10G and 25G uplinks: Support high-bandwidth connections between network equipment.
- Layer 3 routing: Static routing, RIP/RIPng and OSPFv2/v3 support managed network deployment.
- Physical stacking: Expand capacity with up to nine units.
- Smart cooling: Two smart fans adjust cooling to operating requirements.
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | D-Link |
| Model / MPN | DMS-3130-30PS |
| Product Type | Layer 3 stackable managed multi-Gigabit PoE switch |
| Total Network Ports | 30: 26 copper Ethernet ports and 4 SFP28 ports |
| 2.5G PoE+ Ports | 16 x 100M/1/2.5GBASE-T |
| 5G PoE Ports | 8 x 100M/1/2.5/5GBASE-T; up to 60 W per port |
| Copper Uplink Ports | 2 x 100M/1/2.5/5/10GBASE-T |
| SFP28 Ports | 4 x 10/25G SFP28 |
| PoE Standards | IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt |
| Total PoE Budget | 740 W; expandable to 960 W with dual power supplies |
| Switching Capacity | 400 Gbps |
| Packet Forwarding Rate | 298 Mpps for 64-byte packets |
| Packet Buffer | 4 MB |
| Physical Stacking | Up to 9 units; up to 200 Gbps stacking bandwidth |
| Management | Web interface, CLI and SNMP; dedicated RJ-45 console and management ports |
| USB Port | 1 x USB 2.0 Type-A |

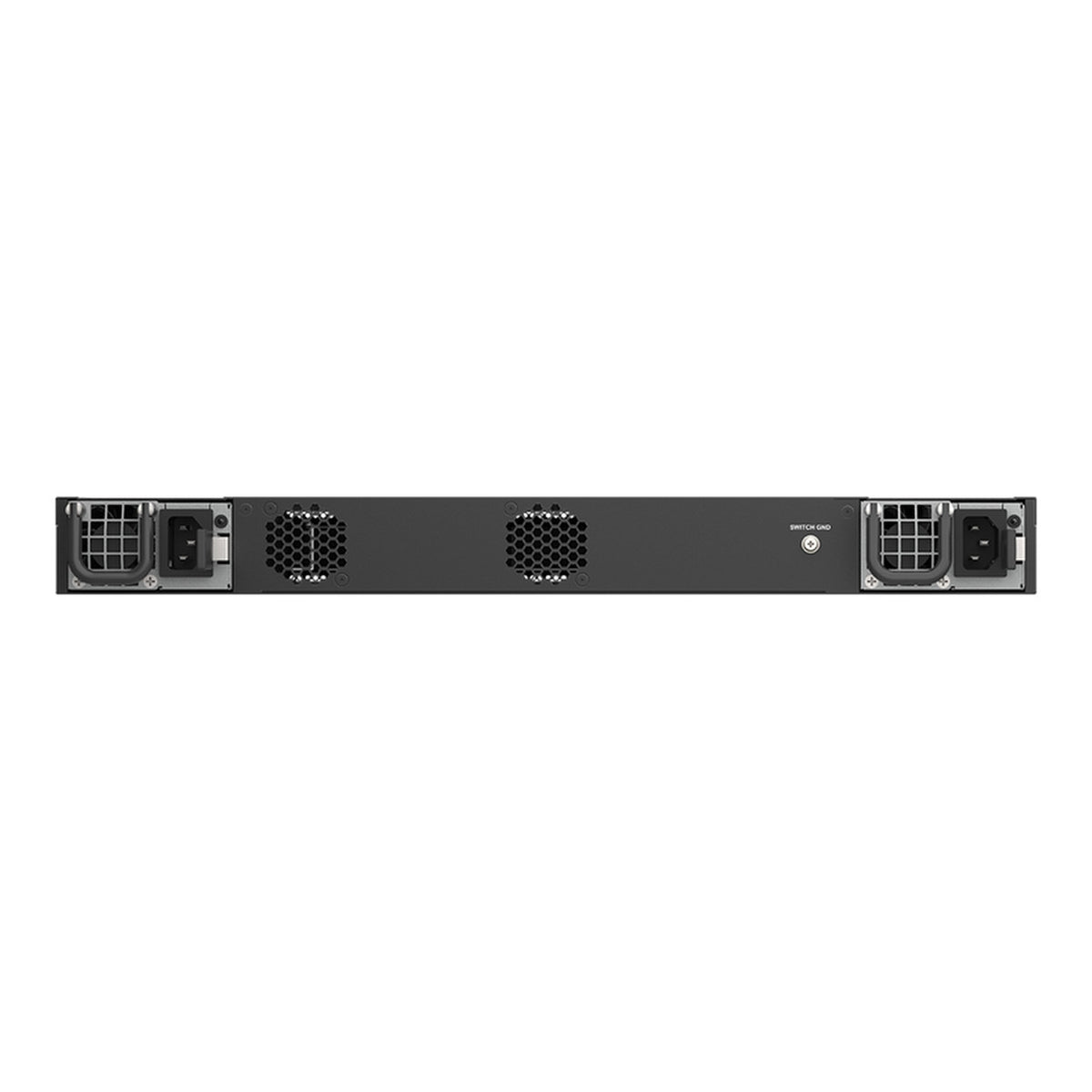

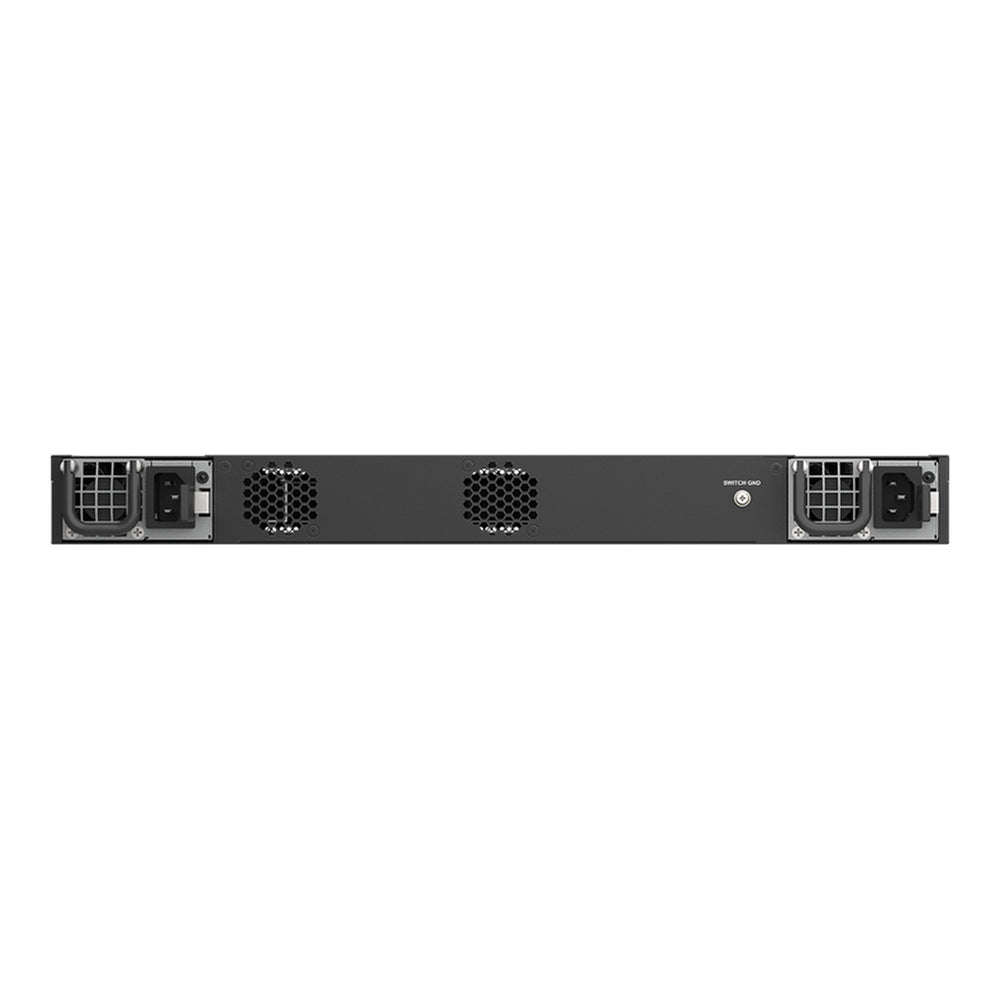

| Optional Redundant Power Supplies | DPS-PWR740AC or DPS-PWR740DC hot-swappable internal power supplies |
| AC Power Input | 100–240 V AC, 50–60 Hz |
| Cooling | 2 smart fans |
| Surge Protection | 6 kV on 2.5G/5G Ethernet access ports |
| Dimensions (W x D x H) | 440 x 470 x 44 mm |
| Weight | 6.54 kg |
| Operating Temperature | 0–50°C |
Build your business network with multi-Gigabit connectivity and centralised PoE power—add the D-Link DMS-3130-30PS to your cart today.
