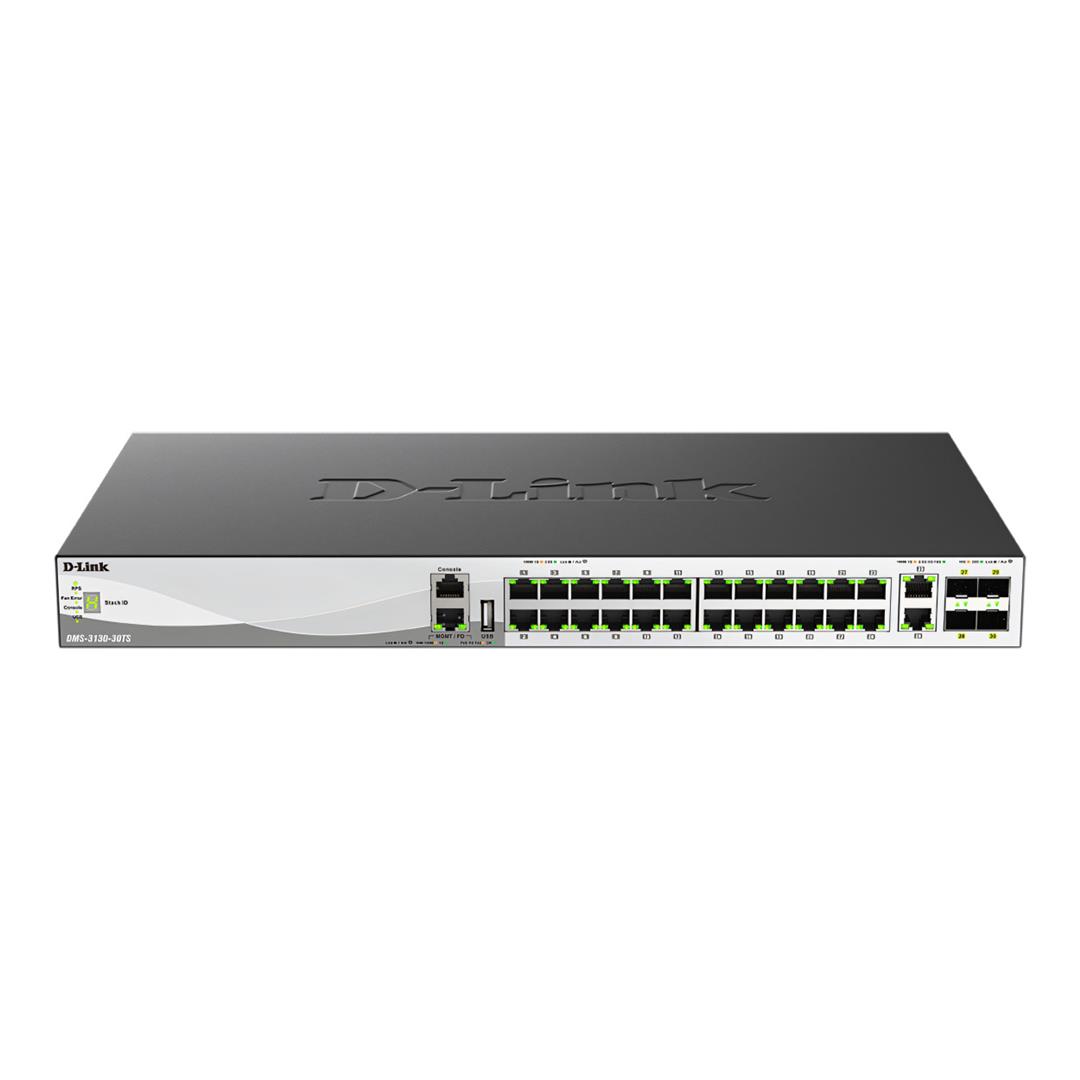

D-Link 30-port Layer 3 Stackable Multi-Gigabit Managed Switch DMS-3130-30TS

D-Link 30-port Layer 3 Stackable Multi-Gigabit Managed Switch DMS-3130-30TS

The D-Link DMS-3130-30TS is a 30-Port Layer 3 Stackable Multi-Gigabit Managed Switch designed for modern SMB, enterprise and Metro Ethernet networks requiring high-speed access, aggregation and advanced routing capabilities. It combines 24 multi-gigabit 2.5GBASE-T access ports with two copper ports supporting speeds up to 10Gbps and four SFP28 fibre ports supporting speeds up to 25Gbps. Advanced Layer 2 and Layer 3 functionality, physical stacking, redundant power supply support and comprehensive network management features make the DMS-3130-30TS suitable for scalable, high-performance network deployments.

Key Features

• 24 × 100M/1G/2.5GBASE-T RJ45 ports
• 2 × 100M/1G/2.5G/5G/10GBASE-T RJ45 ports
• 4 × 10G/25G SFP28 ports
• 360 Gbps switching capacity
• 268 Mpps maximum 64-byte packet forwarding rate
• 4 MB packet buffer memory
• 32K MAC address table
• Layer 3 managed switching functionality
• Physical stacking of up to 9 switches
• Up to 200 Gbps stacking bandwidth
• Virtual stacking of up to 32 devices
• RIP/RIPng and OSPFv2/v3 dynamic routing
• ERPS Ethernet Ring Protection
• Q-in-Q VLAN support
• 6 kV surge protection on multi-gigabit ports
• AC/DC redundant power supply support
• Optional DPS-500A AC redundant power supply
• Optional DPS-500DC DC redundant power supply
• Dedicated out-of-band management and console interfaces
• USB 2.0 Type-A port
• 2 × Smart Fans
• 19-inch 1U rackmount design

Multi-Gigabit Connectivity

The DMS-3130-30TS provides 24 copper access ports capable of operating at 100Mbps, 1Gbps or 2.5Gbps. Two additional multi-gigabit RJ45 interfaces support speeds from 100Mbps through 10Gbps, while four SFP28 interfaces support both 10Gbps and 25Gbps fibre connectivity. This combination provides high-bandwidth connectivity for access points, workstations, servers, storage systems and network uplinks.

Layer 3 Networking

Advanced Layer 3 functionality allows the DMS-3130-30TS to perform routing directly at the switch. Support for static routing together with dynamic routing protocols including RIP, RIPng, OSPFv2 and OSPFv3 enables the switch to dynamically determine efficient routes through IPv4 and IPv6 networks.

Scalable Stacking

The DMS-3130-30TS supports physical stacking of up to nine switches with up to 200 Gbps of stacking bandwidth, allowing multiple switches to operate as a unified system. D-Link Single IP Management also provides virtual stacking and management of up to 32 devices through a single IP address.

Network Interfaces

Switching Performance

Stacking & High Availability

Layer 2 & Layer 3 Features

Power & Environmental Specifications

Technical Specifications

What's Included:

• 1 × D-Link DMS-3130-30TS 30-Port Layer 3 Stackable Multi-Gigabit Managed Switch
• Standard Supplied Accessories
• Documentation

Please Note: The DMS-3130-30TS is the non-PoE model in the DMS-3130 Series. The optional DPS-500A/DPS-500DC redundant power supplies, SFP28/SFP+ transceivers, direct-attach cables and other networking accessories are sold separately unless specifically included by the supplier.

The D-Link DMS-3130-30TS combines high-density 2.5 Gigabit Ethernet access, 10 Gigabit copper connectivity, four 25 Gigabit SFP28 interfaces, advanced Layer 3 routing and scalable physical stacking to provide a powerful switching platform for high-performance business and Metro Ethernet networks.
