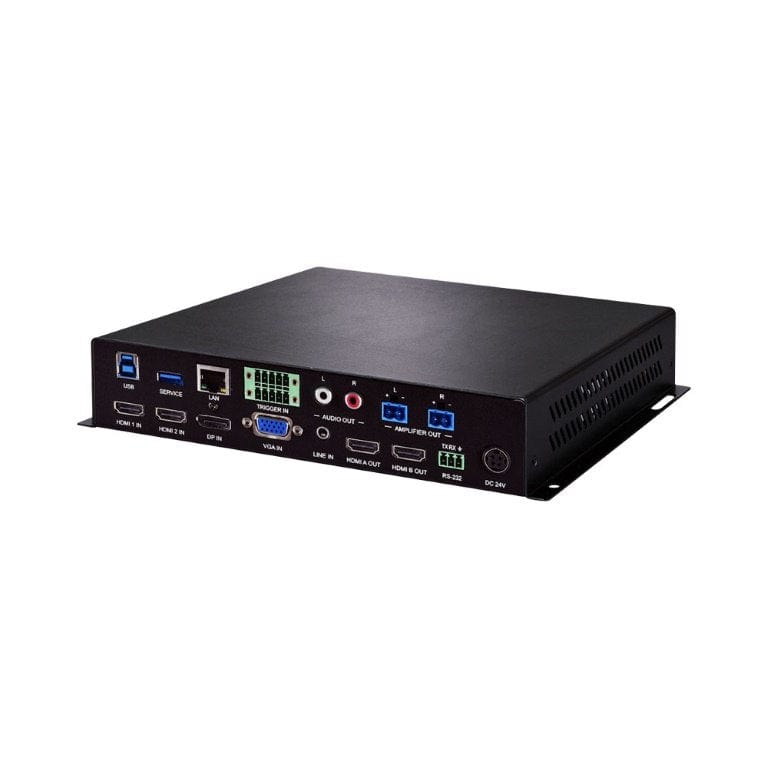

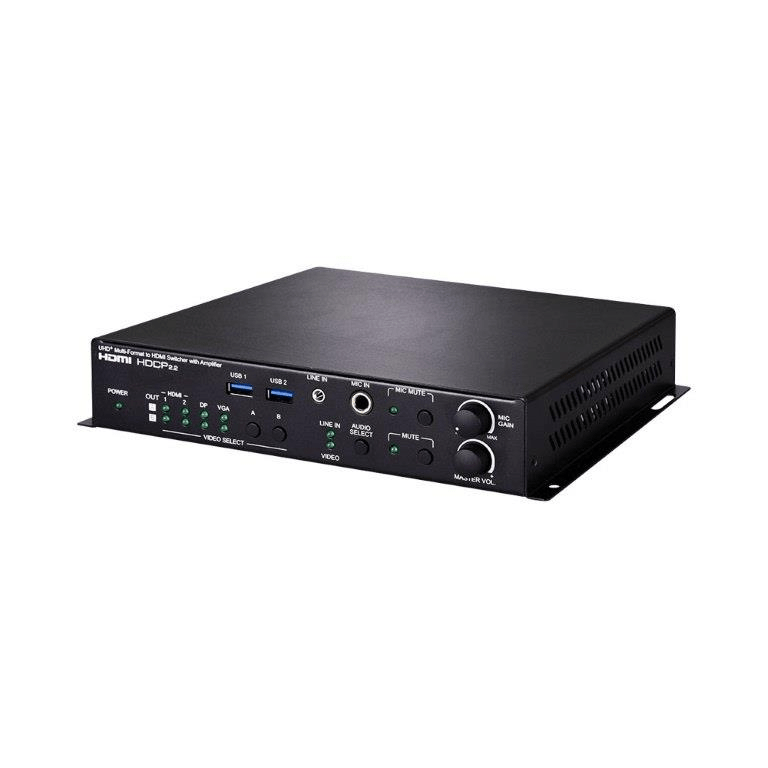

Cypress UHD+ Multi-Format to HDMI Switcher with Amplifier CNV-CPLUS-V2030

Cypress UHD+ Multi-Format to HDMI Switcher with Amplifier CNV-CPLUS-V2030

This 4×2 Matrix Switcher features HDMI, VGA and DisplayPort inputs, plus HDMI outputs. The CPLUS-V2030 is HDCP2.2 compliant and supports up to a maximum of 4K @60Hz (4:4:4, 8-bit) for HDMI and DisplayPort inputs. The included microphone input, with optional 48V/0V phantom power support and automatic ducking, feeds directly into a DSP mixer, allowing for powerful presentations with live voice-overs or even an impromptu karaoke session. This switcher supports USB3.0 with one host (Type-B) PC, plus three peripheral devices (Type-A) for a multi-source, bi-directional and highly flexible KVM configuration (Note: Only 1 USB host may be active at a time). Moreover, it also provides an interface for a remote control keypad or trigger interface, which can be easily installed within a podium or table. CDPS-Trigger Control Keypad is suitable for this application. This matrix switcher is ideal for use in meeting rooms and classrooms with dual displays, auditoriums and lecture halls which need comprehensive audio integration features as well as video conferencing that requires USB data.

Features

• Supports Pass-Through of LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream Audio Formats
• Supports Microphone/Line Level Input with 48 Volt Phantom Power and Automatic Ducking, Audio Output Matrix Mixing and Volume/ Mute
• High Performance and Efficient 2-Channel, Class-D Amplifier with 20W of Power per Channel and Volume Control
• Supports Extended Keypad (Trigger) Control for Easy, Single Button and Macro Activation (Optional Equipment)
• The Matrixed, Dual HDMI Outputs Can Directly Feed Into Two Flat-Panel Displays Side-by-Side

Technical Specification

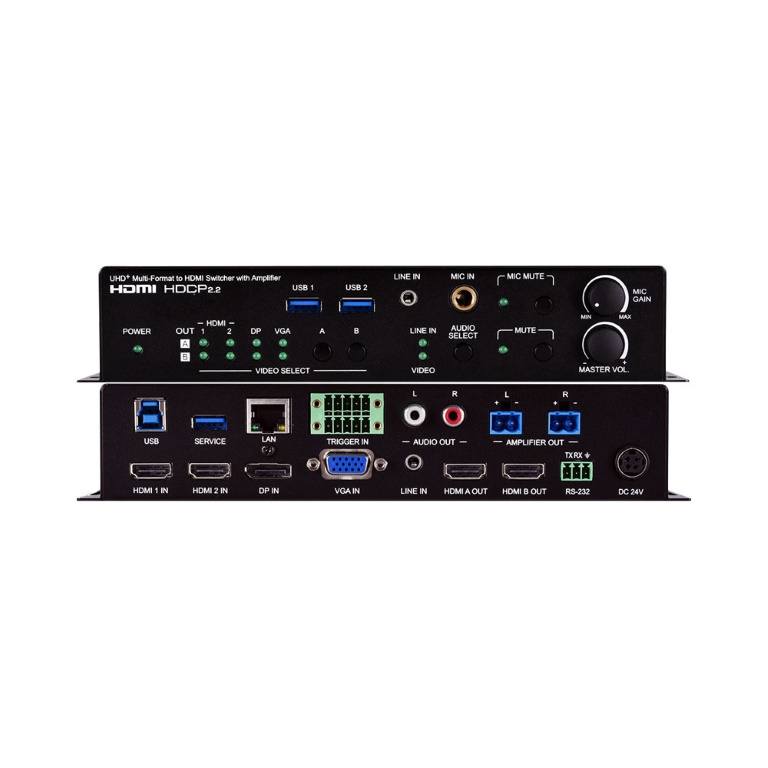

Interface

• 2x HDMI Input
• 1x VGA
• 1x DisplayPort
• 2x Unbalanced Stereo (3.5mm)
• 1x Microphone (6.35mm)
• 2x HDMI Output
• 1x Stereo (2x RCA)
• 1x Stereo (2×2-Pin Terminal Block)
• 1x RS232 (3-Pin Terminal Block) I/O Control
• 1x Trigger (10-Pin Terminal Block)
• 1x LAN (RJ45)
• 2x USB3.0 (Type-A) Pass-Through
• 1x USB3.0 (Type-B)
• 1x USB3.0 (Type-A) with Service Function

Video

HDMI Compliance HDMI 2.0
HDCP Compliance: 2.x
Input Signal Type: 4096 x 2160 @60Hz 8-bit YUV 4:4:4
Output Signal Type: 4096 x 2160 @60Hz 8-bit YUV 4:4:4

Resolutions

Maximum Input HDMI: 4096 x 2160 @60Hz
DisplayPort: 4096 x 2160 @60Hz
VGA: 1920 x 1200 @60Hz
Maximum Output HDMI: 4096 x 2160 @60Hz

Audio

HDMI: LPCM 8-Channel High-Definition Bitstream
Line-In: Maximum Audio Level: 2Vrms Impedance: 10kΩ Type: Unbalanced

Power

Power Supply: 24V 3.75A DC
Power Consumption: 43W (Without Amplifier)

Enclosure

Chassis Material: Steel
Chassis Colour: Black
Weight: 1.2kg
