Cypress UHD+ Multi-Format to HDMI Output Switcher CNV-CPLUS-31PS

Cypress UHD+ Multi-Format to HDMI Output Switcher CNV-CPLUS-31PS

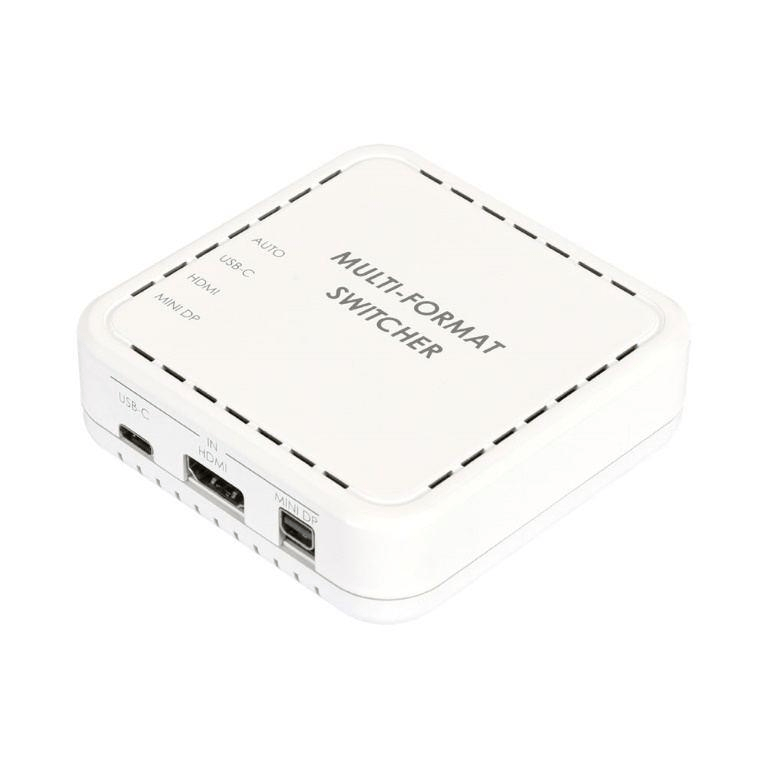

This 3×1 Multi-Format to HDMI Switch is a 4K @60Hz (4:4:4) switch featuring USB Type-C, HDMI and Mini DisplayPort inputs which are automatically converted to a standard HDMI format for use with projectors or displays. The unit provides easy switching functionality with both a manual input selection button and an optional auto-sensing “last memory” feature which can automatically switch to a newly connected source or revert to the previous source, if the current one becomes disconnected, with no user intervention necessary. It is controllable via a single front panel button.

Features

• EDID bypass with an optimized algorithm to ensure optimal resolution and feature support
• Easy to read LEDs to indicate input selection and operational mode
• Controllable via a single front panel button with LEDs

Technical Specification

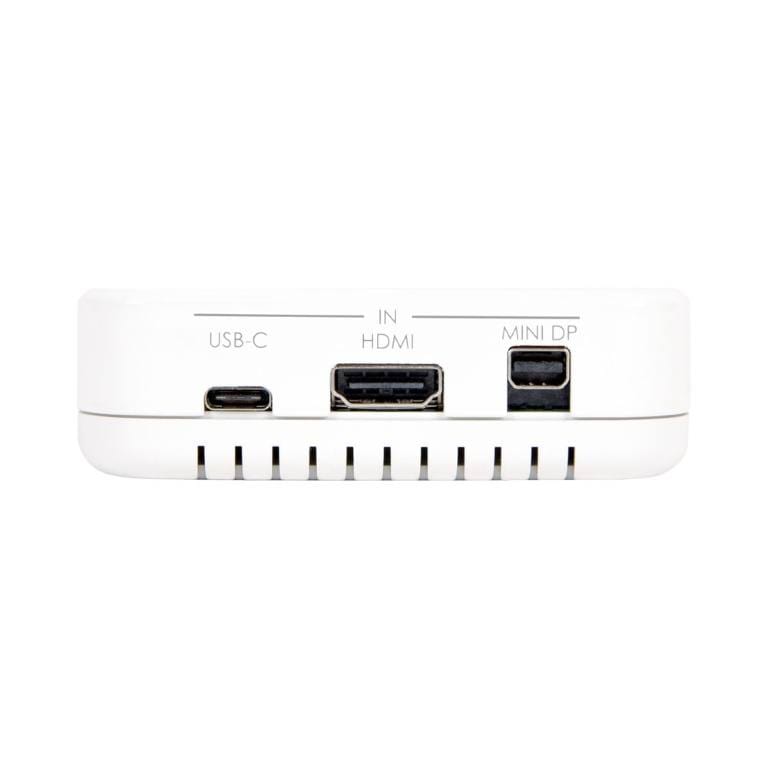

Interface

• 1x USB Type-C Input
• 1x Mini DisplayPort
• 1x HDMI
• 1x HDMI Output
• 1x Mini USB Service Port

Video

HDMI Compliance: HDMI 2.0, DP 1.4 and DVI 1.0
HDCP Compliance: 2.x
Input Signal Type: 4096 x 2160 @60Hz YUV 4:4:4
Output Signal Type: 4096 x 2160 @60Hz YUV 4:4:4

Resolution

Maximum Input HDMI: 4096 x 2160 @60Hz
Mini DisplayPort: 4096 x 2160 @60Hz
USB Type-C: 4096 x 2160 @60Hz
Maximum Output HDMI: 4096 x 2160 @60Hz

Audio

Input: LPCM (8 Channels), Bitstream, HD Bitstream
Output: LPCM (8 Channels), Bitstream, HD Bitstream

Power

Power Supply: 5V 1.2A Mini USB
Power Consumption: 4.7W

Enclosure

Material: Plastic
Colour: White
Weight: 80g

Field Firmware Update

• Mini USB interface
