Cypress HDMI to Digital Analogue Audio Extractor CLUX-11CD / 38090

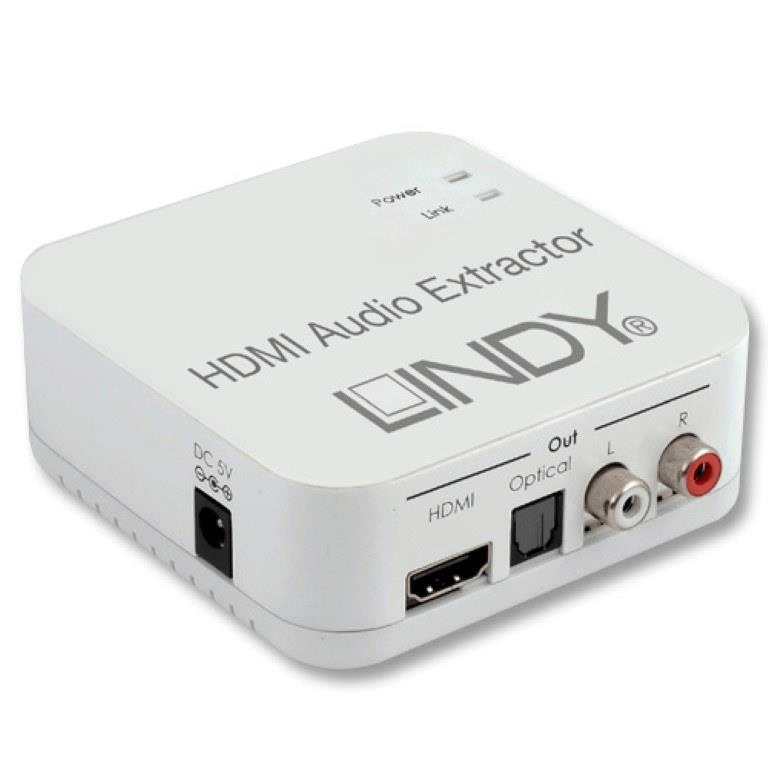

Cypress HDMI to Digital Analogue Audio Extractor

The HDMI Audio Extractor allows you to extract audio signals from your HDMI source. When connecting to a TV or display you don’t always get the best audio, or in the case of a PC monitor, no audio at all. So with this Audio Extractor you can take your original HDMI audio signal and convert it to digital optical or analog Stereo (L/R) audio. This means that you can output your audio signal to external speakers or extend your audio signal pathway.

Features:

•  Compliant with HDMI, HDCP 1.2 and DVI 1.0
•  Supports HDMI audio sampling rates up to 192 kHz
•  Supports Optical S/PDIF sampling rates up to 48 kHz
•  Supports TMDS clock frequency rate 225 MHz
•  Supports high-bit-rate (HBR) audio
•  No HDMI output connection is required to receive audio at the analog and optical outputs
•  Maximum input and output HDMI cable length can run up to 15 meters at 1080p at 8-bit resolution
•  Low power consumption
•  Supports EDID management for audio formats, can switch among builtin EDID (LPCM 2CH/Bitstream) and external EDID (TV)
•  Supports 3D signal

Technical Specifications:

Interfaces

• Input Port: 1 × HDMI
• Output Port: 1 × HDMI, 1 × Optical, 1 × L/R

Power

• Power Supply: 5 V/1 A linear power adaptor (US/EU Standards, CE/FCC/UL Certified)
• or 5 V/1.2 A switching power adaptor (with universal plug, CE/FCC/UL certified)
• Power Consumption: 2.1 W

Enclosure

• Chassis Material: Plastic
• Chassis Color: White
• Dimensions (W × H × D): 90.7 × 34 × 85.8 mm
• Weight: 107 g

Ordering Information

• Model No.: CLUX-11CD
• Product Description: HDMI Audio Extractor
