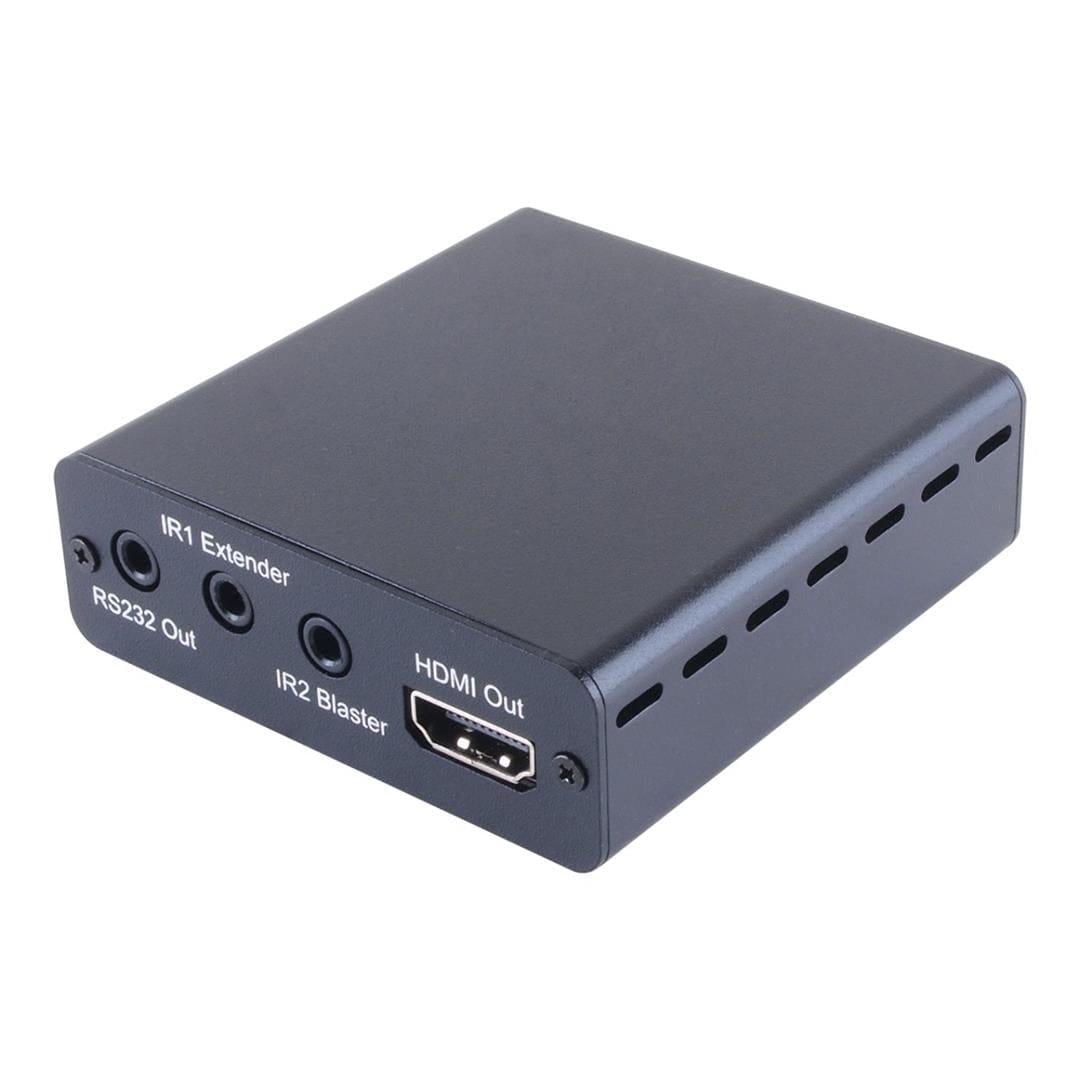

Cypress HDMI to CAT5e/6 Receiver CH-506RXPL

Cypress HDMI to CAT5e/6 Receiver CH-506RXPL

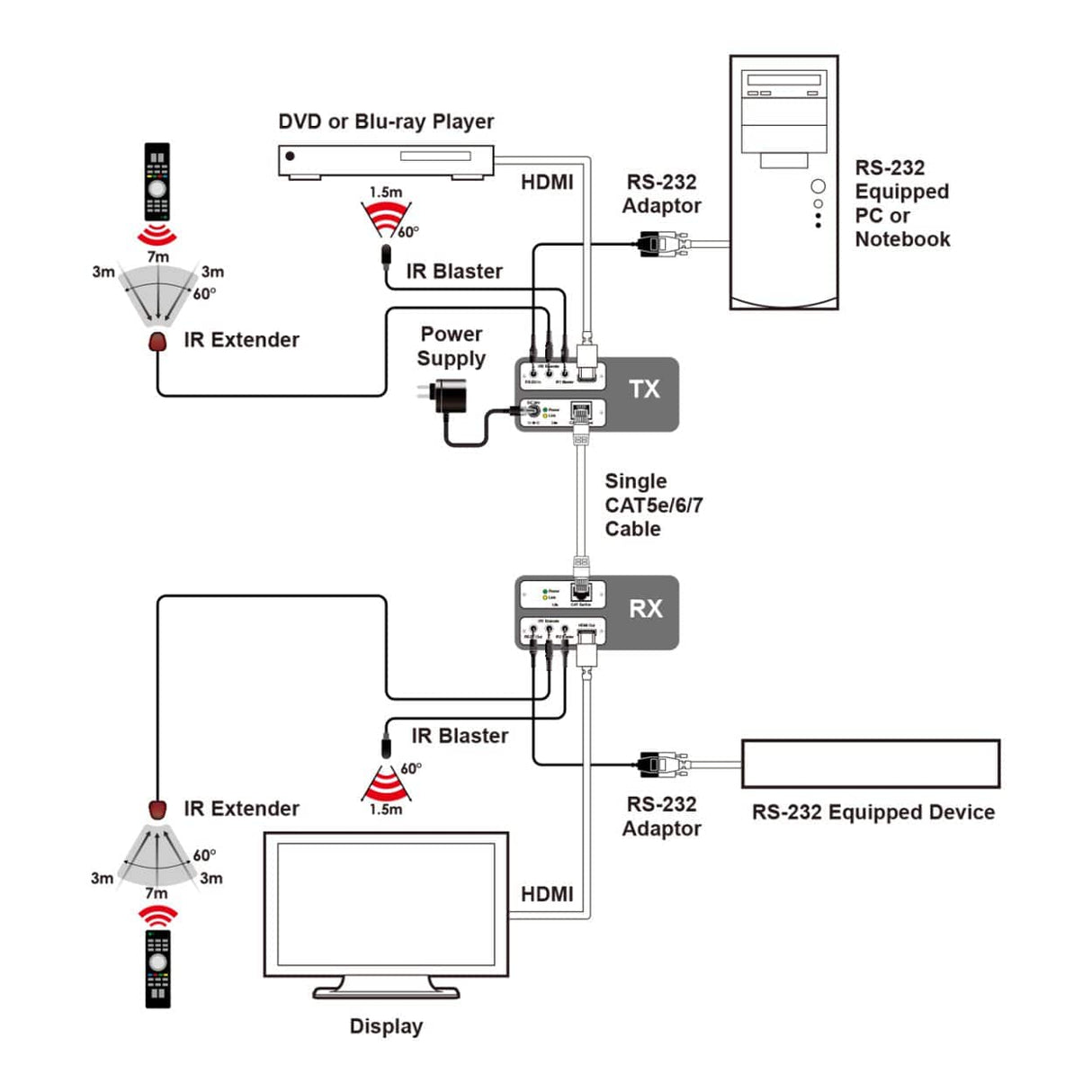

This HDMI over HDBaseTTM with bidirectional IR, RS-232 & PoC Transmitter and Receiver set can make your home or office setup more efficient and easy to use. Uncompressed video and audio can be transmitted up to 60 meters with the PoC function and added benefit of controls through the built-in RS-232 and IR ports. This family design of HDBaseT™ technology allows a full usage of HDMI and controls over CAT5e/6/7 cable.

HDMI to CAT5e/6 Receiver (4K@60 420 up to 35M)

Features:

•  Supports HDMI 3D and 4K x 2K features
•  Supports HDBaseT-Lite Technology
•  Supports HD resolutions up to 1080p@60Hz/12-bit
•  Supports distance up to 60 meters through CAT5e/6/7 cable
•  Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream over HDMI
•  Supports RS-232 bypass with baud rate up to 115200/sec
•  Supports wide range of IR frequency from 30~50kHz
•  Supports HDCP repeater and CEC bypass
•  Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream

Technical Specifications:

Interfaces

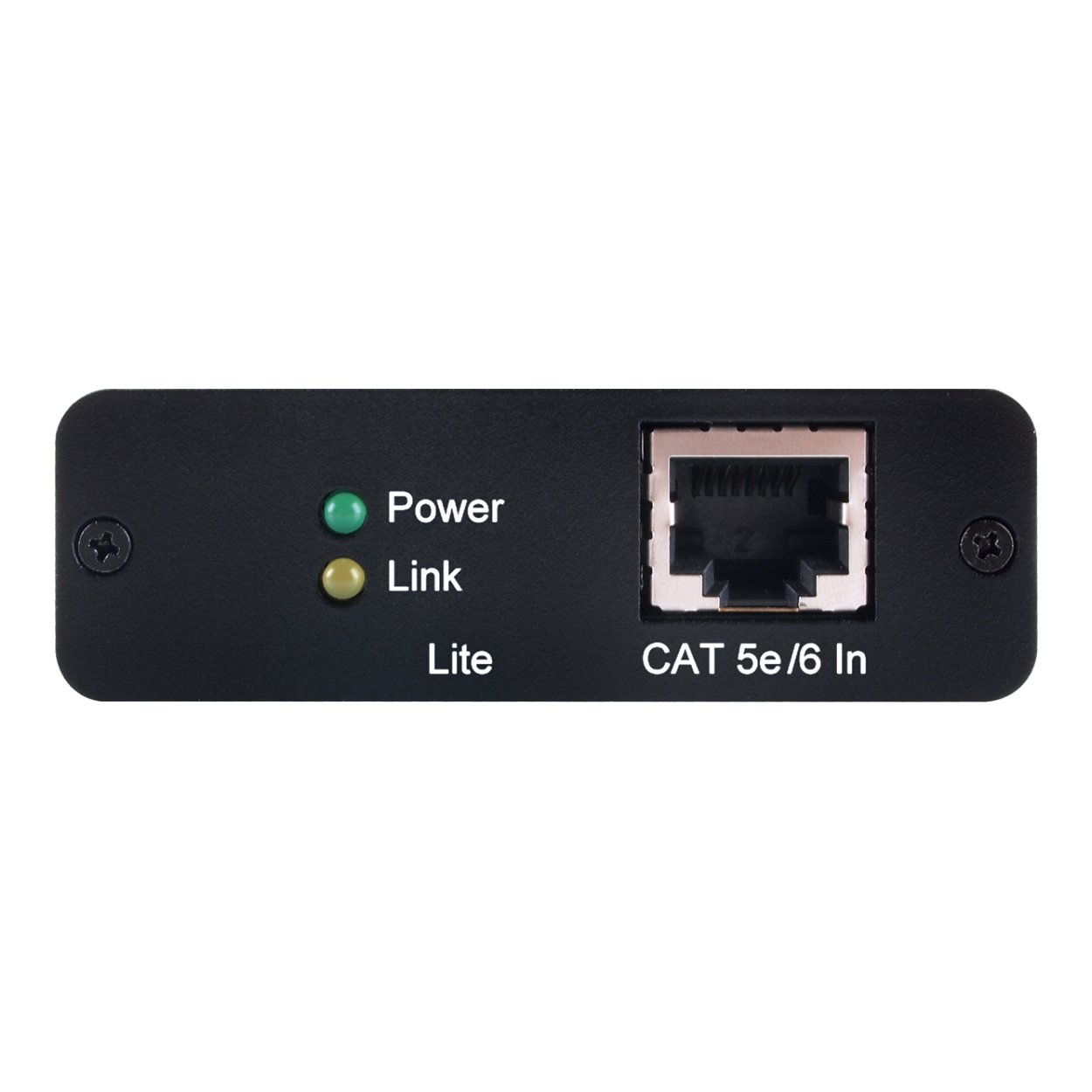

Input Ports: 1 x HDBaseT (RJ-45), 1 x IR Extender (3.5mm)

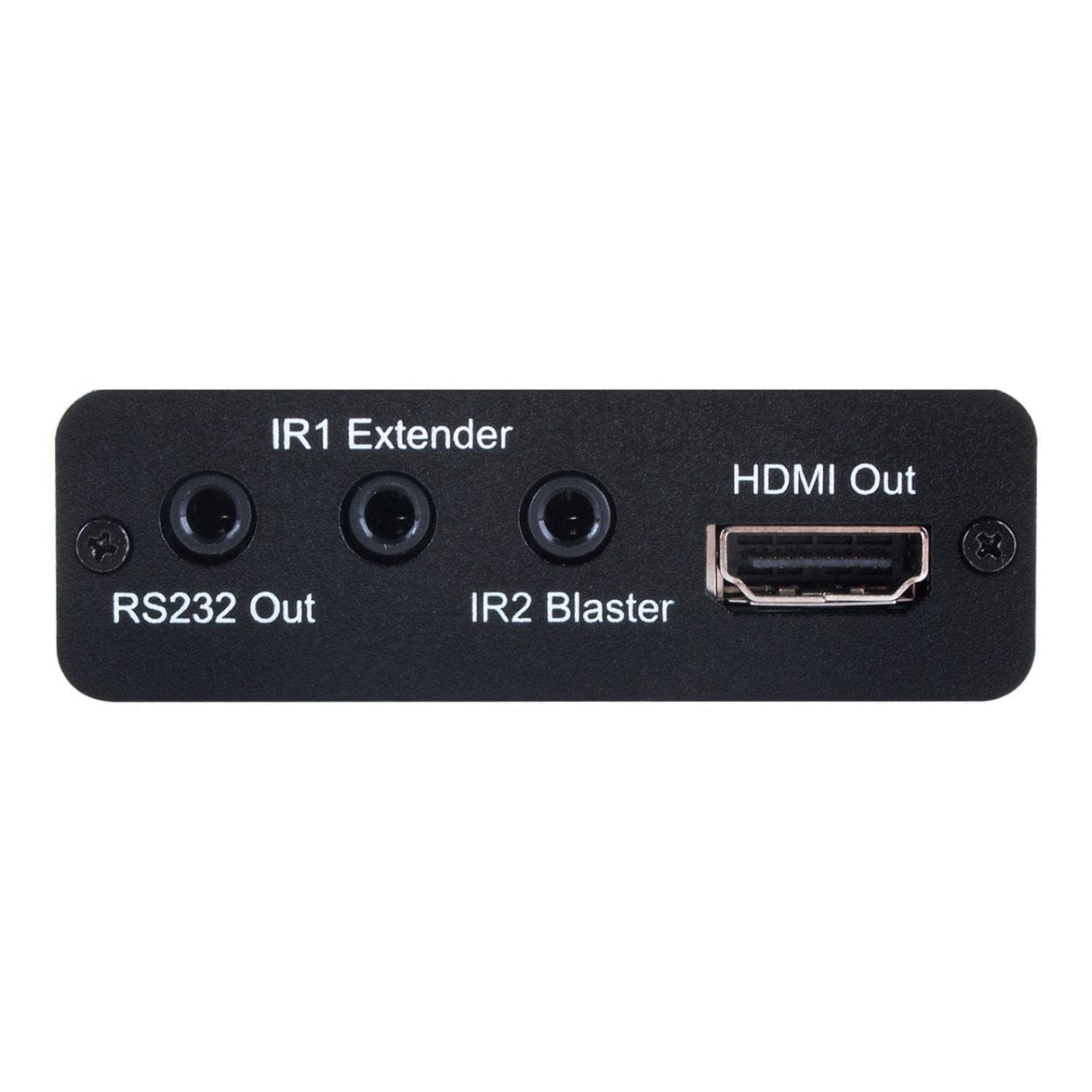

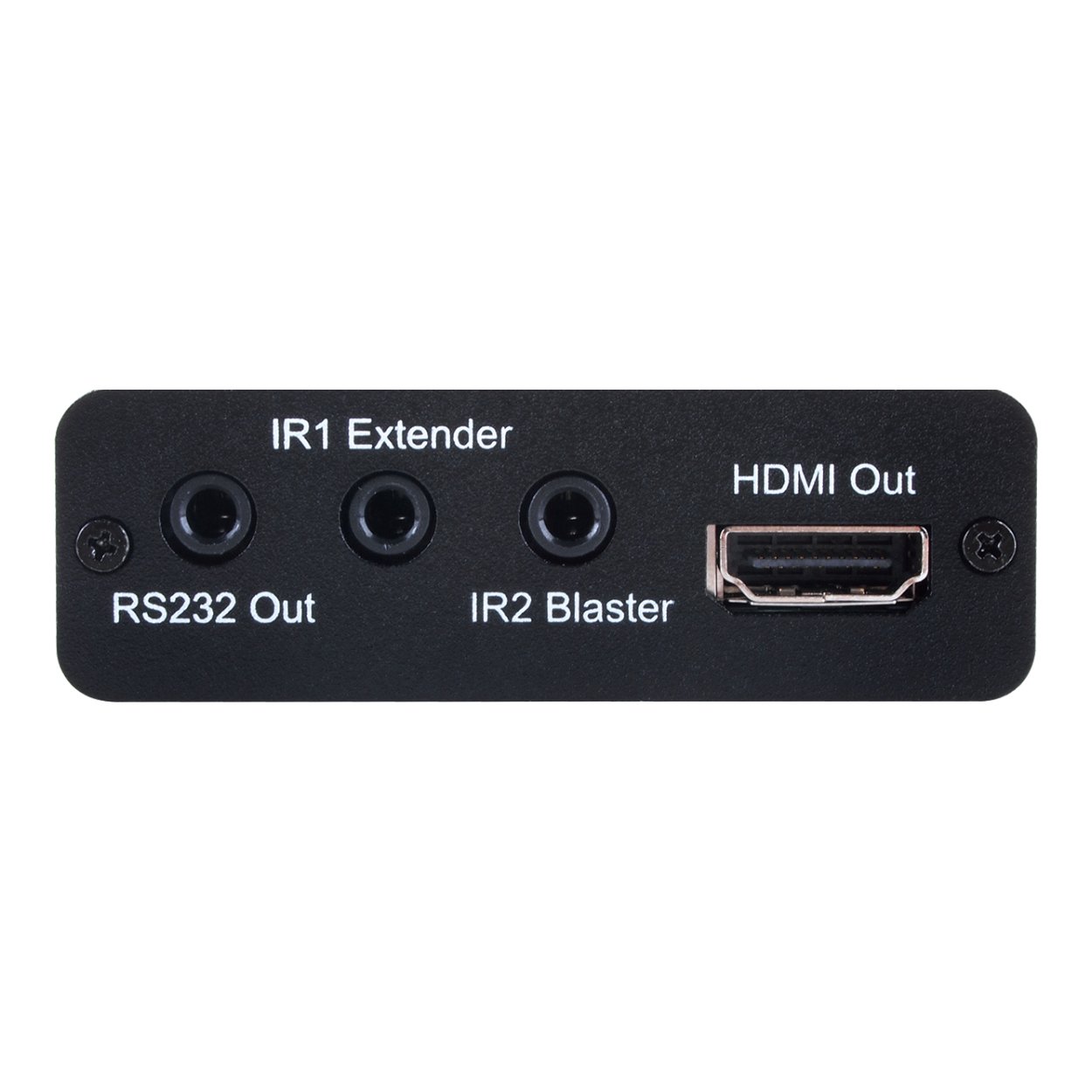

Output Ports: 1 x HDMI (Type-A), 1 x IR Blaster (3.5mm), 1 x RS-232 (3.5mm)

Video
HDMI Compliance: HDMI 2.0 (DVI 1.0)
HDCP Compliance: HDCP 2.X
Input Signal Type: 4K@60 YUV 4:2:0
Output Signal Type: 4K@60 YUV 4:2:0

Resolutions
Maximum Input (HDBaseT): 4096 × 2160p @ 60 Hz YUV 4:2:0
Maximum Output (HDMI): 4096 × 2160p @ 60 Hz YUV 4:2:0

Power
Power Supply: 24V / 1.25A DC (US/EU standards, CE/FCC/UL certified)
Power Consumption: 6 W

Enclosure
Chassis Material: Metal
Chassis Color: Black
Dimensions (W × H × D): 71 × 23 × 73.5 mm (Case Only), 71 × 23 × 79 mm (All Inclusive)
Weight: 126 g

Field Firmware Update
PCB on board, uses RS-232
