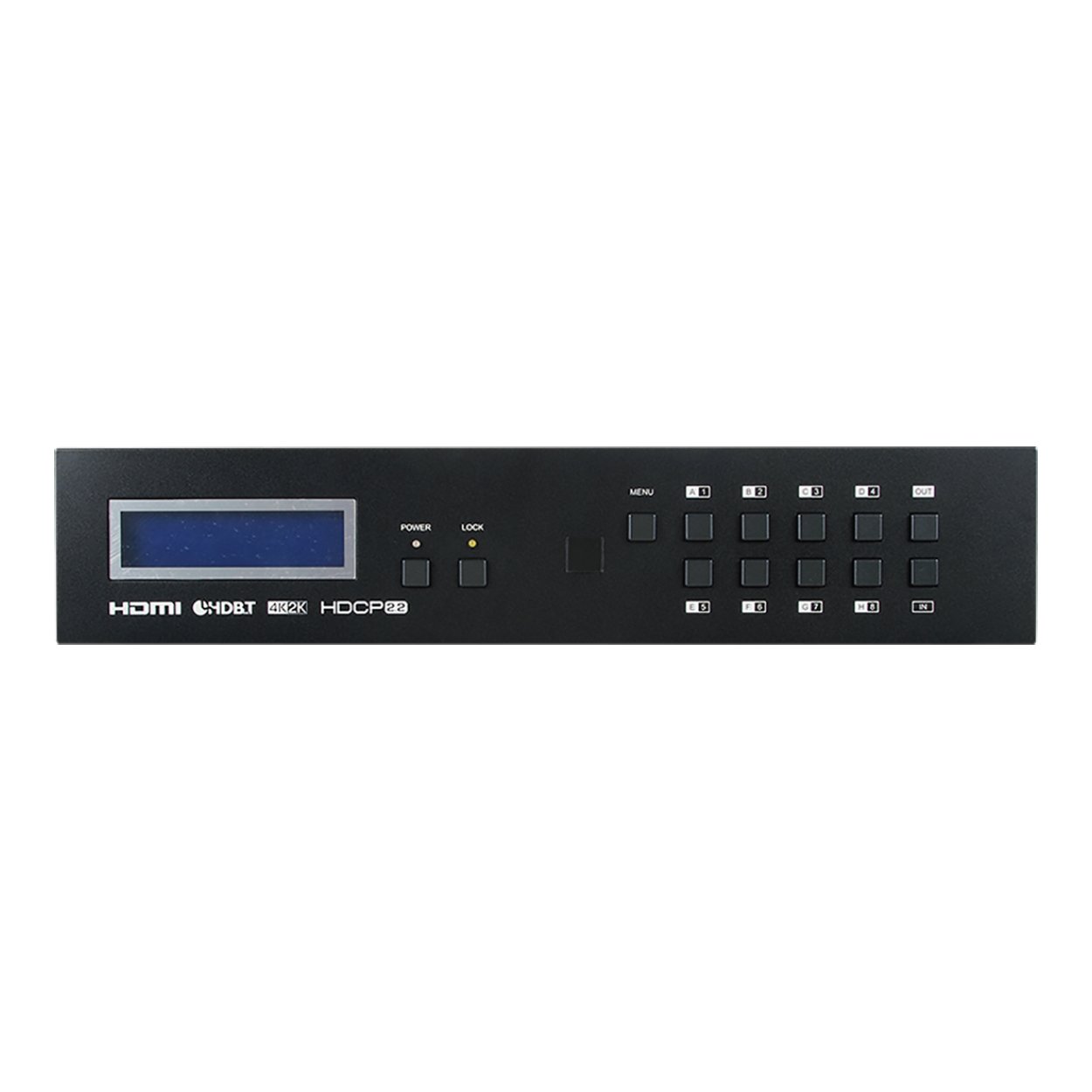

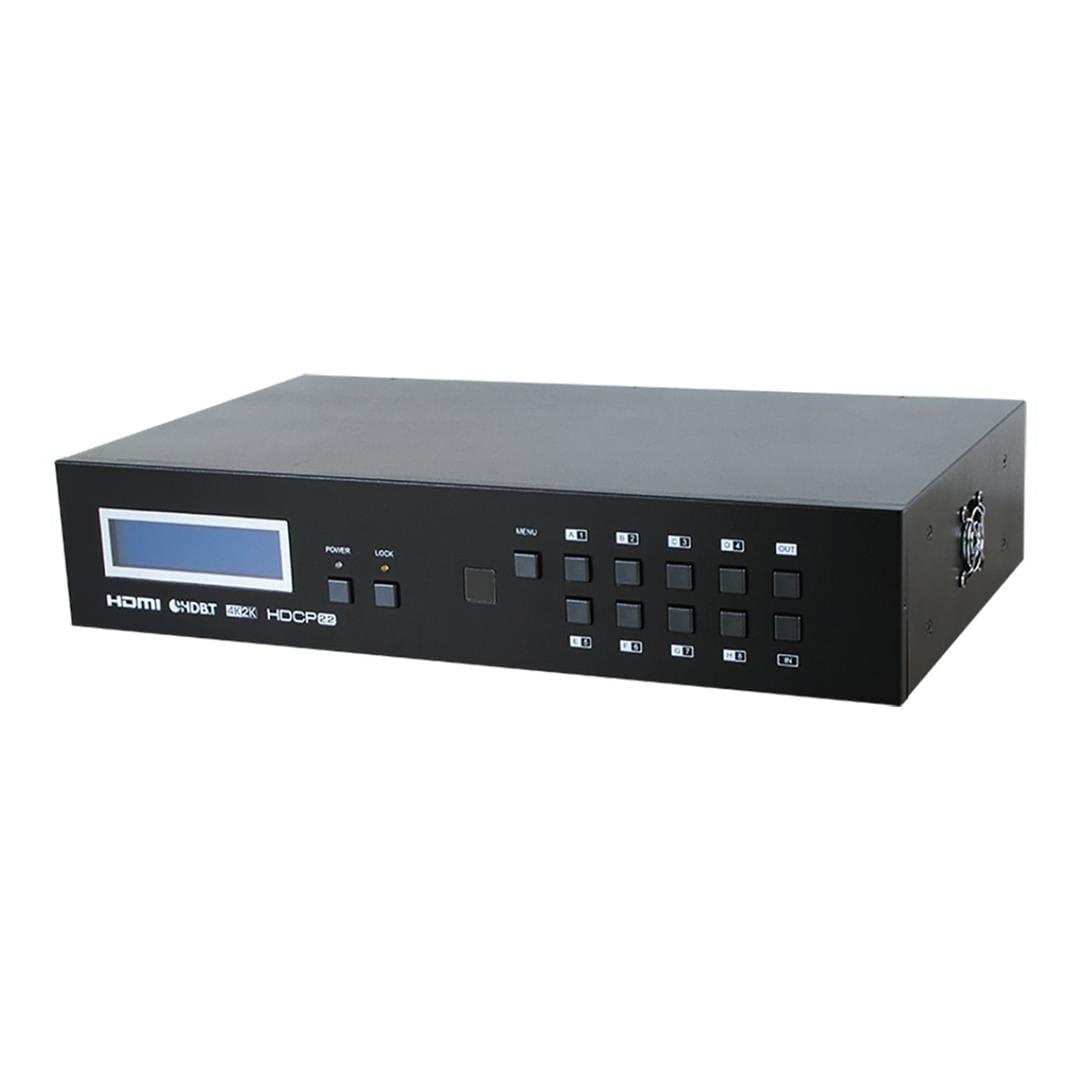

Cypress 8x8 HDMI 4K UHD over CAT5e/6/7 Matrix with HDCP 2.2 CMPRO-UA8H8CVPL

Cypress 8x8 HDMI 4K UHD over CAT5e/6/7 Matrix with HDCP 2.2 CMPRO-UA8H8CVPL

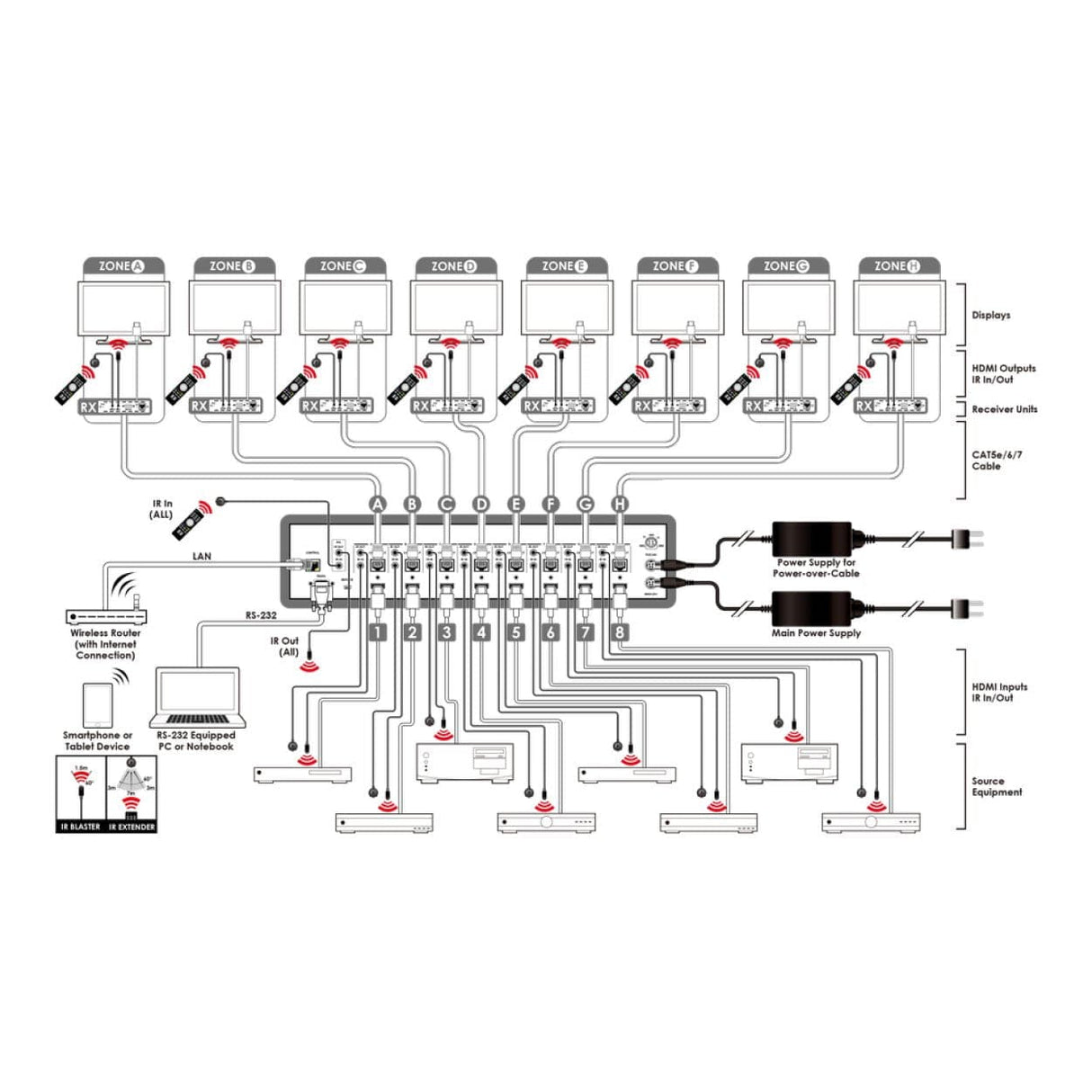

The 8 by 8 HDMI 4K2K Matrix over CAT5e/6/7 supports the transmission of video (resolutions up to 4K2K Full HD & HDCP 2.2), multi-channel digital audio and control via IR, RS-232, Telnet or Web GUI from eight high definition sources to eight outputs over a single CAT5e/6/7 cable (up to 60m) for each output. It supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio as well as 3D content that can be displayed when connecting a 3D TV and 3D source. The Power over Cable (PoC) function can power compatible receivers, providing greater flexibility in installations.

Features:

• HDMI with 4K2K supported, HDCP 2.2 and DVI compliant
• Supports PC resolution up to WUXGA and HDTV resolution up to 4K2K(3840×2160@24/25/30 Hz & 3840×2160@50/60 Hz with YUV420, 4096×2160@24/25/30 Hz & 4096×2160@50/60 Hz with YUV420)
• Supports distances up to 60 meters through CAT5e/6/7 cable
• Supports 3D signal bypass
• Supports pass-through audio LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH, Dolby TrueHD & DTS-HD Master Audio
• Supports PoC (Power over Cable) on compatible receivers only
• Supports bidirectional IR from inputs and output locations
• Supports RS-232, remote control, on-panel control and IP control (Telnet/Web GUI)
• 2U size design
• Compliant with DVI source
• Note: The PoC function is designed for powering compatible receiver
• units only—non-PoC receivers will need their own power supply
• Receivers of another brand may not be compatible

Technical Specifications:

Video Bandwidth
300 MHz / 9 Gbps

Input Ports

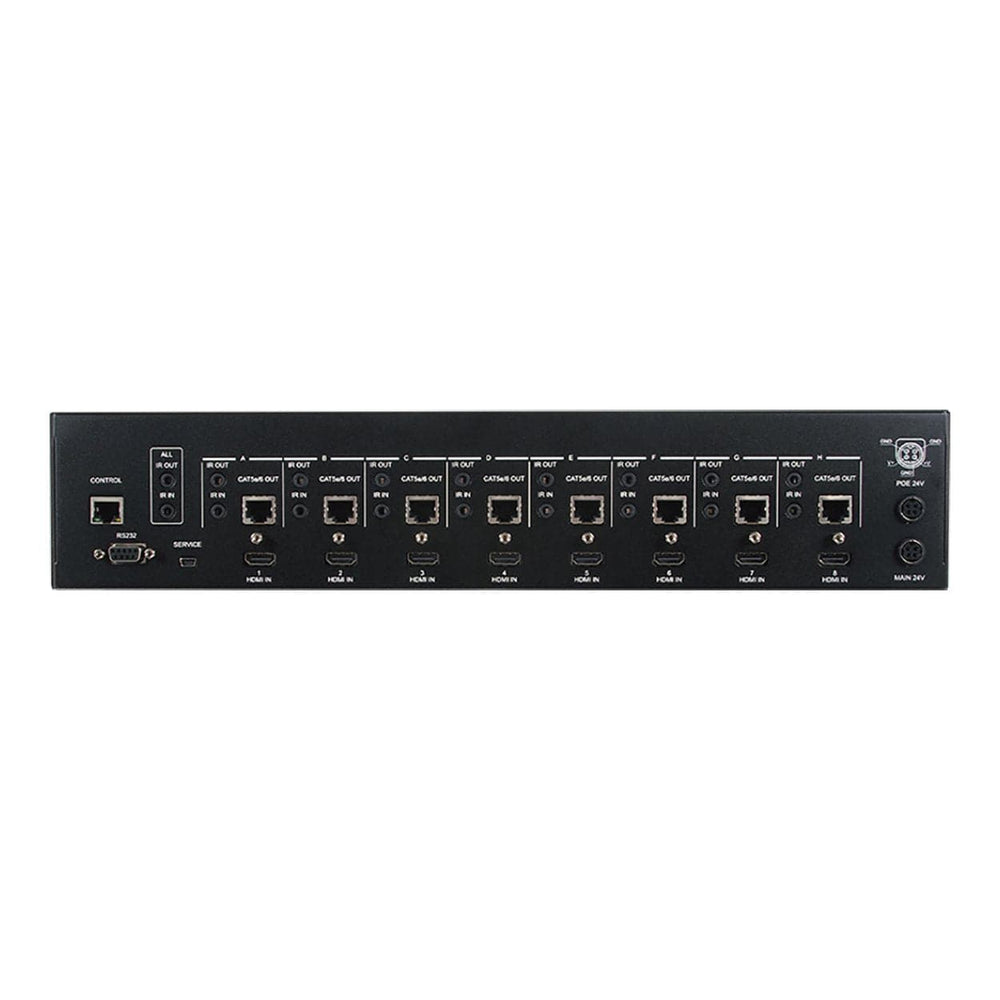

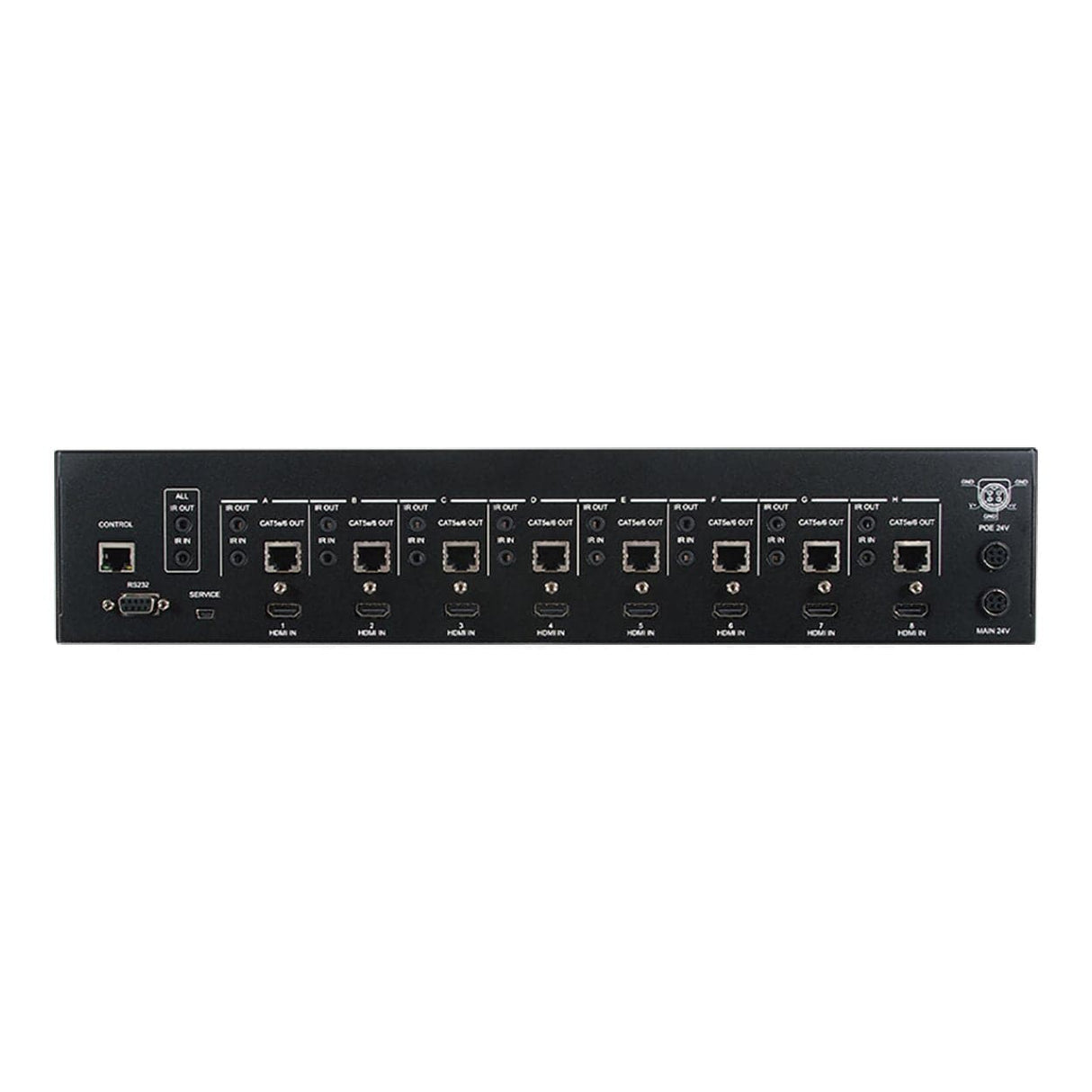

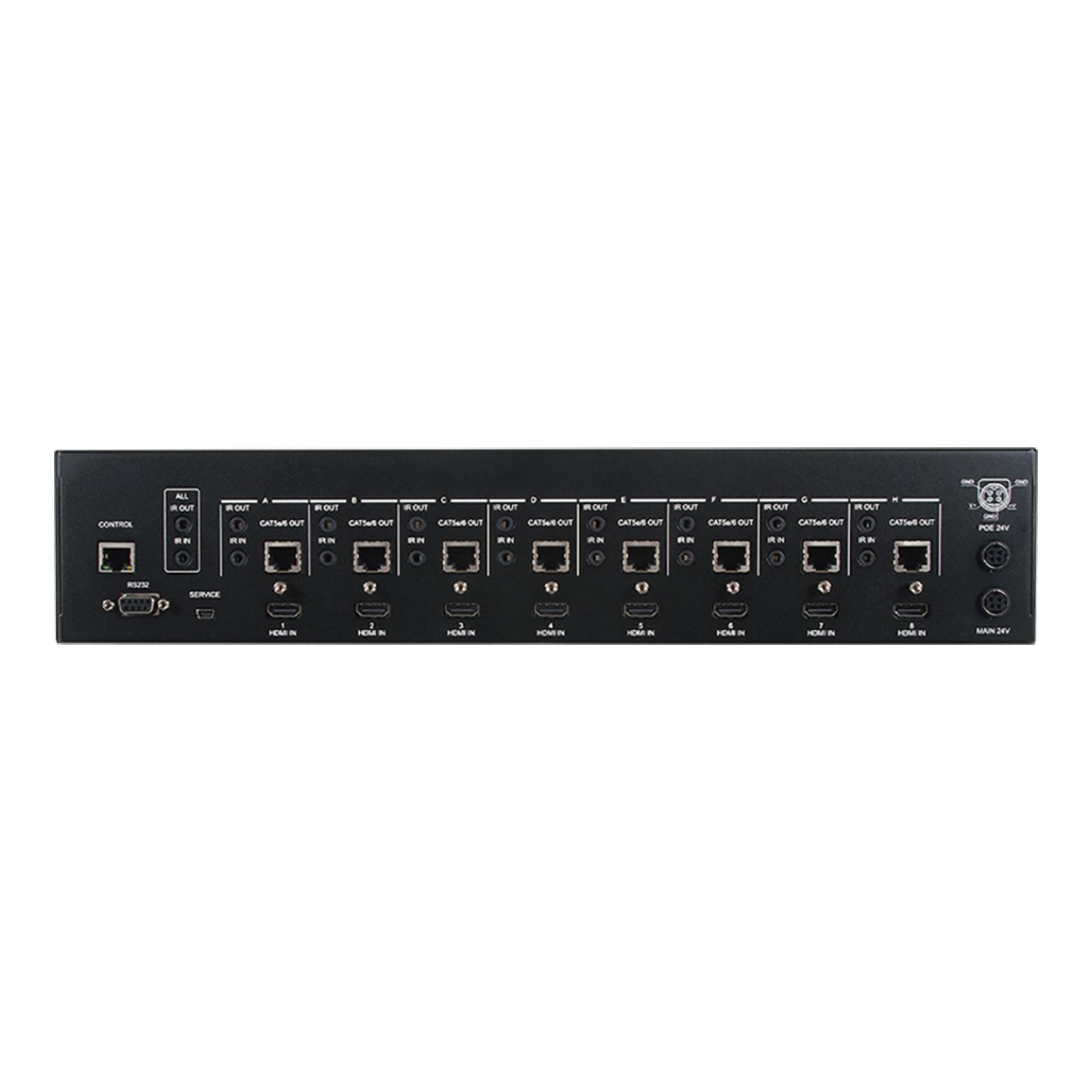

8×HDMI, 9×IR (3.5 mm), 1×RS-232 (9-pin D-sub), 1×Control (RJ-45), 1×USB (Service only)

Output Ports
8×CAT5e/6/7, 9×IR (3.5 mm)

Video Resolutions
480i~1080p @24/50/60, 4K @24/25/30, 4K @50/60 (YUV420) & VGA~WUXGA

IR Frequency
30~50 kHz

Baud Rate
115200 bps

Power Supply
24 V / 6.25 A DC (US/EU standards, CE/FCC/UL certified) / Main & PoC

ESD Protection
Human body model ±8 kV (air-gap discharge), ±6 kV (contact discharge)

Dimensions
438 mm (W) × 249 mm (D) × 88 mm (H) / Jack Excluded
438 mm (W) × 256.7 mm (D) × 92 mm (H) / Jack Included

Weight
4592 g

Chassis Material
Metal

Color
Black

Operating Temperature
0°C~40°C / 32°F~104°F

Storage Temperature
−20°C~60°C / −4°F~140°F

Relative Humidity
20~90% RH (non-condensing)

Power Consumption
89 W
