Cypress 8-in-1 HDMI Switcher CLUX-81

Cypress 8-in-1 HDMI Switcher CLUX-81

This splitter is a high performance HDMI switcher with remote control. It allows your variousHDMI sources to share one HDTV display. Simply press a button to select your desired HDMI source to be displayed on the HDTV.

Features:

• HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant.
• Signal Enhancement feature allows you to improve signal quality
• after long distance transmission.
• LED indicators.

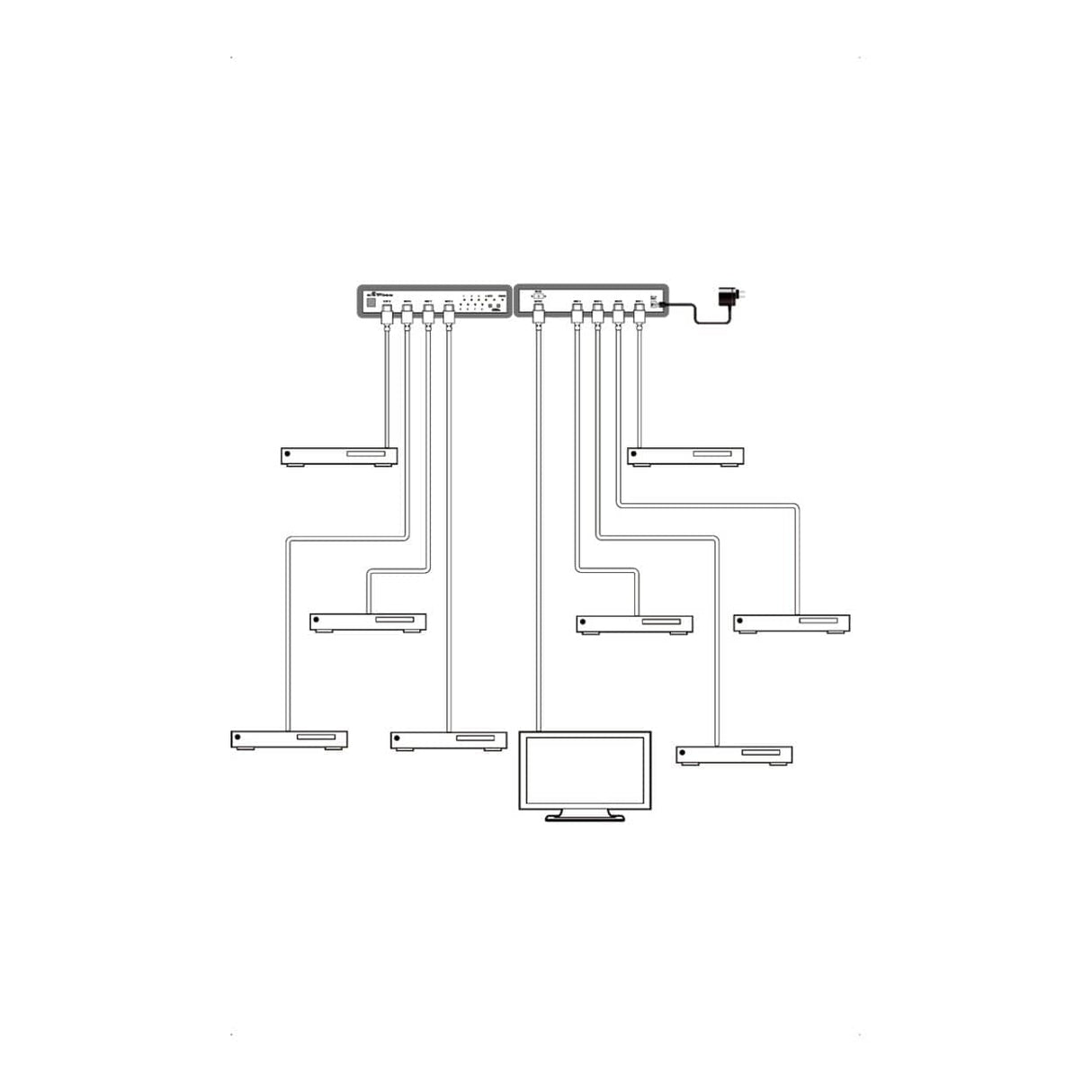

• Ideal for home theater integrations:
• Supports input/output resolution:
• PC: VGA, SVGA, XGA, SXGA, and UXGA (1600 x 1200) & WUXGA (1920x1200)
• HDTV: 480i 576i 480p, 576p, 720p, 1080i and 1080p
• Remote control & RS232 operation.
• Easy to install and to operate.

Technical Specifications:

Interfaces
Input Ports: 8 x HDMI
Output Port: 1 x HDMI

Video
HDMI Compliance: HDMI 1.3 (DVI 1.0)
HDCP Compliance: HDCP 1.1
Input Signal Types: 1080p
Output Signal Type: 1080p

Resolutions
Maximum Input (HDMI): 1080p
Maximum Output (HDMI): 1080p

Power
Power Supply: 5V / 1.2A

Enclosure
Chassis Material: Metal
Chassis Color: Black
Dimensions (W × H × D): 280 × 101 × 44 mm
Weight: 850 g

Field Firmware Update
RS-232

Ordering Information
Model No.: CLUX-81 — 8×1 HDMI Switcher
