4×1 HDMI Switcher with PiP/PoP and Multi-Window Display

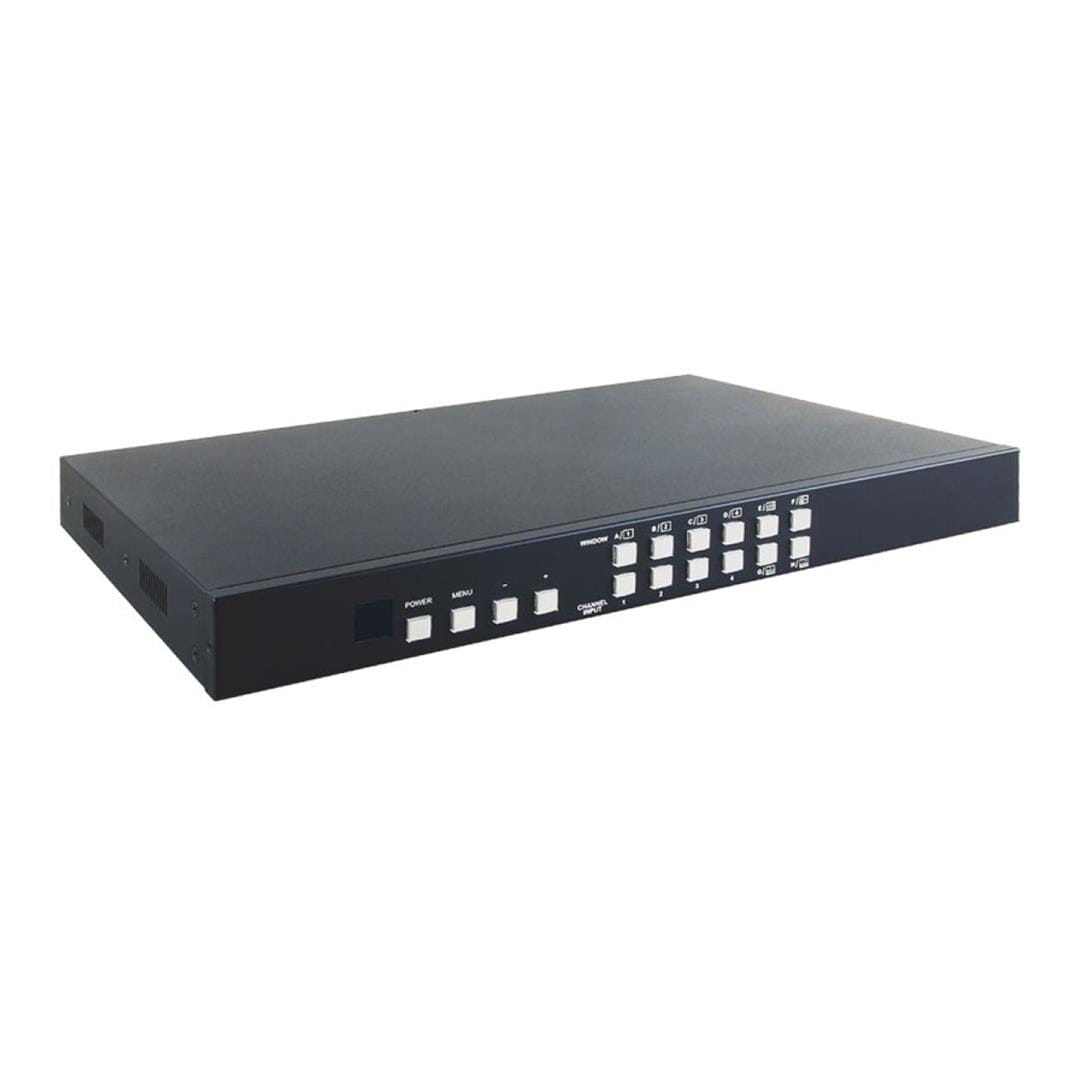

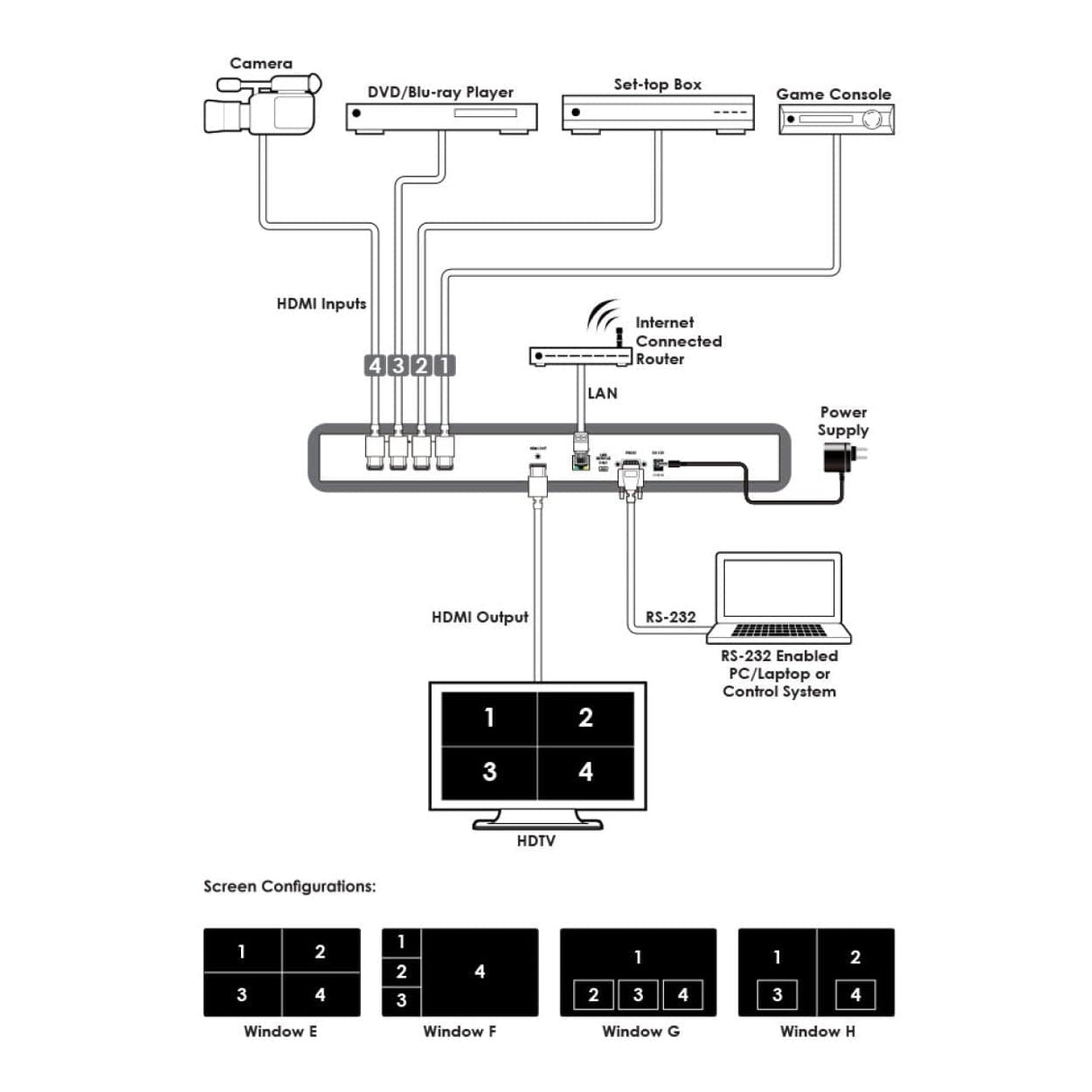

This HDMI Switcher is a high performance, low latency, multi-windowing system that can be easily configured for a variety of professional video processing tasks. Up to 4 different input sources may be freely selected and arranged and output to a single display. When switched into single window mode the unit can be a seamless switcher with cross-fade support, or two sources can be combined with the use of chroma keying. 90-degree rotation is also supported when outputting a single full screen window. Additionally, the unit supports the option of uploading a graphic logo for display over the top of the output video. Video resolutions up to 1080p60 and PC resolutions up to WUXGA are supported along with audio up to 192kHz, 7.1 channel, LPCM for both inputs and output. The unit can be controlled in a wide variety of ways, including via front panel buttons with OSD menu, WebGUI, Telnet, RS-232, and IR remote.

Features:

• Seamless switching between sources and windows
• Supports PiP, PoP and multi-window display
• Easy individual window size and position plus layer priority adjustment
• Enlarge or shrink up to 4× input windows
• Crossfade, chroma-key, mirror and rotate (90° left/right and 180°) functions
• Supports the uploading of a user customisable graphic for display over the top of video output
• 8× Hot-keys dedicated to window and source selection, 4× customisable window layout hot-keys and 4× software only hot-keys for additional stored window layout configurations
• Control via front panel with OSD menu, WebGUI, Telnet, RS232 and IR remote

Specifications:

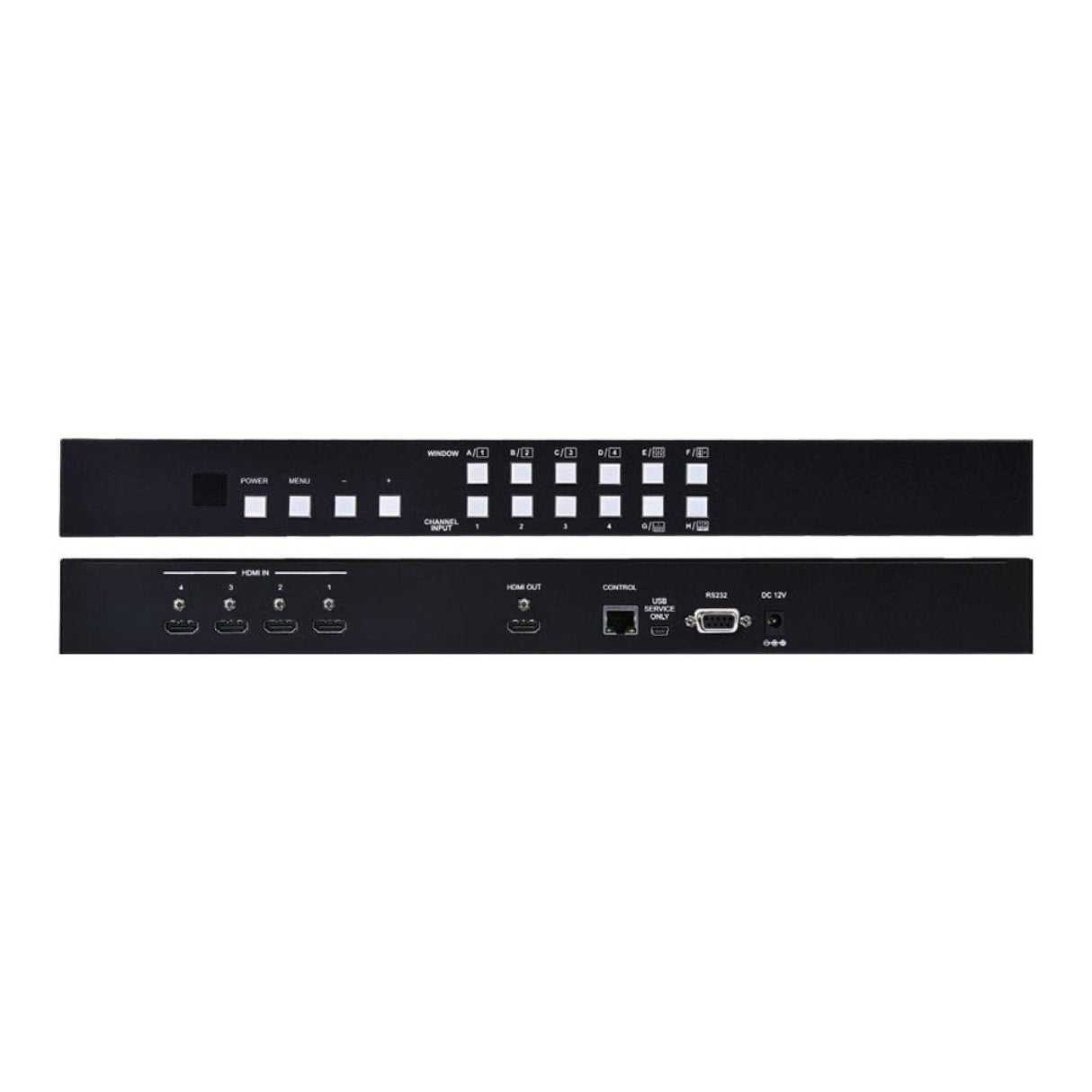

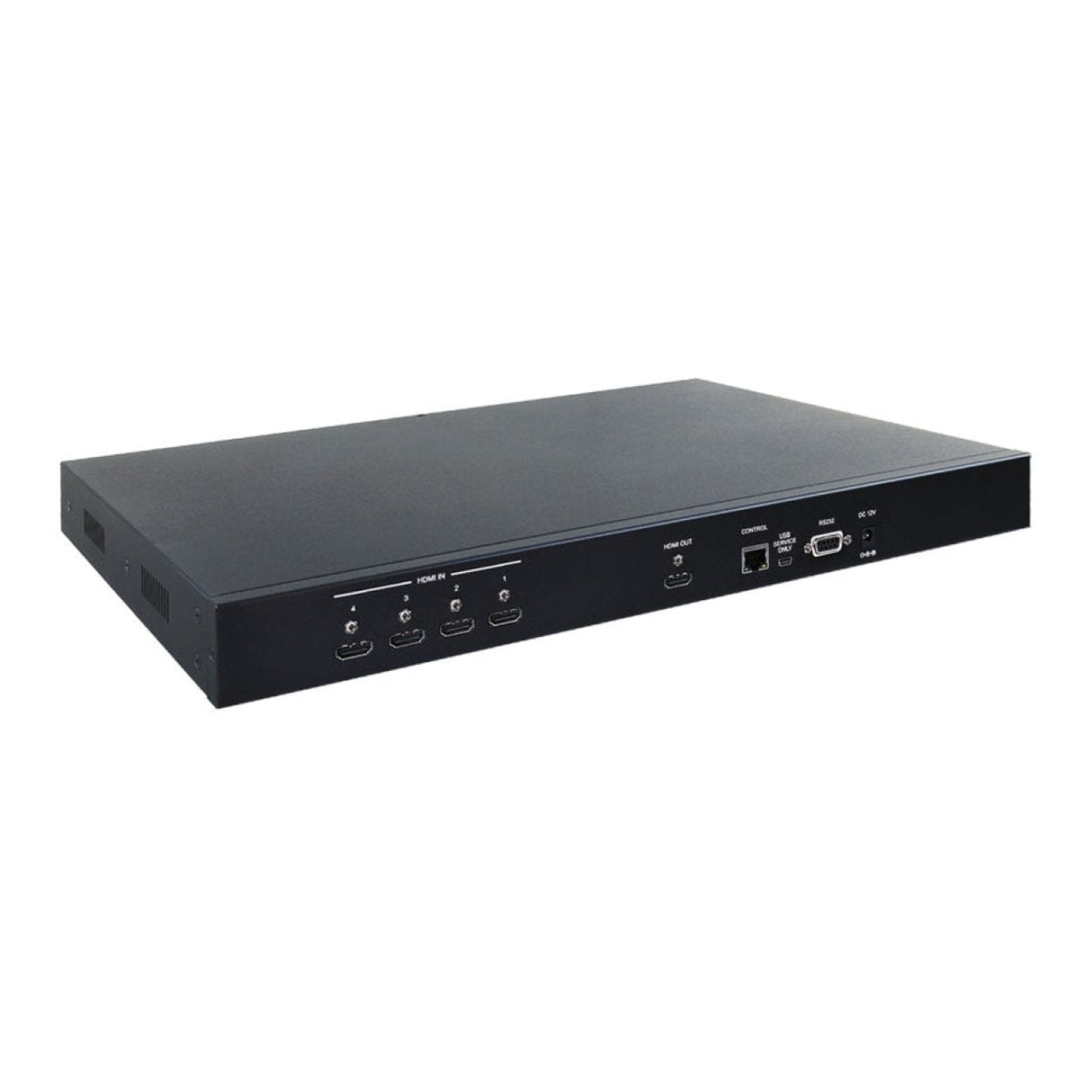

Input Port: 4 HDMI (Type-A)

Output Port: 1 HDMI

Control I/O: 1 RS-232 (DE-9), 1 LAN (RJ-45)

Video HDMI Compliance: HDMI 1.3 (DVI 1.0)

HDCP Compliance: 1.4

Input Signal Type: 1080p@60 12-bit YUV 4:4:4

Output Signal Types: 1080p@60 12-bit YUV 4:4:4

Resolutions Maximum Input

HDMI: 1920×1200@60Hz

Maximum Output HDMI: 1920×1200@60Hz

Chassis Material: Metal (Steel)

Chassis Colour: Black

Dimensions (W×H×D): 436mm×44mm×246mm [Case Only], 436mm×49mm×256mm [All Inclusive]

Weight: 2,200g

Power Supply: 12V/3A DC (US/EU standards, CE/FCC/UL certified)

Power Consumption: 18W
