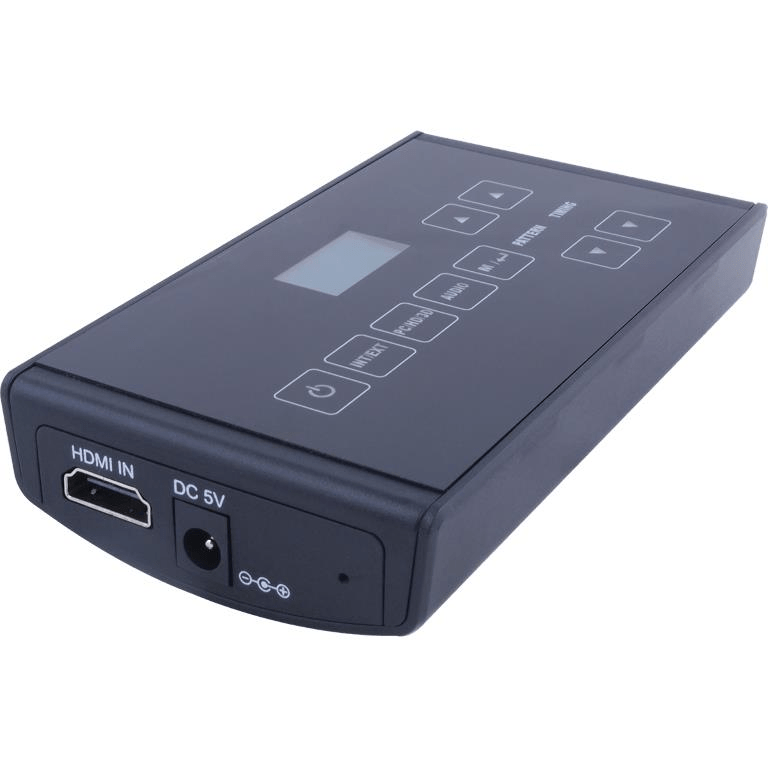

Cypress 3D Mini HDMI Analyzer
The Mini HDMI 3D Analyzer is a tool for checking both source (Blu-ray or DVD players) and display devices (TV or monitors). With touch button controls and built-in OLED display it can show the status and information of both the input and output devices connected to it by HDMI. The analyzer can be used to analyze the input source device info-frame and output sink device EDID. It also has a built-in pattern generator that can be used to test the capabilities of the output device including 3D and resolution/ timing support.
HDMI Signal Generator with 3D Patterns and Audio Return Channel
- Supports Timing include SD, HD up to 1080p, PC up to WUXGA and 3D
- Provides 25 timings, 6 patterns and 1 pattern for 3D timing
- 'Deep color' video support (up to 12-bit, 1080p@60 Hz)
- Supports input signal bypass, digital video formats in 'Deep Color' Mode up to 36-bit (12-bit/color) and new lossless compressed digital audio (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio)
- Supports internal pattern audio LPCM 2CH 48/96/192 kHz, LPCM 5.1CH 48/96 kHz, LPCM 7.1CH 48/96 kHz
- Analyze the input source info-frame and output sink EDID information
- Touch button control function
- OLED display shows Input/Output timing information

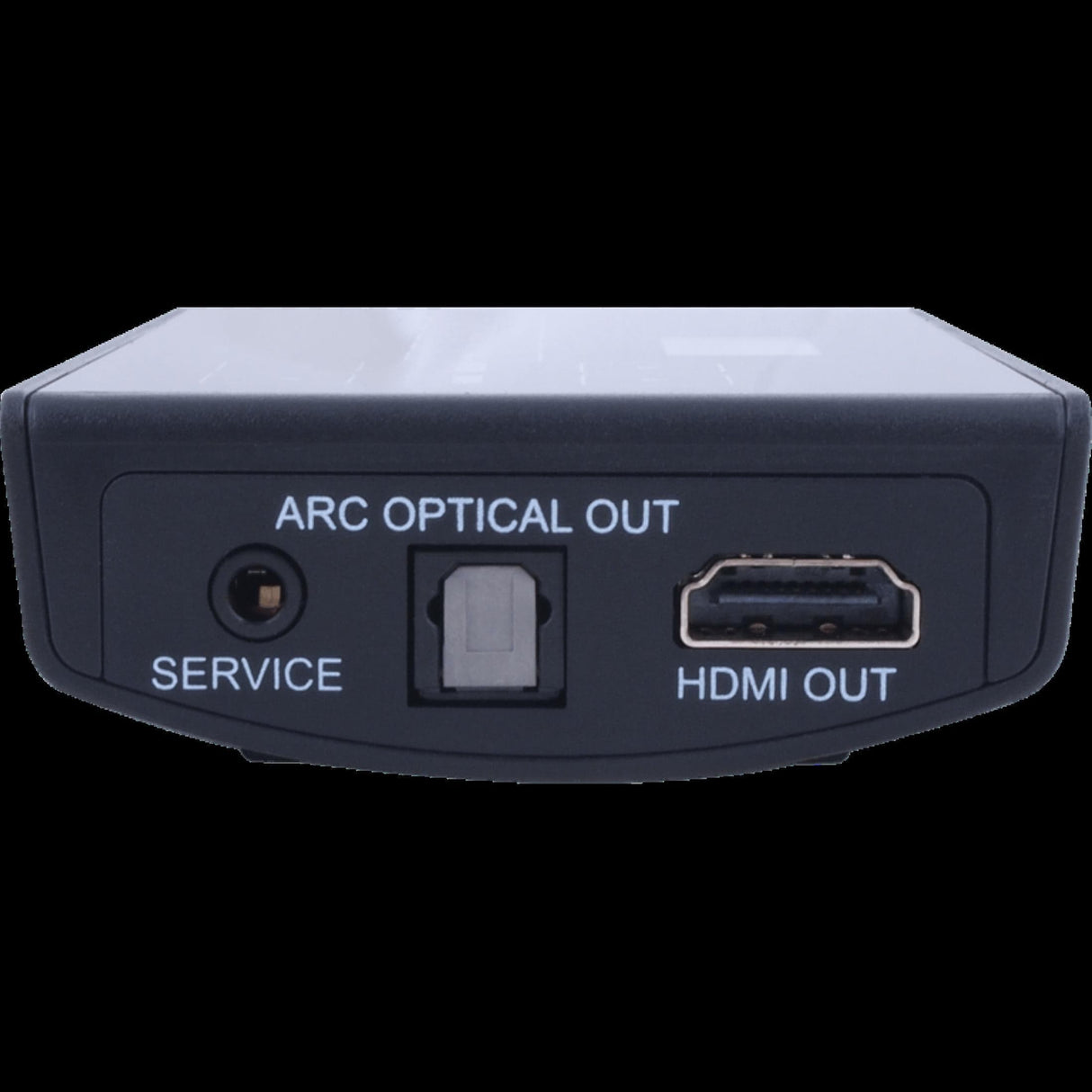

- Supports ARC (Audio Return Channel) following HDMI specifications
- Supports 'Deep Color' (8/10/12-bit) output
- Supports HDCP repeater function and complaint with HDCP
- Supports CEC bypass
