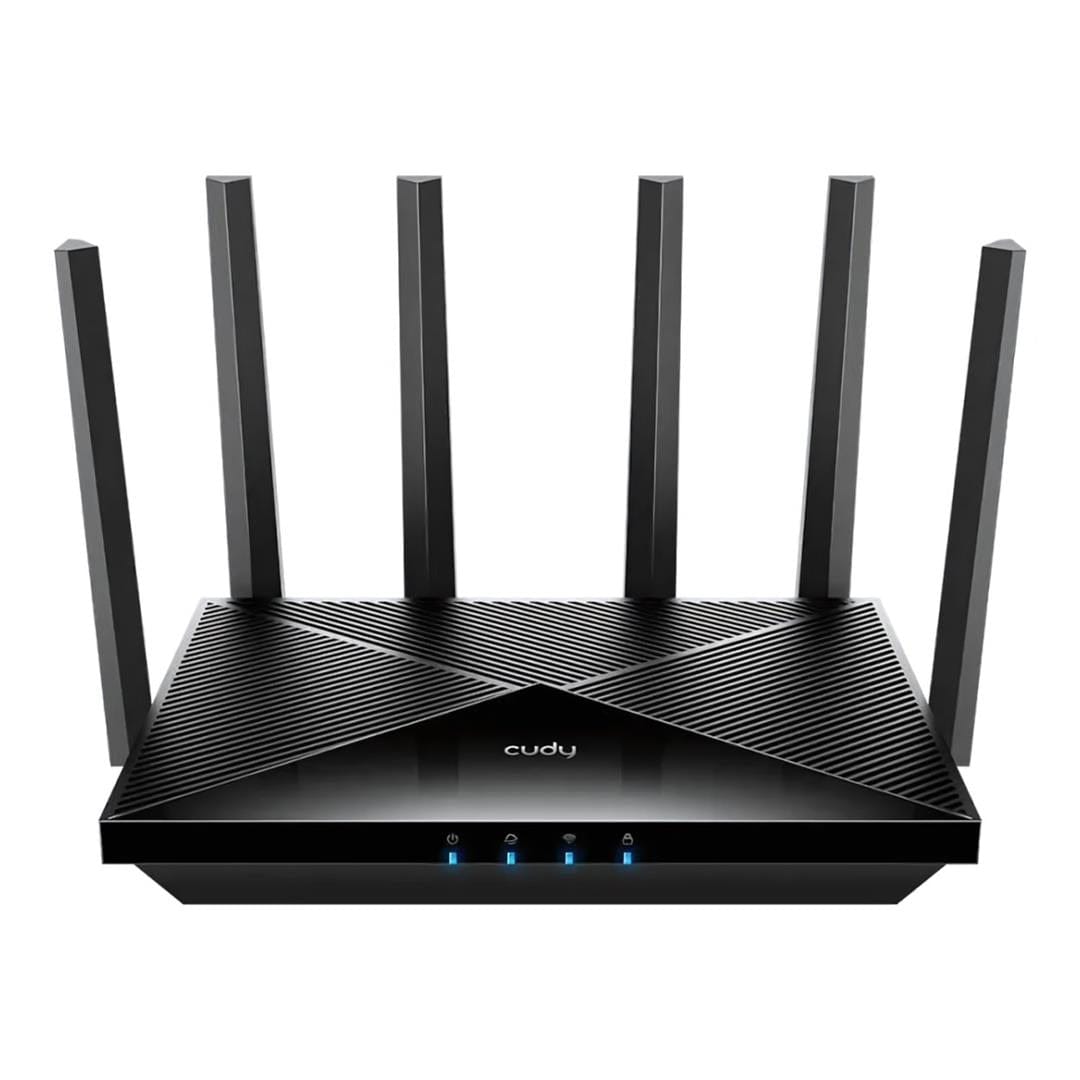

Cudy WR6500 Wireless Router - Dual-band 2.4GHz and 5GHz Gigabit Ethernet Black

Cudy WR6500 Wireless Router - Dual-band 2.4GHz and 5GHz Gigabit Ethernet Black

Powerful CPU. Super-Responsive.

Feel the instantaneous respond and smooth operation when browsing, streaming, and gaming, even when connecting numerous devices. The advanced Quad-Core CPU and 512 MB large RAM provides big bump in processing power with higher capacity.

Lightning-Fast Response for Multiple Devices

Featuring smarter Multi-RU and Puncturing spectrum reuse technology, WR6500 significantly boosts interference resistance, optimizes spectrum usage, and ensures lower latency for gaming, calls, and web browsing across multiple devices.

Optimal Wi-Fi Range for Extra Rooms

The high-gain antennas with Beamforming technology offer stronger, more focused Wi-Fi signals towards client devices, delivering faster speeds and greater stability throughout your home or office.

Parental Controls

Set Wi-Fi schedules and block inappropriate content to keep your family safe online. Easily manage multiple devices with customization profiles.

A dual-band WiFi 7 router with an aggregate of 6.5 Gbps speed, and five Gigabit ports, catering to super-fast internet access, gaming, and entertainment scenarios.

Features:

•  Broadcom 2 GHz Quad-Core CPU
•  6-Stream Dual-Band Wi-Fi 7
•  5765 Mbps + 688 Mbps Wi-Fi ¹
•  5× Gigabit Ethernet Ports
•  200 Connected Devices ²
•  Covers 140 m² (1,500 ft²) ³
•  VPN Server and Client
•  Cudy App, Cloud Control

Specifications

Hardware

Model Version: WR6500 1.0

CPU:

• 2.0 GHz Quad-core ARM Cortex-A7

Memory & Storage:

• Flash/ROM: 128 MB (1 Gbit) NAND
• DDR/RAM: 512 MB (4 Gbit) DDR4

Wireless

Wi-Fi Speed:

• 5 GHz: Up to 5765 Mbps
• 2.4 GHz: Up to 688 Mbps

Wi-Fi Streams:

• 5 GHz: 4T4R (4×4 MIMO)
• 2.4 GHz: 2T2R (2×2 MIMO)

Antennas:

• 6× Fixed Antennas

Antenna Gain (Max):

• 5 GHz: 5.27 dBi
• 2.4 GHz: 5.19 dBi

FEM/PA-LNA Configuration:

• 5 GHz: 4× External
• 2.4 GHz: 2× Internal

Beamforming: Supported

Range Performance:

• Maximum: 240 m (787 ft)
• Note: Indoor range may vary based on layout and wall materials.

Wall Performance Guidance

• Two wooden walls (< 10 cm / 4" thickness)
• One concrete wall (< 20 cm / 7") or two concrete walls (< 10 cm / 4")

Interfaces & Controls

Gigabit RJ45 Ports: 5

• 1× WAN, 4× LAN

LED Indicators:

• System, Internet, Wi-Fi, WPS

Physical Buttons:

• Power On/Off
• WPS
• Reset

Power

Power Input: DC Jack

Power Method: DC

• 12V 1.5A

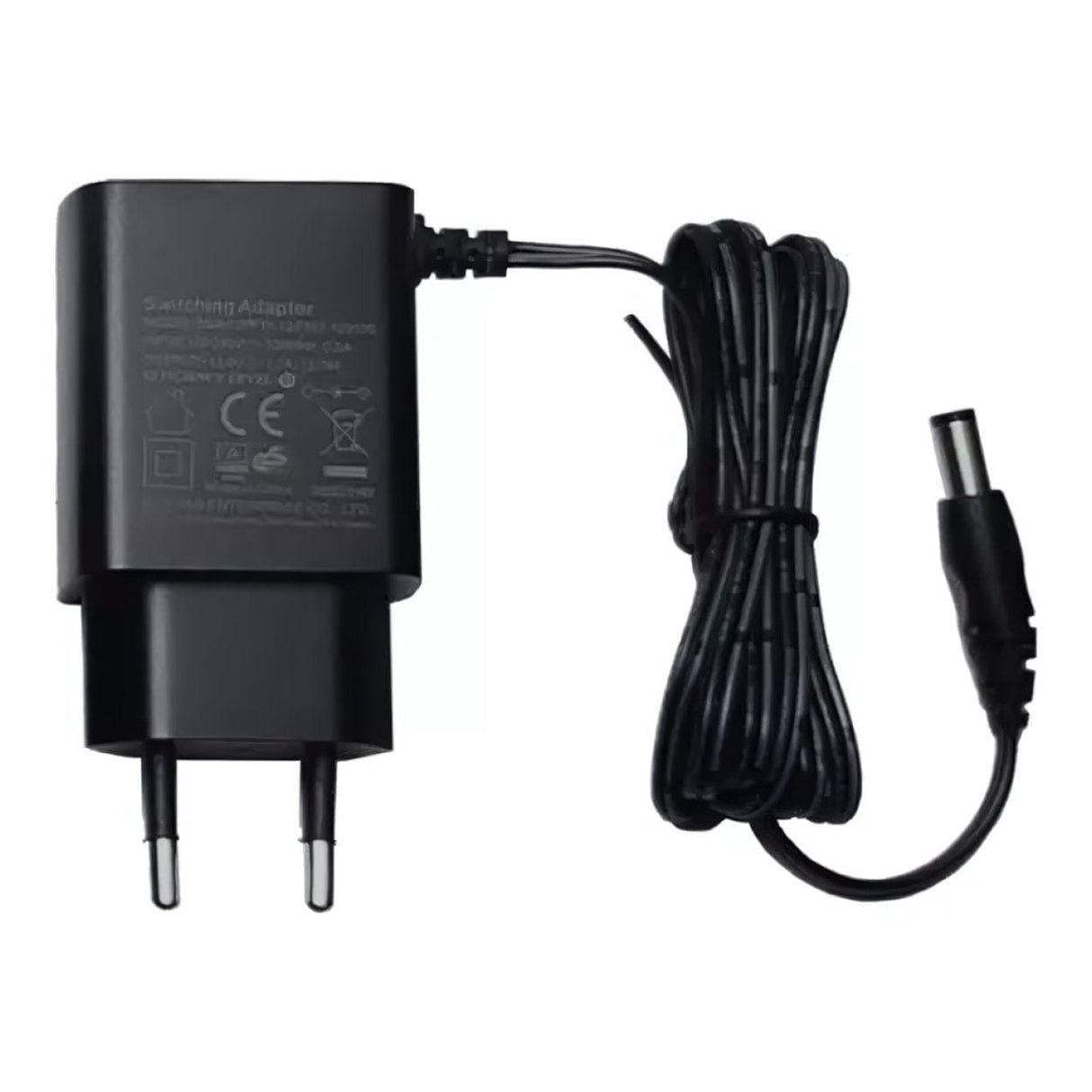

Power Adapter:

• Input: 100 ~ 240 V AC, 50/60 Hz
• Output: 12V 1.5A DC
• Max Power Consumption: 17W

Reliability & Environmental

• Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~ 104 ℉)
• Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
• Operating Humidity: 10% ~ 90% (non-condensing)
• Storage Humidity: 5% ~ 95% (non-condensing)

Certifications

• FCC, CE

Mechanical

Installation Options:

• Desktop
• Wall-mount

Dimensions:

• 253 × 152.5 × 48.2 mm (9.96 × 6 × 1.9 in)

Weight:

• Product: 580 g (20.46 oz.)

Package Contents

• WR6500 Unit
• Power Adapter
• Ethernet Cable
• Installation Guide

Ordering Information

Retail Package:

• Weight (EU): 1190 g (41.98 oz.)
• Dimensions: 431 × 324 × 58 mm (16.97 × 12.76 × 2.28 in
