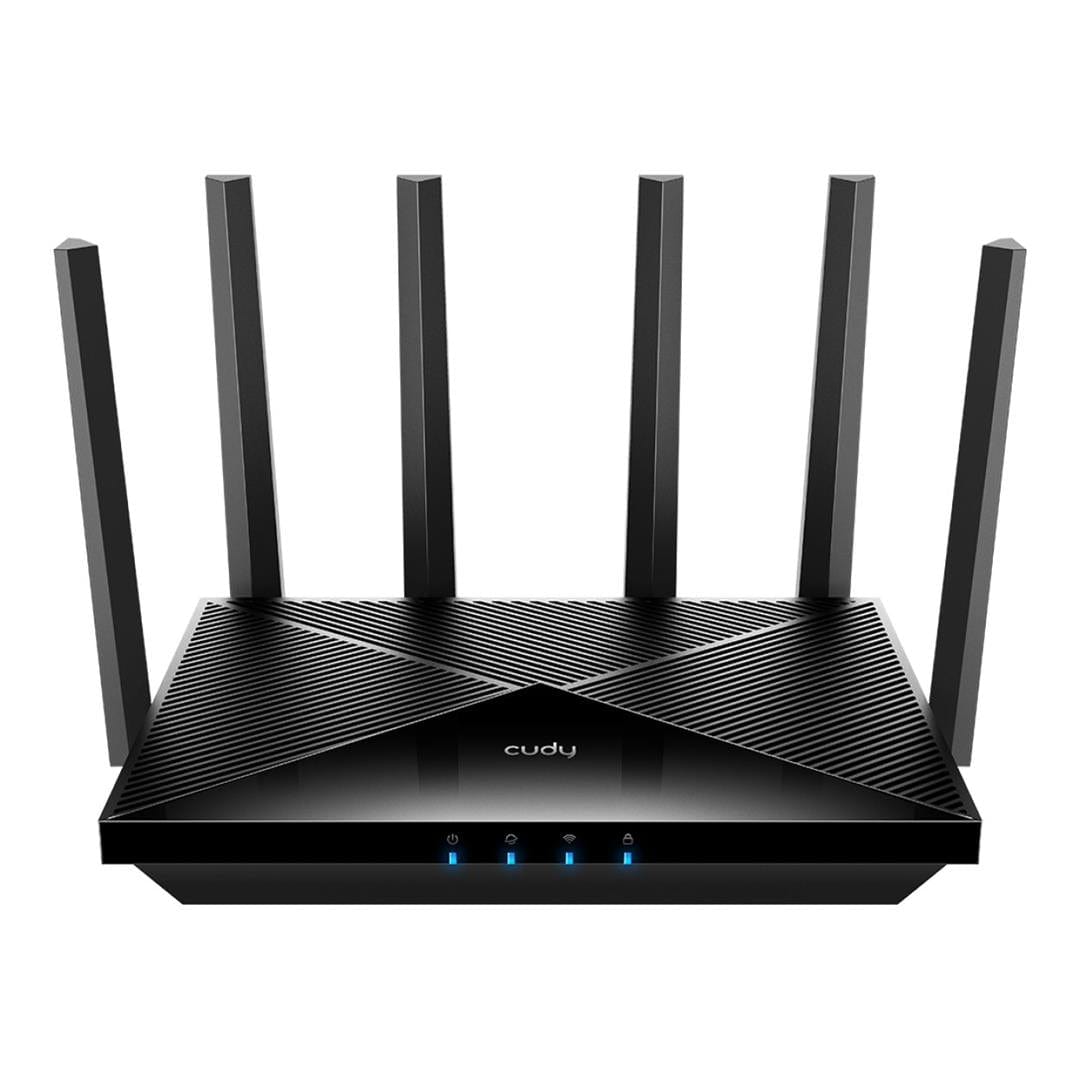

Cudy WR11000 BE11000 2.5G Tri-band Wi-Fi 7 Mesh Router

Cudy WR11000 BE11000 2.5G Tri-band Wi-Fi 7 Mesh Router

A tri-band WiFi 7 router with an aggregate of 10.6 Gbps speed and four 2.5G ports, catering to latency-sensitive, speed-demanding, and large-scale scenarios.

Features

•  Qualcomm 1.5 GHz Quad-Core CPU
•  6-Stream Tri-Band Wi-Fi 7
•  5.7 Gbps + 4.3 Gbps + 688 Mbps
•  4x 2.5G Ethernet Ports
•  Covers up to 140 m² (1,500 ft²)
•  100 Connected Devices
•  Cudy Mesh, VPN Server and Client
•  Cudy App, Cloud Control

Qualcomm Quad-Core CPU

Powerful CPU. Super-Responsive.

Feel the instantaneous respond and smooth operation when browsing, streaming, and gaming, even when connecting numerous devices. The
advanced Quad-Core CPU and 512 MB large RAM provides big bump in processing power with higher capacity.

Four High-Power FEM

Phenomenal Coverage Performance

The four-way high-power FEMs boost the transmission power to a phenomenal level, enabling it to navigate more complex environment. The
high-gain antennas with Beamforming technology offer stronger, more focused Wi-Fi signals towards client devices.

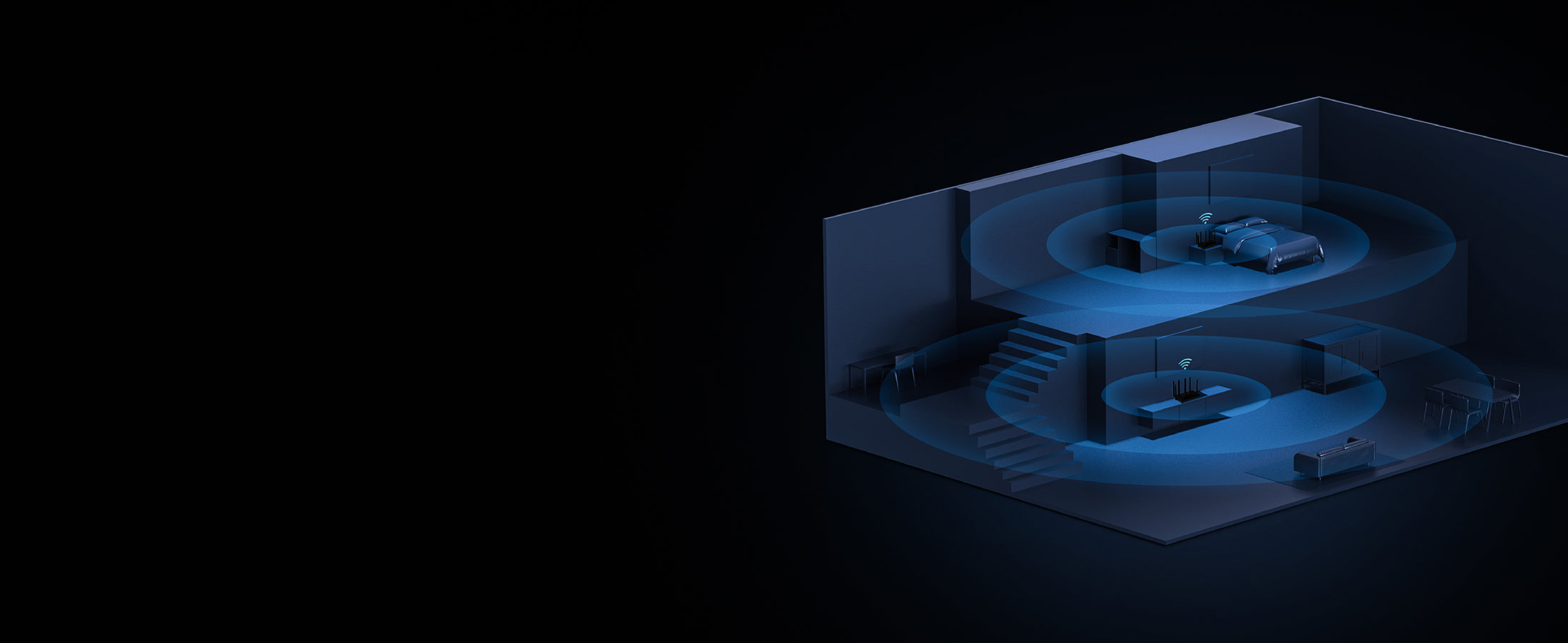

Seamless Whole-Home Wi-Fi

One network, no switching needed. Easy setup with wireless pairing or auto wired connections. Seamless switching for smooth whole-home coverage.

Technical Specification

Product: Cudy WR11000 BE11000 2.5G Tri-band Wi-Fi 7 Mesh Router

CPU: 1.5 GHz Quad-Core CPU, ARM Cortex-A53

Flash/ROM: 128 MB (1 Gbit) NAND

DDR/RAM: 512 MB (4 Gbit) DDR4

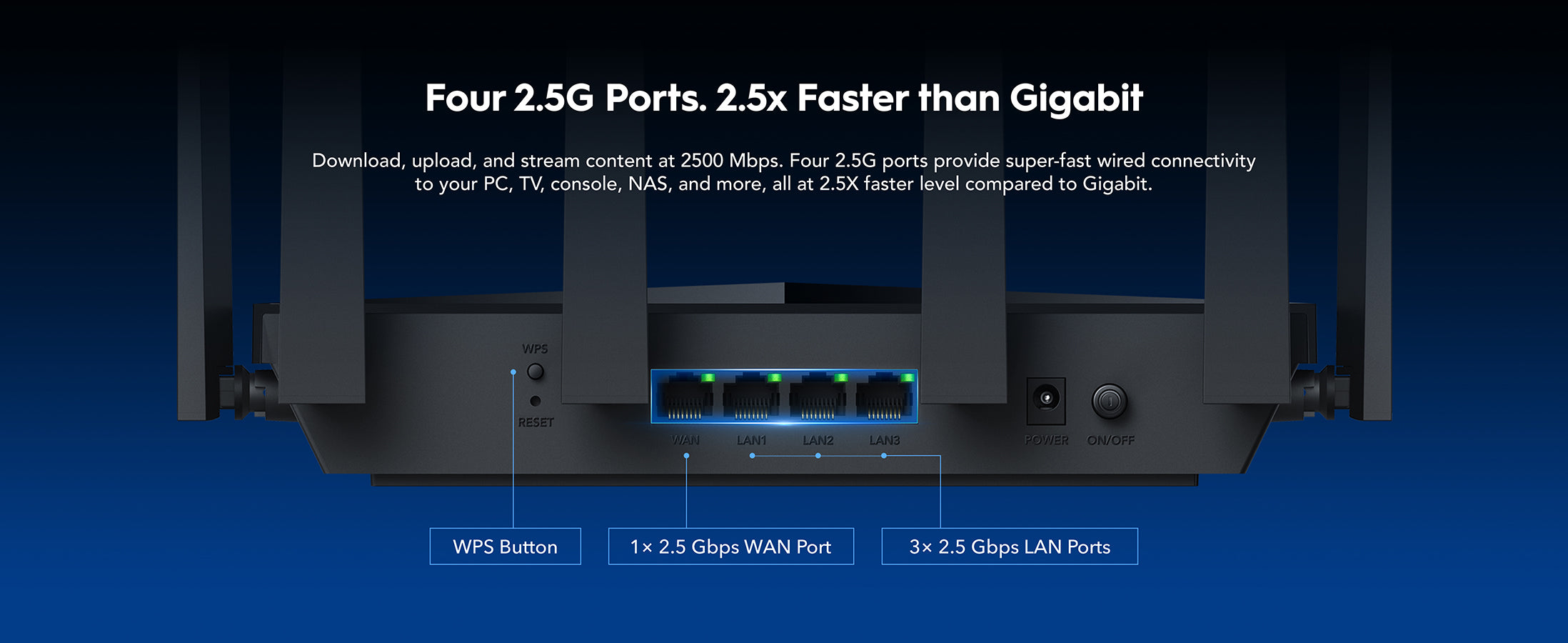

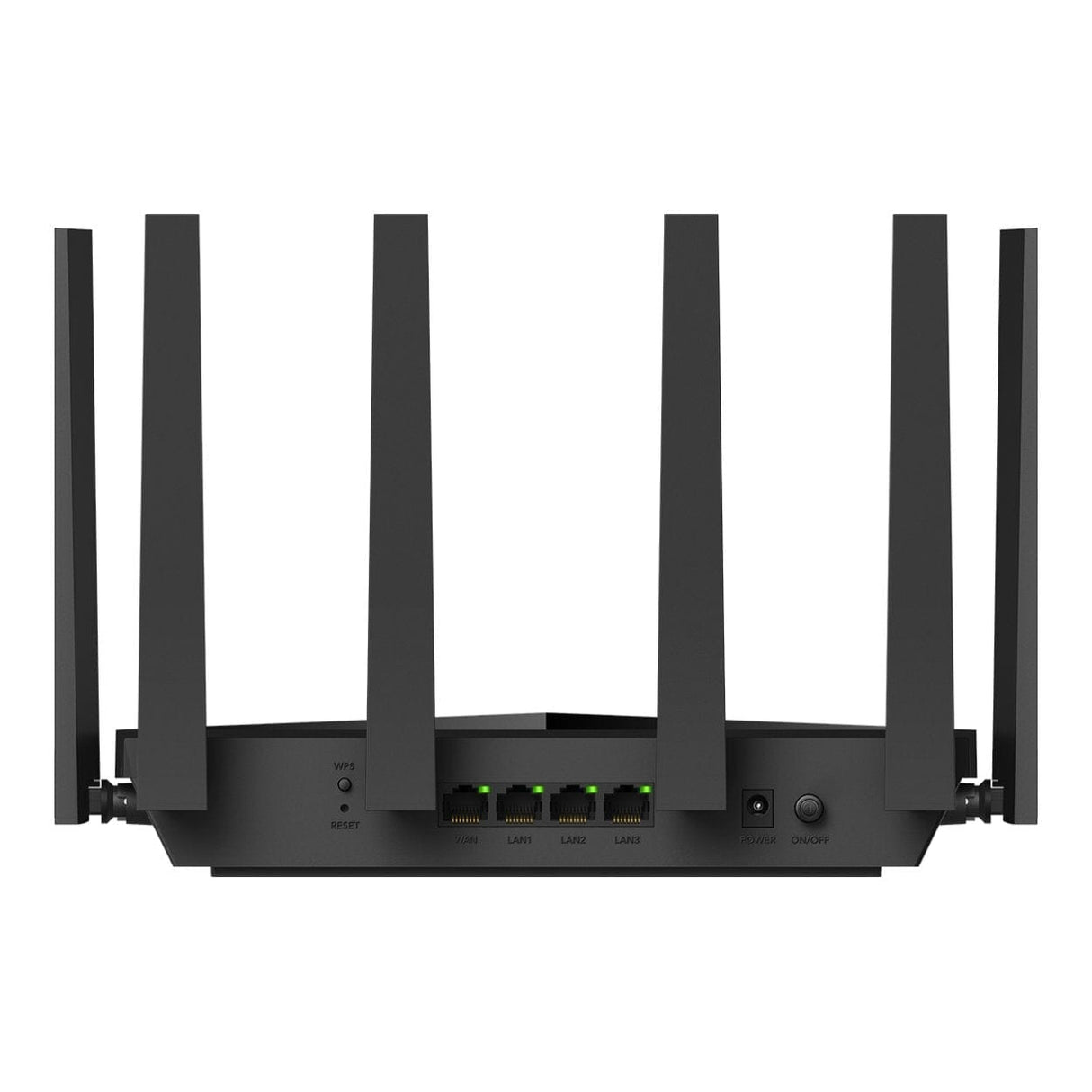

Interfaces: 4x 2.5G RJ45 Ports (Please note: 1x WAN port, the rest are LAN ports)

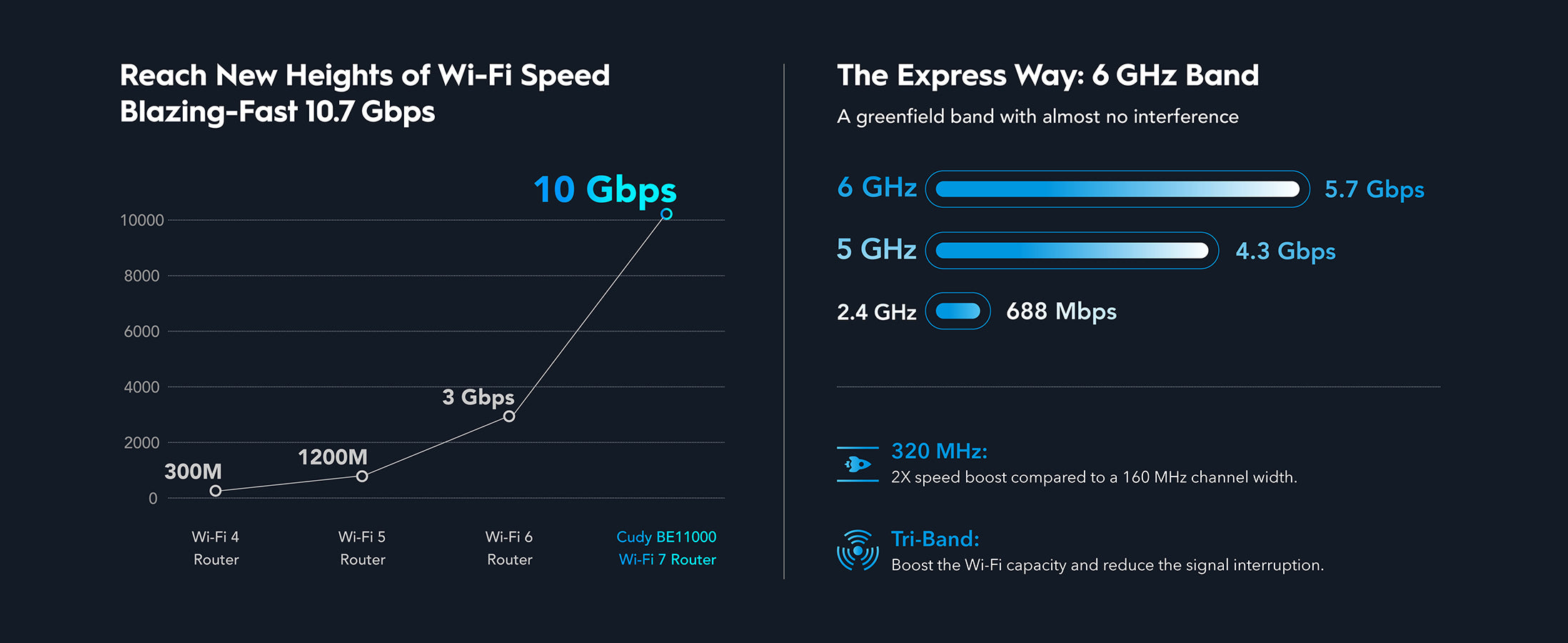

6 GHz Wi-Fi Speed: 5765 Mbps

5 GHz Wi-Fi Speed: 4324 Mbps

2.4 GHz Wi-Fi Speed: 688 Mbps

6 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)

5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)

2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)

Wi-Fi Antennas: 6× Fixed

6 GHz Antenna Gain Max: 4.5dBi

5 GHz Antenna Gain Max: 4.5dBi

2.4 GHz Antenna Gain Max: 5dBi

FEM or PA/LNA

• 6 GHz: 2× High-Power
• 5 GHz: 2× High-Power
• 2.4 GHz: 2× Standard

Beamforming: True

Range Performance: Max: 240 m (787 ft)

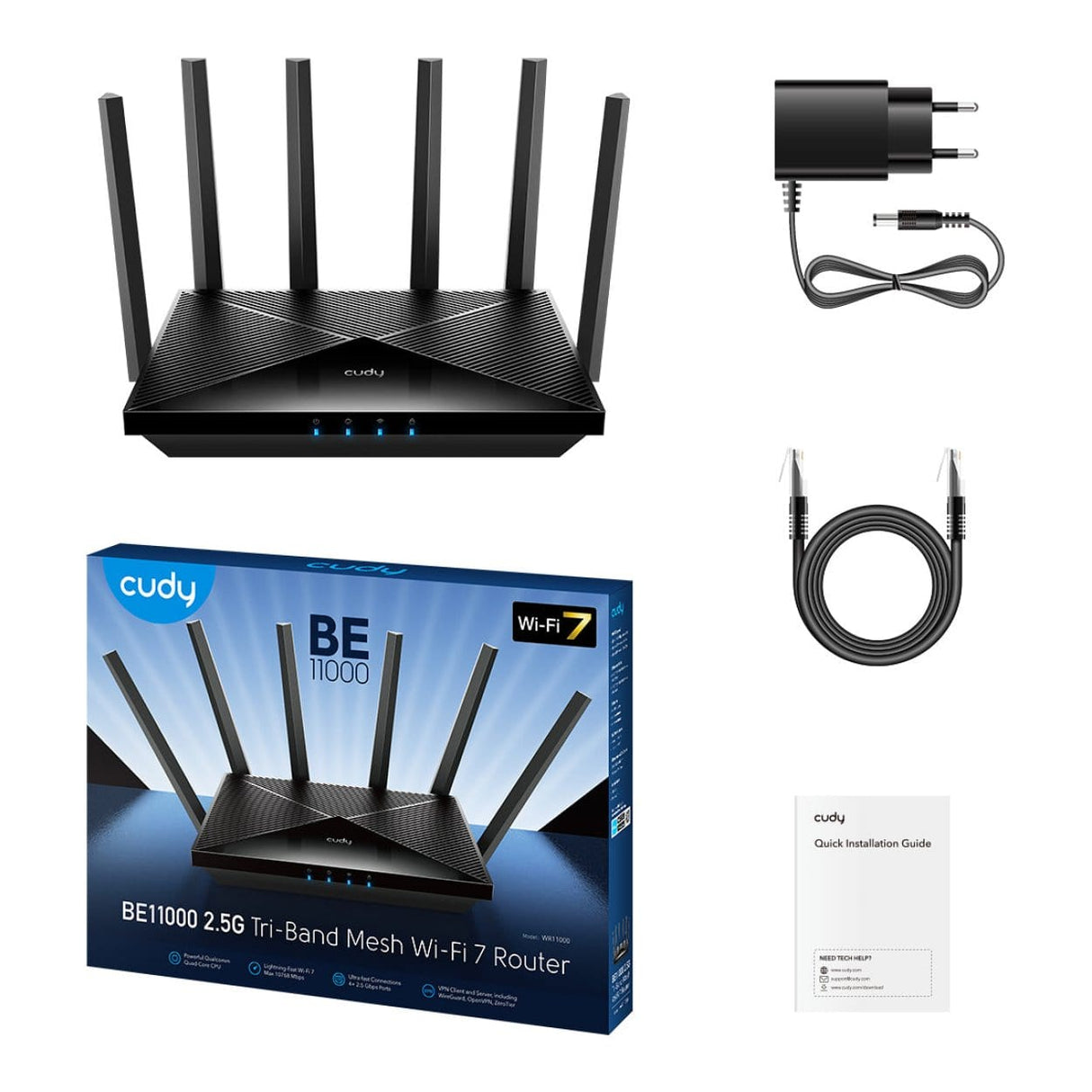

Package Content

• 1x WR11000
• 1x Power Adapter
• 1x Ethernet Cable
• 1x Installation Guide
