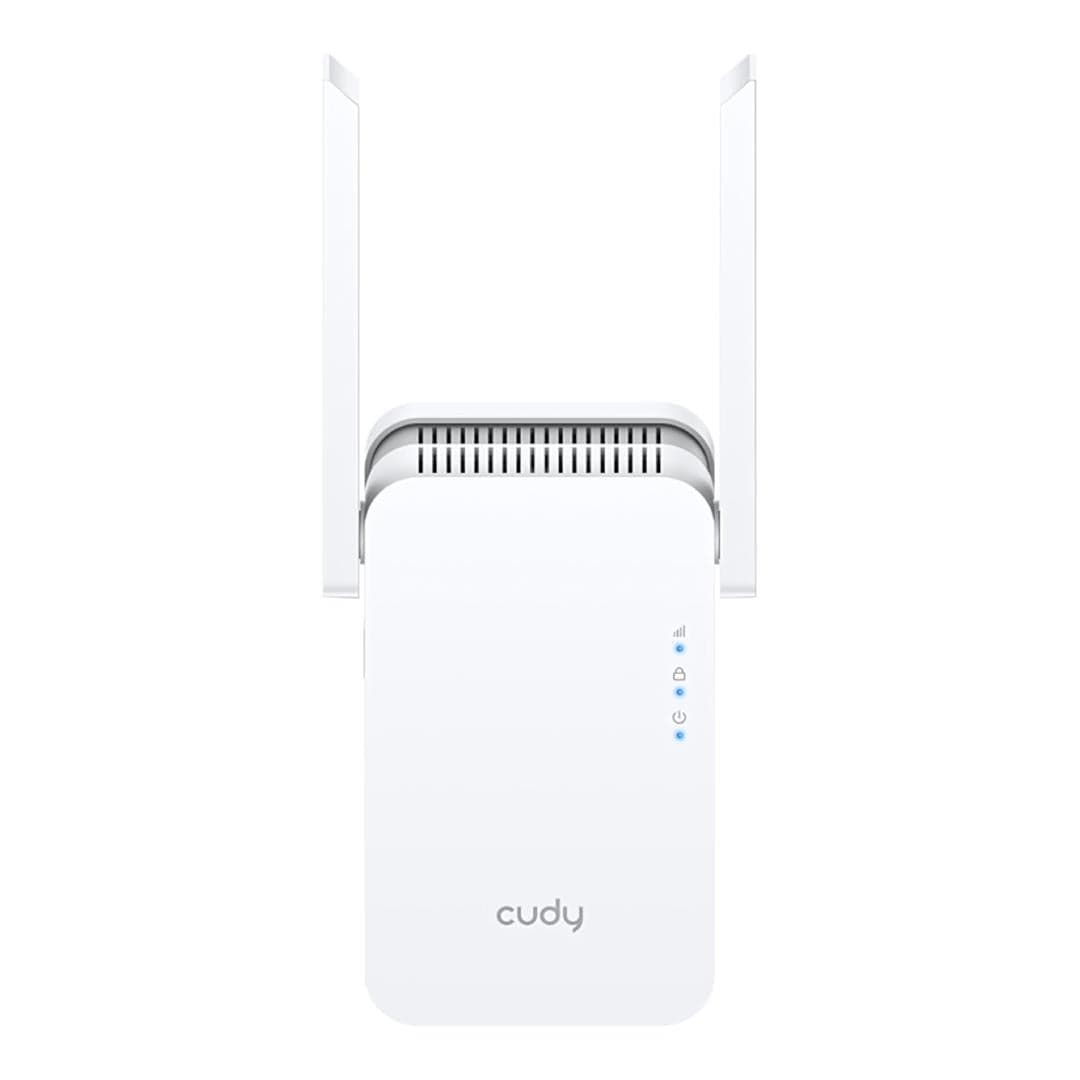

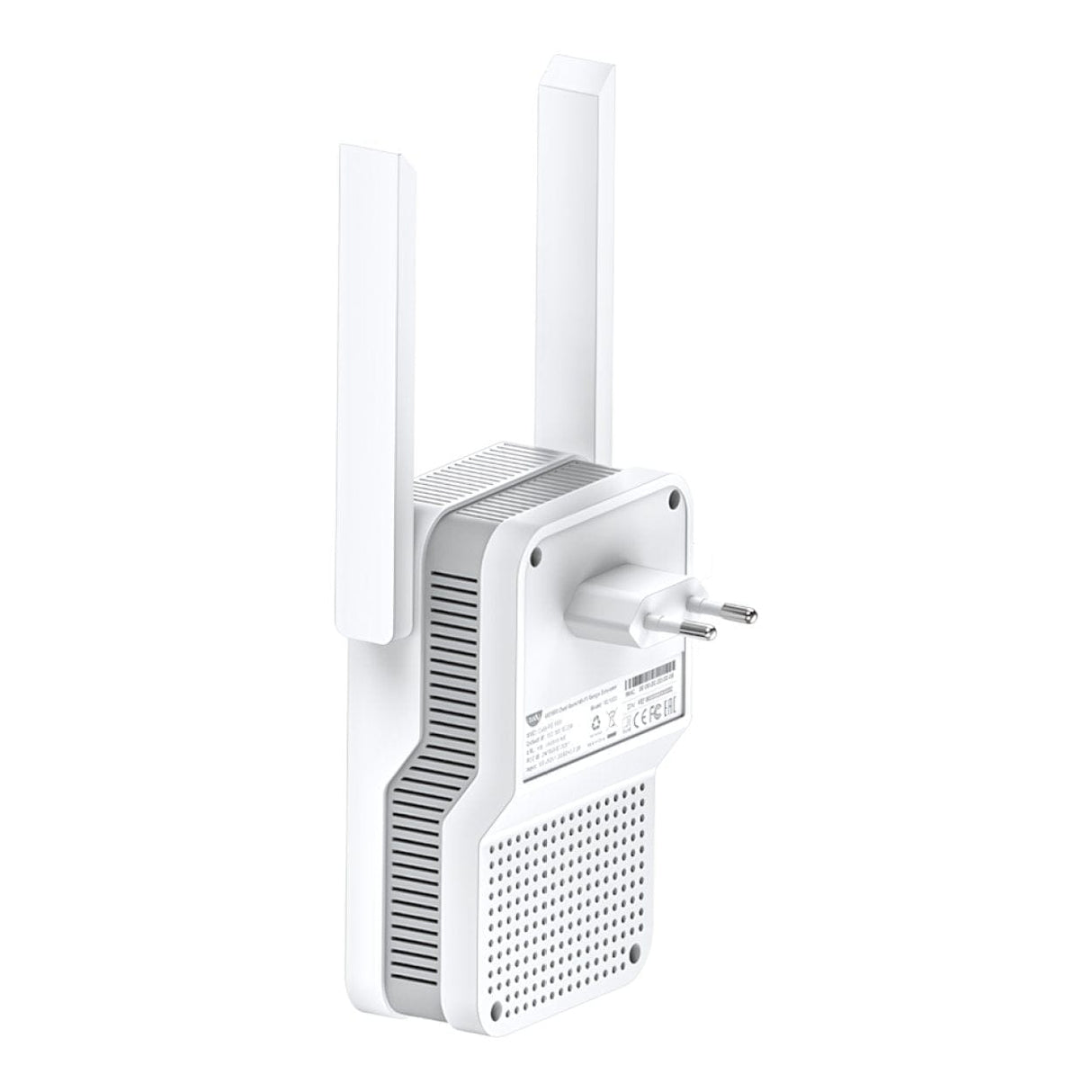

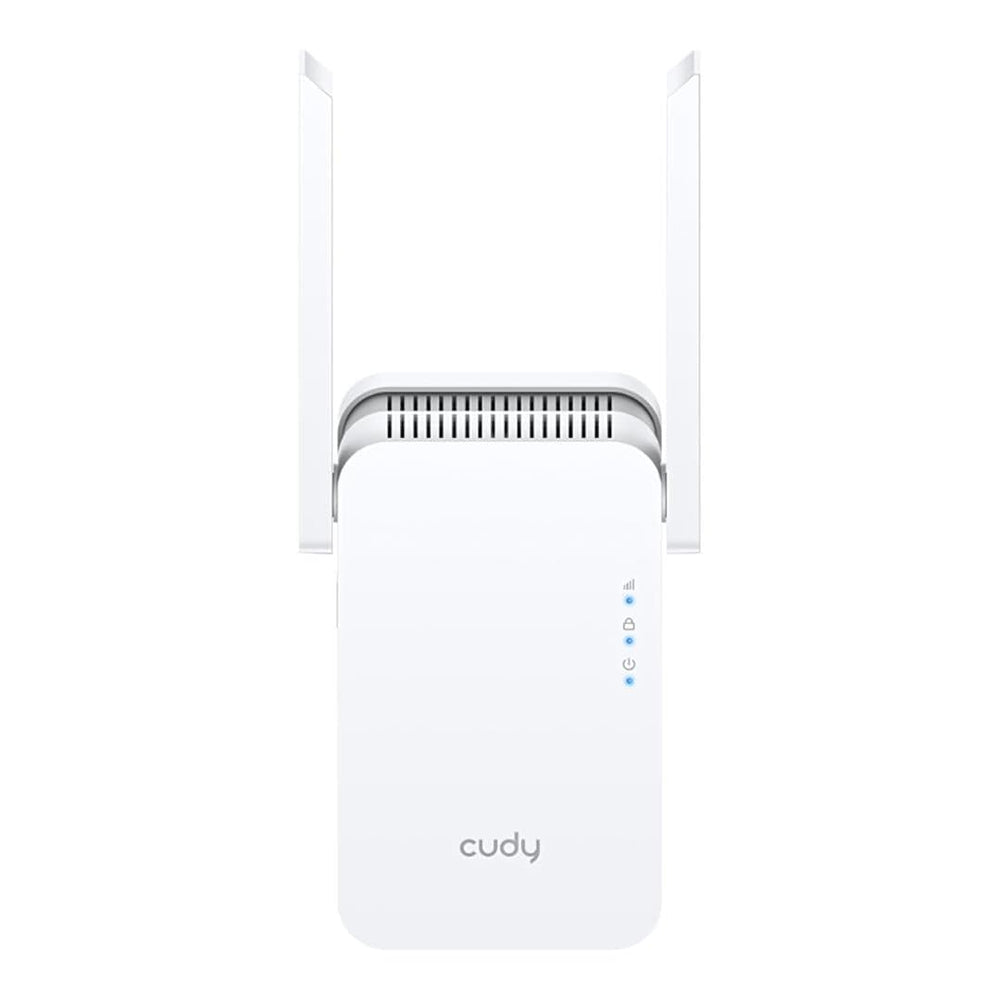

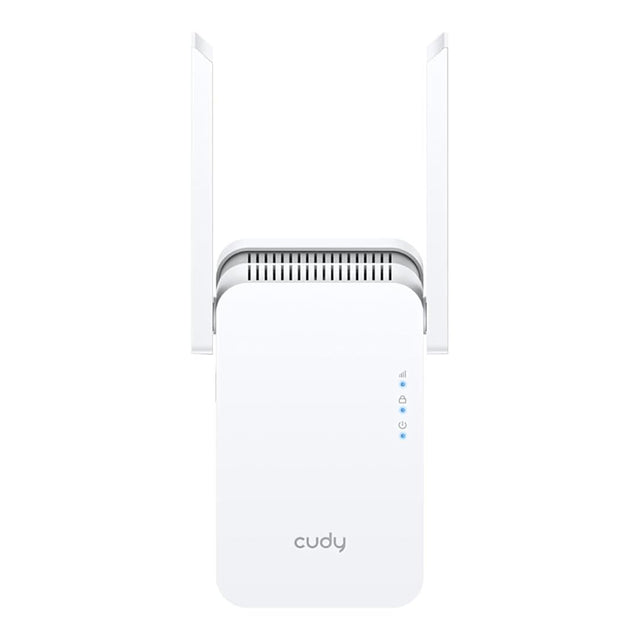

Cudy RE3600 Dual Band Wi-Fi 7 3600Mbps Gigabit Range Extender

Cudy RE3600 Dual Band Wi-Fi 7 3600Mbps Gigabit Range Extender

A range extender featuring super-fast BE3600 WiFi 7 and a Gigabit Ethernet port. Press WPS buttons to expand existing Wi-Fi instantly.

Features:

•  Works with Any Wi-Fi Router
•  Dual-Band Wi-Fi 7
•  2882 Mbps + 688 Mbps Wi-Fi
•  1x Gigabit Ethernet Port
•  50 Connected Devices
•  Cudy Mesh Satellite
•  Multi-Band Simultaneous Backhaul
•  Ethernet Backhaul

Advanced Wi-Fi 7 Processing

Powerful CPU. Super-Responsive.

Feel the instantaneous respond and smooth operation when browsing, streaming, and gaming, even when connecting numerous devices. The advanced Quad-Core CPU and 512 MB large RAM provides big bump in processing power with higher capacity.

Beamforming and External Antennas

Say goodbye to Wi-Fi dead zones

Beamforming detects the direction of connected devices and forms a focused signal towards them to improve coverage. RE3600 wirelessly connects to your existing router, delivering powerful connectivity and expansive Wi-Fi coverage.

Extend Wi-Fi to Gigabit Ethernet

Share Internet through Wired Connections

Featuring efficient heat dissipation and smart vent design, the RE3600 delivers stable, high-speed connectivity without overheating.

Seamless Wi-Fi Expansion

Fast Roaming with Cudy Mesh

RE3600 supports Cudy Mesh to enable seamless roaming for the whole home with other Cudy Mesh devices, allowing you to move freely between rooms without the need for manual network switching.

The Latest WPA3 Security

Encrypts Wireless to the Best Level

The latest Wi-Fi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in Wi-Fi password safety and enhanced protection against brute-force attacks combine to safeguard your home Wi-Fi.

Technical Specifications:

CPU
CPU Details: 2.0 GHz Quad-Core, ARM Cortex-A7

Memory/Storage
Flash/ROM: 128 MB (1 Gbit) NAND
DDR/RAM: 512 MB (4 Gbit) DDR3L

Wireless
5 GHz Wi-Fi Speed: 2882 Mbps
2.4 GHz Wi-Fi Speed: 688 Mbps
5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
Wi-Fi Antennas: 2× Fixed
FEM or PA/LNA: 5 GHz: 2× External, 2.4 GHz: 2× Internal
Range Performance: Max 150 m (492 ft), tested in open-space environments with minimal interference. Actual range may vary depending on layout and wall materials.
Wall Performance: Two wooden walls <10 cm (4"), One concrete wall <20 cm (7")

Interfaces
Gigabit RJ45 Ports: 1
LED Indicators: Signal Strength, WPS, Power
Physical Buttons: WPS Button, Reset Button
Power Input: AC Plug
Power Input Note: EU, US, UK, AU plug options available

Power
Power Methods: AC
AC: 100V ~ 240V

Reliability
Environment: Operating Temperature: 0 ℃ ~ 50 ℃ (32 ℉ ~ 122 ℉), Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Certifications: FCC, CE

Mechanical
Install in a Daisy Chain: Recommend less than 3 repeaters in a wireless chain
Installation: Plug-In-Socket
Dimension: 129.6×80×48.6 mm (5.1×3.15×1.91 inches)
Product Weight: 280.6 g (9.9 oz.)

Ordering Information
Retail Package Weight: EU: 441.6 g (15.58 oz.)
Retail Package Dimension: 161×120×96 mm (6.34×4.72×3.78 inches)
Units per Carton: 30
Carton Net Weight: EU: 13.3 kg (29.32 lbs)
Carton Gross Weight: EU: 14.1 kg (31.09 lbs)
Carton Dimension: 50.4×37.7×34.1 cm (19.84×14.84×13.43 inches)

What's in the Box:

• RE3600
• Installation Guide
