Cudy M3600(3-Pack) BE3600 Dual-band Wi-Fi 7 Mesh Sytem White

Cudy M3600(3-Pack) BE3600 Dual-band Wi-Fi 7 Mesh Sytem White

Features

A dual-band WiFi 7 router with an aggregate of 3.6 Gbps speed and three Gigabit ports, catering to large home with Gigabit Internet access.

• 4-Stream Dual-band Wi-Fi 7
• 2882 Mbps + 688 Mbps Wi-Fi
• 3x Gigabit Ethernet Ports
• Up to 200 Connected Devices
• Cudy Mesh, VPN Server and Client
• Cudy App, Cloud Control

Easily Set Up the First Unit with Cudy App

Pick one Mesh unit and set it up on your phone via the Cudy App. The elegent cylinder design compliments your home in any style.

Power Up the Remaining Units for More Coverage

Mesh units in one package are pre-paired. Power on the remaining units between the first unit and Wi-Fi dead zones — they’ll form a seamless network once powered up.

Cudy Mesh

Super-Fast Roaming in Milliseconds

Create same-name Wi-Fi coverage throughout your home. The auto Wi-Fi switching is so fast that your gaming and streaming stay responsive while moving between Wi-Fi zones.

Technical Specification

Product: Cudy M3600 BE3600 Dual-band Wi-Fi 7 Mesh Sytem 3-Pack

CPU: 2.0 GHz Quad-Core, ARM Cortex-A7

Flash/ROM: 128 MB (1 Gbit) NAND

DDR/RAM: 512 MB (4 Gbit) DDR3L

Interfaces per node: 3x Gigabit RJ45 Ports (Please Note: 1x WAN port, the rest are LAN ports)

5 GHz Wi-Fi Speed: 2882 Mbps

2.4 GHz Wi-Fi Speed: 688 Mbps

5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)

2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)

Wi-Fi Antennas: 4x Internal

5 GHz Antenna Gain: Max 5.5dBi

2.4 GHz Antenna Gain: Max 5.4dBi

FEM or PA/LNA

• 5 GHz: 2× External
• 2.4 GHz: 2× Internal

Beamforming: True

Range Performance: Max 220 m (722 ft)

Indoor Coverage Reference

• 1 Pack: 90 m² (970 sq ft)
• 2 Pack: 200 m² (2100 sq ft)
• 3 Pack: 270 m² (2900 sq ft)
  Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of three obstacles to each room.

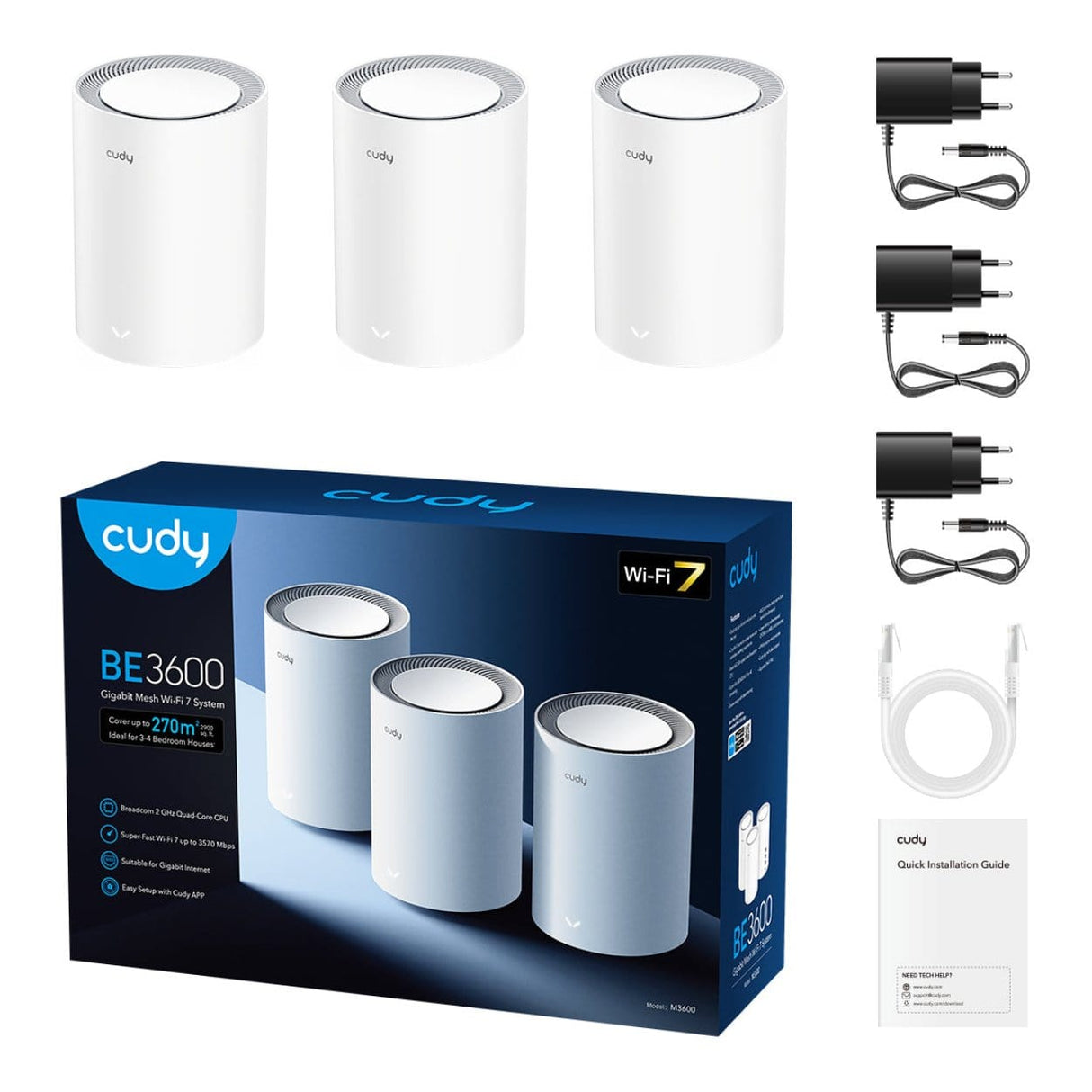

Package Content

• 3x M3600
• 3x Power Adapter
• 1x Ethernet Cable
• 1x Installation Guide
