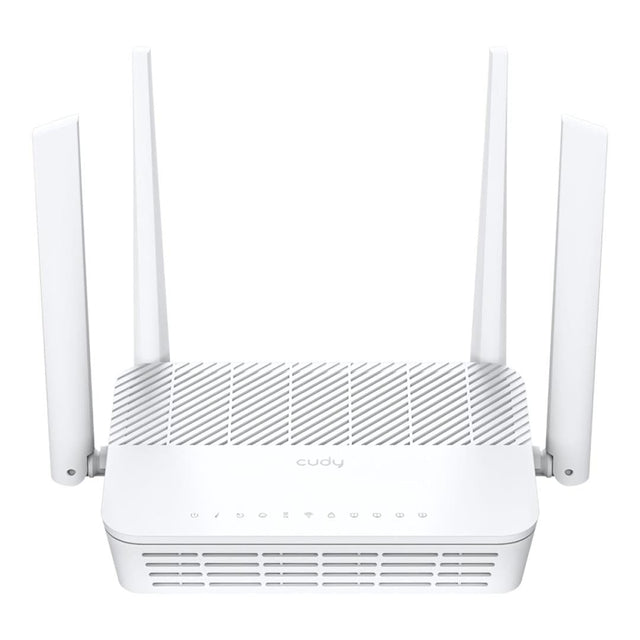

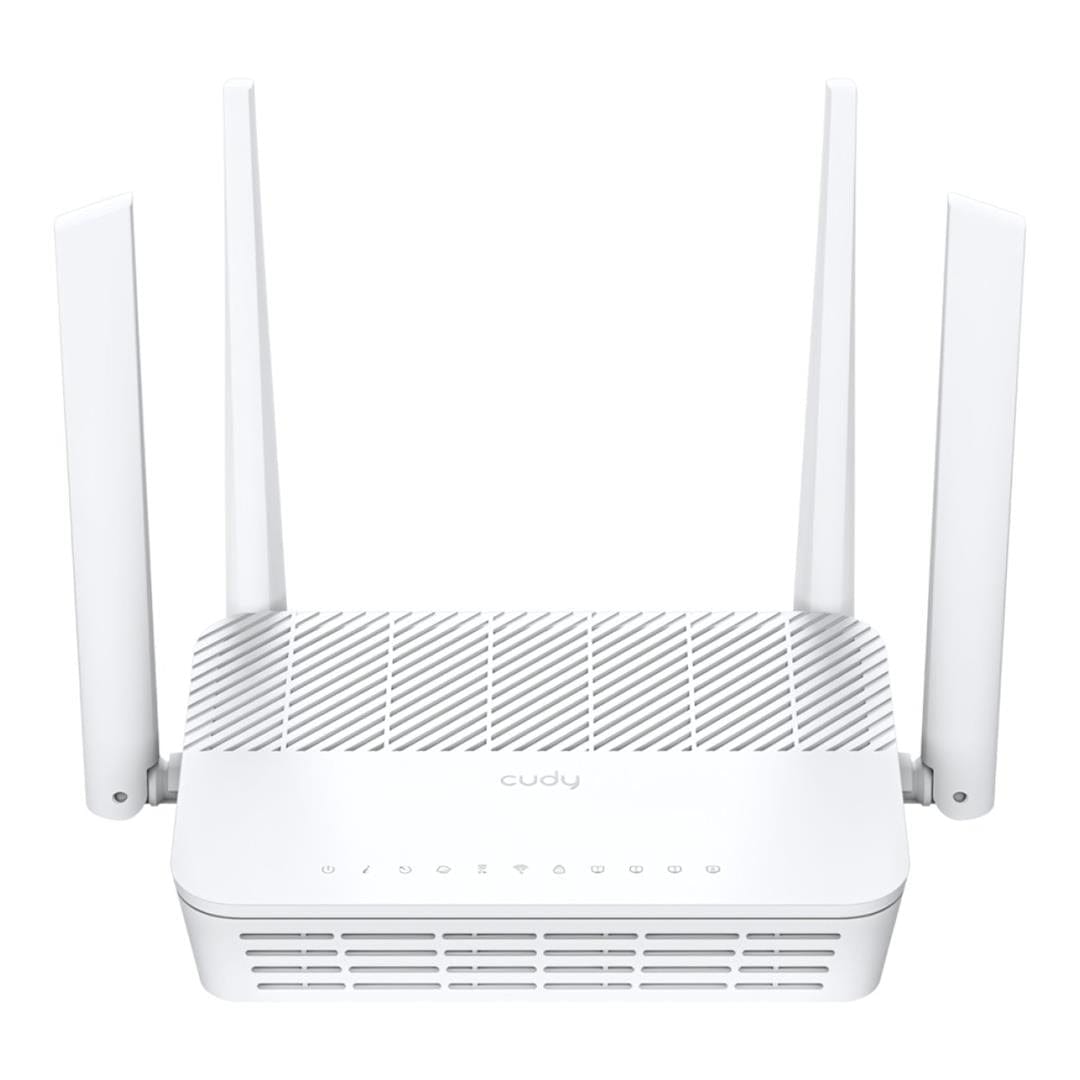

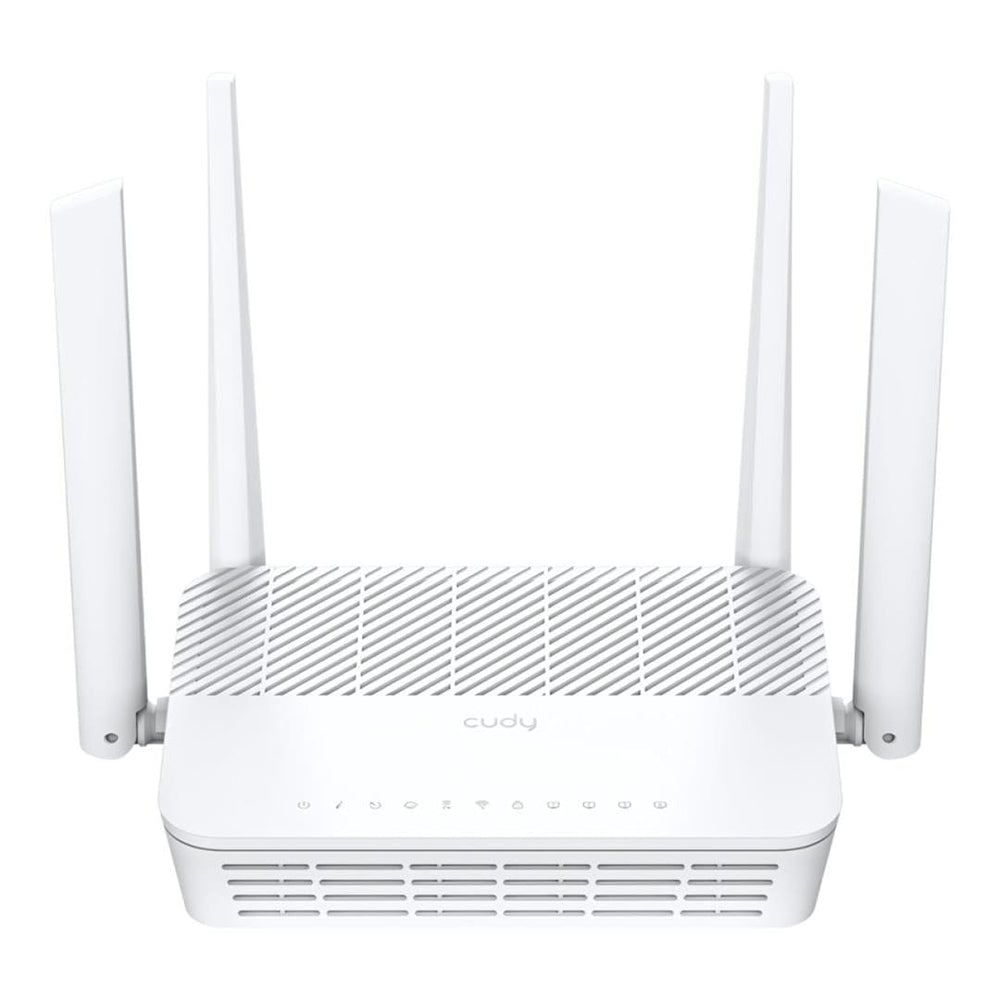

Cudy GP3000 AX3000 Wireless Dual-Band Gigabit Wi-Fi 6 xPON Router

Cudy GP3000 AX3000 Wireless Dual-Band Gigabit Wi-Fi 6 xPON Router

An xPON Wi-Fi 6 router featuring GPON/EPON dual modes, CWMP, OMCI, IPTV (IGMP Proxy/Bridge/Tag VLAN), and EasyMesh, suitable for FTTH solution deployment.

Features:

•  Max 2.48 Gbps GPON / 1.25 Gbps EPON
•  4-Stream Dual-Band Wi-Fi 6
•  2402 Mbps + 574 Mbps Wi-Fi
•  1× SC/APC Slot
•  4× Gigabit Ethernet Ports
•  TR069/TR098/TR111/TR143/TR181
•  EasyMesh

Technical Specifications:

Model Version: GP3000 1.0

CPU
CPU Details: 1 GHz Dual-Core

Memory / Storage
Flash / ROM: 128 MB (1 Gbit) NAND
DDR / RAM: 512 MB (4 Gbit) DDR3L

xPON Protocols
GPON: ITU G.984 standard, Class B+
EPON: 802.3ah

Speed
GPON: 2.488 Gbps Downstream / 1.244 Gbps Upstream
EPON: 1.25 Gbps Downstream / Upstream

Wavelength
TX: 1310 nm
RX: 1490 nm

Max Transmission Distance: 20 km

Wireless
5 GHz Wi-Fi Speed: 2402 Mbps
2.4 GHz Wi-Fi Speed: 574 Mbps
5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
Wi-Fi Antennas: 4× Fixed
FEM / PA / LNA: 5 GHz: 2× External; 2.4 GHz: 2× External
Beamforming: True

Range Performance
Max: 170 m (558 ft) in open-space environments with minimal interference
Actual Wi-Fi range varies depending on layout and wall materials

Wall Performance
Two wooden walls < 10 cm (4")
One concrete wall < 20 cm (7")

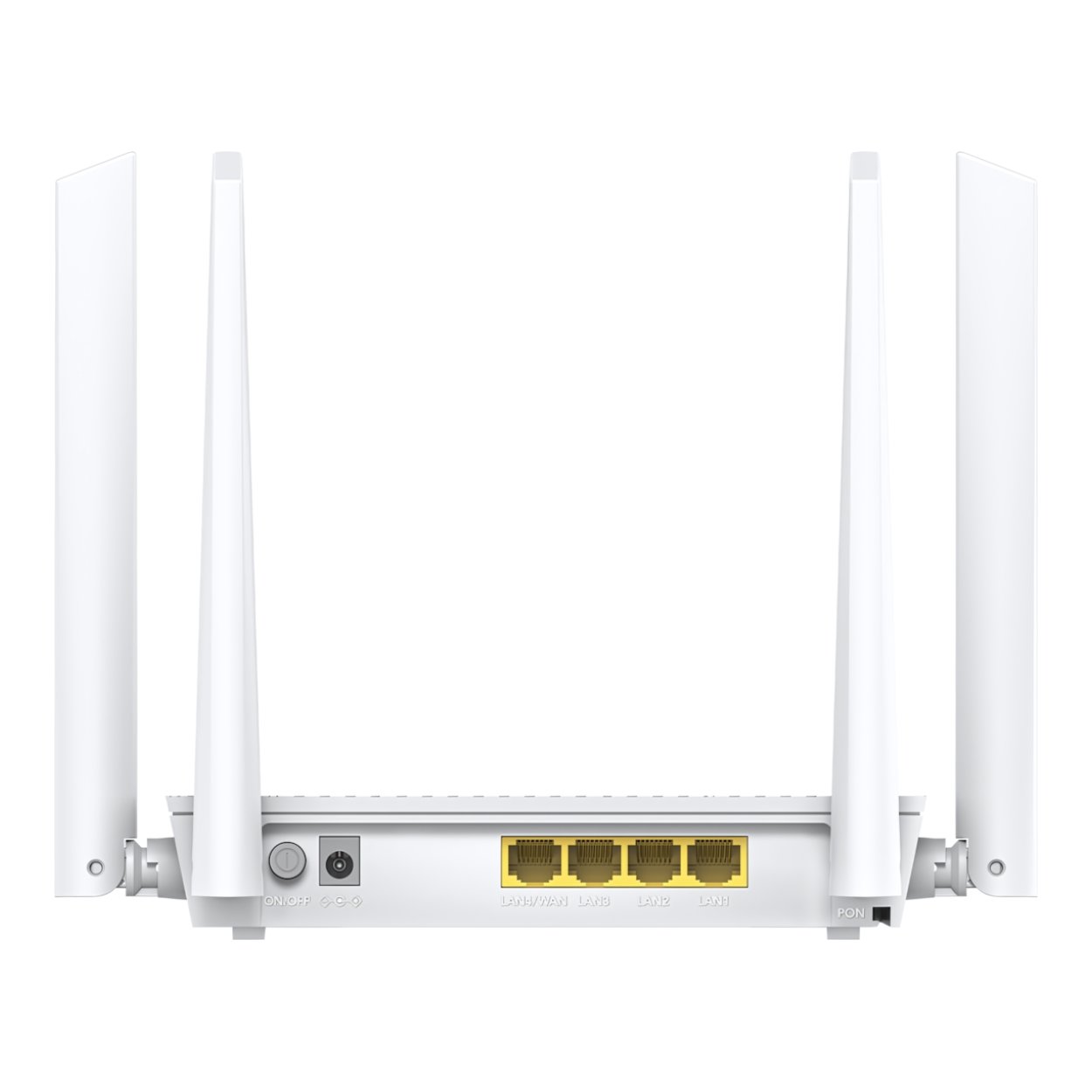

Interfaces

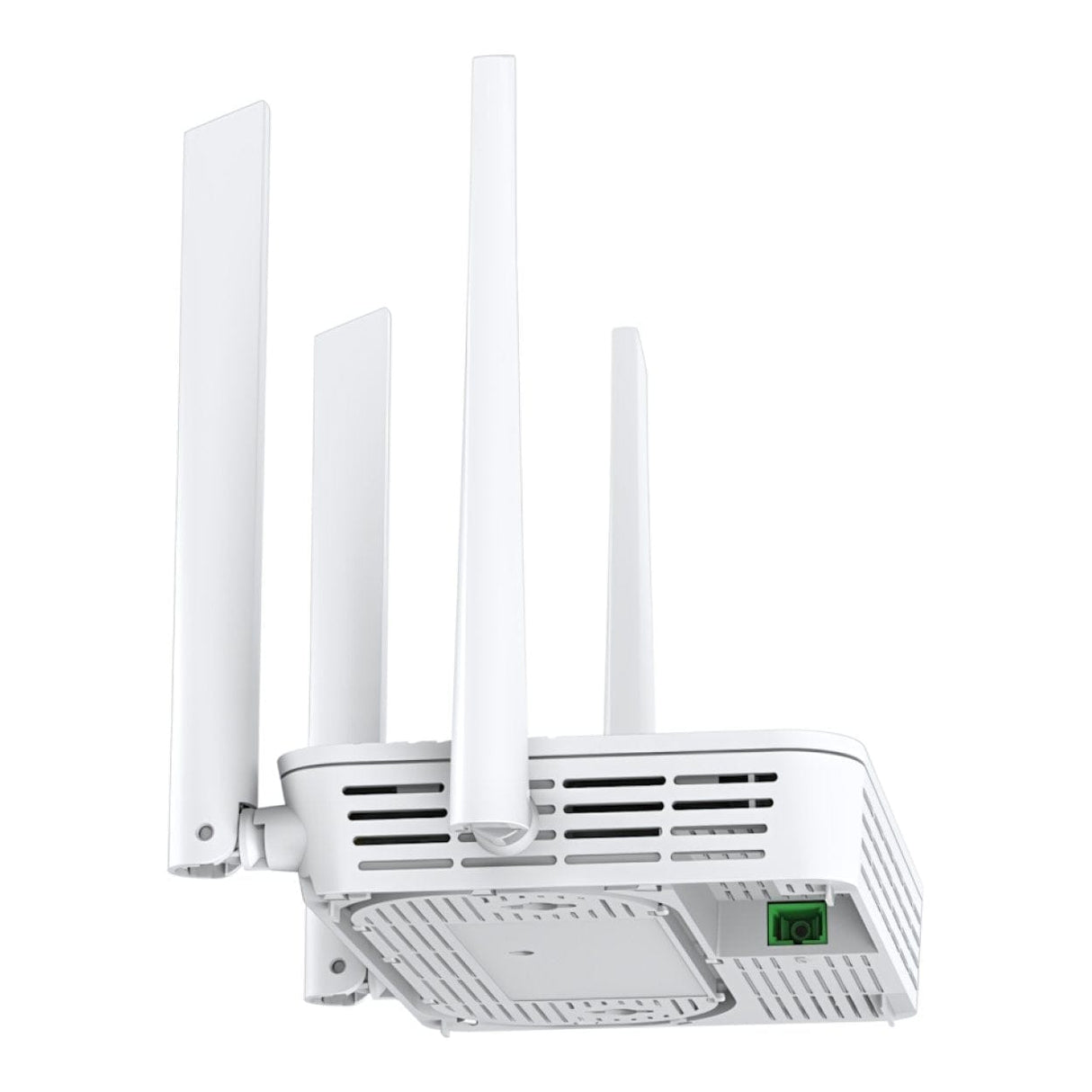

SC/APC Port: 1
Gigabit RJ45 Ports: 4
Ethernet Notes: 1× LAN/WAN port, the rest are LAN ports
USB-A 3.0 Ports: Optional for ISP order

LED Indicators
Power, PON, LOS, Internet, 2.4 GHz Wi-Fi, 5 GHz Wi-Fi, WPS, LAN

Physical Buttons
Power On/Off, Reset, WPS, Wi-Fi On/Off

Power Interfaces
DC Jack
Power Methods: DC
Power Input: 12V⎓1.5A
Power Adapter in the Box: Input 100-240V~, 50/60Hz; Output 12V⎓1.5A

Reliability / Environment
Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~ 104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 95% non-condensing

Certifications: FCC, CE

Mechanical / Installation
Installation: Desktop, Wall-mount
Dimensions: Main Part: 173 × 123.8 × 33 mm (6.81 × 4.87 × 1.3 inches)
Product Weight: 352 g (12.42 oz.)
Casing Material: Plastic

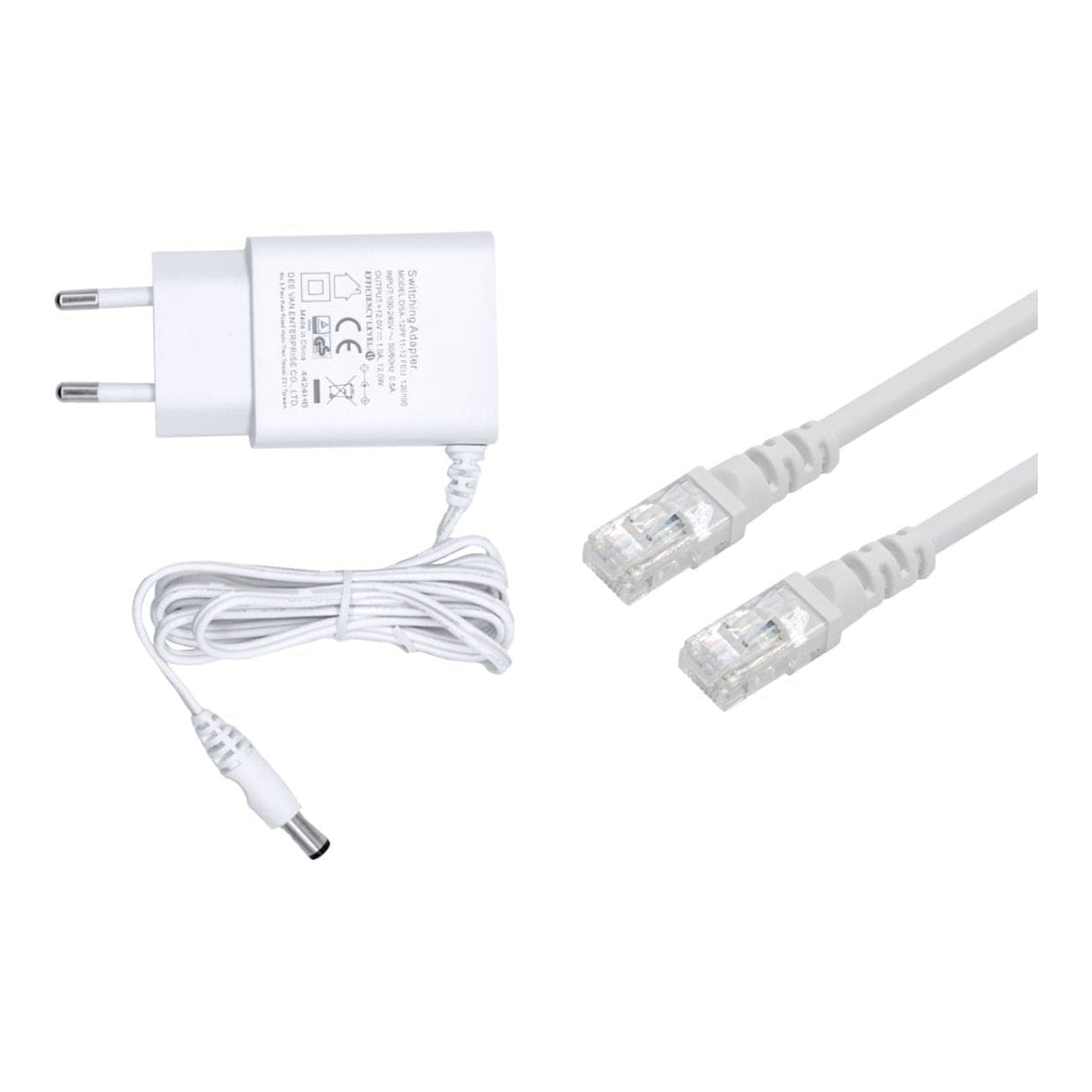

What's in the Box:
GP3000
Power Adapter
Ethernet Cable
Installation Guide

Ordering Information
Retail Package Dimension: 304 × 268 × 54 mm (11.97 × 10.55 × 2.13 inches)
Retail Package Weight: 770 g (27.16 oz.)
Carton Net Weight: 15.4 kg (33.95 lbs)
Carton Gross Weight: 16.7 kg (36.82 lbs)
Units per Carton: 20
Carton Dimension: 55.6 × 55.5 × 32.5 cm (21.89 × 21.85 × 12.8 inches)
