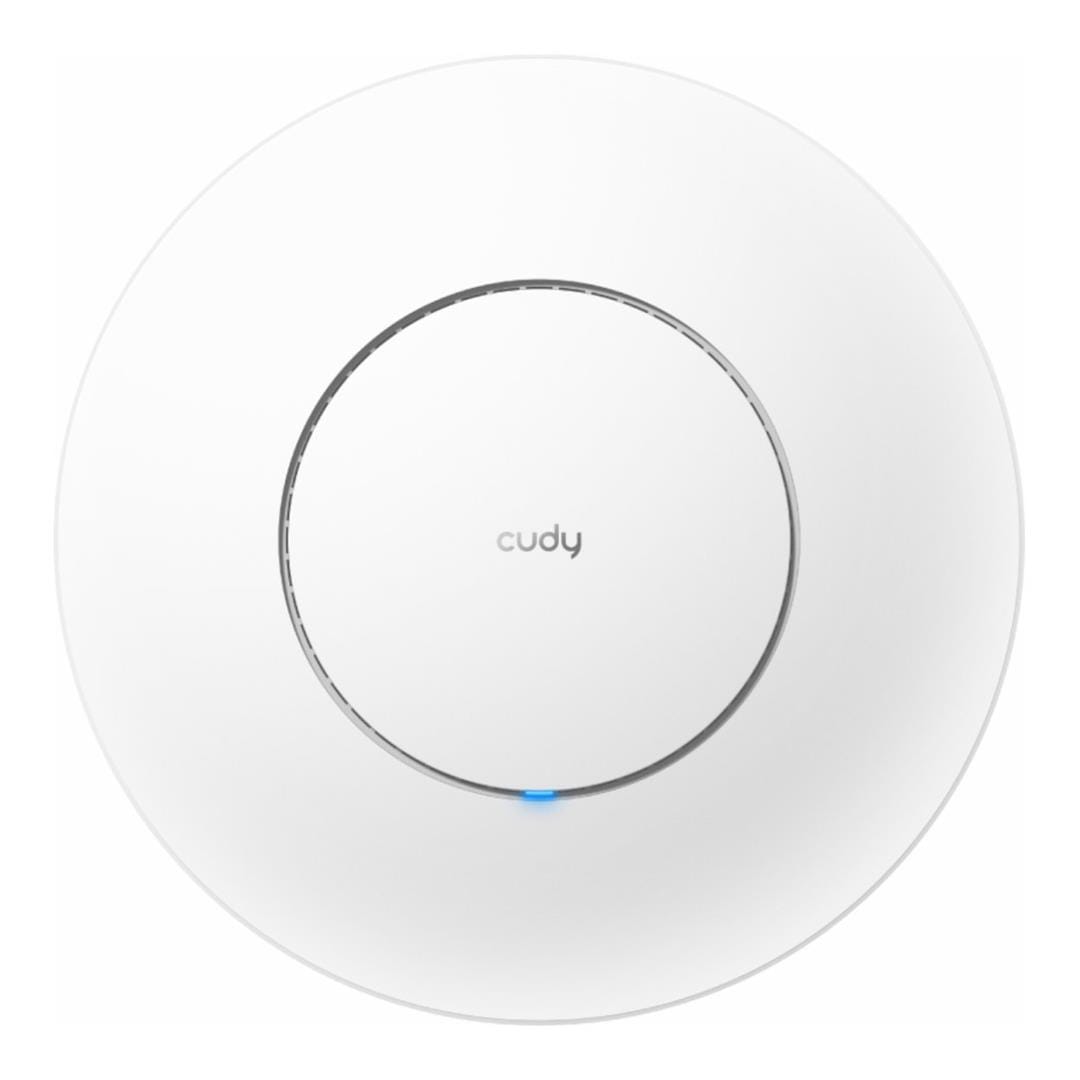

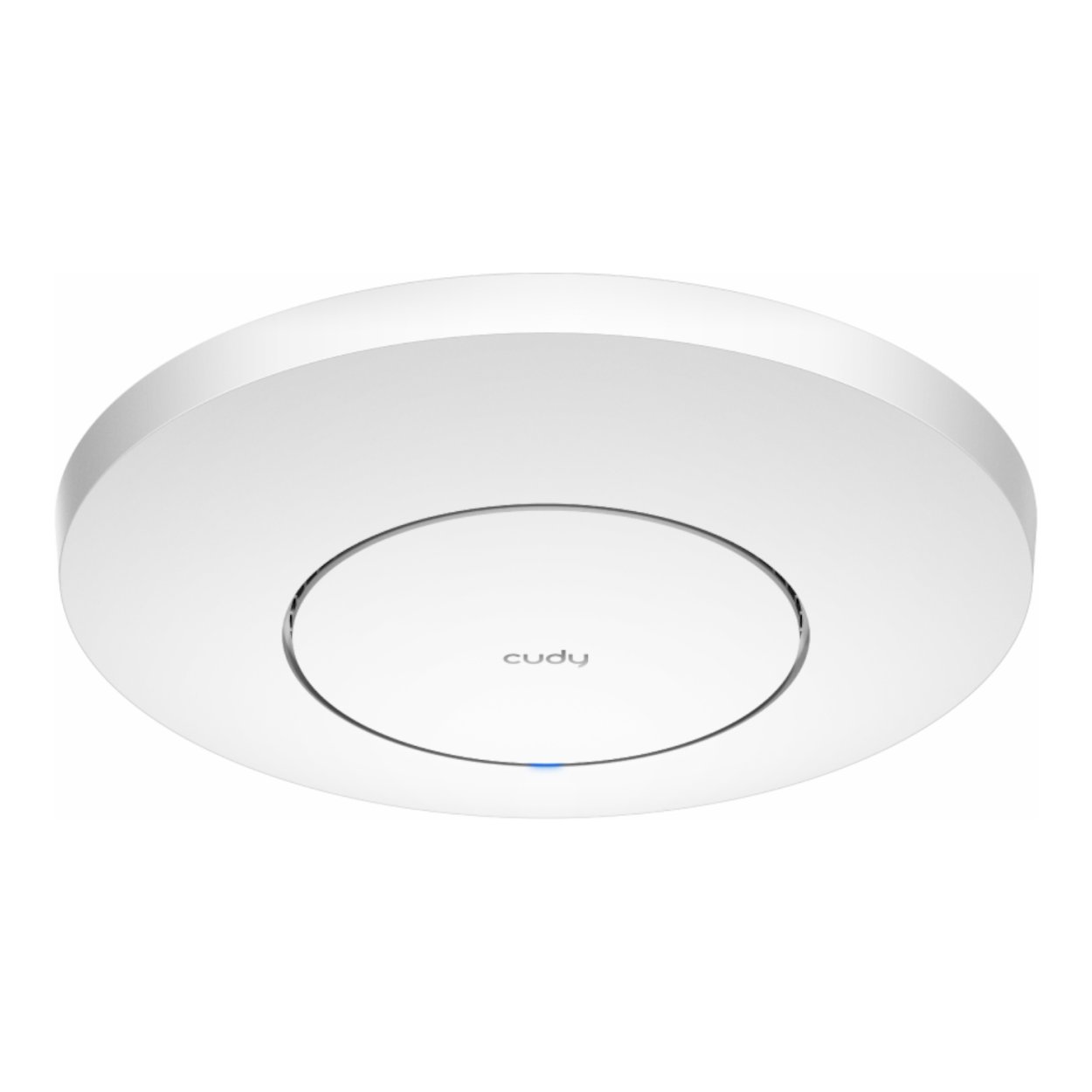

Cudy BE3600 2.5G Dual Band Wi-Fi 7 Ceiling Access Point AP3600

Cudy BE3600 2.5G Dual Band Wi-Fi 7 Ceiling Access Point AP3600

A wall/ceiling-mounted WiFi 7 AP designed for malls, offices, campuses, and other high-density scenarios, featuring a 2.5G PoE IN port and a PoE Out port.

Features:

•  Broadcom 2 GHz Quad-Core CPU
•  4-Stream Dual-Band Wi-Fi 7
•  2882 Mbps + 688 Mbps Wi-Fi
•  1× 2.5GbE PoE In, 1× GbE PoE Out
•  802.3at, Passive PoE, DC
•  Watchdog, Schedule Reboot
•  Multi-AP Management
•  Captive Portal, Multi-SSID
•  200 Connected Devices
•  Covers 120 m² (1,300 ft²)

Designed for the demands of modern South African businesses, the Cudy BE3600 is not merely an access point; it is the foundation for a superior network. Whether your environment is a bustling office, a sprawling campus, a busy shopping mall, or any space requiring robust connectivity for a high number of users, this Cudy PoE access point is engineered to perform. It addresses the critical need for speed, capacity, and reliability, ensuring that every user experiences seamless internet access. Forget the limitations of older Wi-Fi standards; this dual-band access point is built for the future, capable of handling the most data-intensive applications and the ever-increasing number of connected devices. The seamless integration of its PoE capabilities simplifies deployment, offering a clean and efficient network setup.

Unrivalled speed and capacity for demanding environments

At the core of the BE3600 lies Wi-Fi 7 technology, offering a total throughput of up to 3570 Mbps. This is achieved through dual-band operation, with the 5 GHz band reaching an impressive 2882 Mbps and the 2.4 GHz band providing 688 Mbps. Coupled with a 160 MHz max channel width and advanced 4K-QAM modulation, this access point significantly boosts network efficiency and speed. The inclusion of MLO (Multi-Link Operation), MRU (Multi-Resource Unit), OFDMA, and MU-MIMO ensures that the Cudy BE3600 PoE access point can communicate with multiple devices simultaneously and efficiently, minimizing latency and maximizing throughput even under heavy load. This makes it an ideal solution for environments where network congestion is a common challenge.

Extensive coverage and device support for seamless user experience

The Cudy BE3600 is designed to cover substantial areas, with a recommended coverage of up to 120 m² and a maximum range of 220 m. This extensive reach ensures that even large spaces are adequately served by a strong, stable Wi-Fi signal from this dual-band access point. Furthermore, its capacity to support up to 512 connected devices, with a recommendation of up to 200 active devices, makes it perfectly suited for high-density locations such as conference centres, lecture halls, or busy office floors. This means fewer access points are needed to achieve comprehensive coverage, simplifying installation and reducing costs, especially when leveraging its PoE functionality.

Simplified integration and robust management

Installation and management are streamlined for business efficiency. The BE3600 supports both wall and ceiling mounting, offering flexibility to suit any office layout. Powering this robust PoE access point is straightforward thanks to its support for IEEE 802.3at/af and passive PoE, allowing for a single Ethernet cable to provide both data and power. Its 2.5G Ethernet port ensures that the uplink speed is not a bottleneck, capable of supporting the high throughput of Wi-Fi 7. Management is equally accessible, with options for local web interface, app control, and TR-069 support for centralized network management, ensuring your network is always running optimally with this powerful dual-band access point.

Technical Specifications:

Product Type: Indoor wall/ceiling Wi-Fi access point

Primary Use: Offices, malls, campuses, and high-density spaces

Wi-Fi Standard: Wi-Fi 7 (802.11be)

Wi-Fi Bands: Dual-band (2.4 GHz + 5 GHz)

Total Wi-Fi Throughput: Up to 3570 Mbps

5 GHz Wi-Fi Speed: 2882 Mbps

4 GHz Wi-Fi Speed: 688 Mbps

Max Channel Width: 160 MHz

Max Modulation: 4K-QAM

Wi-Fi Efficiency: OFDMA, MU-MIMO, MLO

Beamforming: Supported

Mesh System: Cudy Mesh compatible

Mesh Backhaul: Wireless and wired

Recommended Devices: Up to 200

Coverage Area: Up to 120 m²

Max Range: 220 m

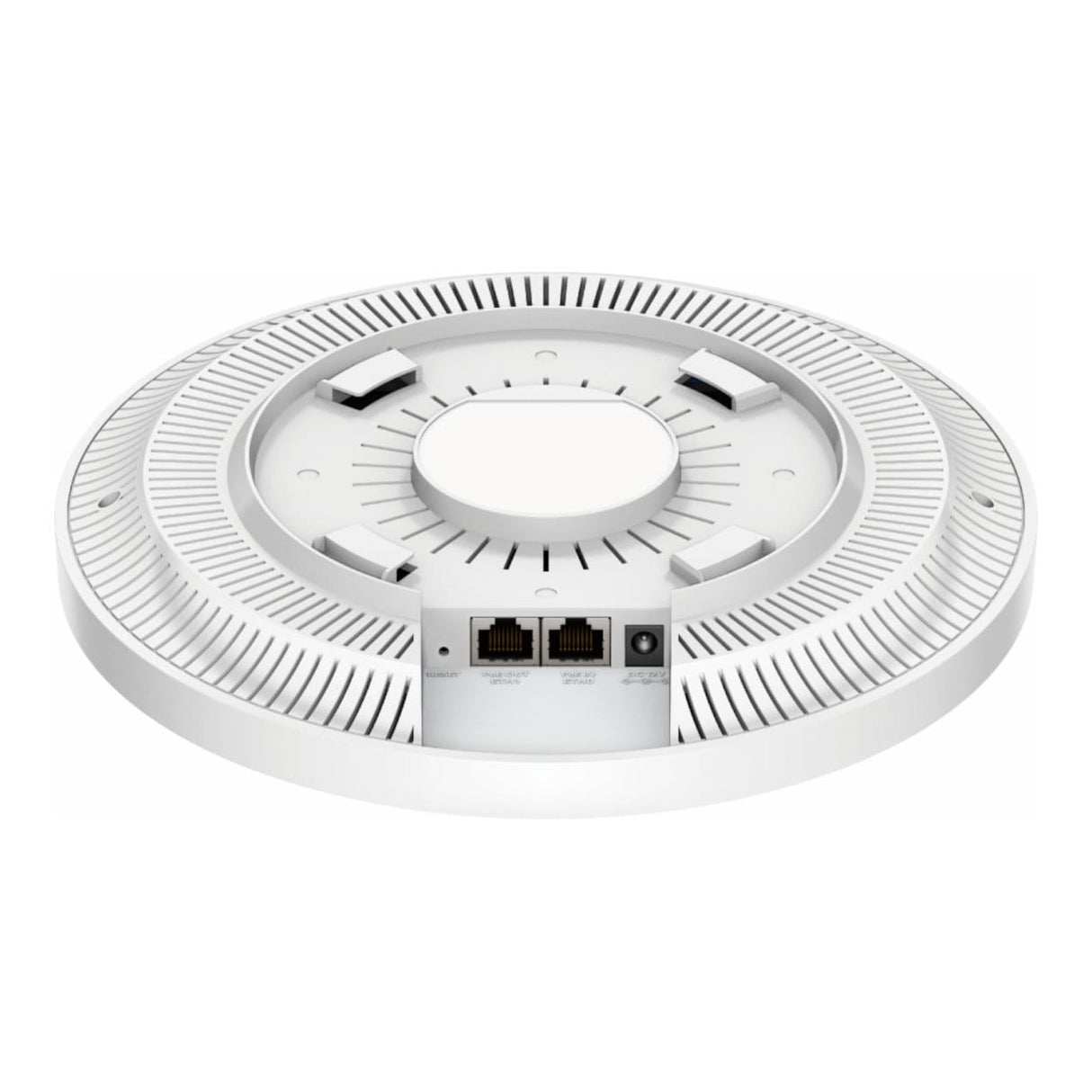

5G Ethernet Ports: 1 (PoE IN, shielded)

Gigabit Ethernet Ports: 1 (PoE OUT, shielded)

PoE Support: IEEE 802.3at/af + passive PoE

Power Input: DC jack or PoE via Ethernet

Max Power Consumption: 10 W

Operating Modes: Router, access point, or mesh node

Wi-Fi Security: WPA/WPA2/WPA3

VLAN Support: Yes

Captive Portal: Supported

DNS over TLS: Supported

Reliability: Hardware watchdog

ESD Protection: 4 kV contact / 8 kV air

Operating Temperature: 0–40 °C

Certifications: FCC, CE

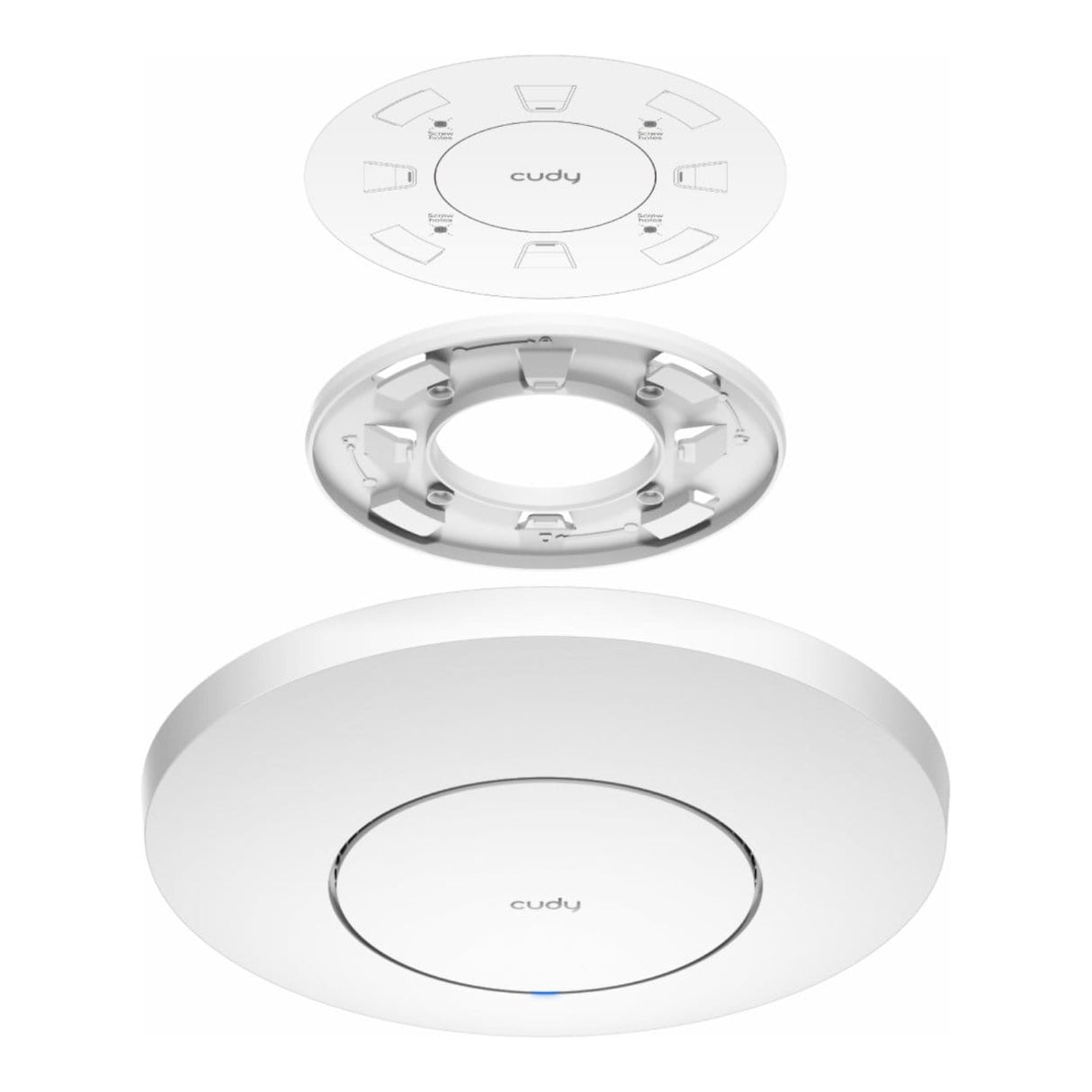

Installation: Wall mount or ceiling mount

Package Dimensions: 31 × 24 × 7 cm

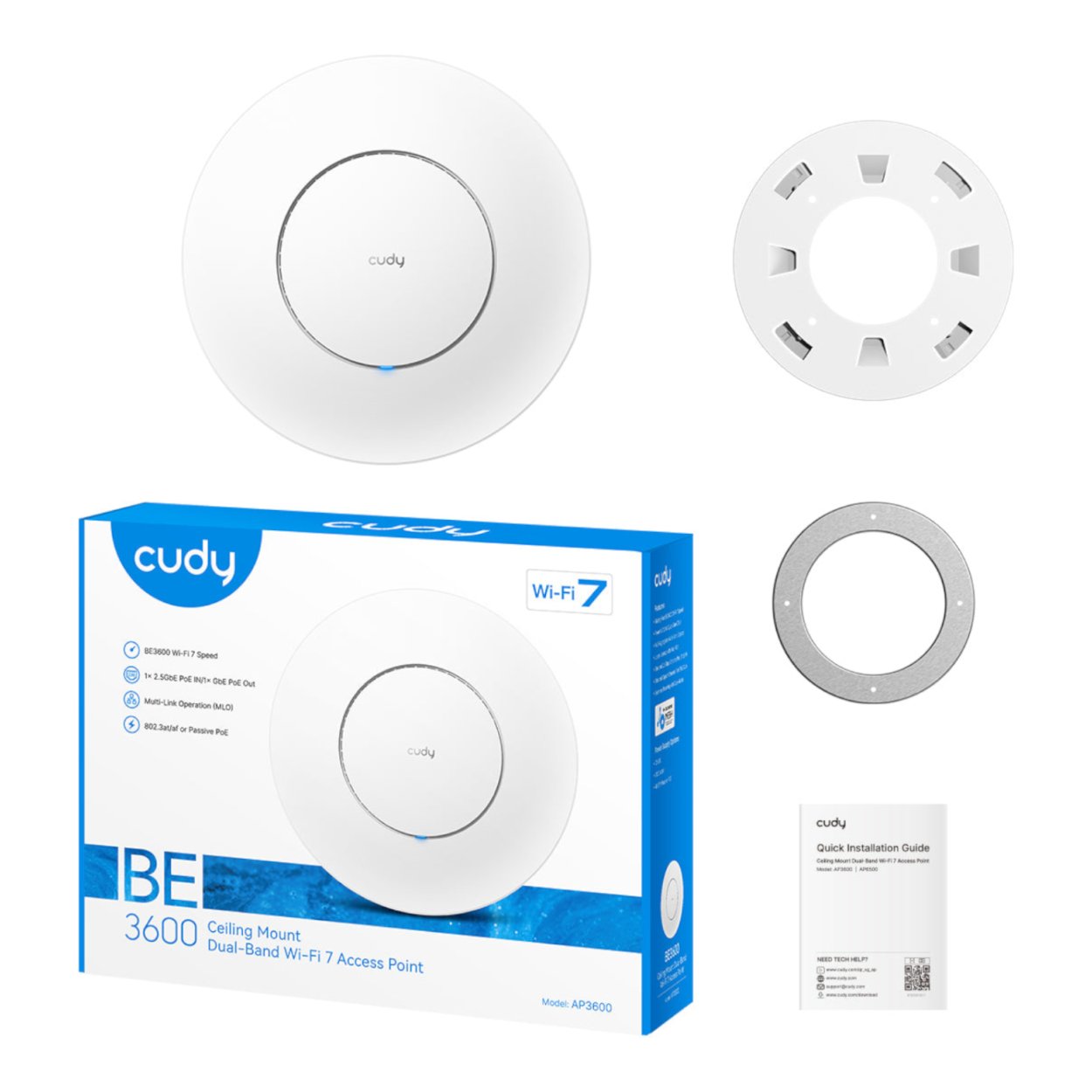

What’s in the Box:

• Cudy BE3600 2.5G Dual Band WiFi 7 Ceiling Access Point x 1
• Mounting Kit x 1
• Ethernet Cable x 1
• User Manual x 1
