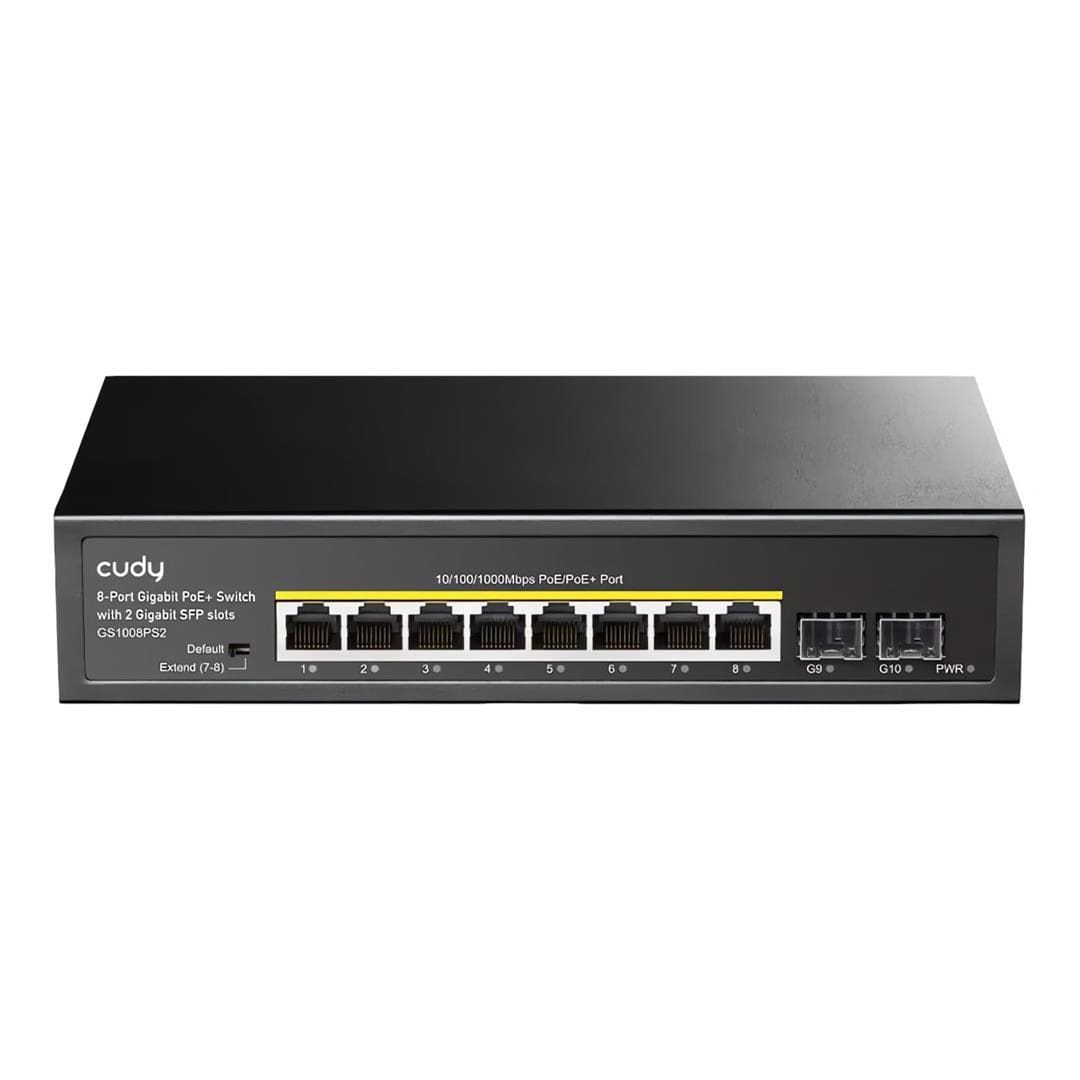

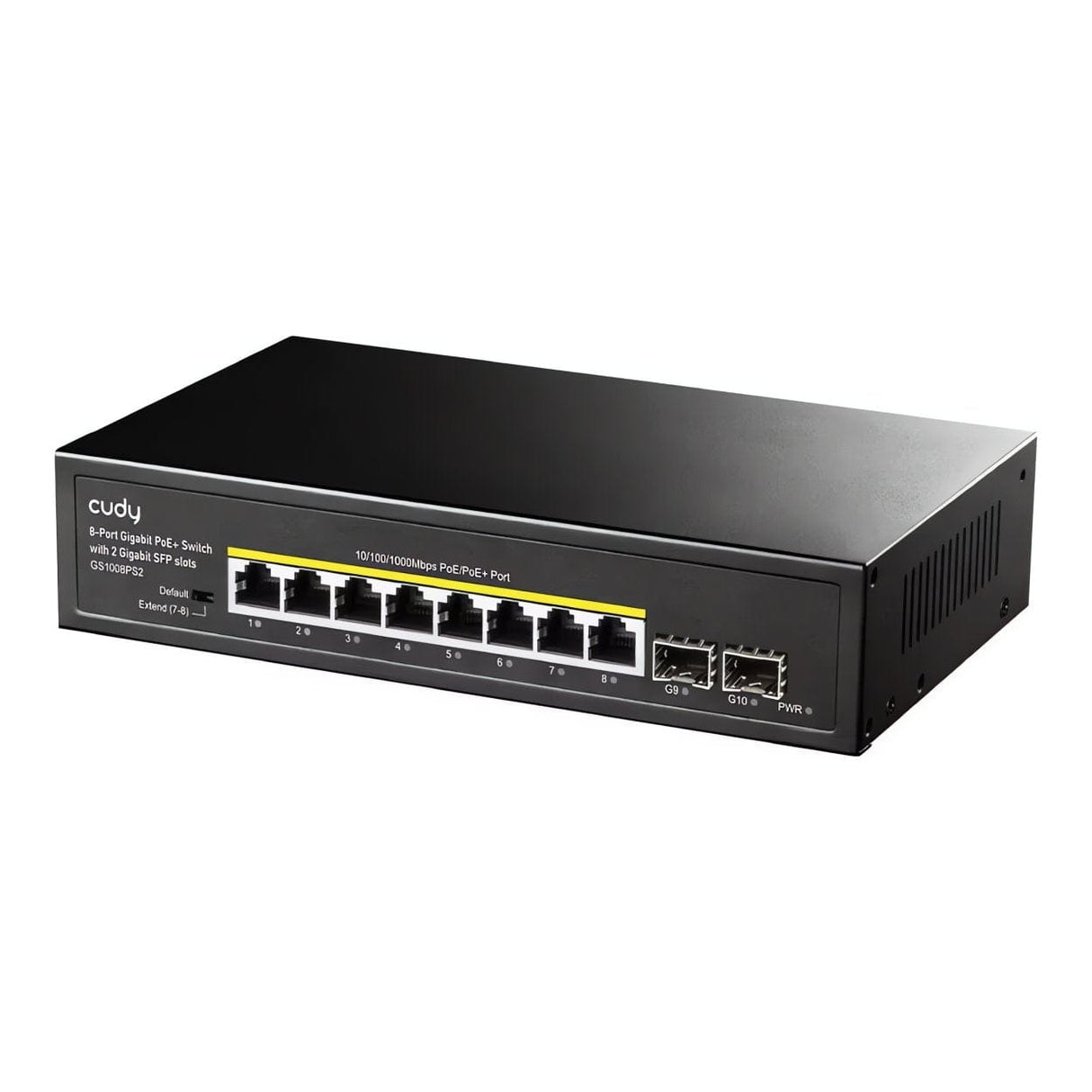

Cudy 8-port GbE PoE+ Unmanaged Switch with 2x SFP ports GS1008PS2

Cudy 8-port GbE PoE+ Unmanaged Switch with 2x SFP ports GS1008PS2

A rack-mounted 8-GbE, 2-SFP PoE switch with a 120W power supply and a silent cooling system.

Features

• 8x GbE with 802.3at/af Mode A PoE
• 2x Uplink SFP
• 120W Power Supply
• Extend for 250 Meters Transmission
• Watchdog under Extend Mode
• PoE Max Status LED
• Desktop, Rack-Mount

Technical Specification

Product: Cudy 8-port GbE PoE+ Unmanaged Switch

Installation

• Desktop
• Rackmount via Brackets (Brackets not included in the box)

Ports: 8x Gigabit RJ45 Ports, 2x 1.25G SFP Slots

PoE

Gigabit RJ45 PoE Ports: #1 ~ #8

Max Power on a Single PoE Port: 30W

PoE Port Notes: The PoE ports comply with IEEE 802.3at/af standards.

Performance

Copper Speed and Distance

• Cat. 3 or higher cable: 100 meters at 10 Mbps
• Cat. 5 or higher cable: 100 meters at 100 Mbps
• Cat. 5e or higher cable: 100 meters at Gigabit
• Cat. 5e or higher cable: 250 meters at 10 Mbps

Copper Speed and Distance Note: 250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.

MAC Address Table: 2048

Max Switching Capacity: 20 Gbps

Max Forwarding Rate: 14.88 Mpps

Jumbo Frame: 9 KB

Packet Buffer: 2 Mbit

Power

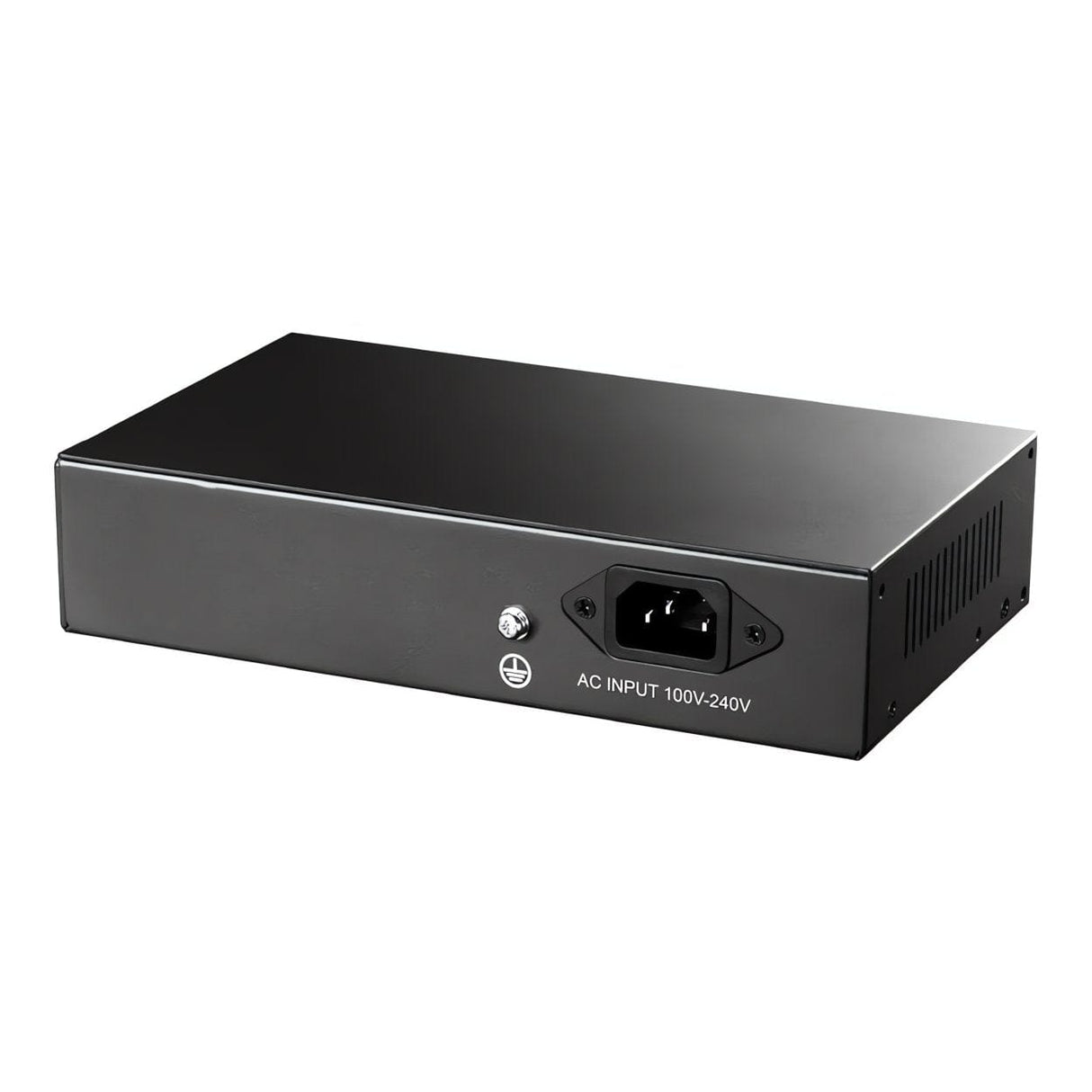

Power Methods: AC (100-240V, 50/60Hz)

Power Supply: 120W

Max Power Excluding PoE: 6W

Weight: 1.773 kg

Package Content

• GS1008PS2
• Power Cord
• Installation Guide
