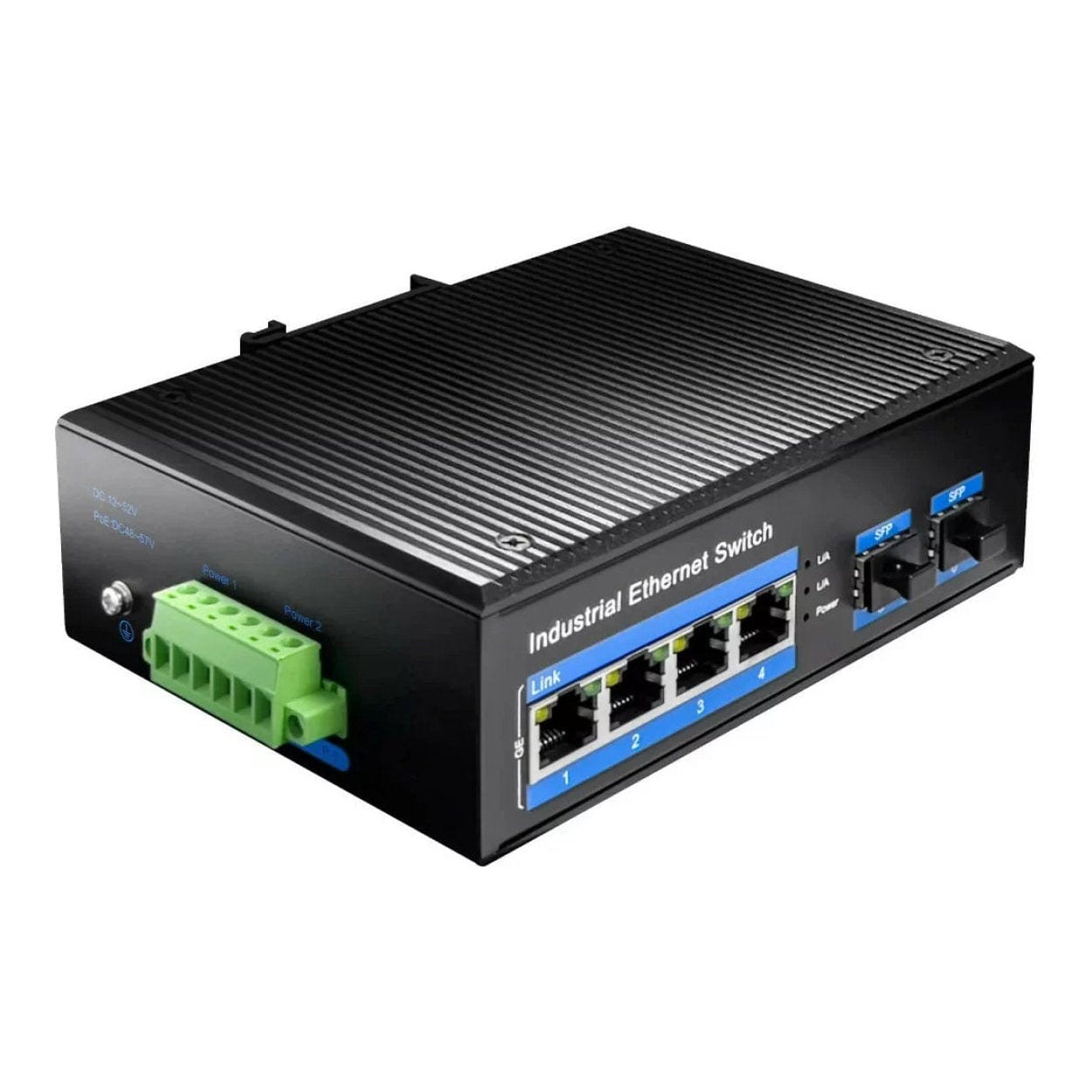

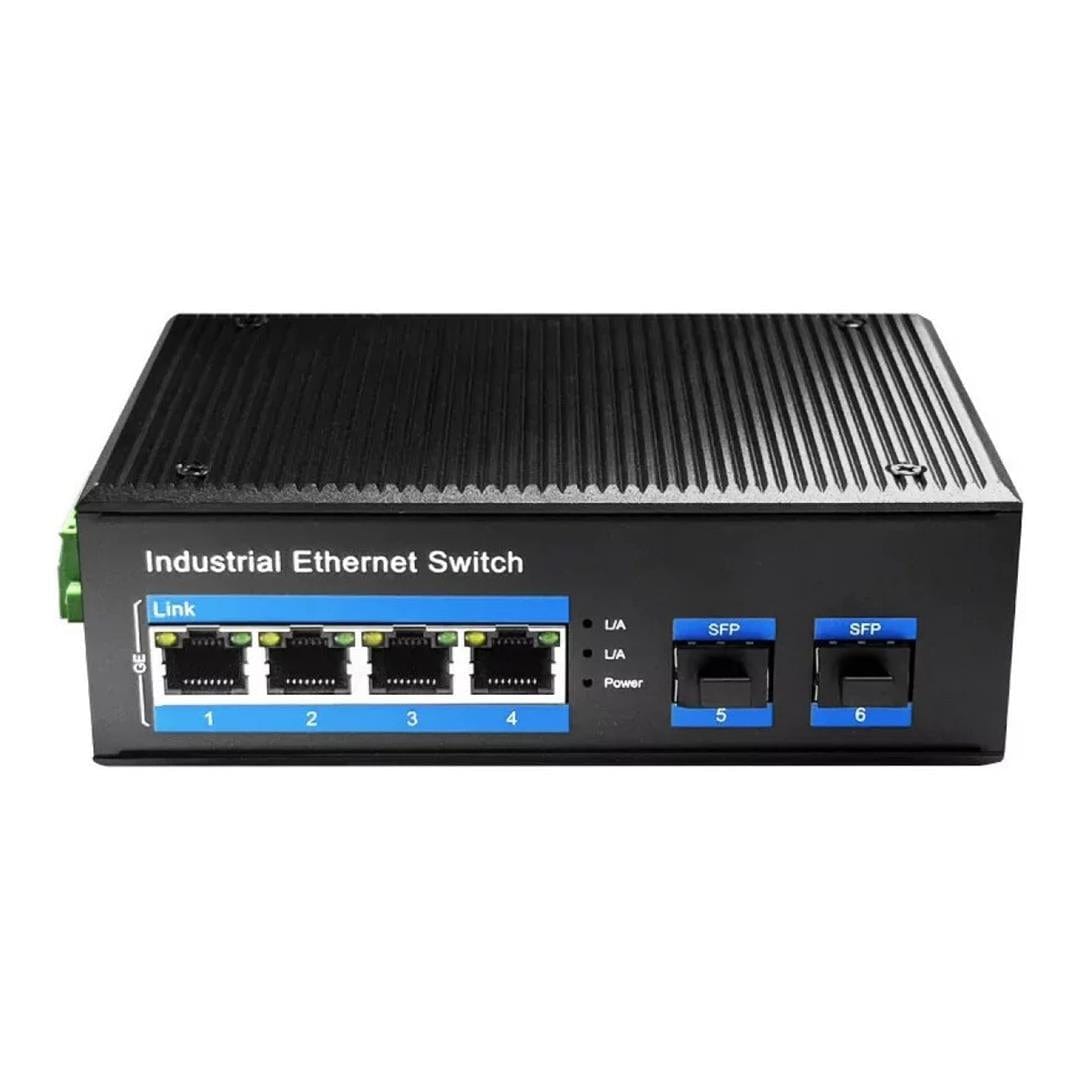

Cudy 4-port Gigabit Industrial PoE+ 2SFP Switch IG1004S2P

Cudy 4-port Gigabit Industrial PoE+ 2SFP Switch IG1004S2P

120W Power budget & 30W Maximum One Port

Supports 120W total PoE+ power and up to 30W for one PoE port. Auto-detect power device, will not burn non-standard PoE device or normal PoE switch. Complies with IEEE802.3af/at Standard.

Auto-sensing technology

Meets IEEE 802.3af/at standard, auto-sensing technology delivers up to 30W to an 802.3at PoE+ device with backward compatibility for 802.3af PoE (15.4W) devices.

Plug&Play, Fanless design

Plug and Play, Easy to use.Fanless design for silent operation.Made of a high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment. Pin assignment, Mode A: 1/2(+), 3/6(-).

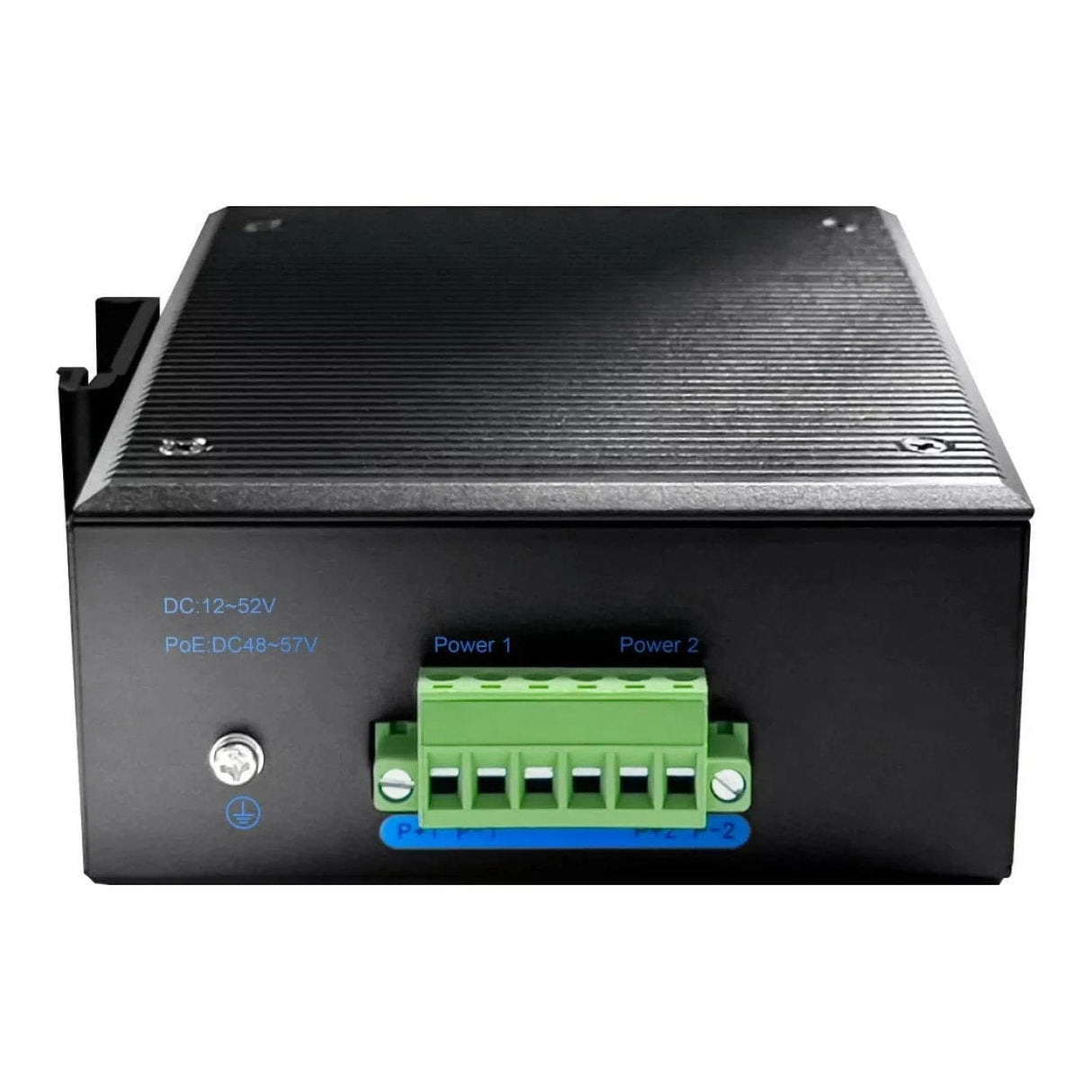

Dual Power Supply

This industrial Ethernet switch support dual redundant power supply. Each of the power supplies will have the capacity to run the device on its own. This makes sure that the switch could operate normally even if one power supply fails.

Wide Temperature Operation

IG1004S2P industrial Ethernet switches are designed with wide temperature support to ensure operation reliability in extreme temperatures ranging from -40ºC to 85ºC.

IP40 Protection

4-Port unmanaged industrial ethernet switch adopts with high strength IP40 protective housing, industrial EMC design to increase the reliability of communication network.

Specifications:

Switch type: Unmanaged

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity: 4

Installed SFP modules quantity: 2

Full duplex

MAC address table: 8000 entries

Switching capacity: 20 Gbit/s

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

DC input voltage: 48 - 57 V

Power over Ethernet (PoE)
