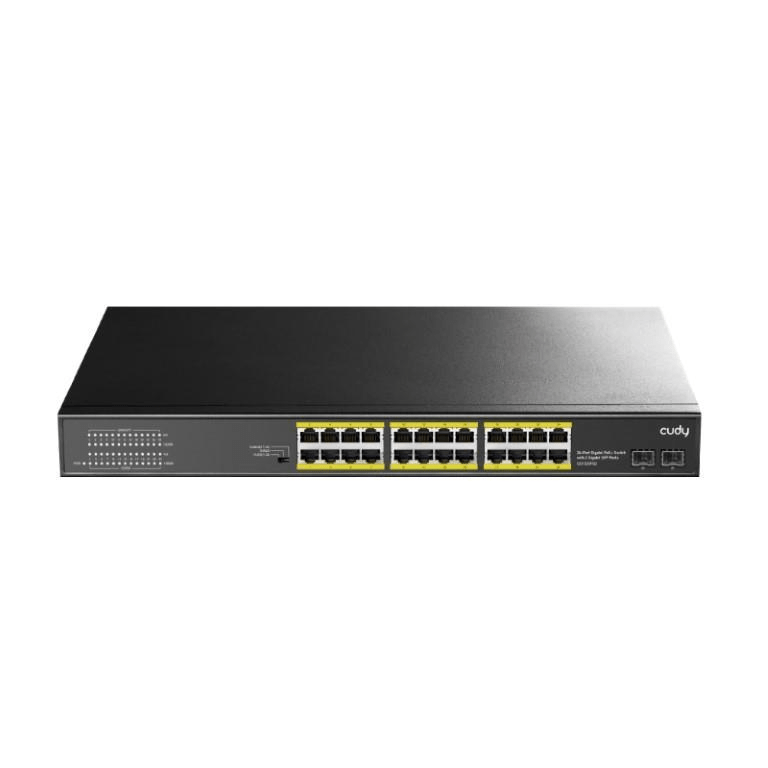

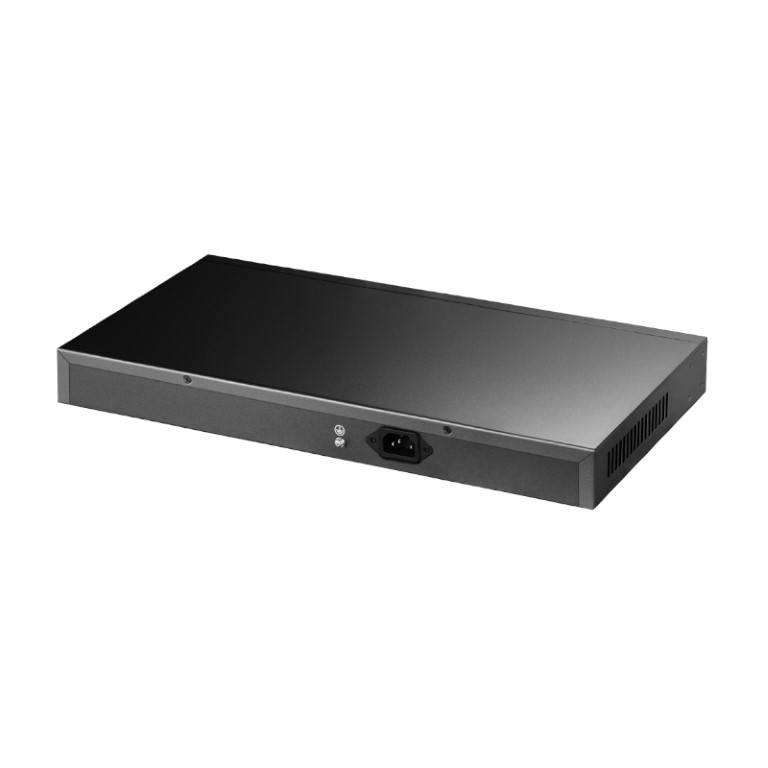

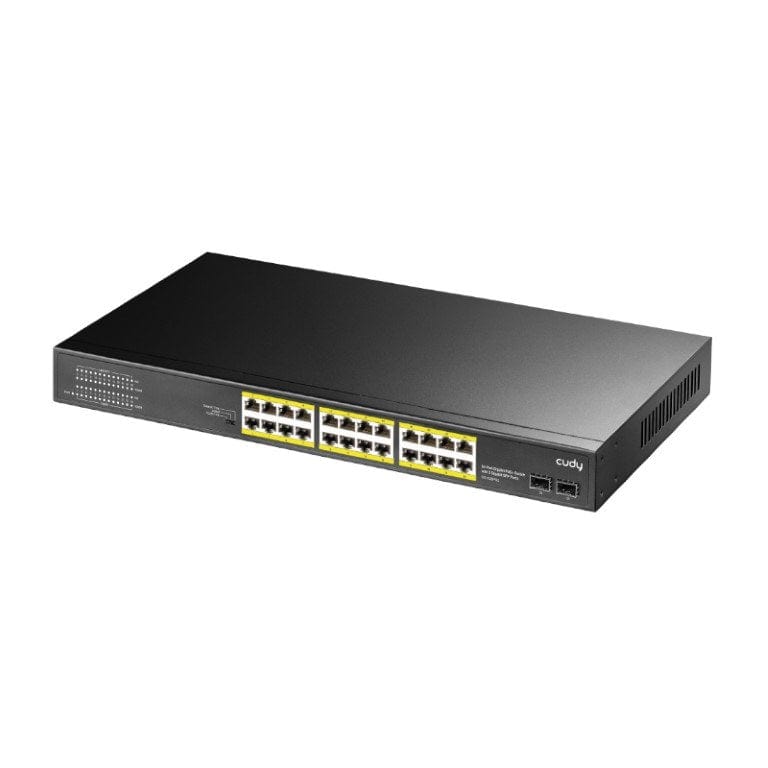

Cudy 24-port PoE+ Gigabit Switch with 2x SFP ports GS1028PS2

Cudy 24-port PoE+ Gigabit Switch with 2x SFP ports GS1028PS2

The Cudy GS1028PS2 26-Port Gigabit PoE+ Switch offers the forwarding capacity to simultaneously process traffic on all ports at a line rate without any packet loss. It supports a switching capacity of up to 56Gbps and features 24 PoE ports and 2 SFP combo ports.

The 26 port switch supports 300W total PoE power and up to 30W for one PoE port. For additional protection, it features power auto-detection for devices. This feature will not burn non-standard PoE devices or normal PoE switches. A VLAN mode helps isolate the ports from each other for even further protection. It also complies with IEEE802.3af/at Standard speeds for great performance.

Used for many applications the Cudy GS1028PS2 works with IP Cameras for home, office or small businesses. It also works well with VoIP phones for business conferences and WiFi APs for the office and businesses. It even features a CCTV mode for longer distances up to 250 meters.

Its simple plug-and-play interface makes it incredibly easy to use. Its sturdy design is made from high-quality metal. This gives you a longer service life and provides better heat dissipation, making it suitable for most environments. It also features a fanless design for silent operation.

Features

• IEEE 802.3af / 802.3at standard compliant

• 300 watts total PoE power budget, up to 30-watt per port

• 24 x GbE PoE+ Port + 2 x SFP Port

• CCTV Mode supports remote power&data feeding up to 250 meters

• VLAN mode supports 24 POE+ ports isolated from each other

• LED indicators for network diagnostics

• 19-inch metal case, internal power design

Technical Specification

PoE standard: IEEE802.3af, IEEE802.3at

Network Media(Cable):

• 10BASE-T: UTP category 3,4,5 cable (≤100m)

• 100BASE-TX: UTP category 5 cable (≤100m)

• 1000BASE-T: UTP category 5e cable (≤100m)

• 1000BASE-X: MMF or SMF SFP module

MAC Address Table: 8K, Auto-learning, Auto-aging

Transfer mode: Store-and-Forward

Frame Forward Rate:

• 10Base-T: 14881pps/Port

• 100Base-TX: 148810pps/Port

• 1000Base-T/X: 1488095pps/Port

Switching Capacity: 56Gbps

Power Input: AC: AC: 100~240V, 50/60Hz

PoE Port: Port1~24

PoE Power on RJ45: Mode A  1/2(-),3/6(+)

PoE Power Output: 32W(Max)
