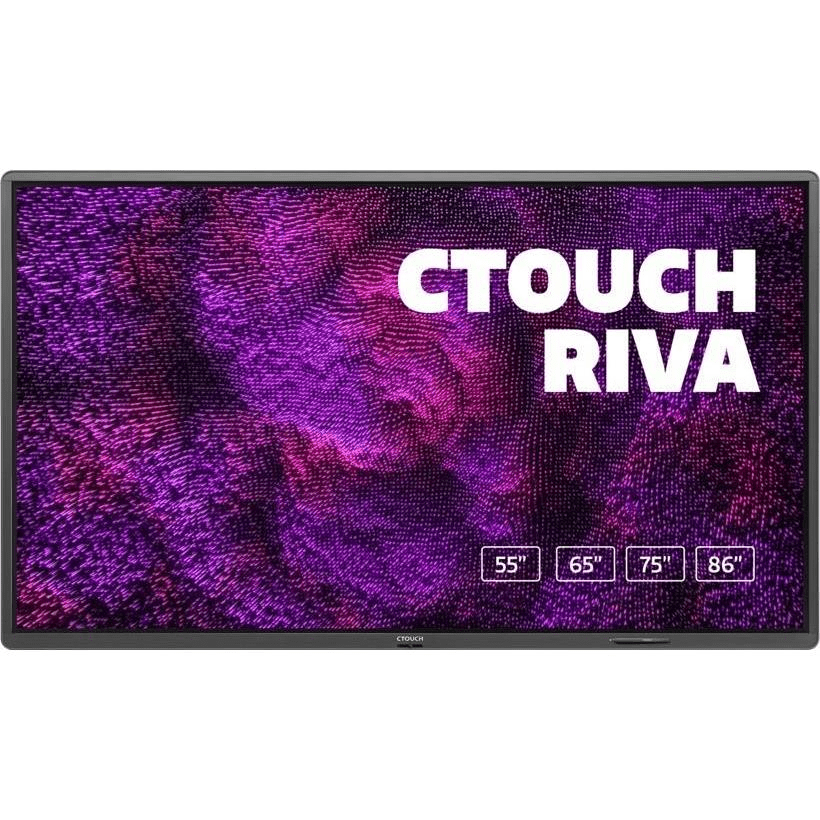

CTouch Riva 54.6-inch 4K UHD Interactive Touch Presentation Panel 10052455

CTouch Riva 54.6-inch 4K UHD Interactive Touch Presentation Panel 10052455

Teachers are great! And CTouch are here to help them to become even greater. The new CTouch Riva 10052455 is a super user-friendly touchscreen. It enables teachers to focus on what they do best, teach! This touchscreen turns learning into fun.

Behind every great teacher, is a great touchscreen

Challenging kids and young adults to reach their full potential every day is a hell of a job. It’s not easy to stay on top of coaching students and dealing with complex technical equipment at the same time.

With the CTOUCH Riva we enable teachers to focus on what they do best: teach! This touchscreen combines interactive technology with the greatest ease of use. It allows you to use your own software, as you are used to. No worries!

The CTOUCH Riva easily fits into the personal learning environment of students in which they can study at their own pace. We promise, this touchscreen turns learning into fun.

A true natural handwriting experience

Annotate, write and draw like never before due to TrueBeam Touch technology. It feels natural and smooth. Simply use your finger or a pen and write as fast as you can. Use your hand palm for easy erasing without switching tools. How convenient is that!

Triple S glass: smooth, stripeless and safe

Writing on the Triple S glass display feels very smooth and soft, leaving minimal stains behind. And don’t be afraid of rough users as the safety glass can take a beating!

Excellent sound with the high end JBL® 80 Watt speakers

Amaze your students and blow them away with the 80 Watt integrated JBL® speakers. They deliver Live-stage (virtual) Surround sound. Even in the back of the classroom the sound is impressive, without the need for extra sound equipment.

Multiple connectors for easy screen sharing

The screen comes with multiple connectors for real-time screen sharing. With HDMI-out for example, you easily share content from your screen to multiple devices in the classroom. And to the USB-C port, you can connect any device with just a single cable. It transfers data, sound, touch and power. So, it can even charge your device while connected!

Touch System

• Touch Technology: TrueBeam Touch
• Touch Points: 32
• Touch Tools: Hands or other solid (soft tip) object
• Touch Accuracy: ±1 mm
• Touch Minimum Response Size: > 1,5 mm
• Touch Interface: USB 2.0 compatible (full speed) HID complaint, Plug & Play compatible. Backwards compatible with USB 1.1
• Supported OS for Touch: Windows, macOS, Chrome, Linux and Android
• Touch Driver: Not required for 32 touch point (under Windows); macOS gestures require a driver

Panel

Glass

Connectivity

Sound

COS™

On Screen Display

Box Contents

Power

Quality approvals

Dimensions & Weight

Shipping / Logistical

• Diagonal Size: 54.64"
• Panel Technology: TFT LCD
• Display Resolution: 3,840 x 2,160 pixels @ 60 Hz
• Aspect Ratio: 16:9
• Brightness: 350 cd/m²
• Contrast Ratio (static): 4000:1
• Contrast ratio (dynamic): 25,000:1
• Response Time (gray to gray): 8 ms
• Display Colours: 1.07 Billion (8 bits + FRC)
• Pixel Pitch (W x H): 0.315 x 0.315 mm
• Viewing Angle: 178° / 178°
• Backlight Type: Direct LED
• Service Life: > 30.000 hours
• Orientation: Landscape Only
• Video Eye Comfort: Blue Light Filter, Eye Protection Mode
• Colour Temperature: Warm, Cool, Normal
• Picture Modes: Dynamic, Standard, Soft, User
• Glass: Triple S Glass (Smooth, Stripeless, Safety)
• Type: Heat tempered, anti glare, safety glass
• Thickness: 4 mm
• Hardness: 7 Mohs
• Video input (digital): 3x HDMI 2.0 (1x ARC), 1x DP 1.2, 1x USB-C (USB 3.1 Gen 2)
• Video output (digital): 1x HDMI out
• Video input (analog): 1x VGA (including 1x Mini Jack)
• Audio input: 1x Mini Jack (dedicated audio source)
• Audio output: 1x Mini Jack, 1x S/PDIF Optical
• USB: 3x USB 3.0 (type A), 2x USB 2.0 (type A)
• Touch: 3x USB (type B)
• RS232C: 1x DE-9F
• LAN Port: 2x RJ45 10/100/1000 BaseT
• Module-slots: 1x Wi-Fi slot, 1x OPS-slot (UHD@60Hz), 1x CTOUCH module-slot (modules are optional)
• Dedicated ports*: 1x NFC Reader port, 1x Fingerprint Scanner port, 1x Human Presence Detection port (*modules are optional)
• Sound: Designed, tuned and built by HARMAN
• Transducers: 2 stereo JBL® 3-way speakers (tweeter, mid-range and woofer)
• Amplifier Power: 80 W
• Frequency Range: 60 Hz - 20 kHz
• JBL® LiveStage (Virtual) surround sound
• System Version: Android 8.0
• Chipset: Hisilicon 811
• CPU: 2x ARM Cortex A73, 2x Cortex A53
• GPU: G51MP4
• Memory: 4 GB
• On-board storage: 32 GB
• Available Languages: English, Danish, Dutch, Finnish, German, Norwegian, Spanish, Swedish
• Accessories Included: Power cable (3 m), USB touch cable (3m), HDMI cable (3 m), USB-C cable (1 m), remote control (incl. batteries), 2 passive pens, cleaning cloth, quick start guide & warranty card
• Power supply: AC 100-240V 50/60 Hz
• Power consumption (in operation): 95 W
• Power consumption (in standby): < 0.5 W
• Economical Power Control: Ambient Light Sensor
• Regulatory approvals: CE, FCC, RoHS compliant
• Green approval: WEEE
• ISO Standard: ISO9001 and ISO14001
• Product Dimensions (W x H x D): 1,298 x 783 x 105 mm
• Product Weight: 38 Kg
• VESA mount Pattern (W x H): 400 x 400 mm - M8 screws
• Shipping Box Dimensions (W x H x D): 1,414 x 945 x 232 mm
• Shipping Box Weight: 44 Kg
