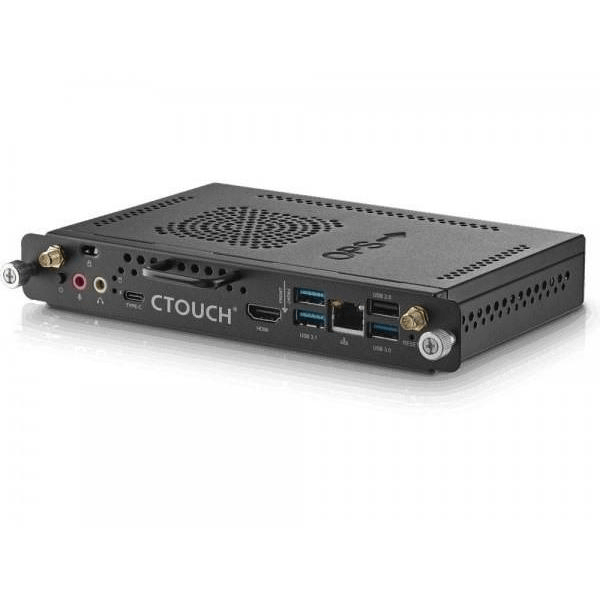

CTouch OPS SFF PC - Intel Core i5-10210U 128GB SSD 8GB RAM Windows 10 IoT Enterprise 10052043

CTouch OPS SFF PC - Intel Core i5-10210U 128GB SSD 8GB RAM Windows 10 IoT Enterprise 10052043

Elevate your touchscreen with this fast-paced CTouch 10052043 Intel® Core™ i5-10210U OPS PC Module. Say YES to optimal graphical and computing performance with the Intel 10th Generation Core i5. Reduce cabling. Reduce power and infrastructure. Reduce external or separate boxes with extra mounting. 8GB memory enables you to run multiple applications and work hassle free.

Specifications of CTouch 10052043 OPS i5 PC Module

System board

Graphics and audio

Features

Housing and operating specifications

• Processor: Intel® Core™ Comet Lake-U i5-10210U

• Memory: SDRAM DDR4 2666MHz 8GB

• Storage: 1 x 128GB M.2 2280 SSD

• Graphics: Intel® HD Graphics 620 series

• Audio: Realtek ALC662 HD Audio IC

• Windows 10 IoT Enterprise Semi-Annual Channel

• Watchdog: Supported

• vPro: No

• TPM 2.0: Yes

• Material: Metal

• Dimensions (L x W x D): 119 x 180 x 30 mm

• Net Weight: 0.8 kg

• Temperature: Operating -5C°~ 45C°, Storage -20C°~ 70C°

• Relative humidity: 10% ~ 95% (non-condensing)

• Power consumption: Typ. 45W / Max. 51W

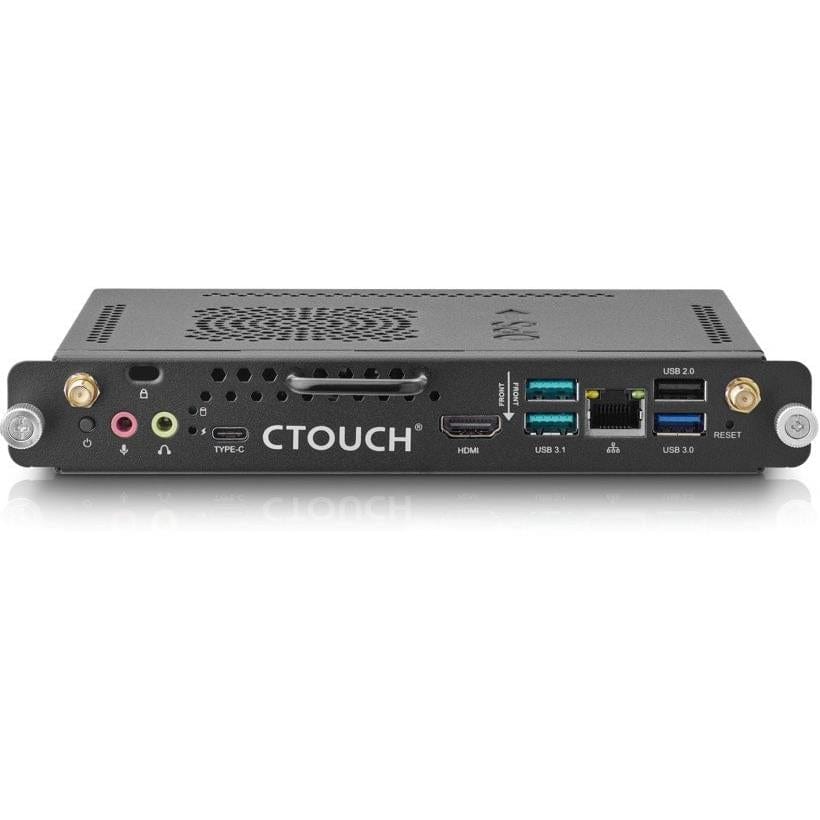

Interface Front side

Rear interface

• 2 x USB 3.1 Gen2 Type-A

• 1 x USB 3.0 Type-A

• 1 x USB 2.0 Type-A

• 1 x USB 3.1 Type-C (CC/DP)

• 1 x RJ45 10/100/1000M

• 1 x HDMI 2.0a out

• 1 x 3.5mm Line out

• 1 x 3.5mm Mic in

• 2 x WIFI/BT ANT

• 1 x Power button

• 1 x Reset button

• 1 x Power LED

• 1 x SSD LED

• JAE 80-pin Connector: 1 x HDMI 2.0, 3 x USB 2.0/3.0, TTL

• Power input: 12-19V DC IN

• SIM card slot
