CTG EYIL 51.2V 5.12Kwh 100Ah Wallmount Lithium Battery CTGW512V100AH

CTG EYIL 51.2V 5.12Kwh 100Ah Wallmount Lithium Battery

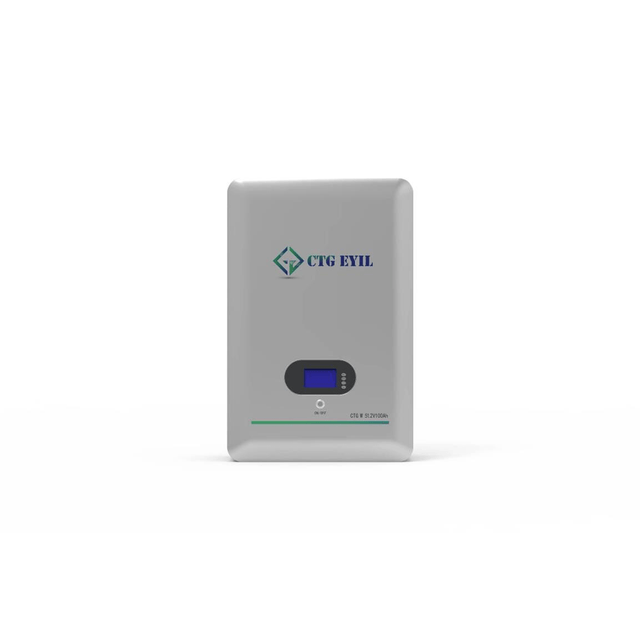

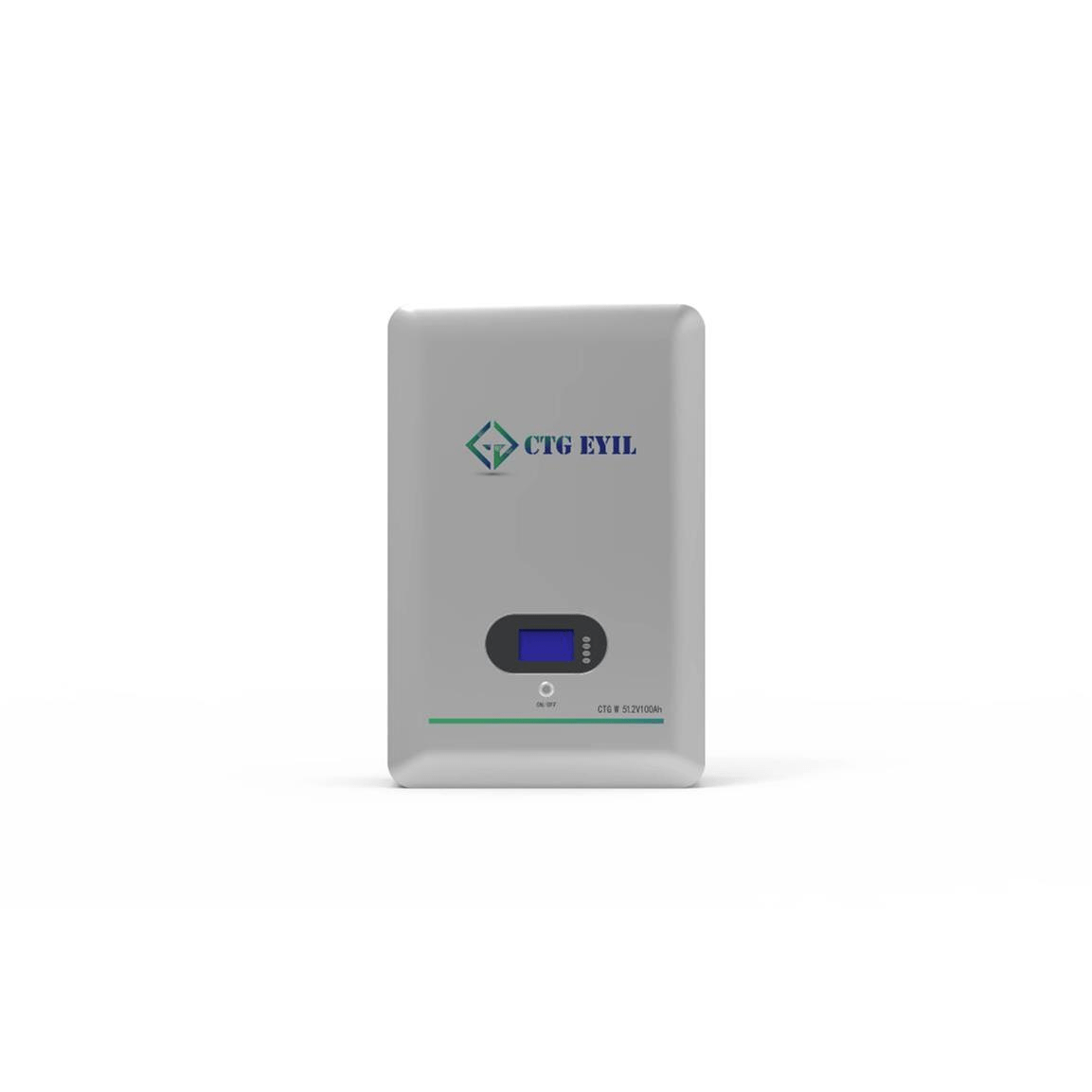

The CTG EYIL 51.2V 5.12KWh 100Ah Wallmount Lithium Battery is a high-performance energy storage solution designed to deliver reliable power for various applications.

Voltage and Capacity

Operating at 51.2 volts, this battery offers a capacity of 5.12 kilowatt-hours (KWh) and 100 ampere-hours (Ah). This combination of high voltage and capacity provides a stable and consistent power supply for extended periods, making it suitable for both residential and commercial use.

Lithium-ion Technology

Built using lithium-ion chemistry, this battery offers high energy density and a long cycle life. Lithium-ion batteries are known for their superior performance compared to traditional lead-acid batteries, providing more power in a smaller and lighter package.

Wallmount Design

Designed for easy wall-mounting, this battery offers flexibility in installation and saves valuable floor space. This makes it suitable for installations where space is limited or where aesthetics are important.

Smart BMS Features

• Over Temperature Protection
• Short Circuit Protection
• Overvoltage Protection
• Cut-off Protection
• Over Discharge Protection
• Over Current Protection
• RS485 / CAN Communication
• 4 Temperature Sensors

Specifications:

Battery Nominal Voltage (V): 51.20

Energy Capacity (Ah): 100.00

Power (KW): 5.12

Operating Voltage: 43.2V-58.4V

Standard Charge Method: 0.5C

Continuous Discharge Current: 1C

Max Continuous Discharge Current: 1.5C

Dimensions: Lx580mm Wx380mm Hx188mm

Weight (approx): 48Kgs
