CTG EYIL 51.2V 5.12Kwh 100Ah Stackmount Lithium Battery CTGS512V100AH

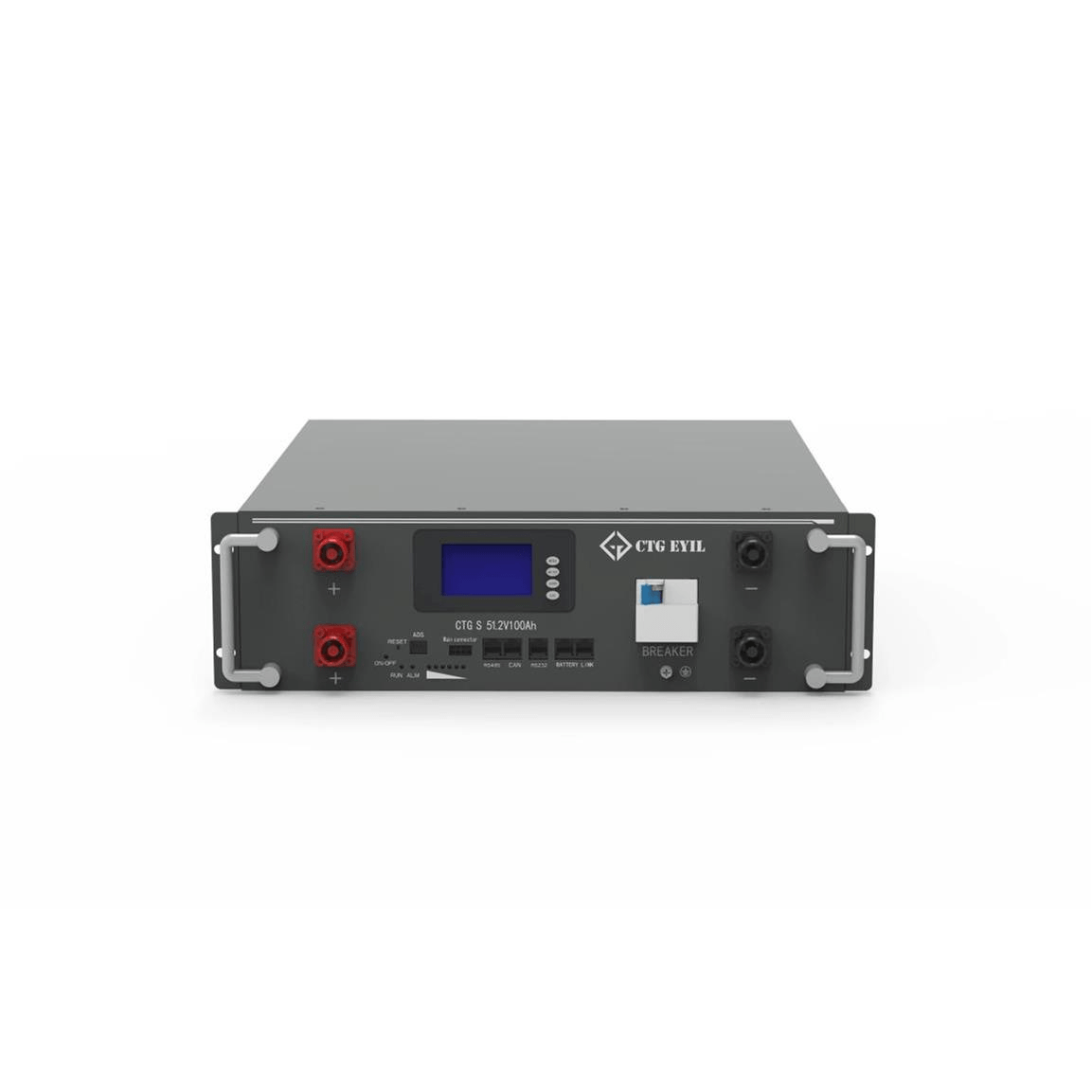

CTG EYIL 51.2V 5.12Kwh 100Ah Stackmount Lithium Battery

The CTG EYIL 51.2V 5.12KWh 100Ah Stackmount Lithium Battery is a high-capacity energy storage solution designed for various applications.

Voltage and Capacity

Operating at 51.2 volts, this battery offers a substantial capacity of 5.12 kilowatt-hours (KWh) and 100 ampere-hours (Ah). This high capacity provides a stable and reliable power supply for extended periods, making it suitable for both residential and commercial use.

Lithium-ion Technology

Built with lithium-ion chemistry, this battery delivers high energy density and a long cycle life. Lithium-ion batteries are known for their superior performance compared to traditional lead-acid batteries, offering more power in a smaller and lighter package.

Stackmount Design

Unlike wall-mount batteries, stackmount batteries are designed to be stacked on top of each other. This design provides flexibility in installation, allowing for efficient use of space in various settings.

Smart BMS Features

• Over Temperature Protection
• Short Circuit Protection
• Overvoltage Protection
• Cut-off Protection
• Over Discharge Protection
• Over Current Protection
• RS485 / CAN Communication
• 4 Temperature Sensors

Specifications:

Battery Nominal Voltage (V): 51.20

Energy Capacity (Ah): 100.00

Power (KW): 5.12

Operating Voltage: 43.2V-58.4V

Standard Charge Method: 0.5C

Continuous Discharge Current: 1C

Max Continuous Discharge Current: 1.5C

Dimensions: Lx420mm Wx320mm Hx150mm

Weight (approx): 48Kgs
