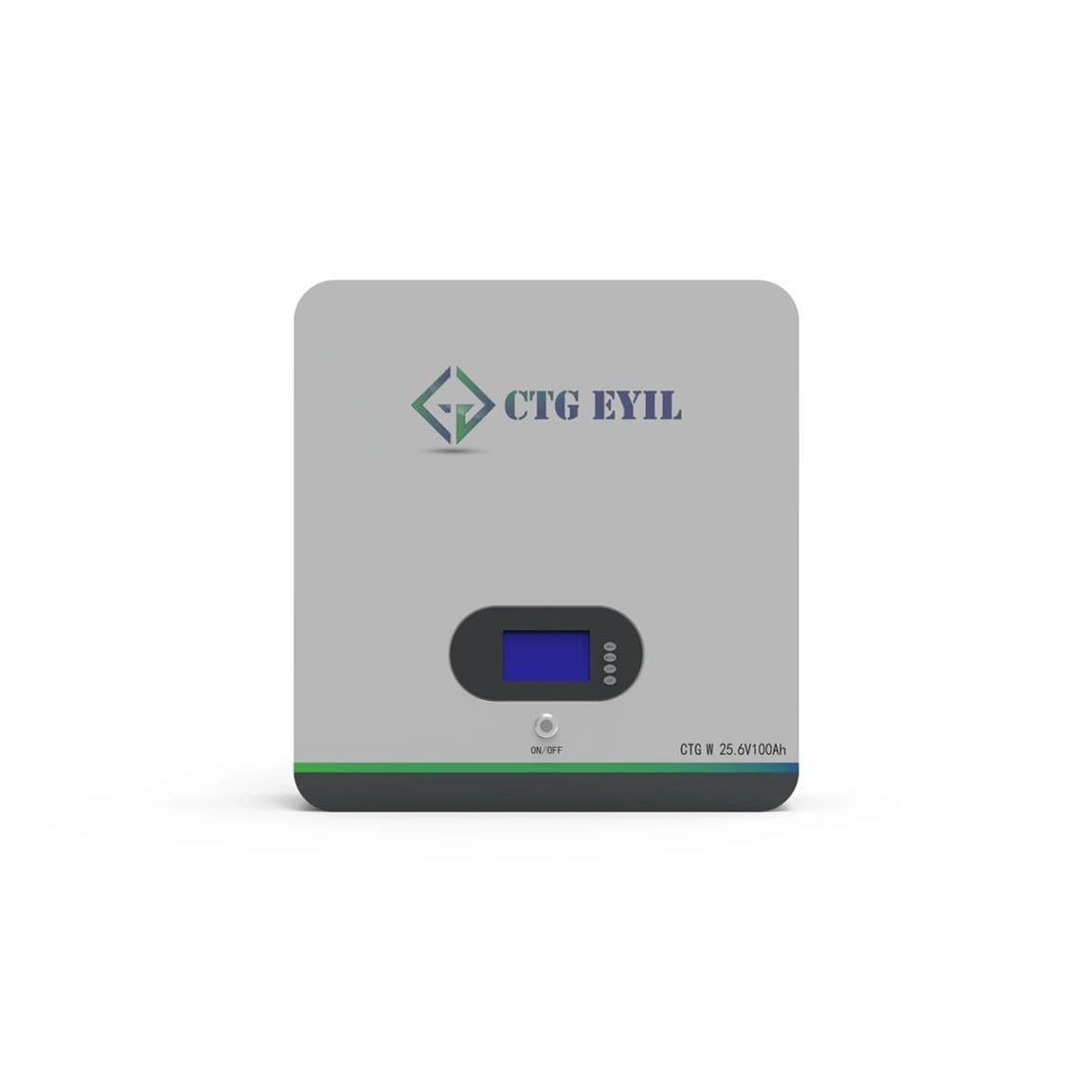

CTG EYIL 24V 2.56Kwh 100Ah Wallmount Lithium Battery CTGW256V100AH

CTG EYIL 24V 2.56Kwh 100Ah Wallmount Lithium Battery

The CTG EYIL 24V 2.56KWh 100Ah Wallmount Lithium Battery is a high-capacity lithium-ion battery designed for various applications, including renewable energy storage systems, backup power solutions, and electric vehicle applications.

Voltage and Capacity

The battery operates at 24 volts and has a capacity of 2.56 kilowatt-hours (KWh) and 100 ampere-hours (Ah). This provides a reliable power source for different electrical devices and systems.

Lithium-ion Technology

Lithium-ion batteries are known for their high energy density, longer lifespan, and lightweight compared to traditional lead-acid batteries. This makes them ideal for applications where space and weight are important factors.

Wallmount Design

The battery is designed to be wall-mounted, offering flexibility in installation and saving floor space. This makes it suitable for both residential and commercial settings where space optimization is crucial.

Smart BMS Features

• Over Temperature Protection
• Short Circuit Protection
• Overvoltage Protection
• Cut-off Protection
• Over Discharge Protection
• Over Current Protection
• RS485 / CAN Communication
• 4 Temperature Sensors

Specifications:

Battery Nominal Voltage (V): 25.60

Energy Capacity (Ah): 100.00

Power (KW): 2.56

Operating Voltage: 21.6V-29.2V

Standard Charge Method: 0.5C

Continuous Discharge Current: 1C

Max Continuous Discharge Current: 1.5C

Dimensions: L *400mm xW *380mm xH 168mm

Weight (approx): 25Kgs
