Creality Y-Axis Stepper Motor 3204120132

Creality Y-Axis Stepper Motor 3204120132

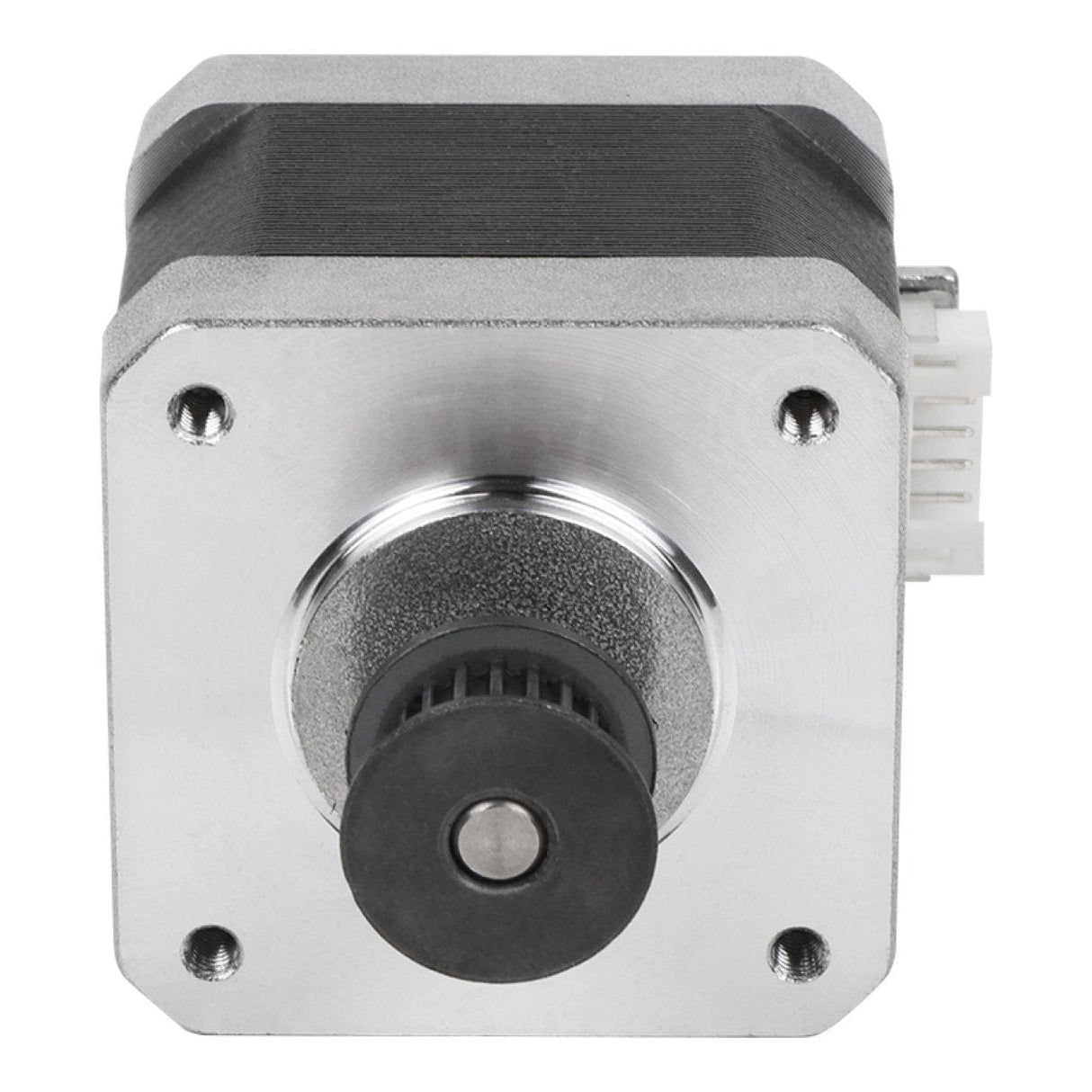

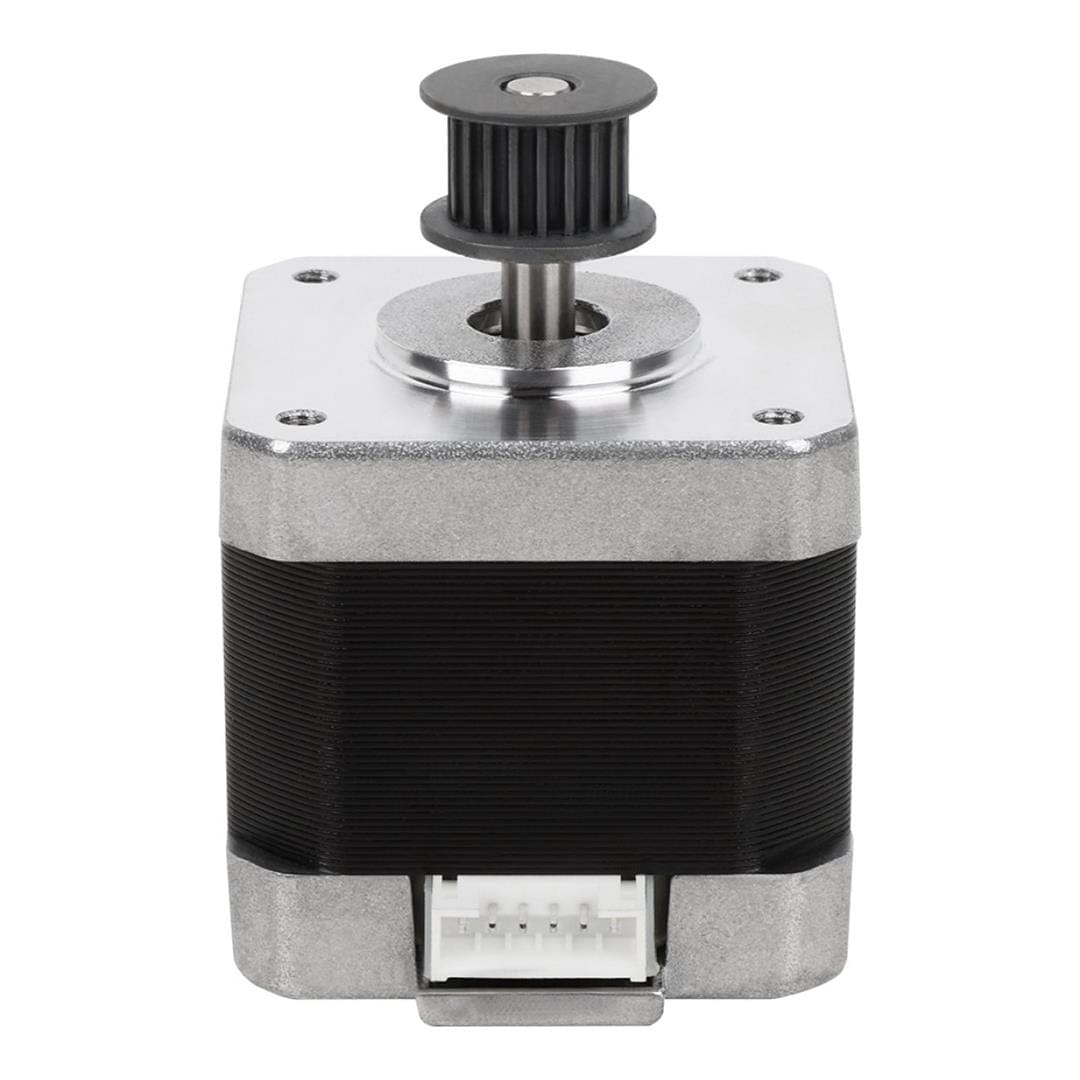

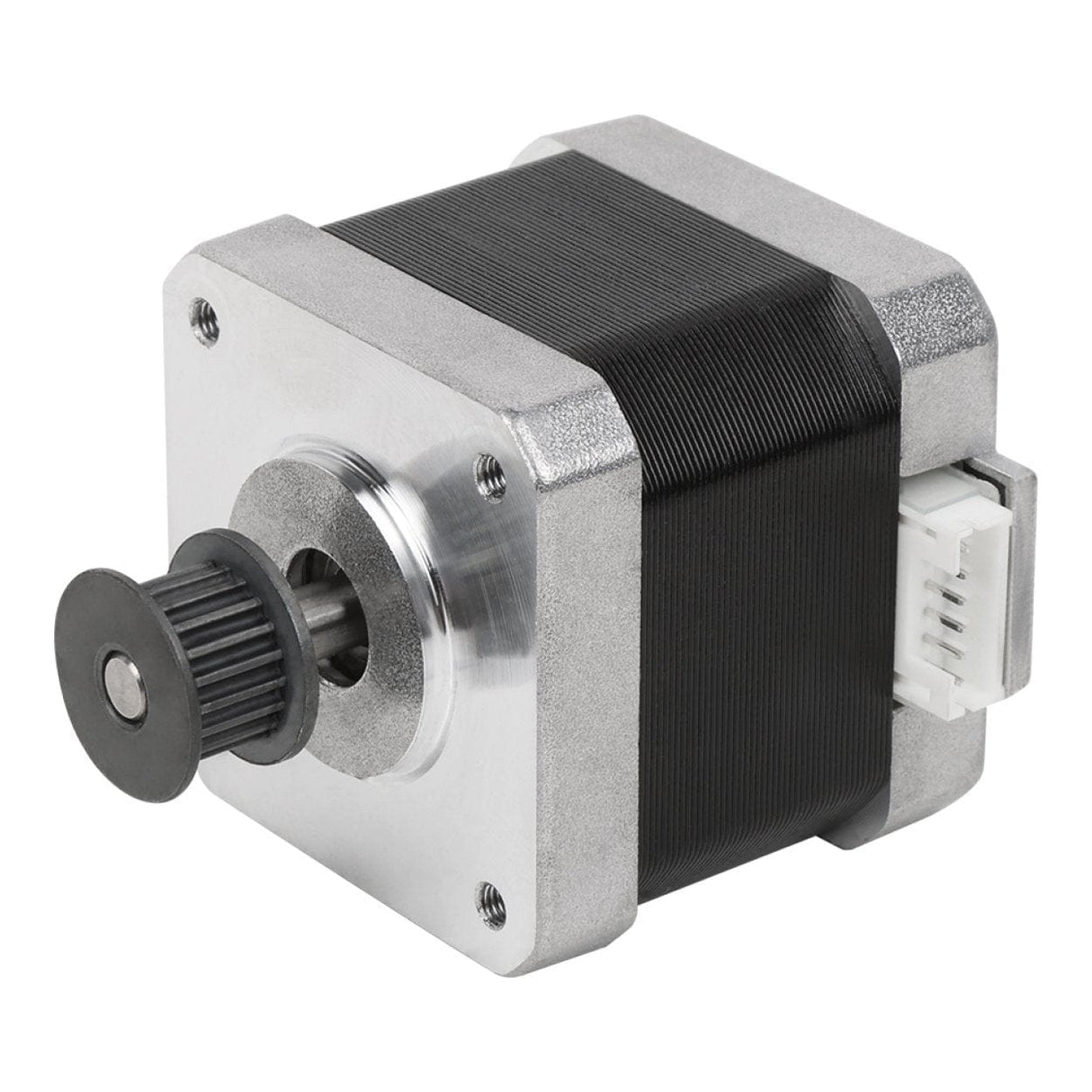

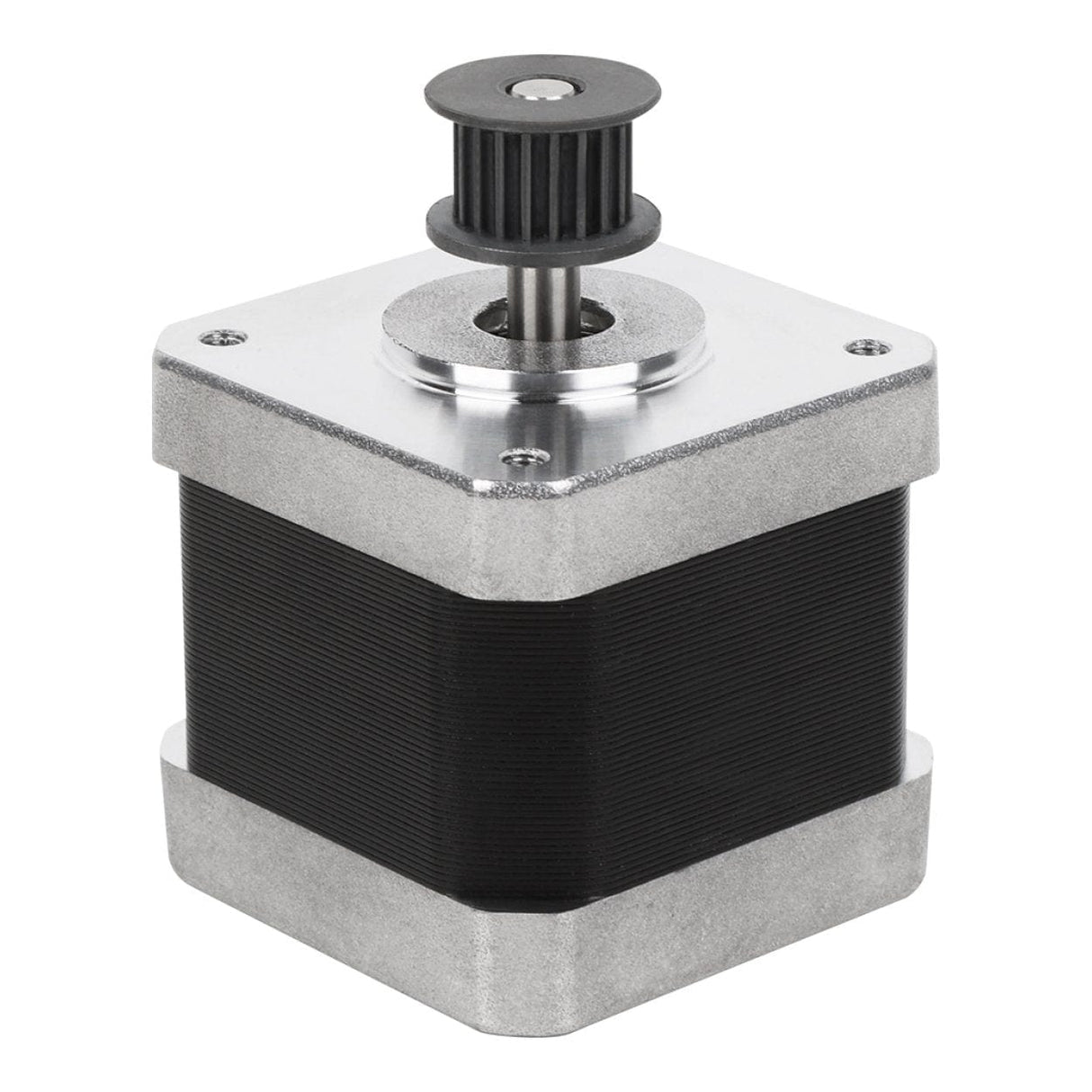

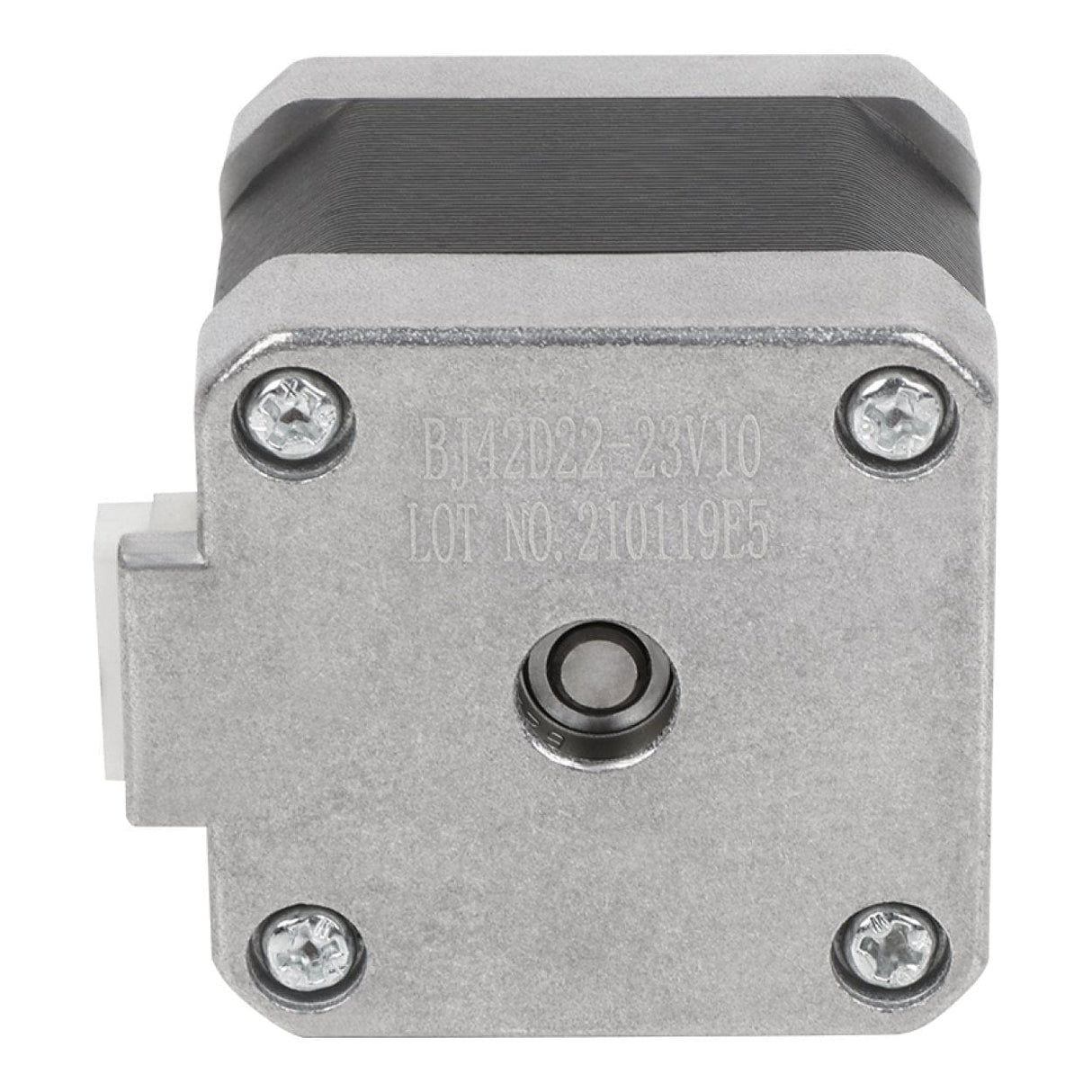

A replacement stepper motor engineered for Creality 3D printers, particularly for use on the Y-axis. Compatible with models such as the Ender-3 V3 SE, CR-10 SE, and Ender-3 V3 KE, this motor ensures reliable motion and consistent performance for 3D print bed movement.

• Uses a 42-40 frame (42 × 42 × 40 mm)
• Step angle of 1.8° per step, delivering precise positional control
• Rated current of 1.0 A per phase
• Fitted with a 20-tooth GT2 pulley pressed onto the shaft for belt drive integration
• Shaft: 5 mm diameter, round cross-section, with 18 mm shaft length protrusion from motor body
• Net weight approximately 293 g
• Designed for press-fit mounting of the pulley and includes retaining collar parts

Specifications
Model: 3204120132 (Y-Axis)
Frame Size: 42 × 42 × 40 mm
Step Angle: 1.8°
Current (per phase): 1.0 A
Pulley Type: GT2, 20 teeth
Shaft Diameter & Type: 5 mm round
Shaft Length: 18 mm protrusion
Net Weight: 293 g
Compatibility: Ender-3 V3 SE, CR-10 SE, Ender-3 V3 KE

What’s in the box

• 1 × Creality Y-Axis Stepper Motor 3204120132
• 1 × GT2 20-tooth pulley pre-pressed or ready for fitting
• Retaining collar for pulley
• Documentation / installation instructions (where applicable)
