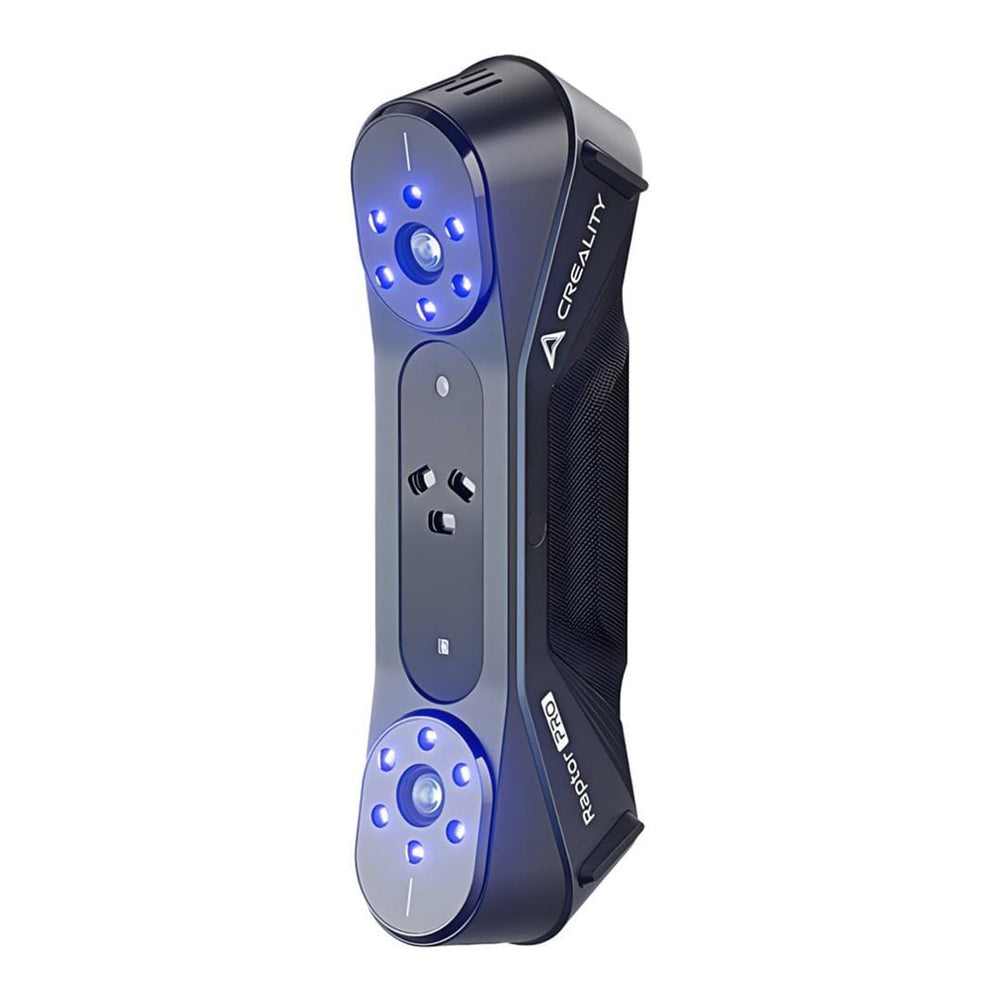

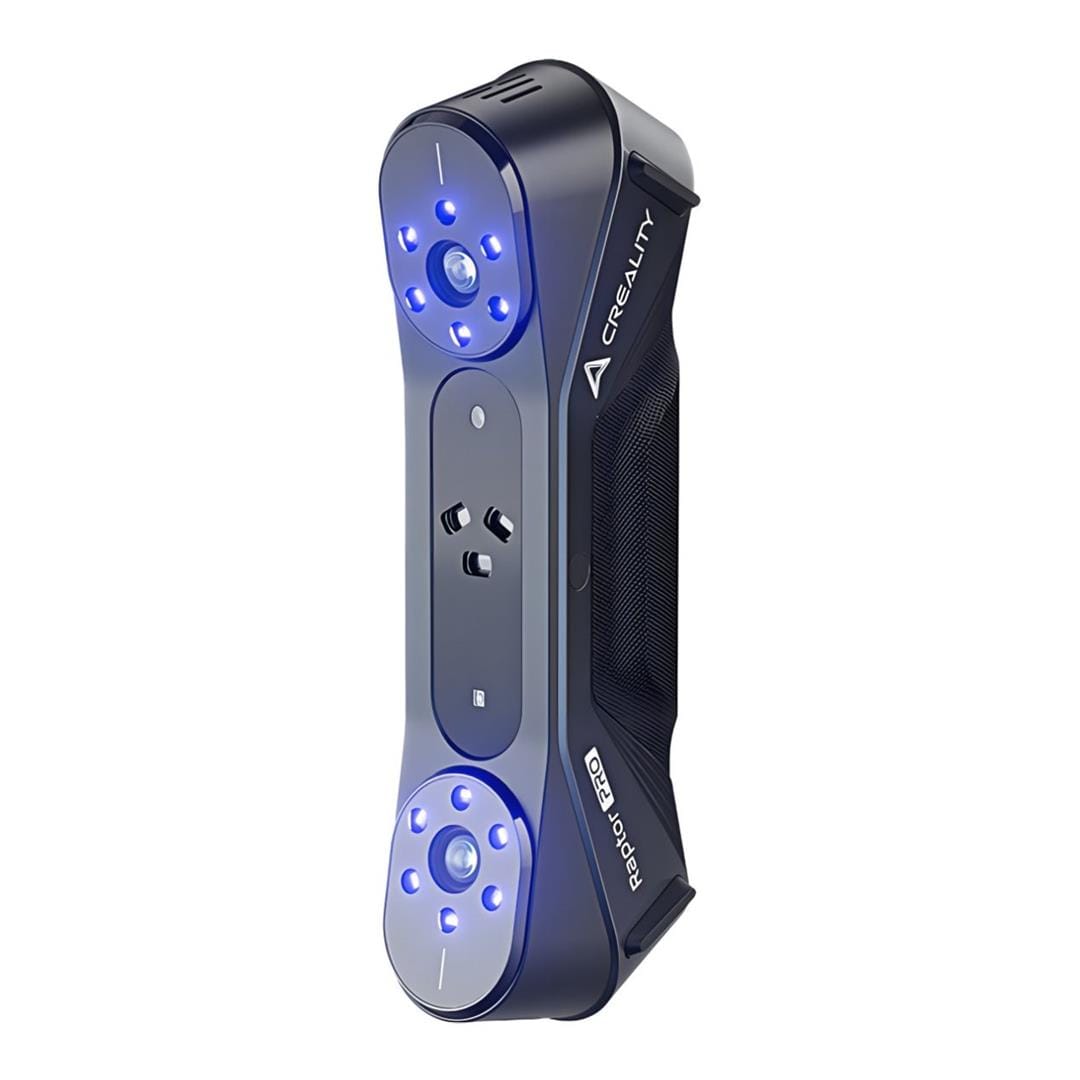

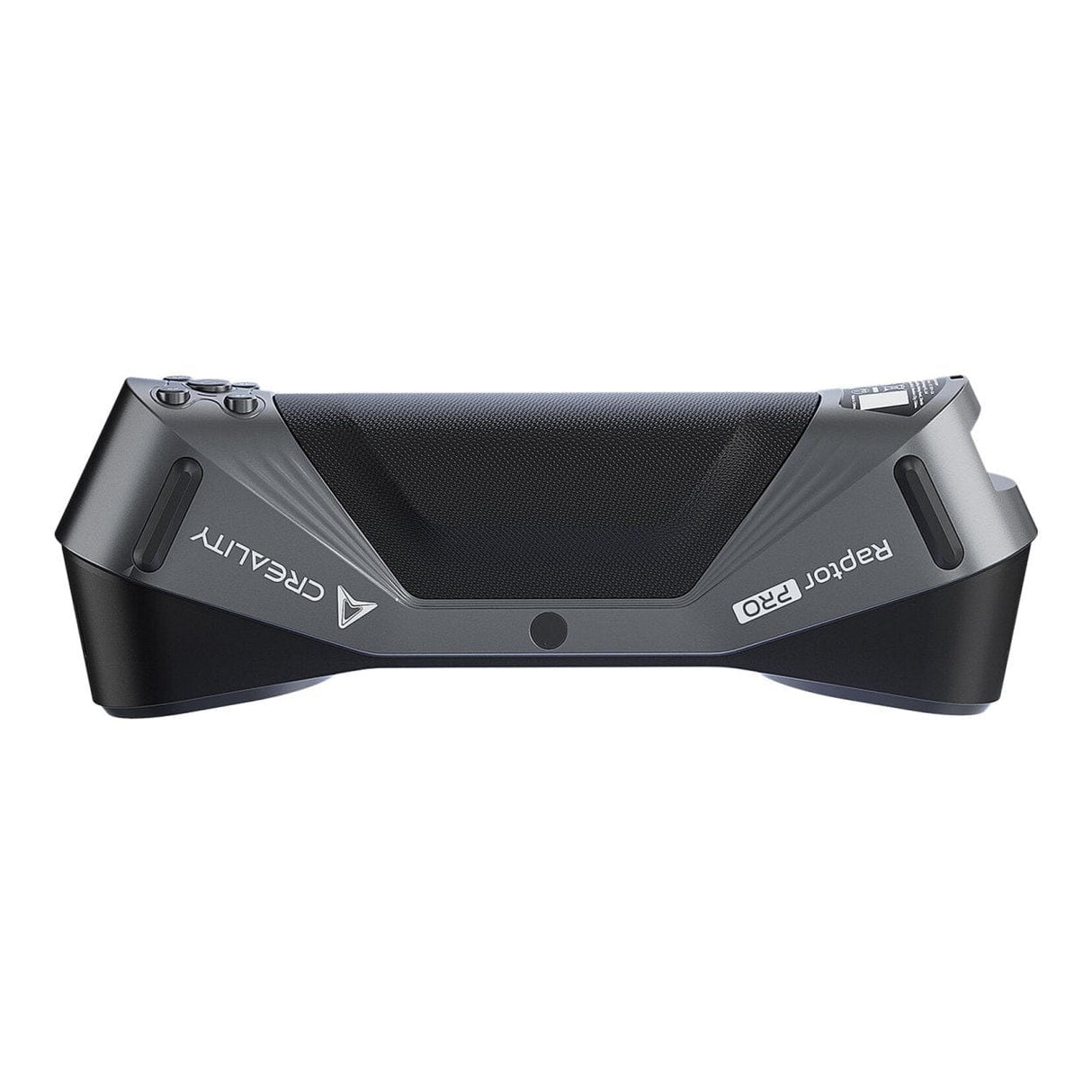

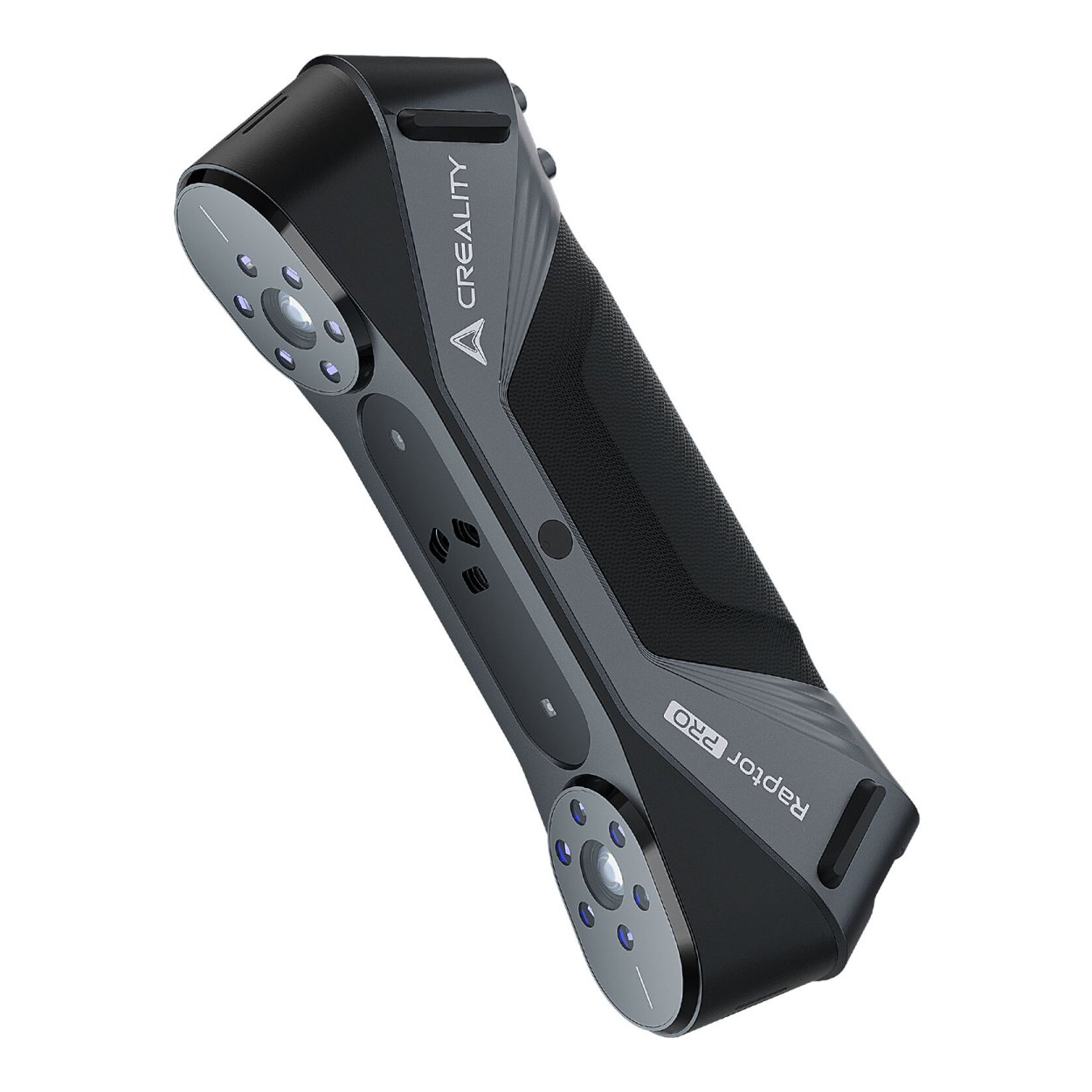

Creality Raptor Pro Portable 3D Scanner 4008050057

Creality Raptor Pro Portable 3D Scanner 4008050057

For advanced creators, the Creality Raptor Pro Portable 3D Scanner captures fine details in objects, allowing users to digitally recreate their subjects for in-depth inspection, reverse engineering, and more.

Features:

• Blue Light (7 Parallel + 22 Cross Lines)
• NIR Scanning Mode
• Up to 660,000 Points/s Scanning Speed
• Adjustable 3D Resolution Scanning
• 1920 x 1200 Camera Resolution
• 24-bit Full-Color Scanning
• Integrated Color Mapping
• USB-C 3.2 Gen 1 Connectivity
• Windows & macOS Compatible

Utilizing dual scanning modes and a camera with a 1920 x 1200 resolution, you can capture intense details with the Blue Light 7-line laser or 22 cross laser lines. Scan larger items with infrared binocular structured light technology. Each mode gives you scalable accuracy, speed, and 3D resolution to optimize image capture. The Raptor Pro also has a scanning speed of up to 660,000 points/s. White and infrared LEDs capture items in a variety of environments, leveraging integrated color mapping, multiple alignment modes, and 24-bit full-color scanning to ensure pigment accuracy, reduce image shaking, and give you an optimized digital recreation of your subject. The Raptor Pro connects to your system via a USB-C port with a 3.2 Gen 1 interface, ensuring your captures are quickly transferred to the digital format on your Windows or macOS device.

Additional Details

• 22 Cross Blue Laser Lines
• 7 Parallel Blue Laser Lines
• NIR Structured Light
• High Scanning Speed - Up to 60 fps, 660,000 points/s, 60 fps (Laser Scan)
• 0.02 + 0.08 mm/m Volumetric Accuracy
• Objects between 0.2 - 157" / 5 - 4000 mm
• Scan black or metal objects without sprays
• NIR scanning up to 30 fps and 24-bit full-color scanning

Two Blue Light Modes with Seamless Switching

This scanner features 22 cross laser lines for scanning medium to large objects quickly and 7 parallel laser lines for partial HD scanning. With dual modes that can be freely switched, this scanner achieves both scanning efficiency and precision. Laser line scanning scan frame rate can reach up to 60 fps, while infrared Structured Light Scanning Scan frame rate can top out at 30 fps.

Fast Scan Speeds

Process up to 660,000 points per second, making it ideal for quickly scanning medium to large objects.

Object Sizes

By combining blue laser lines with infrared structured light, the Raptor Pro can scan objects ranging in size from 5 x 5 x 5 mm to 4000 x 4000 x 4000 mm. Effortlessly scanning automobile components, engineering parts, molds, human bodies, and more.

Unique Face & Body Algorithm

The Face & Body mode is equipped with a unique face mapping algorithm that captures fine details and easily scans a human body in approximately 2 minutes.

Wider Applications, Better Performance

The blue laser features strong environmental resistance and delivers optimal performance in outdoor environments. The 7-line laser mode can be used when there is less than 50,000 lux of light available. Meanwhile, the 22-line laser mode can be used when the available light is less than 100,000 lux.

Anti-Shaking

Equipped with One-Shot 3D imaging technology, the Raptor Pro is naturally stabilized and prevents tracking loss. Fast backtracking speed ensures smooth handheld scanning.

High Performance Structure

The Raptor Pro features a 2.3MP pixel 3D imaging camera, a low-distortion lens (less than 5%), a 20 mm large depth of field lens, a 9-element glass lens, a metal lens barrel, and a holder.

Ring Indicator Light

Paired with buttons, the Raptor Pro features a ring indicator light, anti-slip sleeve, and a detachable lanyard.
