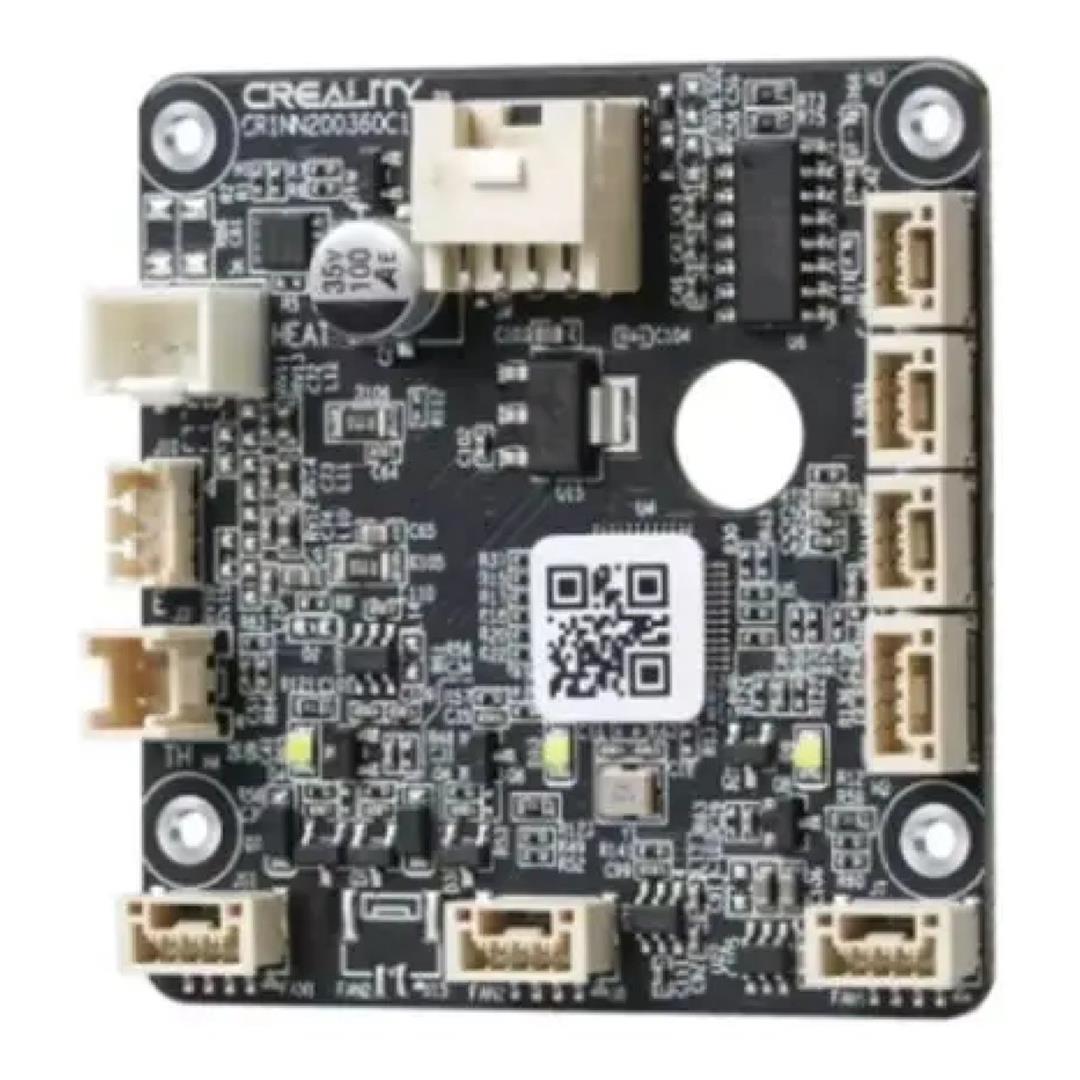

Creality Hi Nozzle Plate 2101020288

The Creality Hi Nozzle Plate 2101020288 is an original replacement electronic board for the Creality Hi 3D printer toolhead. Also referred to as the Extruder Board, Tool Head Board or Hotend Adapter Board, this PCBA provides the electrical interface for key hotend-related components, helping maintain reliable communication and operation within the printhead assembly. It is intended as a direct replacement for a damaged or malfunctioning original board in a compatible Creality Hi printer.

Key Features

• Original Creality replacement electronic board for the Creality Hi.
• Creality part number 2101020288.
• Also known as the Nozzle Plate, Extruder Board, Tool Head Board or Hotend Adapter Board.
• Located within the Creality Hi toolhead assembly.
• Provides connections for key hotend-related components.
• Interfaces with heater, thermistor and cooling system connections.
• Designed for the Creality Hi nozzle-lock toolhead system.
• Suitable for replacing a damaged or malfunctioning original toolhead board.

Creality Hi Toolhead Electronics

The 2101020288 board acts as an electronic interface within the Creality Hi toolhead, consolidating connections required by key hotend components. This helps provide stable electrical communication between the printer and components responsible for heating, temperature monitoring and cooling.

Nozzle Lock System Integration

The board is designed around the Creality Hi toolhead and its lock-nozzle system, providing the appropriate interface for the associated hotend and toolhead connections. Replacing a damaged board can restore the electrical connection path required for normal hotend operation.

Compatibility

• Creality Hi 3D Printer

This product is an electronic PCBA replacement board and is not the nozzle, complete hotend, heater, heatbreak or printer mainboard. Creality uses different electronic boards across its printer ranges, so confirm part number 2101020288 against the original component before ordering or installation.

What's in the Box

• 1 × Creality Hi Nozzle Plate / Tool Head Board 2101020288

Technical Specifications

Restore the toolhead's essential hotend connections with the Creality Hi Nozzle Plate / Tool Head Board 2101020288.
