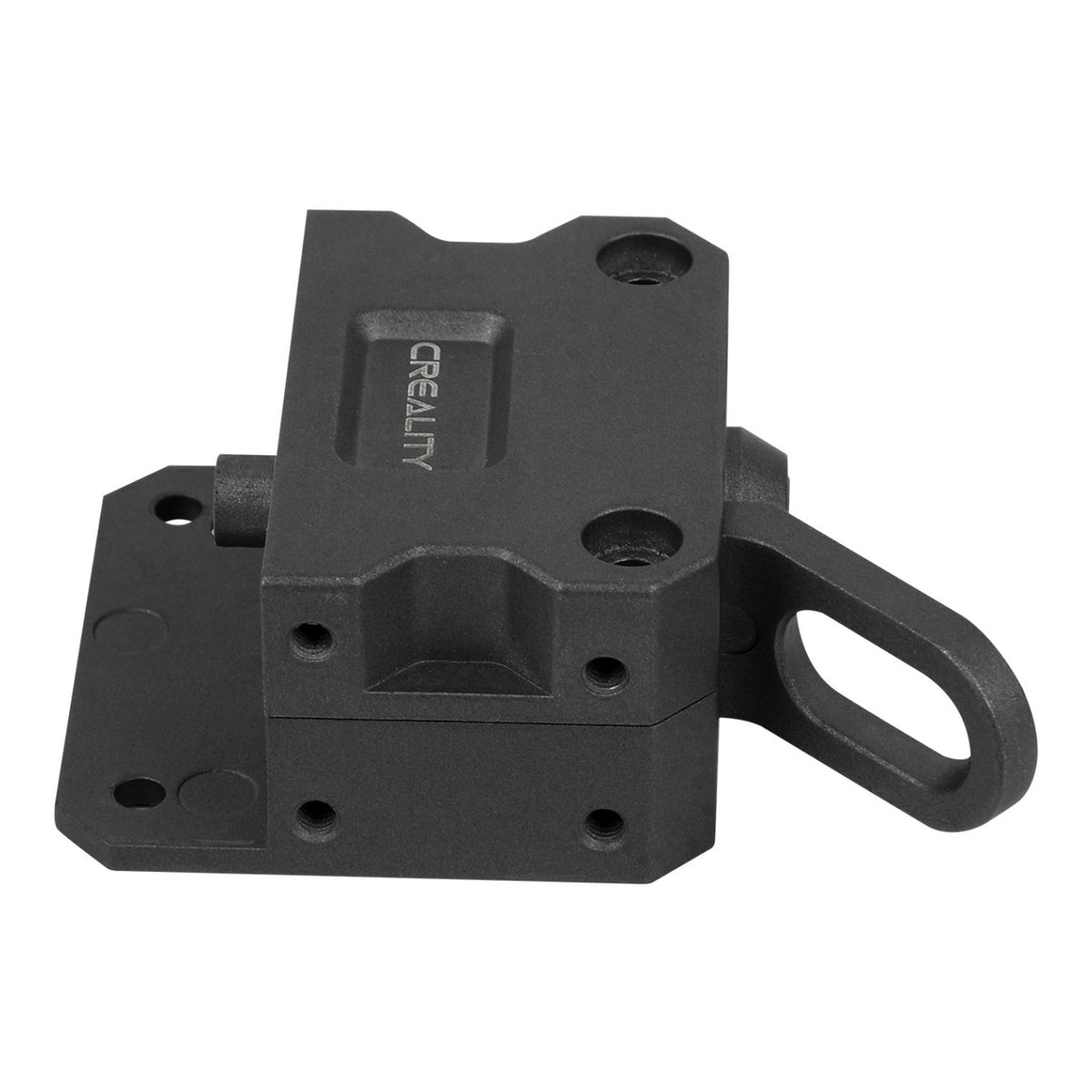

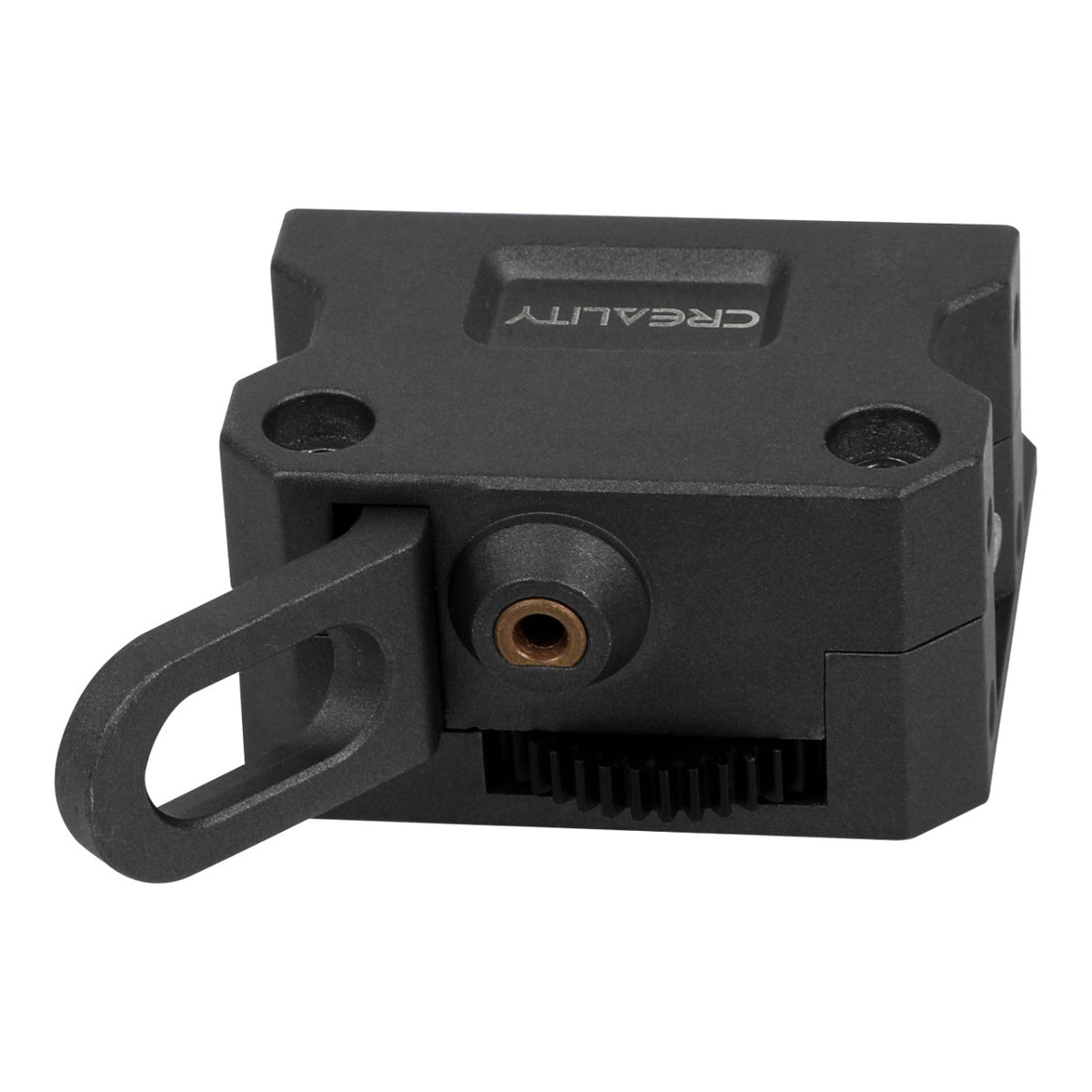

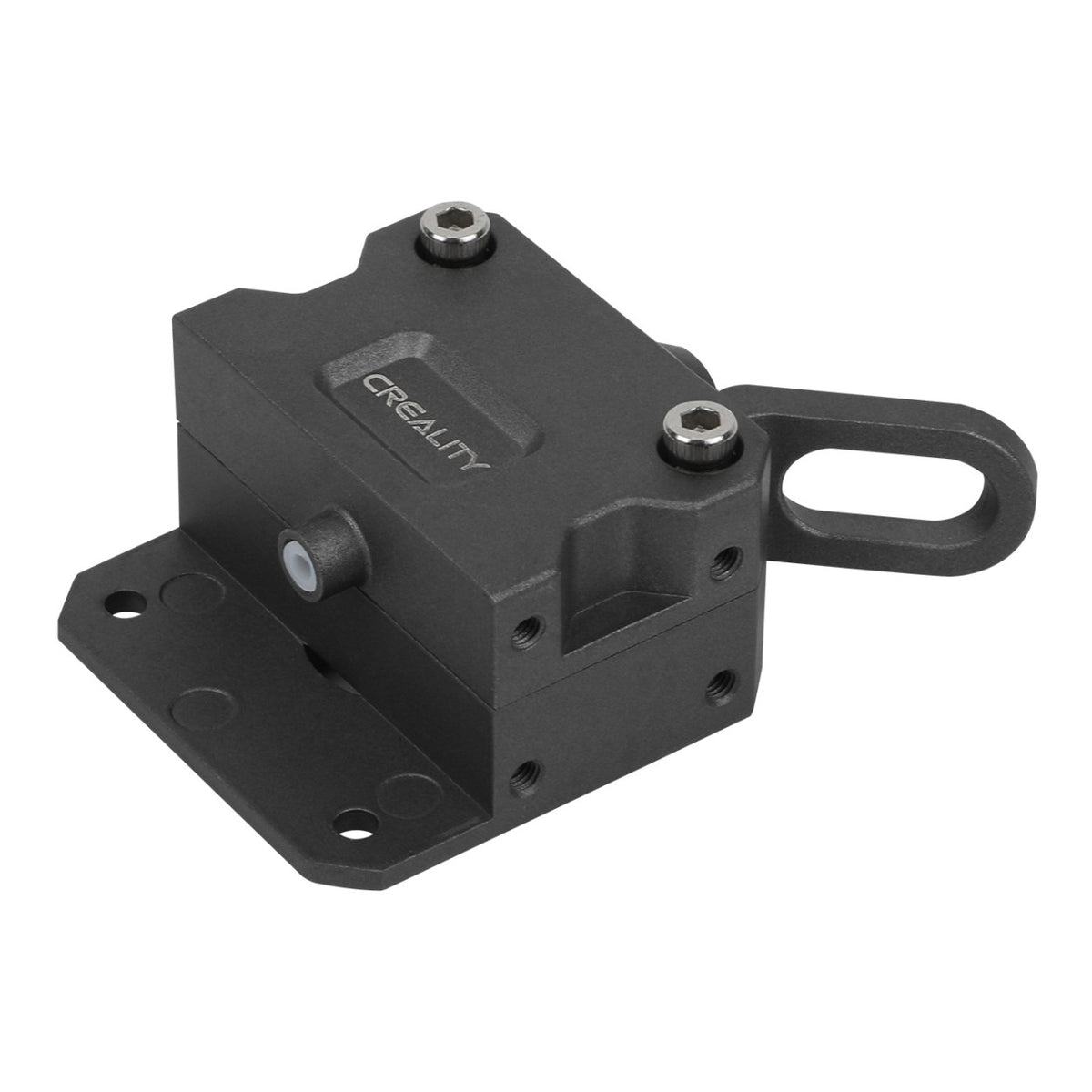

Creality Extrusion Mechanism Kit 4001020063

Creality Extrusion Mechanism Kit 4001020063

The Creality Extrusion Mechanism Kit 4001020063 is a genuine replacement Sprite extruder mechanism designed for compatible Creality FDM 3D printers. Featuring a durable metal construction and dual-gear filament feeding mechanism, it supports consistent material delivery and reliable extrusion during printing. Designed for the Ender-3 S1, Ender-3 S1 Pro, Ender-3 S1 Plus, CR-10 Smart Pro and CR-M4, this compact replacement kit provides a practical solution for maintaining and repairing compatible direct-drive extruder assemblies.

Key Features:

• Genuine Creality replacement extruder mechanism
• Manufacturer part number 4001020063
• Designed for compatible Sprite extruders
• Direct-drive filament feeding mechanism
• Dual-gear filament feeding design
• Supports consistent filament extrusion
• Durable metal mechanical components
• Integrated filament tension adjustment
• Suitable for 1.75mm filament systems
• Helps maintain reliable material feeding
• Suitable for extruder maintenance and repair
• Compatible with Ender-3 S1 Series printers
• Supports Creality CR-10 Smart Pro
• Compatible with Creality CR-M4
• Compact mechanical replacement assembly

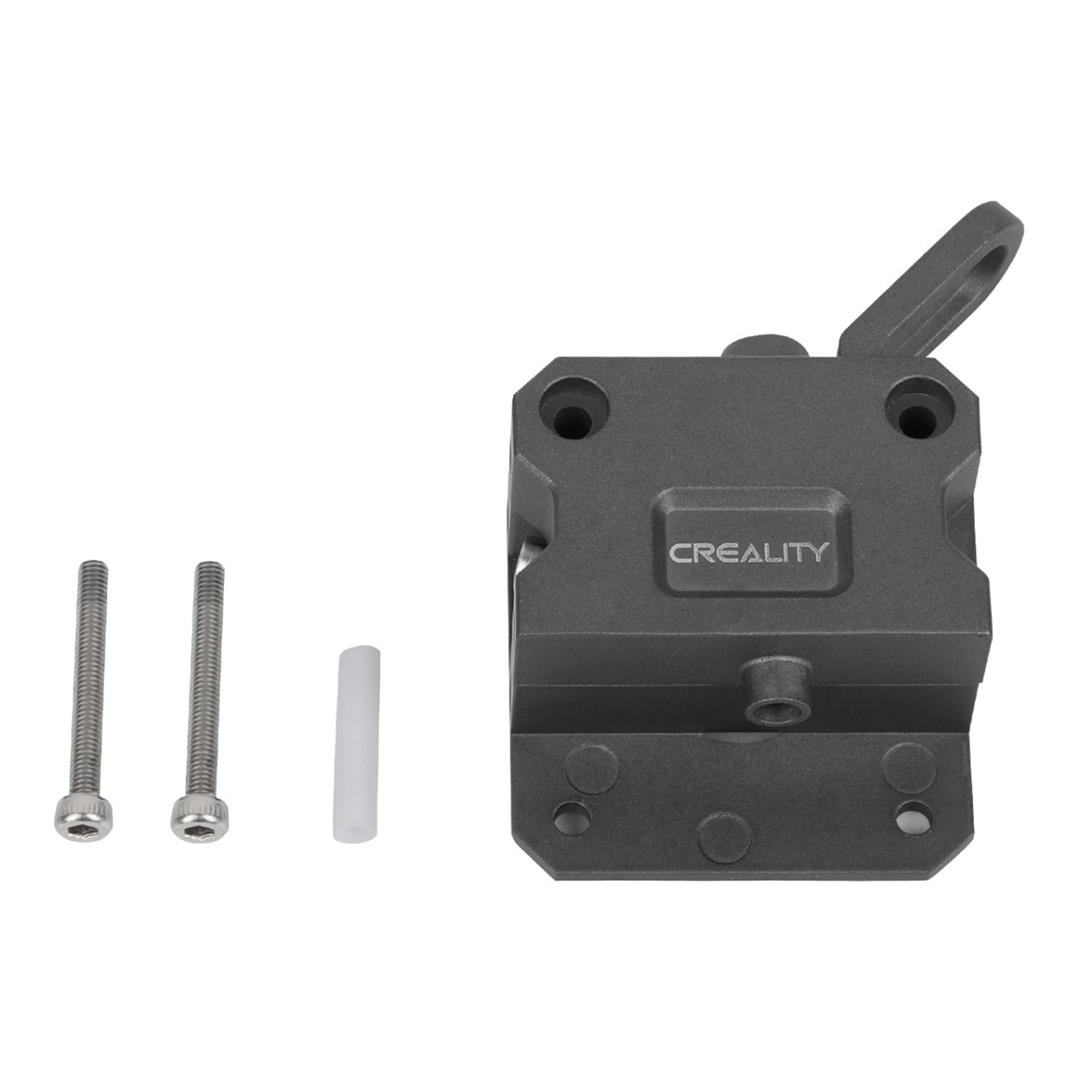

• Includes mounting hardware and PTFE guide
• Supplied without stepper motor
• Net weight of approximately 56g
• Packaging dimensions of 190 x 80 x 20mm

Features

Genuine Creality Replacement Mechanism

The Creality Extrusion Mechanism Kit is designed to replace the mechanical feeding assembly in compatible Sprite extruders. It offers a practical solution for restoring filament feeding functionality without replacing the complete printer or unrelated components.

Reliable Dual-Gear Filament Feeding

The dual-gear feeding arrangement grips filament during extrusion, helping maintain controlled material delivery towards the hotend. Consistent filament movement contributes to reliable layer formation and accurate material deposition.

Direct-Drive Extrusion Compatibility

Designed for compatible Sprite direct-drive extruder systems, the mechanism operates close to the hotend assembly. This arrangement provides responsive filament control and supports reliable extrusion when correctly installed and calibrated.

Durable Mechanical Construction

The replacement mechanism incorporates durable metal components designed for repeated filament feeding. Its construction provides a practical solution for maintaining the mechanical operation of compatible Creality extruder assemblies.

Adjustable Filament Tension

The integrated tension adjustment mechanism allows the filament gripping pressure to be set appropriately. Correct adjustment helps maintain dependable filament movement while reducing unnecessary pressure on the filament.

Compatible with Multiple Creality Printers

The kit supports compatible Creality Ender-3 S1, Ender-3 S1 Pro, Ender-3 S1 Plus, CR-10 Smart Pro and CR-M4 3D printers. Users should confirm the original extruder configuration before purchasing the replacement mechanism.

Supports Different Filament Materials

When installed in a suitable printer, the mechanism can support feeding of compatible 1.75mm materials, including PLA, PETG and TPU. Material compatibility depends on the complete extruder, hotend and printer configuration.

Practical Extruder Maintenance

Replacing a damaged or worn feeding mechanism can help resolve mechanical filament feeding issues caused by worn gears, damaged tension components or other mechanism-related problems. Correct installation can restore normal feeding performance.

Compact and Lightweight Design

With a manufacturer-specified net weight of approximately 56g, the replacement mechanism provides a compact solution for compatible printhead assemblies. Its design allows integration into the existing extruder configuration.

Convenient Replacement Installation

The kit is intended for installation into the existing compatible Sprite extruder assembly. Supplied mechanical components support replacement and maintenance, while the original compatible stepper motor and other extruder components must be reused.

Supports Consistent Printing Performance

A correctly functioning extrusion mechanism is essential for controlled filament movement during printing. Replacing damaged mechanical components can help prevent feeding interruptions and inconsistent extrusion caused by mechanical faults.

Installation and Maintenance Considerations

Switch off the printer and allow the hotend to cool before servicing. Follow the appropriate Creality maintenance instructions, ensure correct mechanical alignment and check filament tension after installation.

• Compatible with selected Creality Sprite extruders.
• Stepper motor is not included.
• Complete hotend assembly is not included.
• Disconnect printer power before servicing.
• Printer and other accessories sold separately.

Technical Specifications:

The Creality Extrusion Mechanism Kit 4001020063 provides a genuine replacement solution for maintaining compatible Sprite direct-drive extruder assemblies. Featuring a durable dual-gear feeding mechanism, adjustable filament tension and support for 1.75mm filament, it helps restore reliable material feeding in compatible Ender-3 S1 Series, CR-10 Smart Pro and CR-M4 3D printers.
