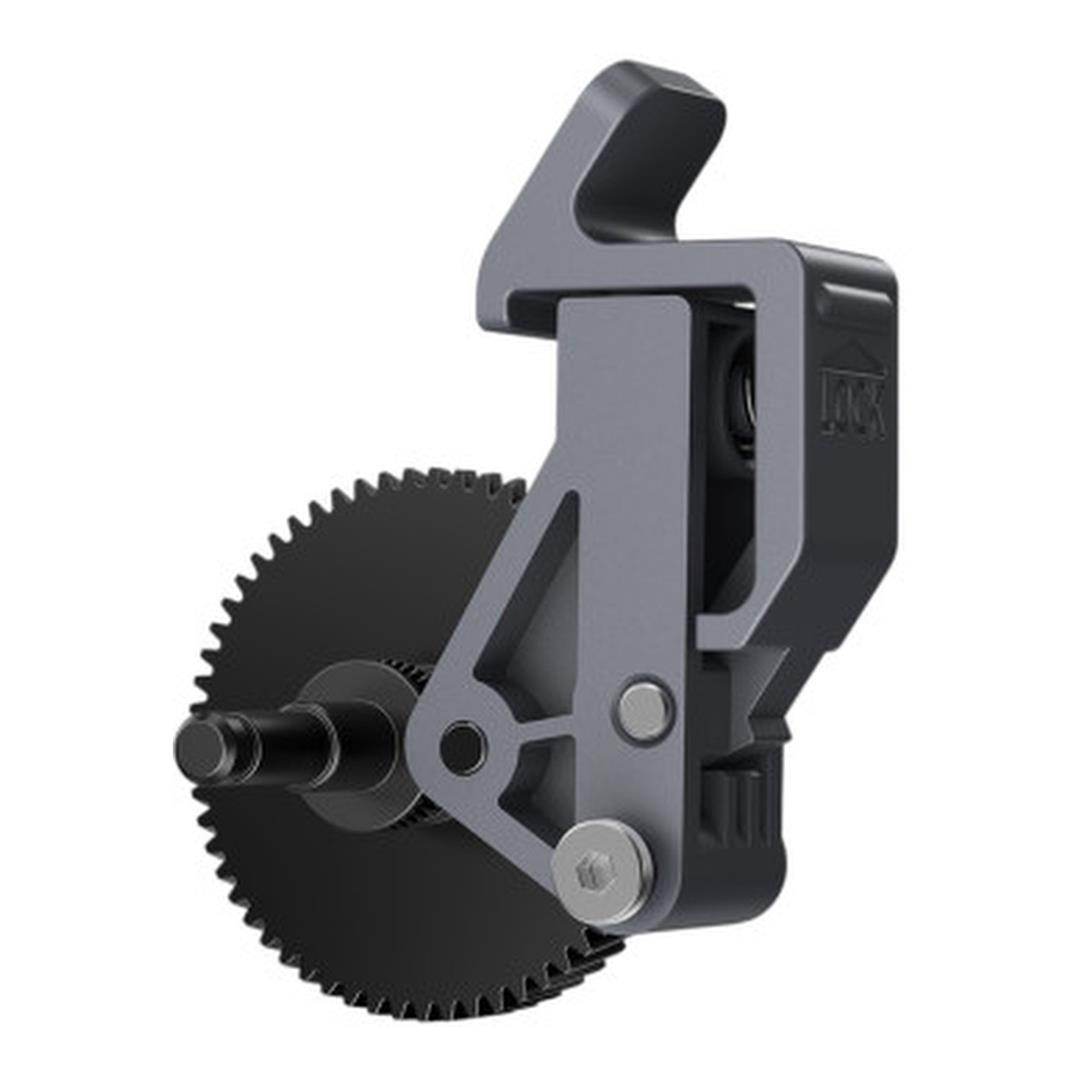

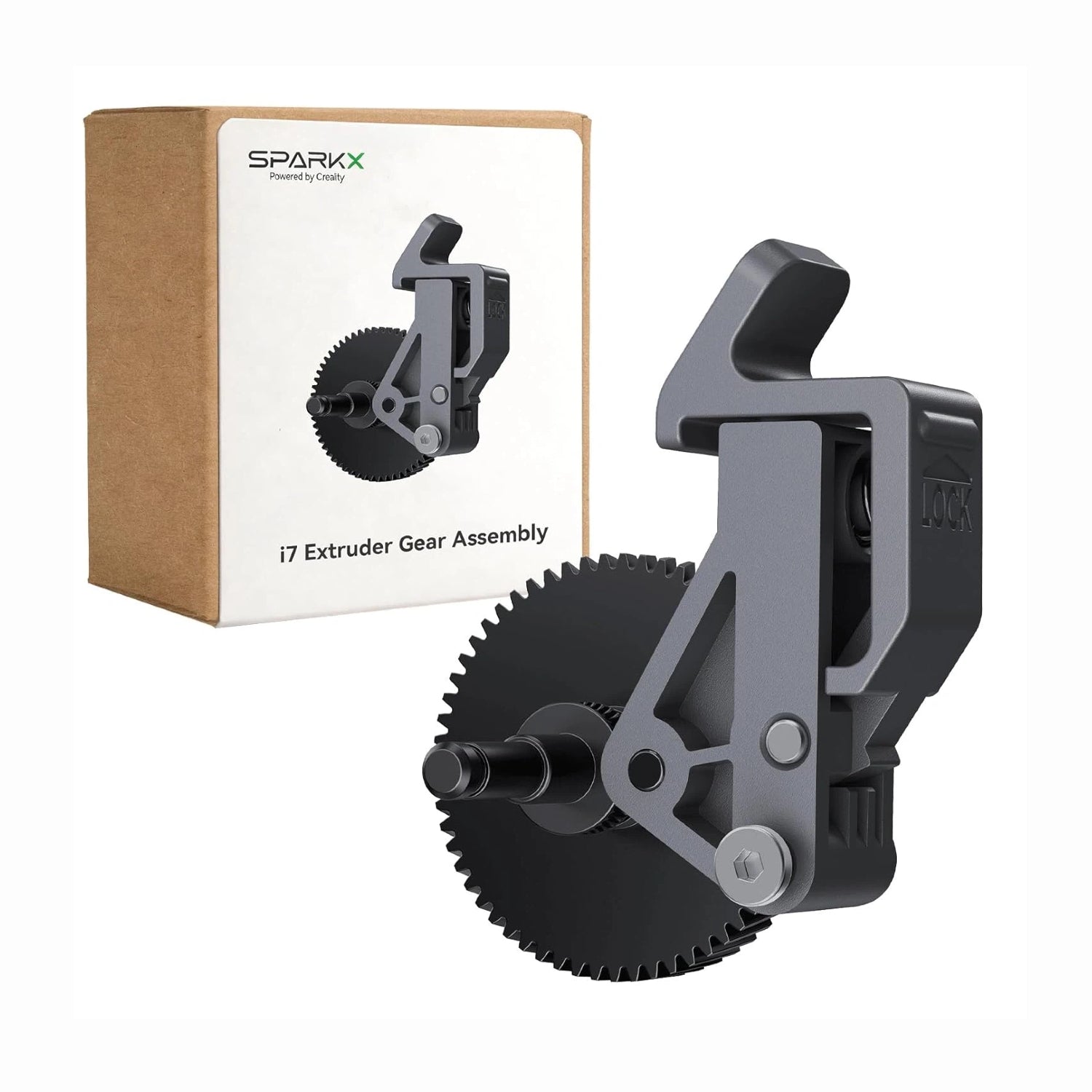

Creality Extruder Gear for SparkX i7 4004010309

Creality Extruder Gear for SparkX i7 4004010309

The Creality Extruder Gear 4004010309 is a genuine replacement filament feeding gear assembly designed for compatible Creality SPARKX i7 Series FDM 3D printers. Featuring a precision-engineered dual-gear mechanism with a driven gear and idler arm, it supports controlled filament feeding and retraction during printing. Its durable mechanical construction and model-specific design provide a practical replacement solution for worn or damaged extruder components, helping restore consistent material flow and dependable printing performance.

Key Features:

• Genuine Creality replacement extruder gear assembly
• Designed for Creality SPARKX i7 Series printers
• Manufacturer part number 4004010309
• Precision dual-gear filament feeding mechanism
• Includes driven gear and idler arm assembly
• Supports accurate filament extrusion
• Enables controlled filament retraction
• Designed for direct-drive extruder systems
• Supports consistent filament gripping
• Durable mechanical gear construction
• Suitable for compatible 1.75mm filament systems
• Supports PLA, PETG and compatible TPU printing
• Helps restore reliable filament feeding
• Replacement for worn or damaged extruder gears
• Convenient access for routine maintenance
• Designed for the original SPARKX i7 toolhead
• Compact and lightweight replacement assembly
• Approximately 19g net weight
• Original equipment replacement component

Features

Genuine Creality Replacement Gear

The Creality Extruder Gear Assembly is designed to replace the original filament feeding mechanism in compatible SPARKX i7 printers. Its model-specific construction provides a practical solution for restoring extrusion functionality without replacing the complete printer.

Reliable Dual-Gear Filament Feeding

The dual-gear system works by gripping filament between the active drive gear and the driven gear mounted on the idler arm. This arrangement supports controlled filament movement towards the hotend and helps maintain consistent feeding during printing.

Precise Extrusion and Retraction

The gear mechanism supports both forward filament movement during extrusion and reverse movement during retraction. Accurate control of these operations helps maintain material flow and reduce unwanted filament movement between printed features.

Durable Mechanical Construction

The replacement assembly incorporates durable mechanical components designed for repeated filament feeding. Its gear teeth and supporting structure provide reliable interaction with compatible filament when correctly installed and maintained.

Designed for Creality SPARKX i7

Developed for the SPARKX i7 Series, the replacement gear assembly integrates with the printer's existing direct-drive extrusion system. Its model-specific design allows replacement of the original mechanism while retaining compatible surrounding components.

Supports Multiple Filament Materials

When installed in a compatible SPARKX i7 printer, the extrusion mechanism supports feeding of suitable 1.75mm filaments, including PLA, PETG and compatible flexible TPU materials. Actual material compatibility depends on the printer configuration and recommended printing settings.

Restores Consistent Filament Movement

Damaged or worn extruder gears may cause filament slipping, grinding or inconsistent extrusion. Replacing a faulty gear assembly can help restore reliable filament gripping and material feeding when the problem originates from the extrusion mechanism.

Convenient Idler Arm Design

The idler arm provides access to the filament feeding mechanism for inspection and maintenance. It allows users to examine the gear assembly for wear, accumulated filament debris or other mechanical problems.

Practical Printer Maintenance

The replacement gear assembly provides an economical maintenance solution for users experiencing worn gear teeth or mechanical filament feeding problems. Replacing the affected components helps extend the useful service life of a compatible printer.

Compact and Lightweight Design

With an approximately 19g net weight, the gear assembly provides a compact replacement component for the printer's toolhead. Its lightweight construction allows integration into the original extruder mechanism without unnecessary additional bulk.

Convenient Replacement Installation

Creality provides an official replacement procedure for the SPARKX i7 extruder gear. Installation involves accessing the toolhead assembly, removing the original gear and idler arm, and fitting the replacement components using suitable tools.

Installation and Safety Considerations

Power off and unplug the printer before replacing the extruder gear. Ensure the hotend and heated bed have cooled completely, retract any remaining filament and follow Creality's official maintenance instructions. Inspect the mechanism after installation and perform a test print to confirm correct operation.

• Designed for compatible Creality SPARKX i7 Series printers.
• Designed for the original direct-drive extrusion mechanism.
• Stepper motor and complete hotend are not included.
• An H2.0 hex wrench and tweezers are recommended.
• Correct mechanical alignment is essential.
• Run a filament feeding test after installation.
• 3D printer and unrelated accessories sold separately.

Technical Specifications:

The Creality Extruder Gear 4004010309 provides a genuine replacement solution for maintaining compatible SPARKX i7 3D printers. Featuring a durable dual-gear feeding mechanism, integrated idler arm and support for controlled extrusion and retraction, it helps restore consistent filament movement and dependable printing performance when replacing a worn or damaged original assembly.
