Creality Ender-3 V4 Toolhead Board 4002010058
Delivery and Shipping
Delivery and Shipping
* Fast Delivery Available - Learn more
Easy Returns
Easy Returns
Buy With Confidence. 14 Day Returns. Online. Learn More
Price Match Guarantee
Price Match Guarantee
Found a Better Price? We'll Match It - Guaranteed - Learn More
Description
Description

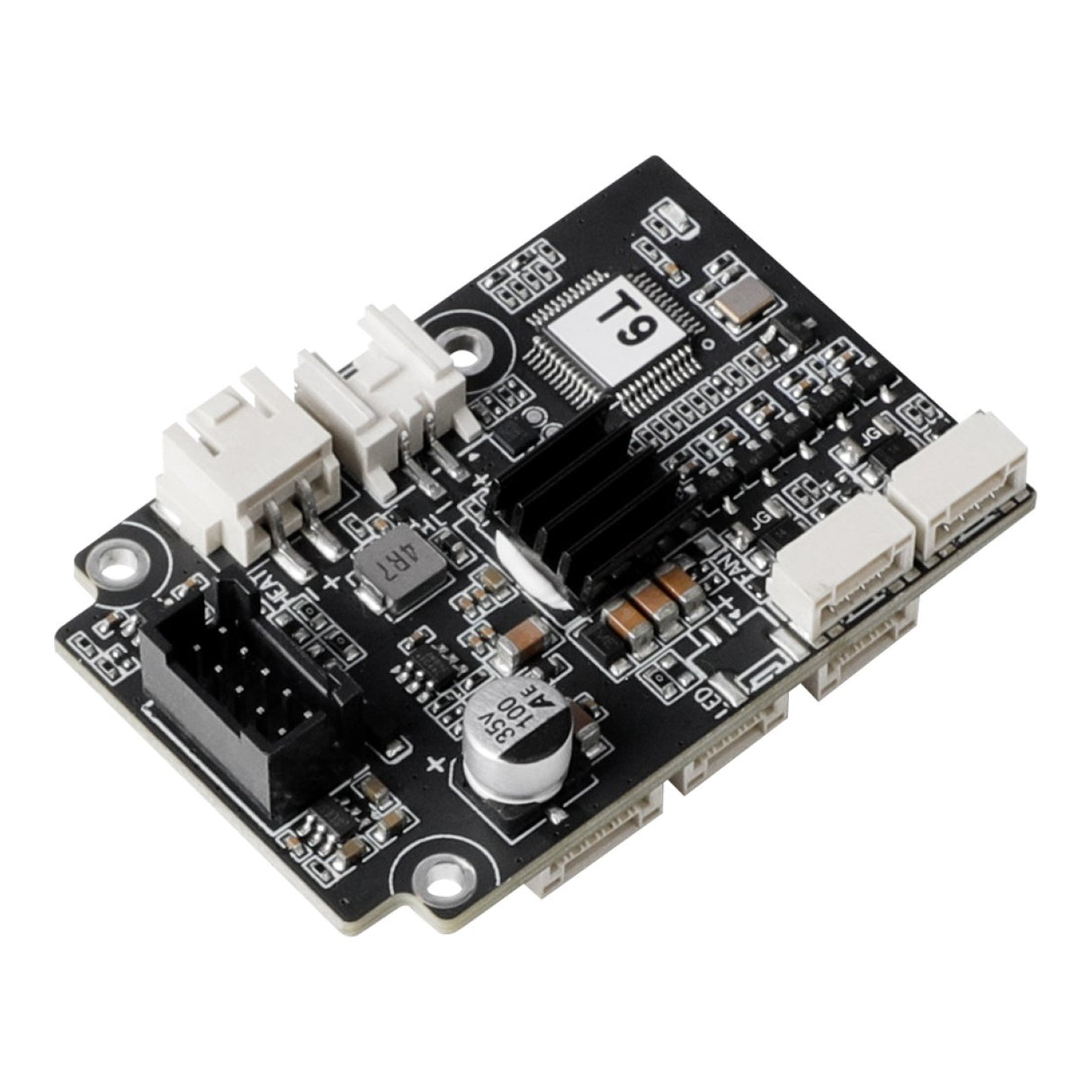

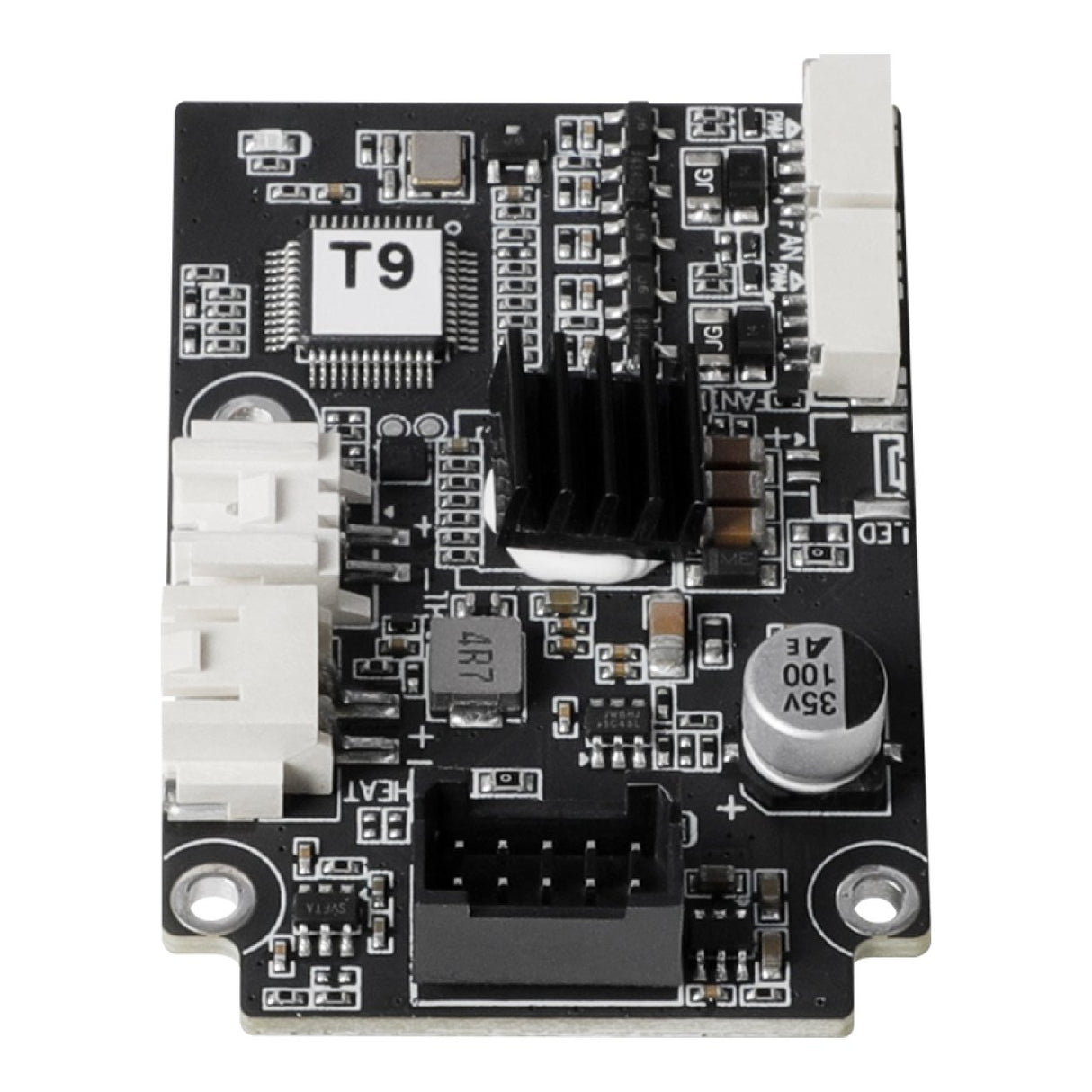

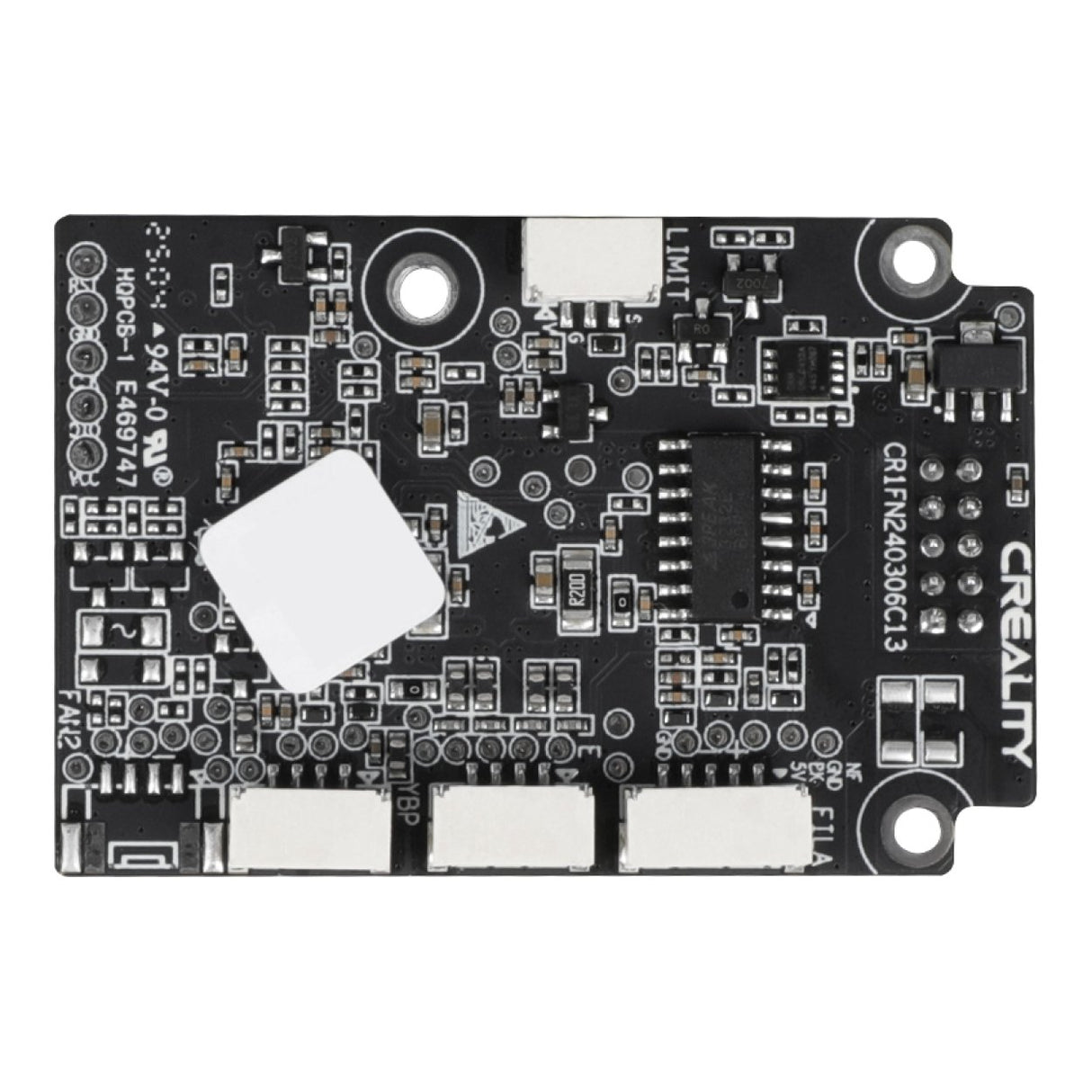

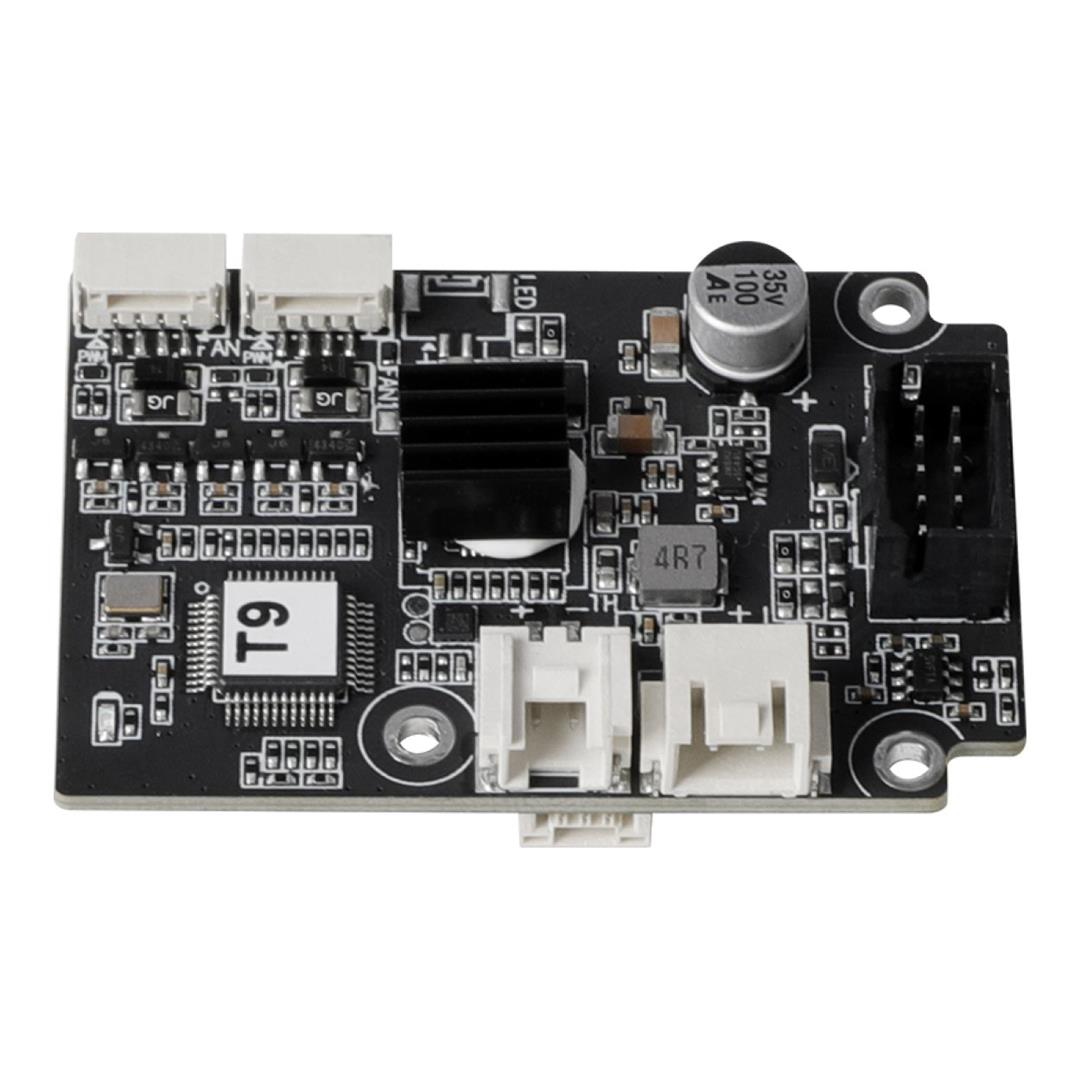

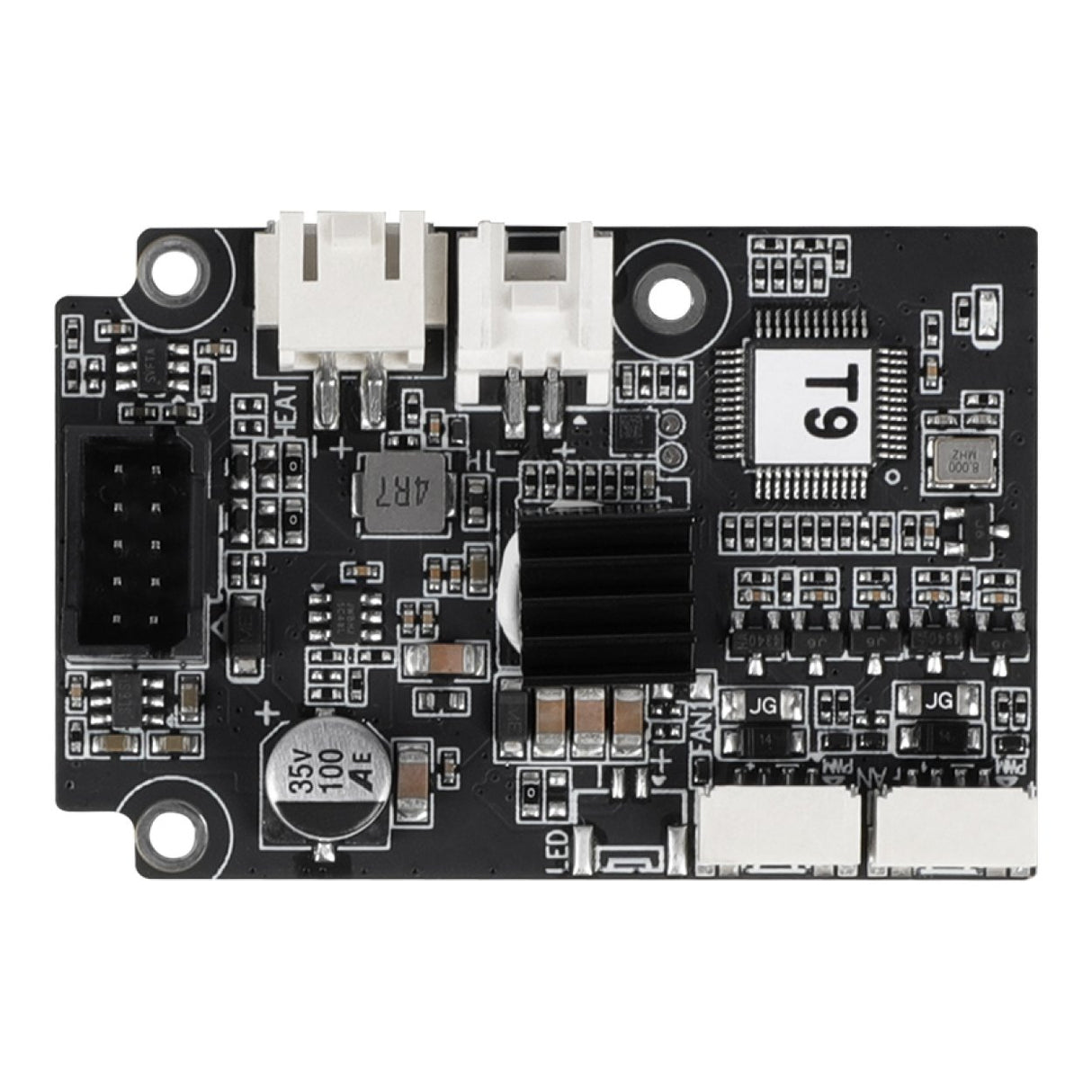

The Creality Ender-3 V4 Toolhead Board is a replacement electronic interface board designed for the Creality Ender-3 V4 3D printer. Installed within the printhead assembly, it acts as a central connection hub for key hotend and toolhead components, including the heater cartridge, thermistor, cooling fans and sensor connections.
Key Features
- Replacement toolhead board designed for the Creality Ender-3 V4.
- Functions as the central electrical connection hub within the printer's toolhead.
- Provides connections for the hotend thermistor and heater cartridge.
- Interfaces with the hotend and part cooling fans.
- Provides connections for the filament sensor and strain gauge probe.
- Helps consolidate toolhead wiring into a compact PCB assembly.
- Suitable for replacing a damaged or faulty corresponding toolhead board.
- Creality part number 4002010058 provides precise replacement-part identification.
Central Toolhead Connection Board
The toolhead board provides a central interface for multiple electrical components within the Ender-3 V4 printhead. By consolidating these connections on a dedicated PCB, the printer can connect the hotend heating, temperature sensing, cooling and toolhead sensor systems to the corresponding printer electronics.
Connected Toolhead Components
- Hotend thermistor
- Heater cartridge
- Hotend cooling fan
- Part cooling fan
- Filament sensor
- Strain gauge probe
Compatibility
- Creality Ender-3 V4
Before ordering, confirm your printer model and existing board part number to ensure that 4002010058 is the correct replacement toolhead board.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Creality |
| Product | Ender-3 V4 Toolhead Board |
| Manufacturer Part Number | 4002010058 |
| Product Type | 3D printer toolhead interface board / PCB |
| Application | Printhead component connection and interfacing |
| Thermistor Connection | Supported |
| Heater Cartridge Connection | Supported |
| Hotend Fan Connection | Supported |
| Part Cooling Fan Connection | Supported |
| Filament Sensor Connection | Supported |
| Strain Gauge Probe Connection | Supported |
| Compatible Model | Creality Ender-3 V4 |
| Quantity | 1 toolhead board |
Restore the toolhead electrical connections of your Creality Ender-3 V4 with the correct 4002010058 replacement Toolhead Board.
