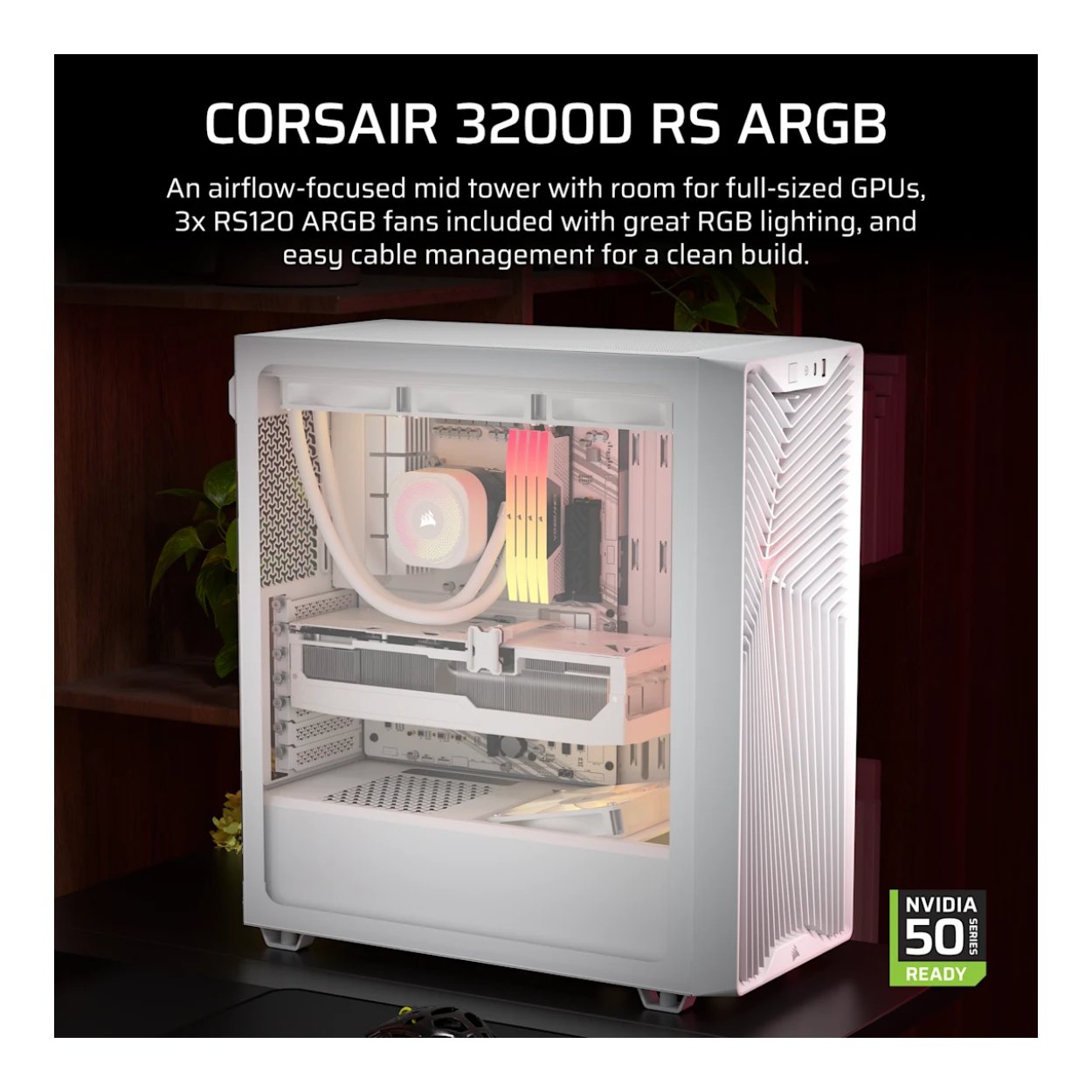

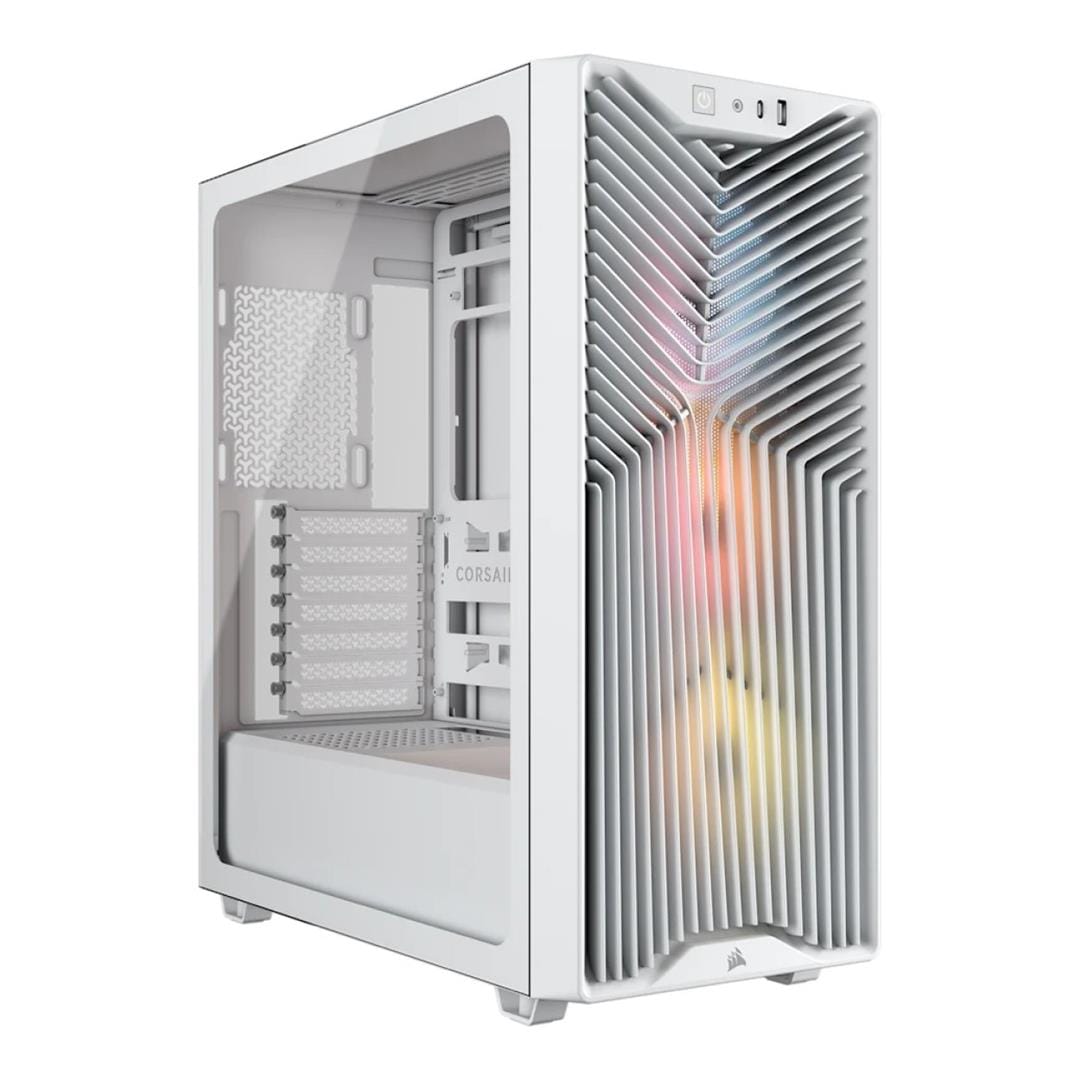

Corsair 3200D RS ARGB Mid-Tower PC Case White CC-9011345-WW

Corsair 3200D RS ARGB Mid-Tower PC Case White CC-9011345-WW

ROOM FOR THE BIGGEST GPUs

The 3200D is a spacious mid-tower chassis designed for modern GPUs. With 375mm of clearance with front fans installed, even the most powerful GPUs have plenty of room to breathe. The PSU shroud also features 2x 120mm fan mounts, with the front one being angled directly at the GPU, providing even more cooling power for the hottest GPUs.

Features:

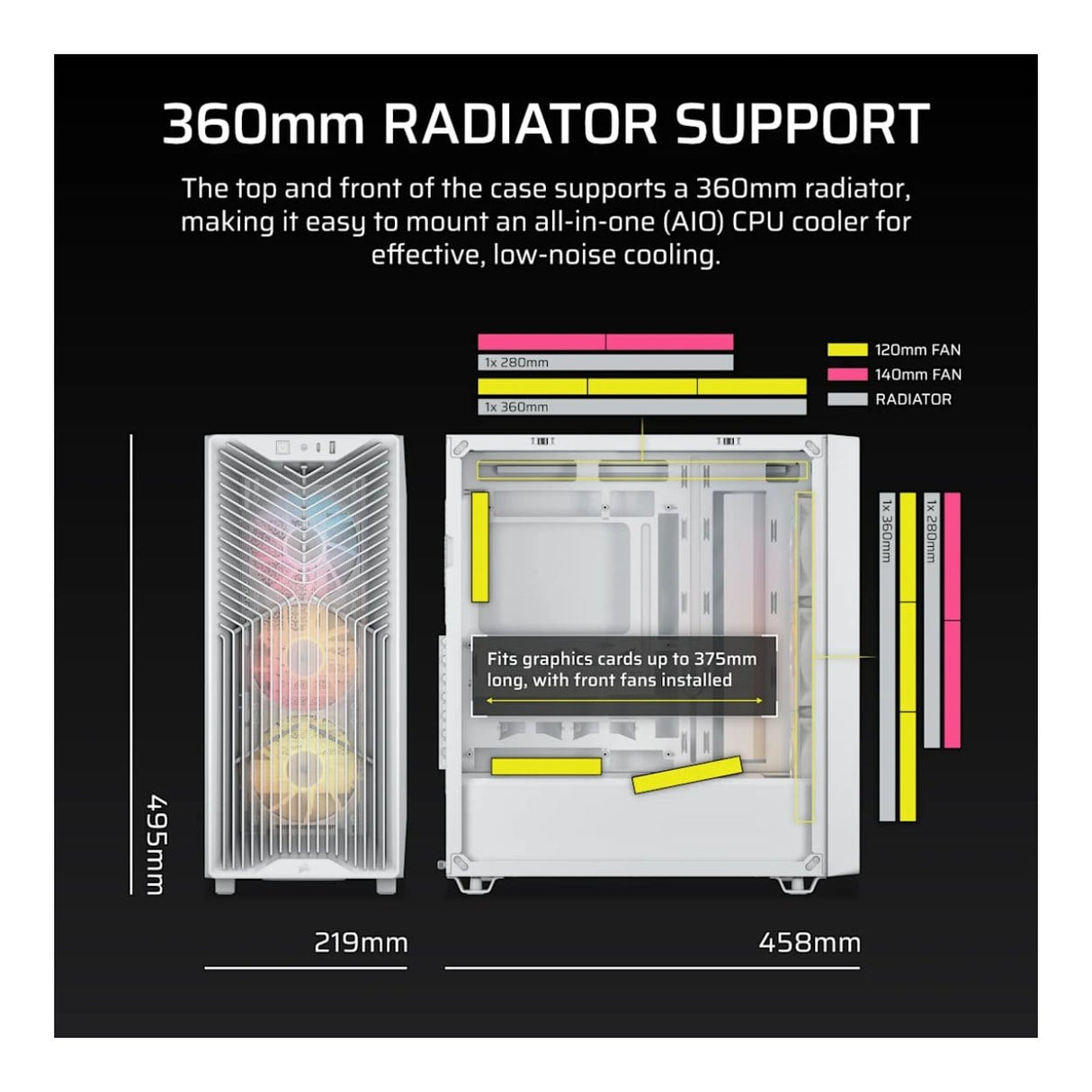

• Supports 360mm AIO radiators in the top or front
• 375mm GPU clearance (400mm with fans removed)
• Abundant cooling options with 9x 120mm fan mounts
• 3x RS120 ARGB Fans included

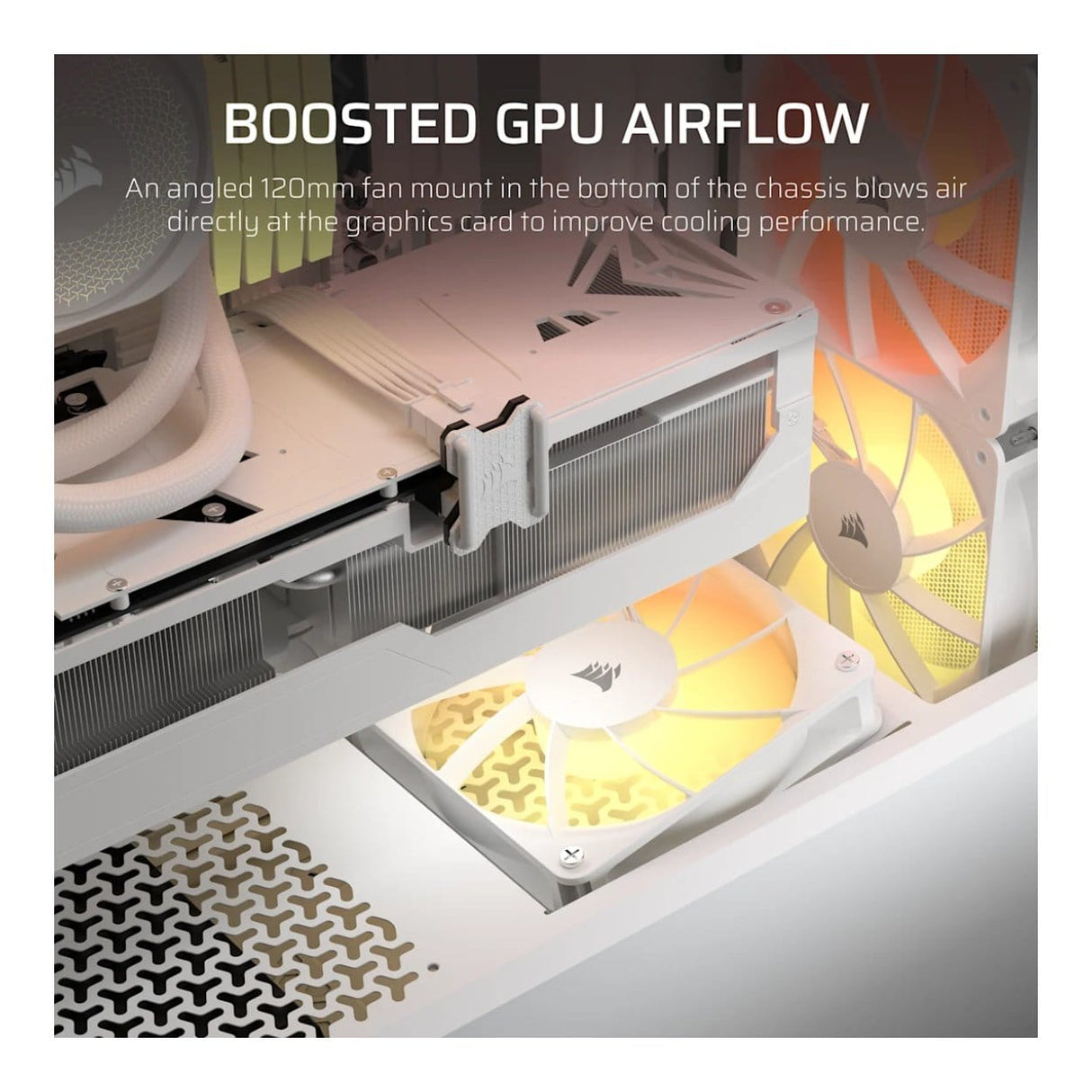

• Angled bottom fan mount for direct GPU cooling
• Built-in GPU Anti-sag Stabilization Arm
• Compatible with reverse-connector motherboards

AIR BENDING

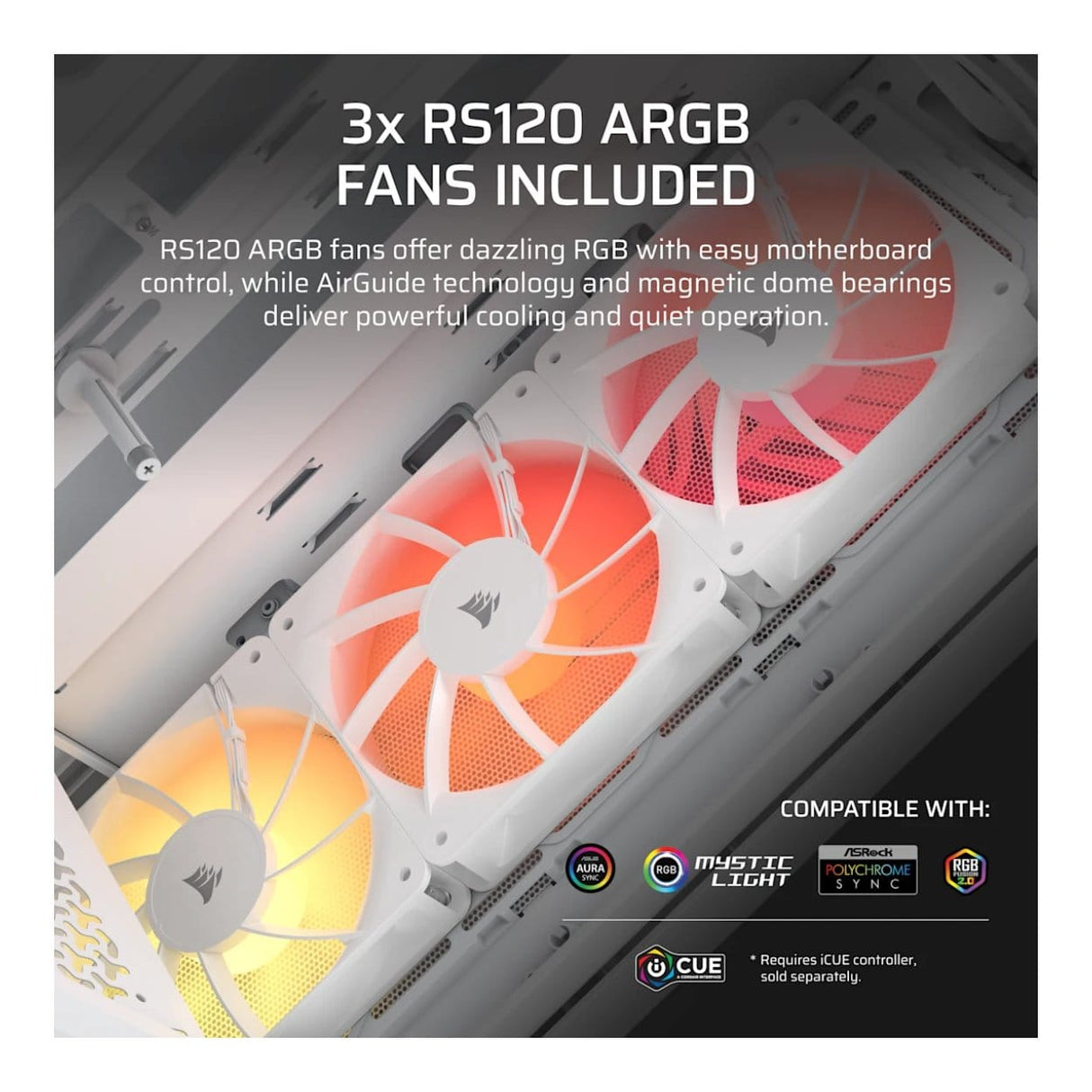

THREE RS120 ARGB FANS INCLUDED

Simply plug in the fans and customize your RGB lighting using your motherboard’s ARGB software, including ASUS Aura Sync, MSI Mystic Light, ASRock Polychrome RGB, and GIGABYTE RGB Fusion.

UNIFIED FAN CONTROL

DIRECT-TO-MOTHERBOARD CONNECTION

Reduce cable clutter by daisy chaining your RS ARGB Series fans together, controlling them all through a single 4‑pin PWM connector and one +5V ARGB connector on your motherboard.

CABLE MANAGEMENT CHEAT CODE

DESIGNED FOR SUPER-CLEAN BUILDS

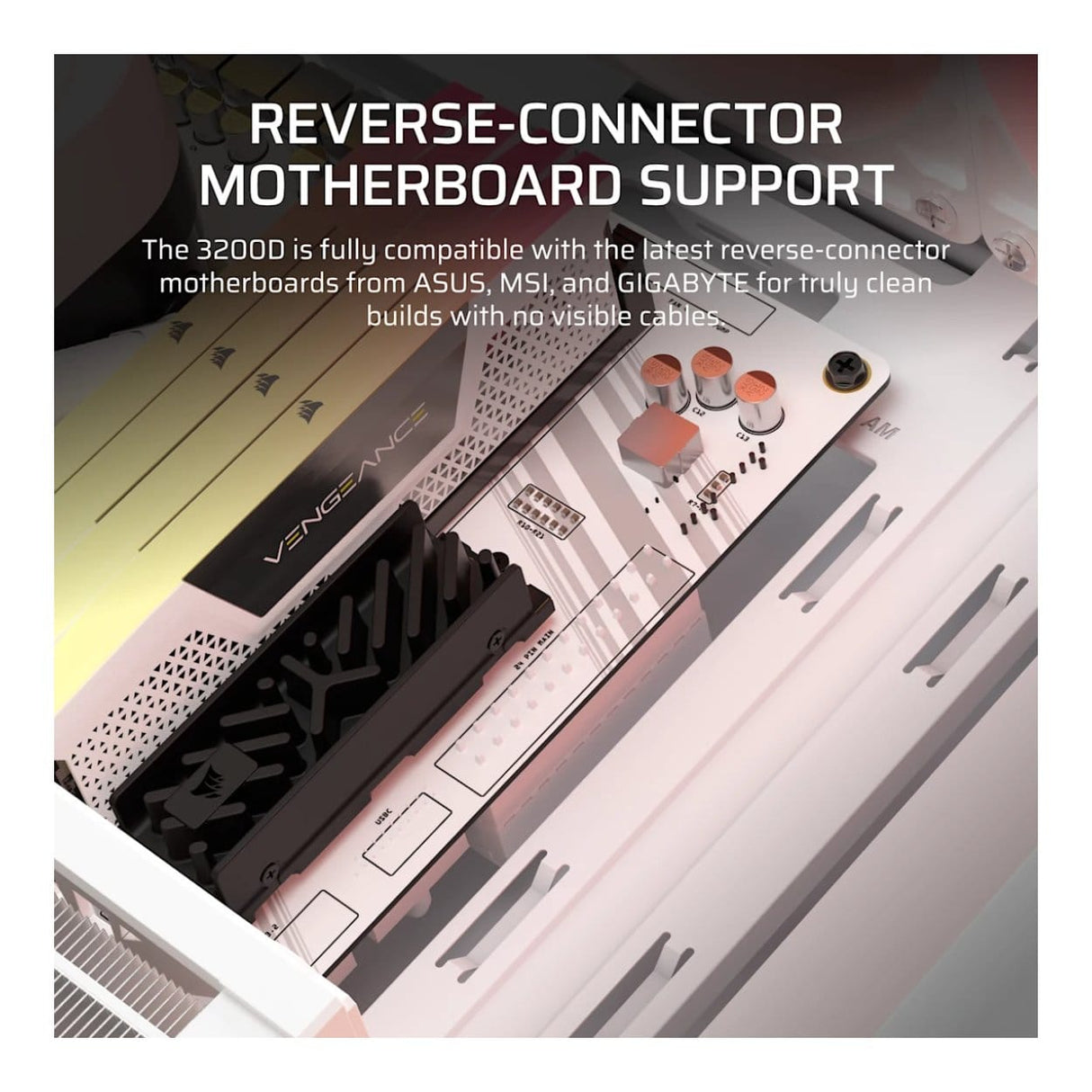

Cable management is easy in the 3200D with support for reverse-connector motherboards, a built-in cable shroud, and ample tie-down locations throughout the chassis.

FUNCTION FIRST

BUILT FOR THE REAL WORLD

Every detail of the 3200D is focused on performance and how your system runs day to day. From keeping your graphics card securely in place to directing airflow where it is needed most, these features work together to help your build maintain optimal performance.

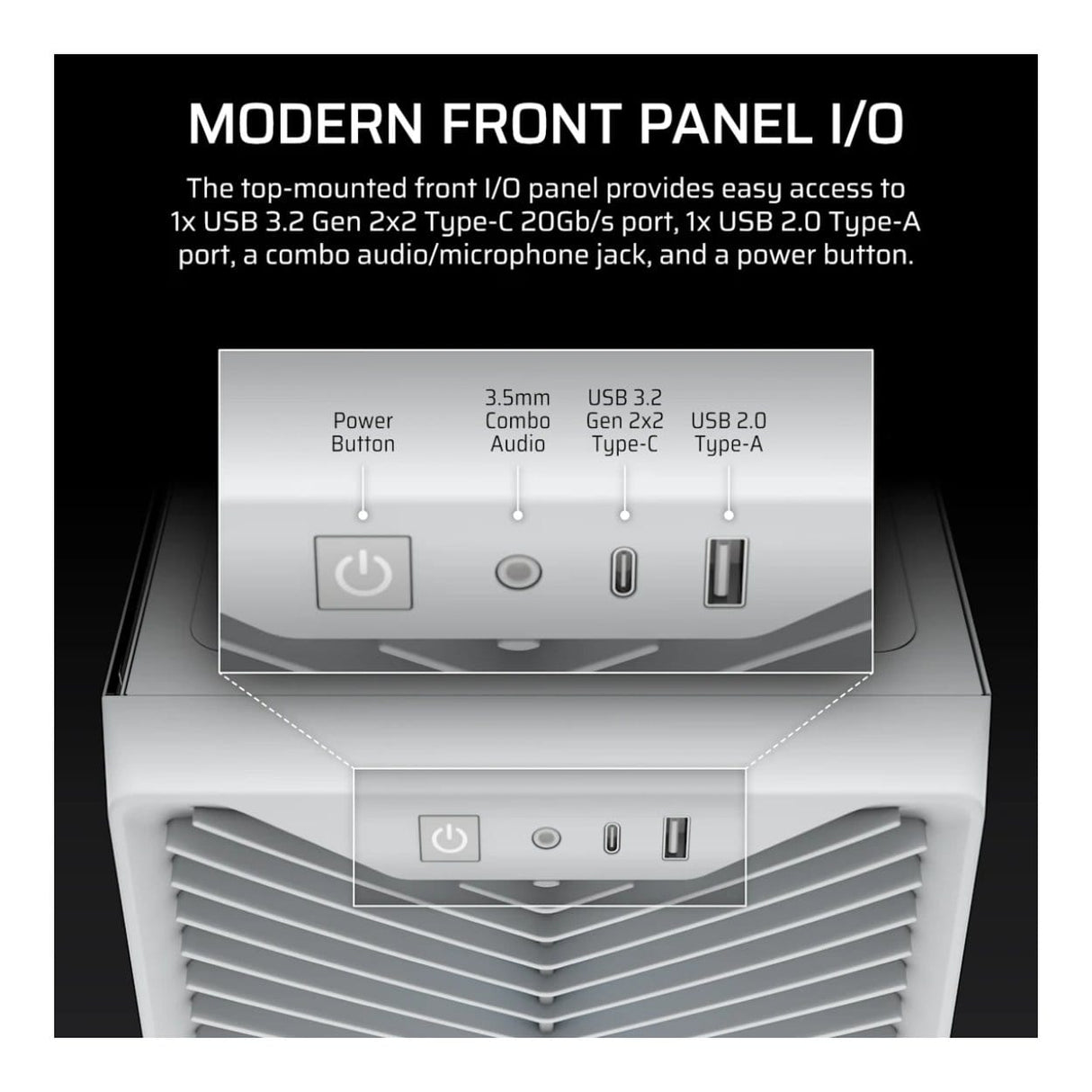

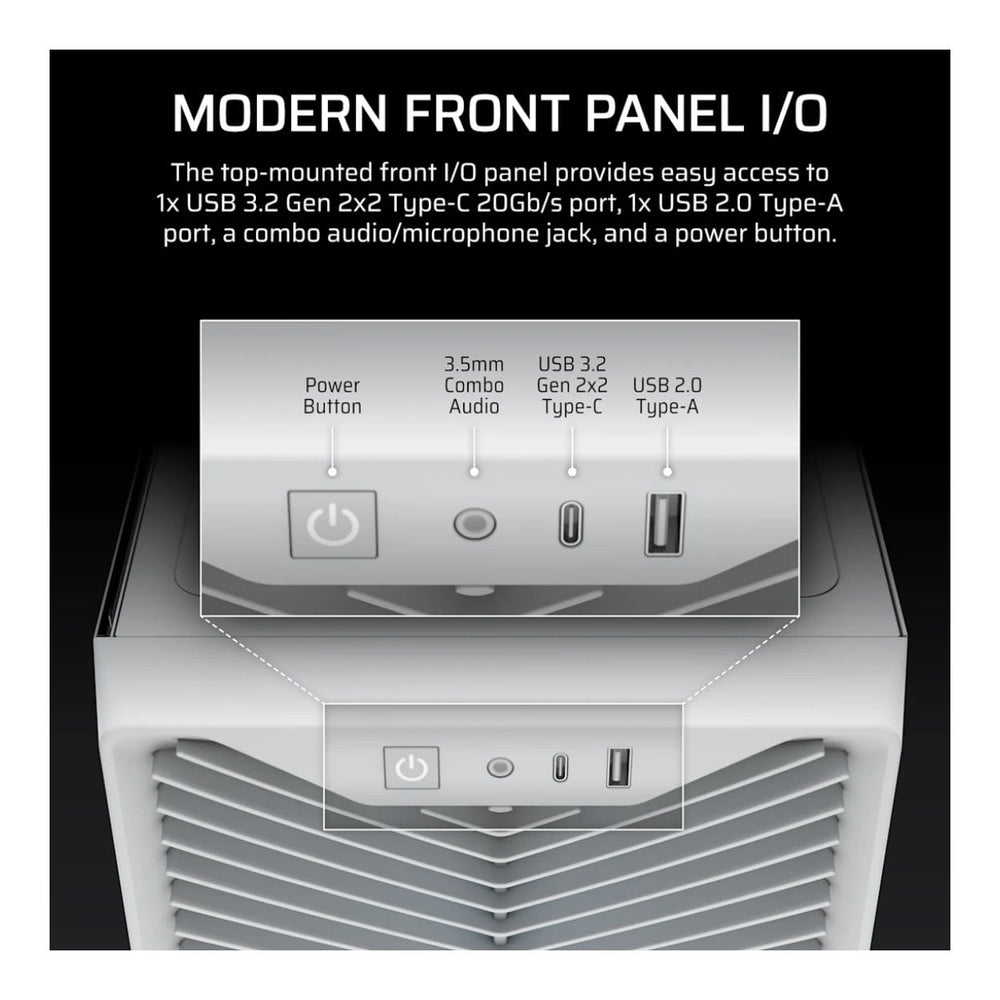

MODERN FRONT PANEL I/O

The top-mounted I/O ports grant easy access to a USB 3.2 Gen 2x2 Type-C 20Gb/s port for lightning-fast data transfers, a USB 2.0 Type-A, a combo audio/microphone jack, and a power button.

1. Power Button
2. Headphone / Mic Combo Jack
3. USB 3.2 Gen 2x2 Type-C Port
4. USB 2.0 Type-A Port

Technical Specifications:

General

Case Size
Mid-Tower

Supported Motherboard Form Factors

• Mini-ITX
• MicroATX
• ATX

Material
Steel, Tempered Glass, Plastic

Color
White

Case Window
Tempered Glass

Left Side Panel
Tempered Glass

Right Side Panel
Steel

Reverse Connector Motherboard Support
Yes

Vertical GPU Mount Support
Unsupported

Warranty
2 Year

Dimensions And Weight

Height
495 mm

Length
458 mm

Width
219 mm

Weight
8.5 kg

Cable Routing Space
24 mm

Cooling Support

Radiator Compatibility

• 120 mm
• 140 mm
• 240 mm
• 280 mm
• 360 mm

Radiator Support – Top

• 360 mm
• 280 mm
• 240 mm

Radiator Support – Front

• 360 mm
• 280 mm
• 240 mm

Radiator Support – Rear
120 mm

Radiator Support – Bottom
None

Radiator Support – Side
None

Fan Support – Top

• 3 × 120 mm
• 2 × 140 mm

Fan Support – Front

• 3 × 120 mm
• 2 × 140 mm

Fan Support – Bottom

• 2 × 120 mm

Fan Support – Rear
1 × 120 mm

Fan Support – Side
None

Included Fans
RS ARGB Series

Dust Filtration
Yes

Compatible Liquid Coolers

• H60
• H100
• H115
• H150
• NAUTILUS
• TITAN

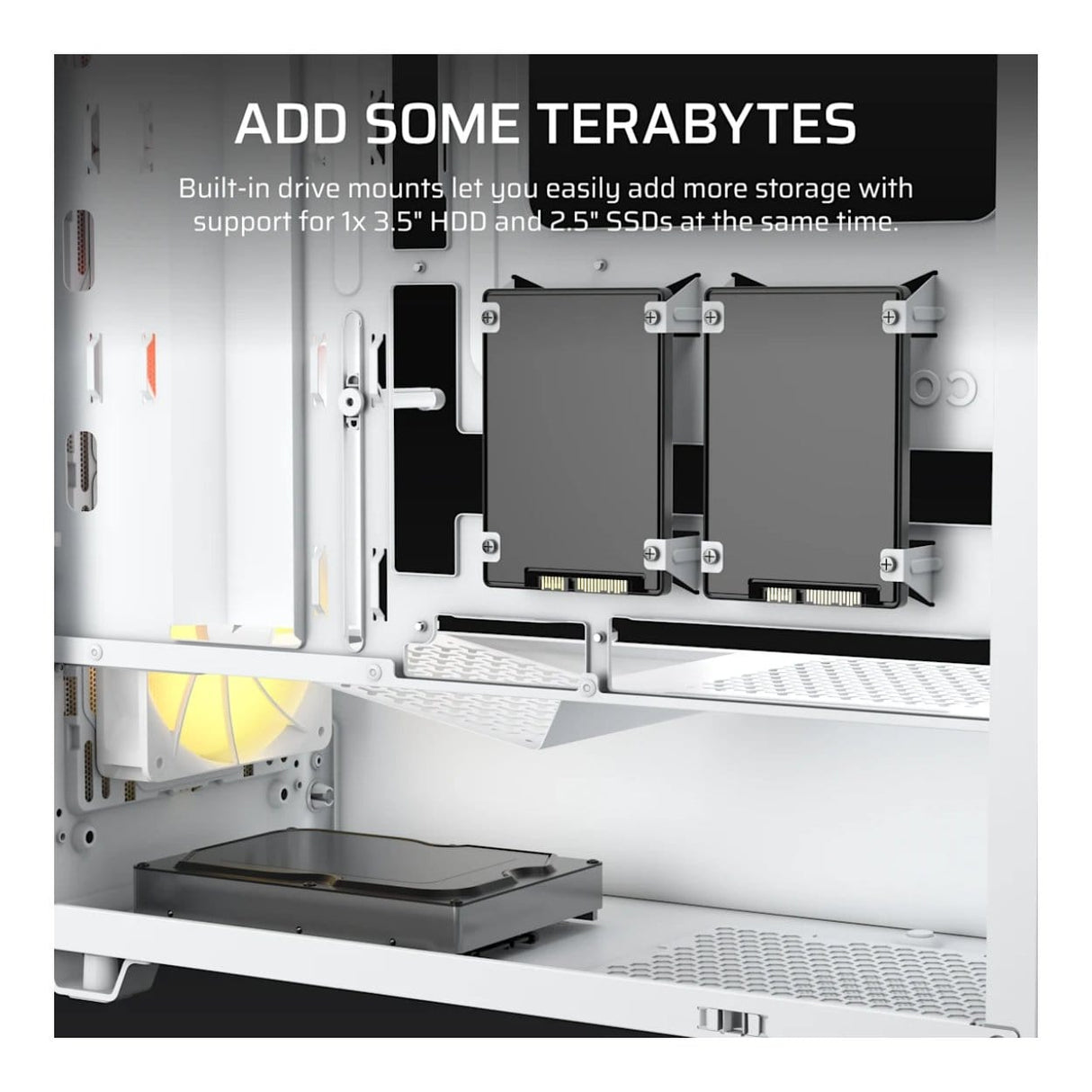

Storage Support

Internal 3.5 Inch Drive Bays
1

Internal 2.5 Inch Drive Bays
2

Clearances

Maximum CPU Cooler Height
165 mm

Maximum GPU Length
400 mm

Maximum PSU Length
180 mm

Expansion Slots
7 Horizontal

Power Supply

Supported Power Supply Type
ATX

Front I/O Ports

Ports

• 1 × USB 3.2 Gen 2x2 Type-C
• 1 × USB 2.0 Type-A
• 1 × Audio In/Out

Front I/O Motherboard Connections

• 1 × USB 3.2 Gen 2x2 Type-E
• 1 × USB 2.0 9-Pin
• 1 × F_PANEL
• 1 × HD Audio

Cable Management

RapidRoute Included
No
