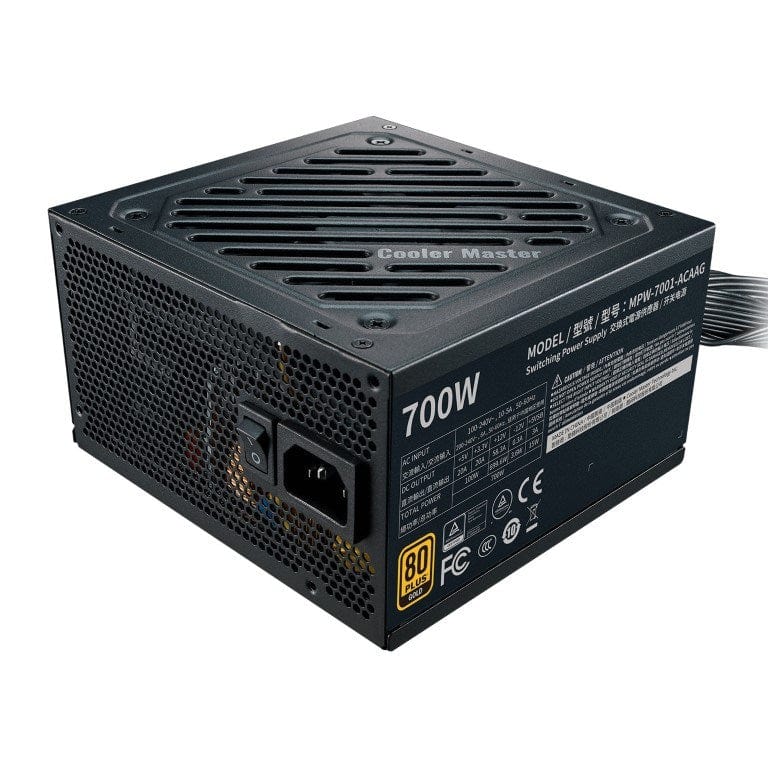

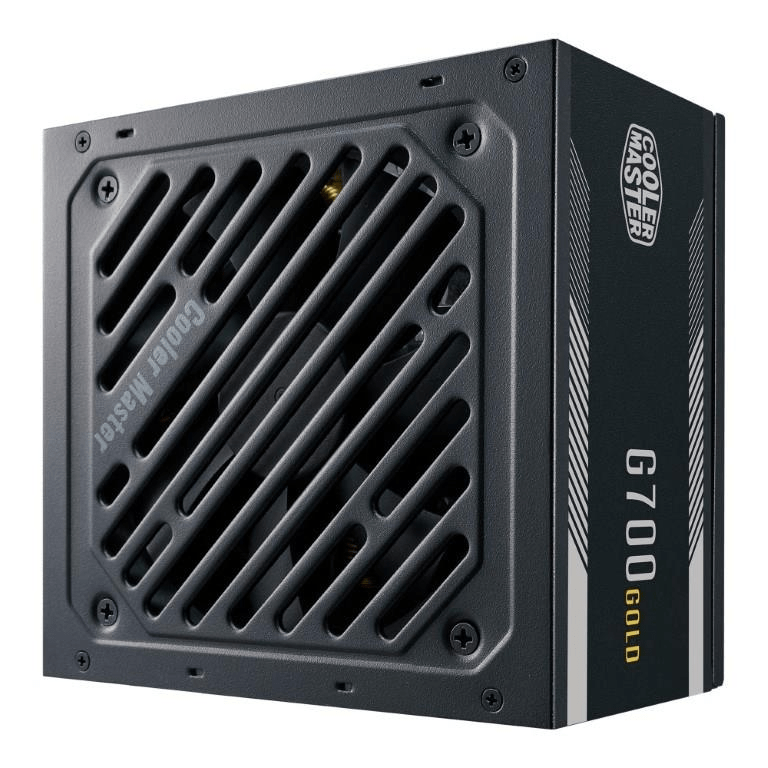

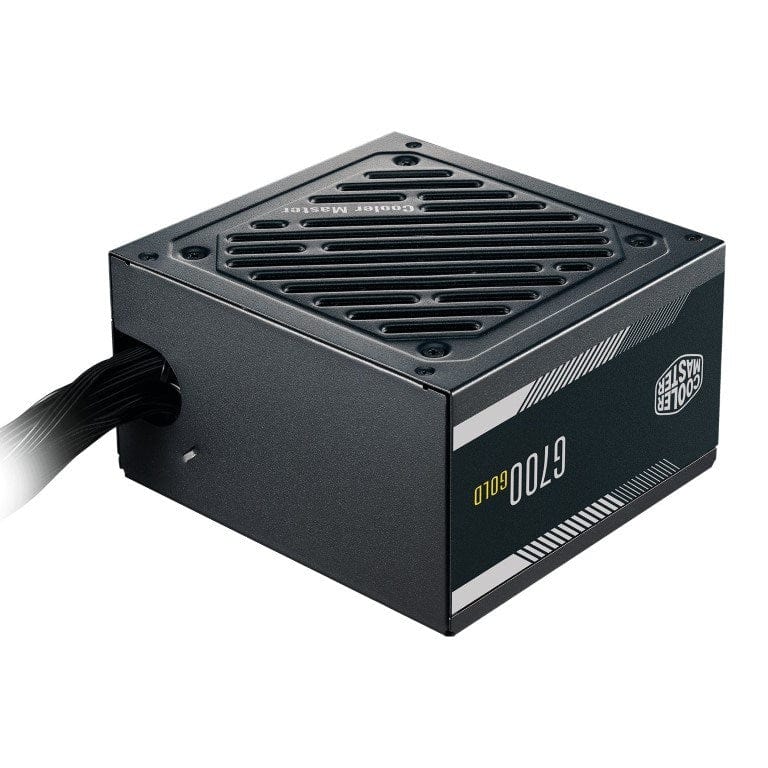

Cooler Master G700 Gold 700W ATX Power Supply Unit MPW-7001-ACAAG-EU

Cooler Master G700 Gold 700W ATX Power Supply Unit MPW-7001-ACAAG-EU

Entry Level 80 Plus Gold ATX Power Supply Unit

Features

• 80 PLUS Gold Efficiency
• Intel ATX 12V version 2.52
• 2 EPS Connectors
• 120mm HDB Fan
• High Temperature Resistance

More Power for Less

The G Gold Series marries high end performance standards with entry level pricing, delivering the essential features while also providing high efficiency. Every aspect of these models has been specifically tailored and balanced to hit the lowest possible price point without having to sacrifice important features that affect long-term reliability and continuous performance.

Efficiency Is Non-Negotiable

PSU units in the 80 PLUS Gold segment simply cost more by nature of marketing. This series delivers 80 PLUS Gold efficiency at a manageable price. It's already a legal requirement in a number of places around the world. The G Gold series was created to make this transition as easy as possible for system builders of any budget.

Modern Standards for Modern Systems

The G Gold series is affordable but by no means lacking by meeting the Intel ATX 2.52 standard requirements. It's one of the budget power supplies on the market currently meeting this standard.

Keep Cool, Stay Quiet

Hydrodynamic fan bearing delivers an effective cooling solution that are both quiet and reliable. 120mm fan size provides a reliable level of cooling with acceptable noise levels while maintain temperatures well within the safety guidelines without breaking the bank.

Heated but not Hot

With an operating temperature of 40℃, most system operations can be handled safely and reliably in a majority of settings.

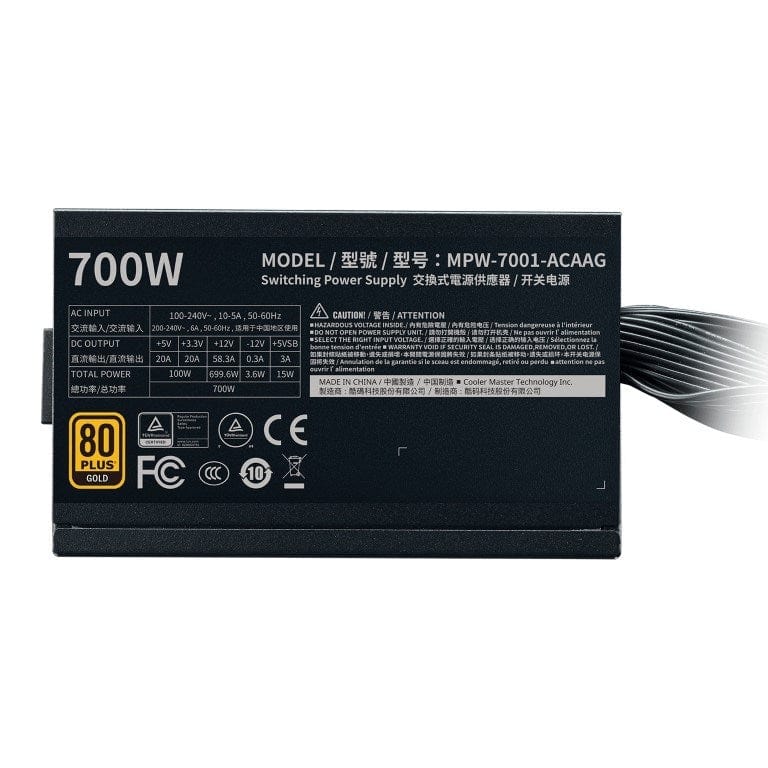

Technical Specification

Model: MPW-7001-ACAAG
ATX Version: ATX 12V V2.52
PFC: Active PFC
Input Voltage: 100-240V
Input Current: 10-5A
Input Frequency: 47-63Hz
Dimensions (L x W x H): 140 x 150 x 86 mm

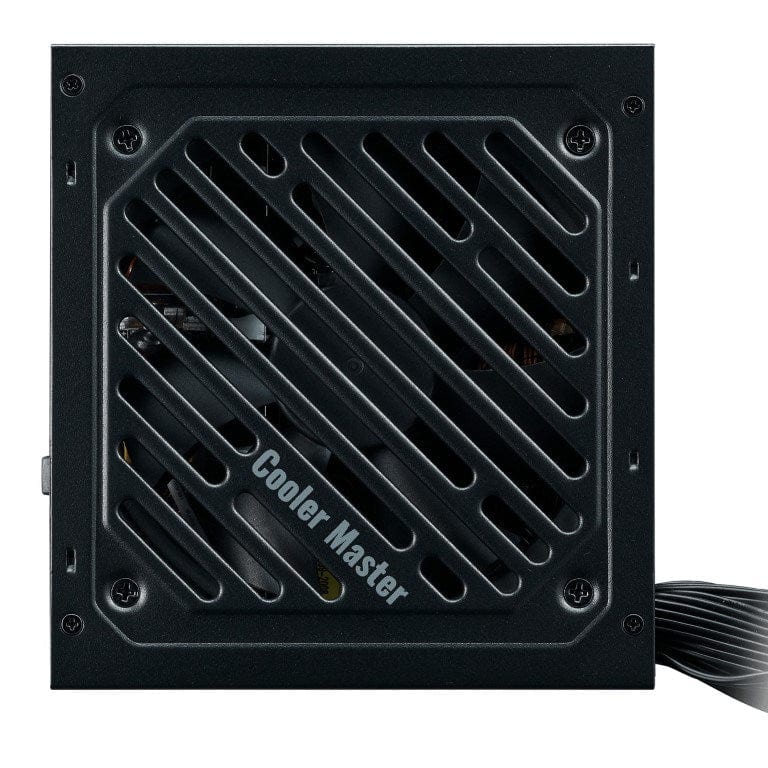

Fan Size: 120mm
Fan Bearing: HDB
Efficiency: ≥90% @ Typical Load
80 PLUS Rating: 80 PLUS Gold
ErP 2014 Lot 3: Yes
Operating Temperature: 0-40°C
Power Good Signal: 100 - 150 ms
Hold Up Time: ≥15ms at 100% load
MTBF: >100,000 Hours
Protections: OVP, UVP, OPP, OTP, SCP, OCP
Regulatory: CB, cTUVus, TUV, CE, RoHS2.0, FCC, CCC, BSMI, KC+KCC, BIS, EAC
ATX 24 Pin Connectors: 1
EPS 4+4 Pin Connectors: 1
EPS 8 Pin Connector: 1
SATA Connectors: 6
Peripheral 4 Pin Connectors: 3
PCI-e 6+2 Pin Connectors: 4
Warranty: 5 Years
Series: G Series
80 Plus: Gold
Modular: Non Modular
Wattage 700W
