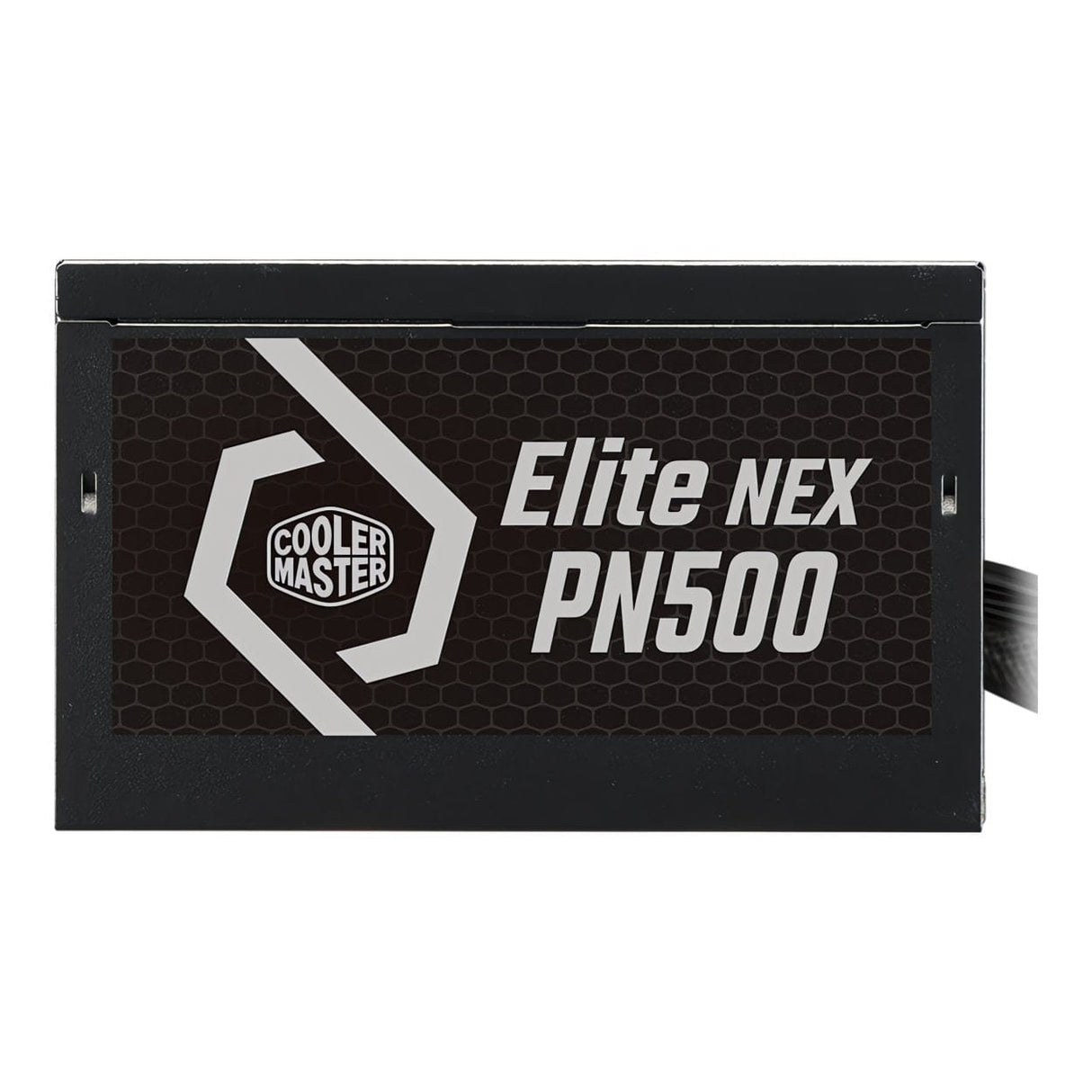

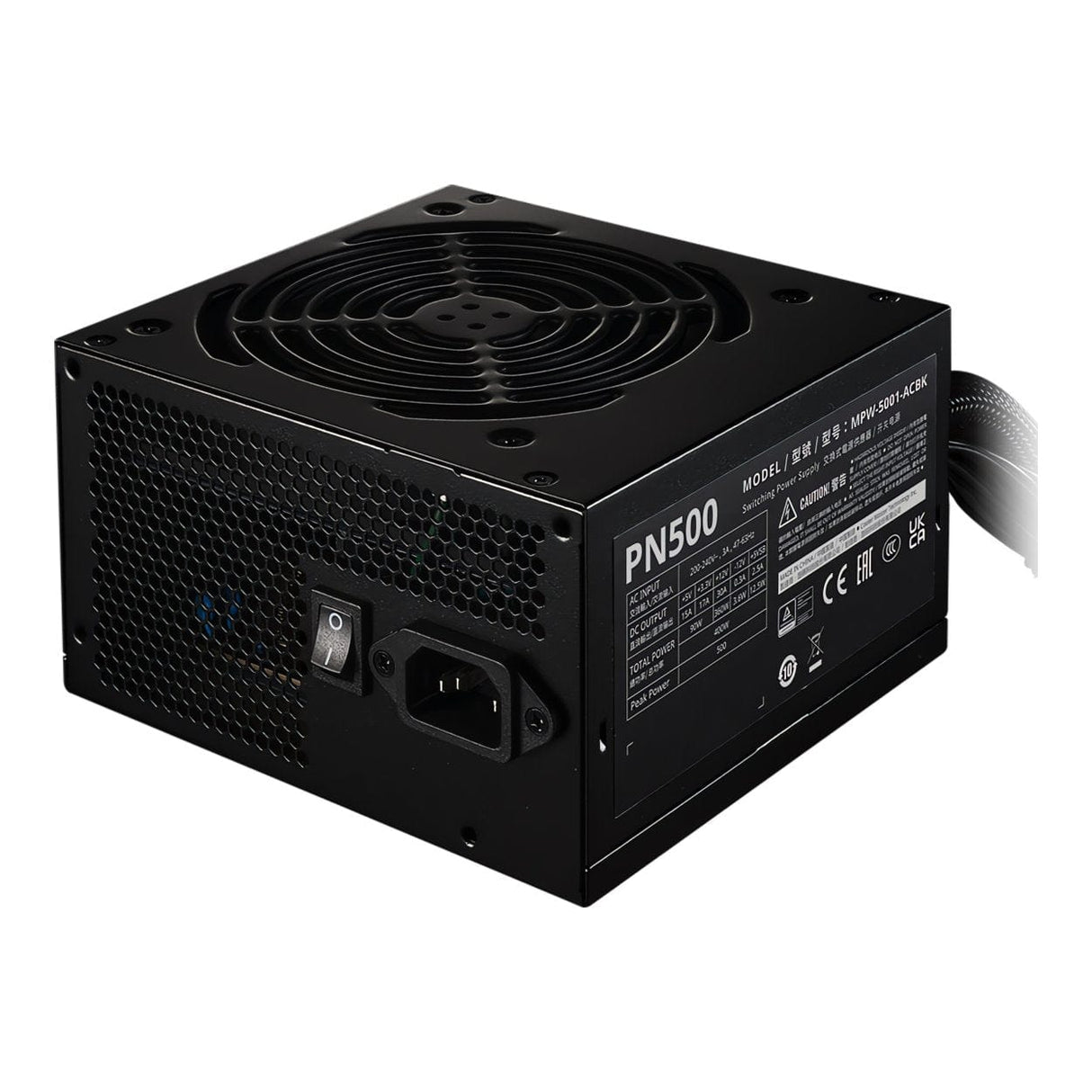

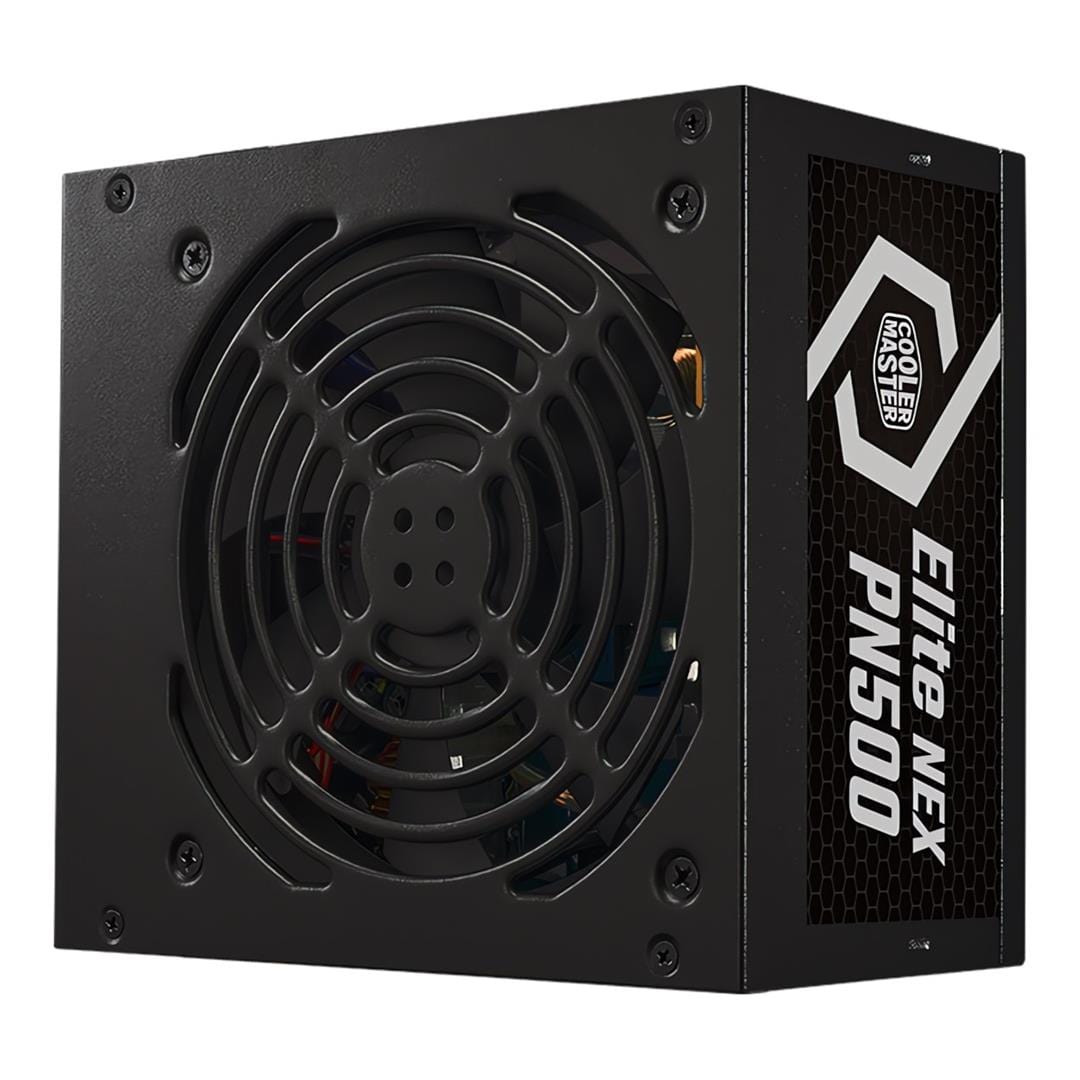

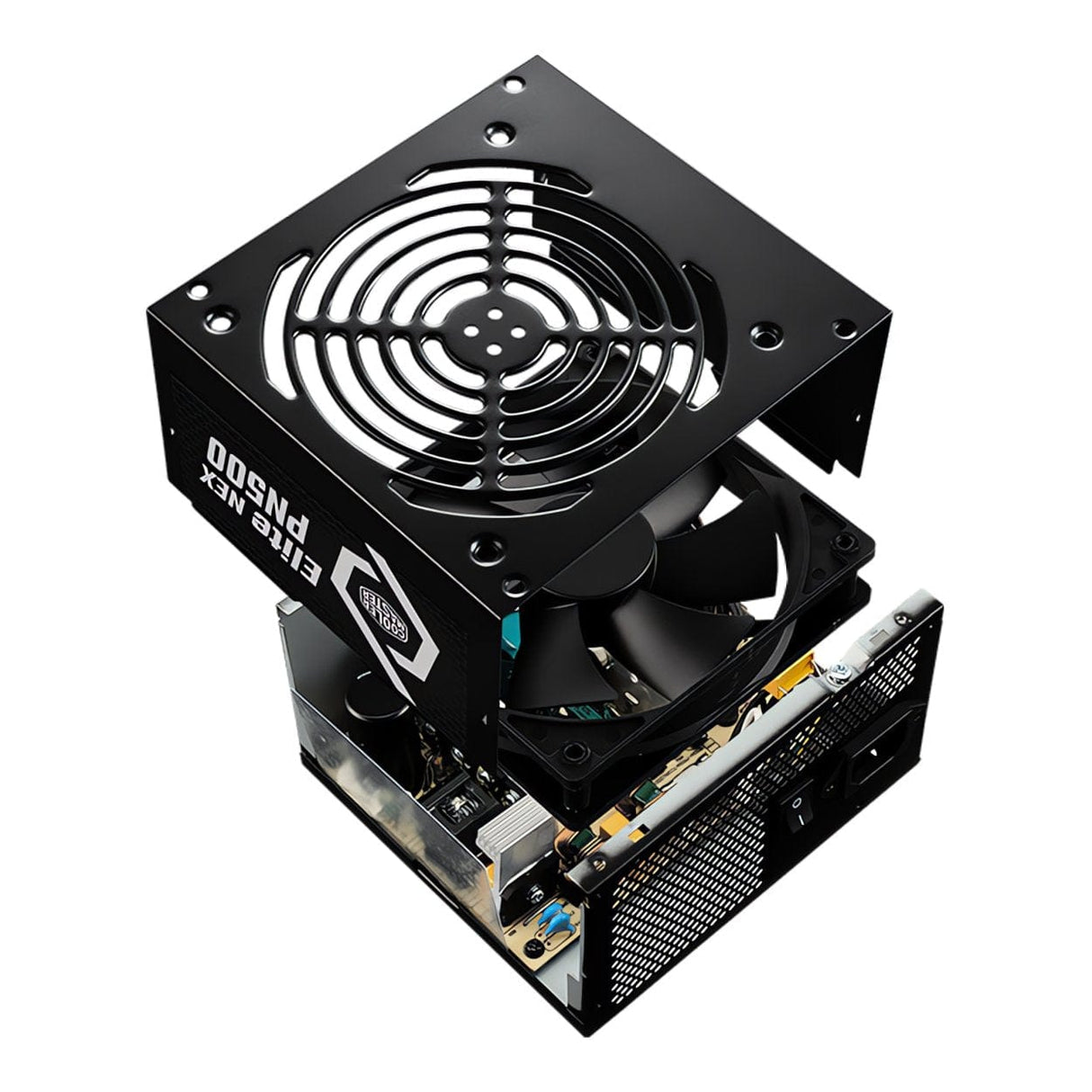

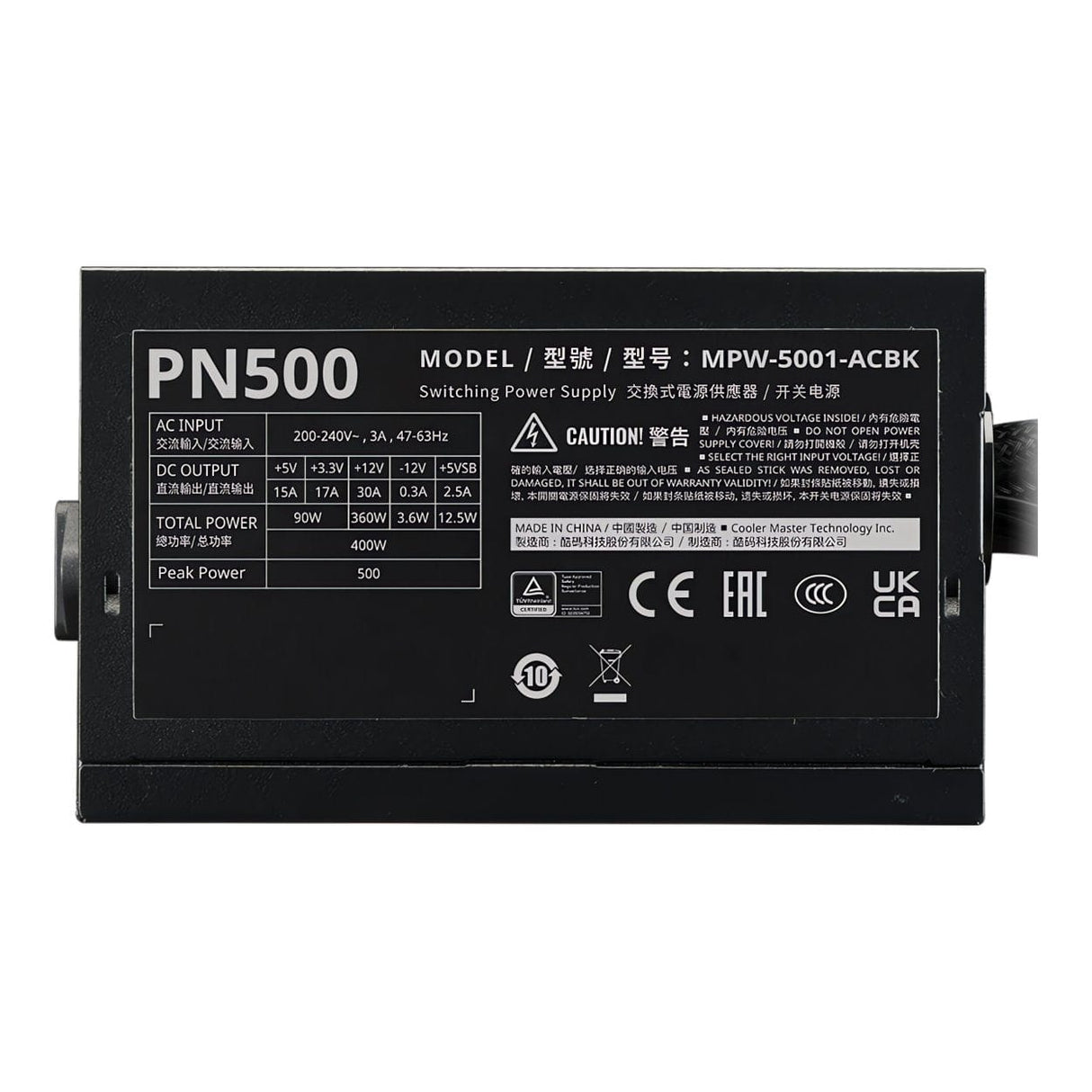

Cooler Master Elite NEX PN500 500W Non-Modular ATX Power Supply Unit MPW-5001-ACBK-P

Cooler Master Elite NEX PN500 500W Non-Modular ATX Power Supply Unit MPW-5001-ACBK-P

Features

• Active PFC and a dual forward topology design
• Excellent temperature resistance
• High peak power tolerance
• Durability, reliability, and safety
• 75% efficiency

NEX Level Power

The ELITE NEX White is the dependable choice for entry level builders looking for a strong, reliable PSU.

Excellent Temperature Resistance

Capable of comfortably operating at 40°C under full loads, allowing for a longer lifespan even in warmer environments.

Active Power Factor Correction and a Dual Forward Topology Design

Constructed with protective measures normally only found in high-end power supplies that improve overall safety and current stability.

High Peak Power Tolerance

Can reliably push an additional 100W at peak power loads for up to 20 seconds.

75% Efficiency And Durable Reliability

Maintains 75% efficiency at typical loads and maintains consistent performance in any environment, whether you live at high altitudes or in high humidity.

Technical Specification

Model: MPW-5001-ACBK-P

ATX Version: ATX 12V Ver. 2.41

PFC: Active PFC

Input Voltage: 200-240V

Input Current: 3A

Input Frequency: 50-60Hz

Dimensions (L x W x H): 140 x 150 x 86 mm

Fan Size: 120mm

Fan Bearing: Sleeve Fan

Efficiency: ≥ 75% @ Typical Load

ErP 2014 Lot 3: Yes

Operating Temperature: 0-40°C

Power Good Signal: 100 - 500 ms

Hold Up Time: ≥10ms at 100% load

MTBF: >100,000 Hours

Protections: OVP / OPP / SCP / UVP / OTP / Inrush Protection

ATX 24 Pin Connectors: 1

EPS 4+4 Pin Connectors: 1

SATA & Peripheral 4 Pin Connectors: 6

PCI-e 6+2 Pin Connectors: 1

Modular: Non Modular

80 Plus Efficiency: None 80 PLUS

Form Factor: ATX

Watts: 500W
